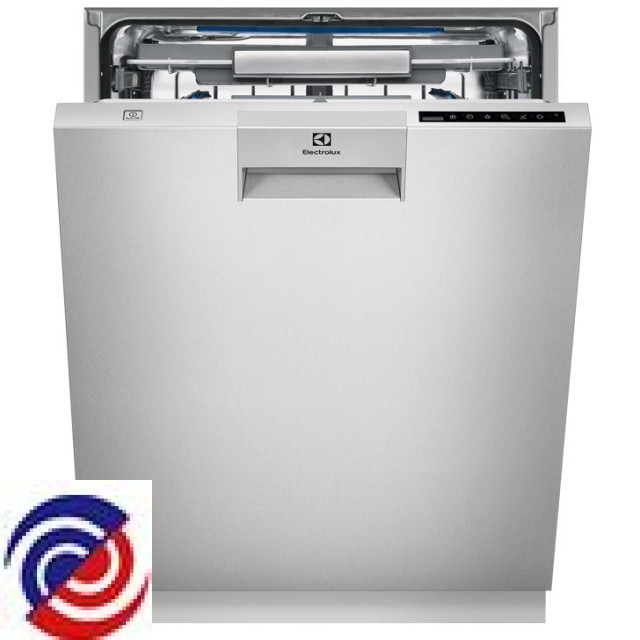

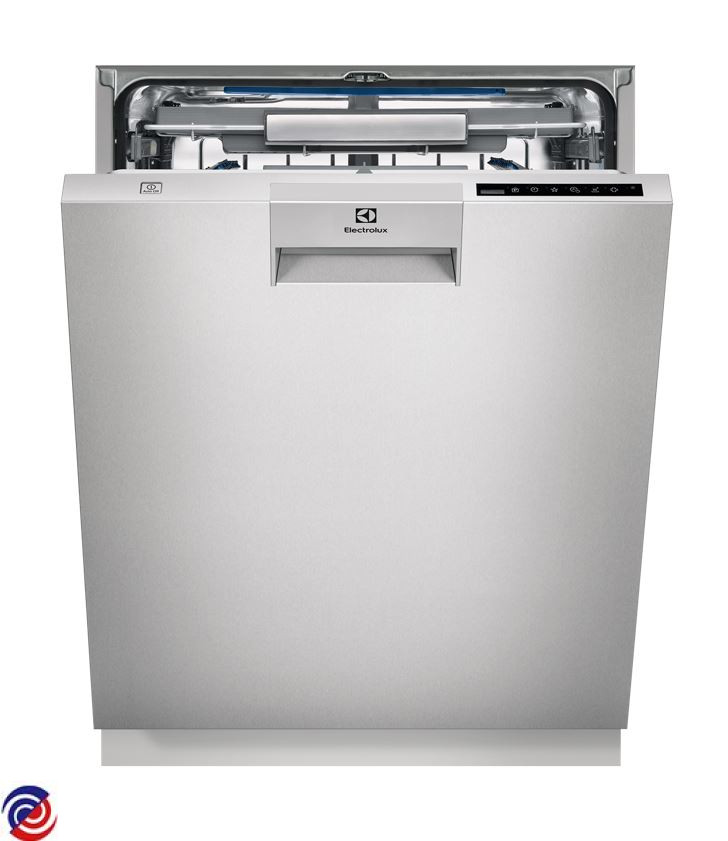

ESF8735ROX — 911447323 02
ELECTROLUX — Dishwasher
Parts for ESF8735ROX
W0015778 GASKET DOOR 1800MM
$45.00
W0017620 SCREW ADJUSTING - FOOT CENTRAL
$22.00
W0017624 SENSOR TEMPERATURE TURBIDITY
W0017639 VALVE NON-RETURN FLAP SUMP
$30.00
W0026942 AEG ELECTROLUX DISHWASHER UPPER SPRAY ARM LOCK NUT
$7.00
W0026962 CHANNEL FEED UPPER SPRAY ARM
$49.00
W0027008 CLIP RACK FOLD DOWN BSKT LOWER
$7.00
W0071643 AEG DISHLEX ELECTROLUX DISHWASHER ON OFF SWITCH 1113337024
$46.00
W0071935 SUPPORT SPRAY ARM LOWER DRK GR
$33.00
W0077255 TRAY CUTLERY
$116.00
W0274391 AEG ELECTROLUX DISHWASHER PRESSURE SWITCH
$51.00
W0274397 AEG ELECTROLUX DISHWASHER PUMP RECIRCULATION 90W
$179.00
W0274404 AEG ELECTROLUX DISHWASHER DRAIN HOSE 2340mm LONG
$38.50
W0275190 LATCH DOOR ASSY - AUTO OPENING
W0283253 ARM SPRAY UPPER GREY ASSY
$49.00
W0015367 TRAP SUMP PUMP RECIRC - BLACK
$13.00
W0015368 O-RING SUMP
$18.00
W0015792 RAIL BASKET UPPER
$17.00
W0015830 PLINTH METAL SLIDING
$37.00
W0015863 LEG ADJUSTABLE CENTRAL 129MM
$20.00
W0015879 SUPPORT INDICATOR LAMP FLOOR
$9.00
W0015886 GROMMET SIDE MOUNT/DOOR GUIDE
$6.00
W0015889 PANEL SIDE RIGHT - ZINC PLATED
$121.00
W0015893 BUTTON PUSH ON/OFF - INOX
$31.00
W0015898 SPRING BUTTON ON/OFF
$11.00
W0017612 REGULATOR FLOW DIRECTION CNTRL
$85.00
W0017613 FRAME TRAY CUTLERY UPPER
$113.00
W0017614 HOSE SUMP TO TANK X370MM
$11.00
W0017631 GROMMET FEED UPPER SPRAY ARM
$6.00
W0017643 PUMP DRAIN BLDC COMP 50/60HZ
W0017651 COVER PCB METAL REAR
$29.70
W0017660 CLIP RACK FOLD DOWN BSKT UPPER
$5.50
W0017665 CORD SERVICE AU 2.15M
$48.00
W0017668 BRACKET ROLLER REAR SIFFENING
$10.00
W0017677 HEATER WITH O-RING 230V/1800W
W0017679 COVER HEATER
$20.00
W0017704 BASKET UPPER DISH WASHER
$384.00
W0017718 KIT MOUNTING BUILT IN
$17.00
W0017917 SEAL O-RING HEATER-PUMP RECIRC
$16.00
W0018963 STOP BASKET UPPER FRONT D/GREY
$9.00
W0019024 VENT VAPOUR OUTLET
$21.00
W0019054 COG LEG ADJUSTABLE CENTRAL
W0023828 KIT OVERFLOW HOSE
$15.90
W0024257 SUPPORT ROLLER KIT (PKT 4)
$58.00
W0024269 KIT SCREW ZC - 3.5 X 19 (2 PCS
$5.50
W0024270 KIT SUPPORT HANDLE DOOR
$14.50
W0024438 SCREW SUPPORT SPRAY ARM LOWER
$5.50
W0024439 SCREW FIXRAIL ROLLER PACK X 8
$18.00
W0026672 STOP BASKET UPPER REAR D/GREY
$10.00
W0026956 RACK FOLD DOWN BSKT UPPER LH
$36.00
W0026957 RACK FOLD DOWN BSKT UPPER RH
$44.00
W0026959 STOP BASKET UPPER REAR GREY
$11.00
W0026964 RAIL CUTLERY TRAY TOP
$15.55
W0026966 TUBE FEED SPRAY ARM UPPER&3RD
$111.00
W0026989 PLUG DRAIN HOSE
$12.10
W0026996 NUT FASTENING TOP SPRAY ARM
$14.00
W0026999 SUPPORT CUP WIRE - SILVER
$40.00
W0027022 SPRAY ARM CABINET TOP 3RD
$137.00
W0027036 PANEL CONTROL - GREY
$420.00
W0027037 HANDLE DOOR - GREY
$49.00
W0027042 SUPPORT SPIKES RUBBER BLUE
$26.00
W0027129 CLAMP DRAIN HOSE Ï30MM
$9.00
W0027130 CLAMP CIRC PUMP FLOW REG Ï36MM
$21.00
W0027131 CLAMP CIRCULATION PUMP-SUMP
$11.00
W0027237 FILTER FLAT + INDICATOR
$69.00
W0072863 BRACE FRONT LOWER
$14.50
W0072915 BRACE REAR UPPER
$21.00
W0072937 BRACKET FIXING TOP
$10.00
W0072941 SUPPORT MOTOR RUBBER
$14.30
W0072984 PANEL SIDE LEFT - ZINC PLATED
$121.00
W0072988 INDICATOR DOOR LAMP
$53.00
W0077065 SWITCH & FLOAT ASSY
$42.00
W0090333 BRACKET ROLLER REAR SIFFENING
$10.00
W0090612 CLAMP HOSE
W0090645 LEG ADJUSTABLE FRONT 121MM
W0129222 SEAL AIR CHAMBER
W0147302 FILTER DRAIN ASSEMBLY - FINE
W0274154 PANEL DOOR OUTER COMP INOX
W0274332 SPRAY ARM LOWER+SATELITE BLUE
$130.00
W0274335 TANK SIDE AIR BREAK/FILL
$80.00
W0274337 BRACE FRONT UPPER
$46.45
W0274389 BASKET UPPER CUP SUPPORT
$18.00
W0274390 SUMP HYDRAULICS ASSY
$34.00
W0274396 DISPENSER DETERGENT
$69.90
W0274447 BASKET LOWER ASSY COMFORT LIFT
$360.00
W0274458 RACK FOLD DOWN BSKT LOWER
$58.00
W0274480 TAPE STEAM PROTECT PLAS x750mm
$16.05
W0274491 HARNESS PCB . PUMP ( A )
$90.00
W0274494 STRIKER DOOR - DIAMOND
$7.00
W0274648 GASKET DOOR LOWER BLACK-546mm
$45.00
W0274691 HARNESS PCB - DOOR ( B )
$90.00
W0274775 SUPPORT GAS STRUT BASKET LOWER
W0274776 ROLLER HINGE GUIDE COMFLIFT
$48.00
W0274921 PANEL KICK FRONT LOWER
$37.00
W0274922 PANEL INNER DOOR ST/ST
$226.00
W0274923 HOSE INLET AQUA CONTROL 1800MM
W0275173 KIT DOOR HINGE - LEFT/RIGHT
$98.00
W0275181 HANDLE FRAME TRAY CUTLERY UPPR
$39.00
W0275183 HANDLE BASKET UPPER
$45.85
W0275195 BRACE HINGE COMFORTLIFT
$92.00
W0275196 HANDLE BSKT LOWER COMFLIFT RED
$46.50
W0275197 SPRING BASKET LWR CLOSING L/R
$168.00
W0275198 HINGE COMFORTLIFT LEFT HAND
$373.00
W0275199 HINGE COMFORTLIFT RIGHT HAND
$557.00
W0275200 MOUNTING KIT SUPT HINGE C/LIFT
$18.00
W0275201 SUPPORT HINGE COMFLIFT LH KIT
W0275202 SUPPORT HINGE COMFLIFT RH KIT
W0275418 KNIFE INSERT CUT TRAY BLUE
$18.00
W0275436 HARNESS PCB . HEATER ( C )
$44.00
W0275447 PCB USER INTER WHITE EDW1953
$352.00
W0275455 STICKER PROGRAMME GUIDE
$6.00
W0275490 BOARD PC PROGRAMMED PB101
$531.00
W0283149 HANDLE TRIGGER KITCOMFLIFT
$9.20
W0283150 BRACKET KIT FRONT COMFLIFT
$20.00
W0283151 BRACKET KIT LH-RH COMFLIFT
W0283163 WHEEL SUPPORT KIT L&R X2
$6.25
W0284086 STOPPER BASKET RAIL COMFLIFT
$13.00
W0284184 HOLDER DISHWASHER BASKET TOP
$18.00
W0284275 TRAY BOTTOM BLACK
$58.00
W0284307 ADJUSTMENT KIT UPPER BASKET
$58.00
