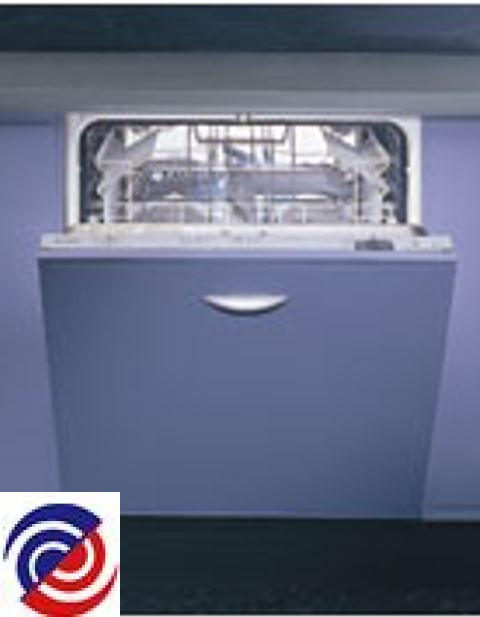

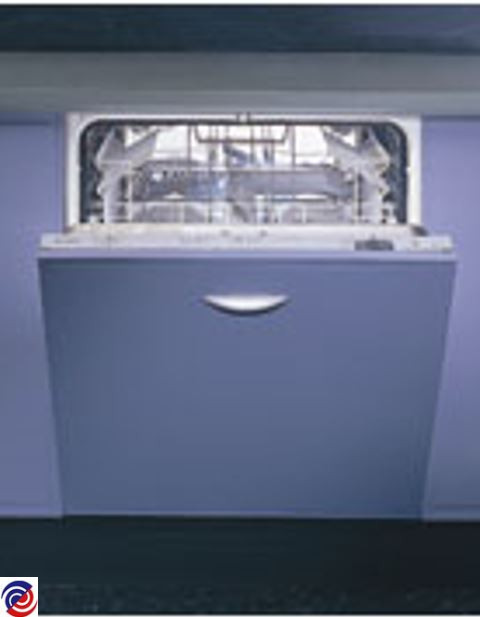

ESL6100 — 911892040 00
ELECTROLUX — Dishwasher
Parts for ESL6100
W0013692 UNIVERSAL WASHING MACHINE & DISHWASHER DRAIN HOSE STRAIGHT CUFFS 2M
$45.00
W0018959 VALVE ANTIOVERFLOW
$110.00
W0019102 VALVE ELECTRIC
$100.00
W0090546 BASKET CUTLERY
W0127503 PEG DOOR PANEL KIT OF 2 LG HD
$10.00
W0018988 LATCH DOOR LOCK
W0018997 GUARD BASE
W0019001 SPRAY ARM TOP
W0019002 STAND HARNESS
W0019004 WIRING UPPER
W0019008 CROSSBAR FRONT UPPER WHT
W0019044 PLATE OPERATING
W0019103 FILTER COLUMN GREY
$122.45
W0019104 SUPPORT FILTER & GASKET ASSY
$9.90
W0025605 ROLLER BASKET UPPER
$6.60
W0043644 TUBE AIR DOME
W0071713 ELEMENT HEATER 230V 2100W
W0074295 GASKET HOSE
W0090248 HOUSING FLOAT
W0090251 FLOAT
W0090254 FERRULE DECALCIFIER LIGHT GREY
W0090256 BUNG DECALCIFIER LIGHT GREY
W0090264 GASKET PUMP FRONT 50/39MM DIA
W0090265 GASKET PUMP FRONT 63/09MM DIA
W0090270 FUNNEL GREY
W0090277 SWITCH MICRO ANTI OVERFLOW
W0090280 TIE HINGE
W0090282 GASKET DOOR BOTTOM
W0090290 TUBE REGEN TANK DRAIN 250MM
W0090293 CAP RAIL END (GREY)
W0090299 RAIL BASKET UPPER
W0090301 SWITCH ON/OFF
W0090304 HOLDER PUSH BUTTON
W0090309 GASKET COLUMN
W0090331 BRACKET ROLLER REAR SIFFENING
W0090353 LEG LEVELLING
W0090355 BRACKET & ROLLER ASSY GREY
W0090364 SPRING FIXING TEMP REGULATOR
W0090365 HOSE INLET SAFETY 1.5M LONG
W0090375 PIECE DISTANCE CROSSPIECE REAR
W0090376 TRIMMING TUB CABINET
W0090377 GASKET
W0090378 CONNECTOR OUTLET VALVE
W0090379 RETAINER SUMP
W0090380 COVER WIRING
W0090383 SCROLL WASH
W0090384 GASKET WATER SUMP
W0090385 MEMBRANE OUTLET VALVE
W0090388 BUFFER BACK MOTOR
W0090390 SOCKET ADJUSTABLE
W0090402 SEALING STRIP
W0090405 CAPAC 4UF 400V 2PIN
$40.00
W0090411 CONNECTOR MANIFOLD LIGHT GREY
W0090413 SEAL CHANNEL DRAINAGE
W0090417 BRACKET FIXING TOP
W0090422 NUT SPEED CLIP
W0090424 PAD SLIDE LEG
W0090425 GEAR WHEEL
W0090426 SCREW ADJUSTING CENTRAL FOOT
W0090437 LEG CENTRAL
W0090438 CROSSBAR FRONT BOTTOM
W0090439 CLOSURE FRONT BOTTOM
W0090440 CROSSBAR BACK UPPER
W0090441 FERRULE GREY
W0090443 REGULATOR TEMPERATURE 59C
W0090448 KNOB ASSY
W0090449 TRAY DRIP
W0090451 MANIFOLD STEAM
W0090455 BRACKET SUPPORT MOTOR
W0090456 GUIDE RAIL CENTRAL FOOT
W0090460 FERRULE ACTIVE DRY GREY
W0090461 SPRING HINGE
W0090472 MANIFOLD HEATER ELEMENT
$51.85
W0090473 CONNECTOR WATER SUMP TO HEATER
W0090475 GASKET DOOR 17300MM
W0090480 FILTER DRAIN PUMP GREY
W0090485 PANEL DOOR WHITE
W0090494 DECALCIFIER IWMS
W0090497 TIMER
W0090498 SPRAY ARM BOTTOM
W0090499 REGULATOR TEMPERATURE 42C
W0090502 CHANNEL DRAINAGE GREY
W0090507 HOSE PROTECTION
W0090508 FOIL ALUMINIUM ADHESIVE
W0090510 GRATE CUTLERY BASKET GREY
W0090513 PROTECTION TIMER
W0090514 TEMPLATE
W0090516 GUIDANCE INNER DOOR GREY
W0090517 SEAL DECALCIFIER
W0090527 STOP RAIL END (GREY)
W0090538 DISPENSER DETERGENT GREY
W0090553 BOX JUNCTION INTERGRATED
W0090556 BUTTON ON/OFF
W0090557 BUTTON BIO
W0090603 FLAP SUPPORT SOLENOID
W0090610 PLUG BRIDGING
W0090636 COVER LATCH HOLE
W0090652 PANEL CONTROL GREY
W0090663 PANEL SIDE LEFT WHITE
W0090668 PANEL SIDE RIGHT WHITE
W0090696 SPONGE
W0090893 BASKET BOTTOM GREY
W0090894 BASKET UPPER GREY
W0090895 MANIFOLD HORIZONTAL GREY
W0090896 HOSE CONNECTING STAND
W0090897 SWITCH COMPLETE PRESSURE
W0090898 HOSE VALVE
W0090899 HOSE
W0090900 SHAFT ADJUSTOR
W0095891 BUSHING
W0127221 O RING MANIFOLD INNER
W0127337 NUT WATER DISTRIBUTOR
W0127466 O RING MANIFOLD OUTER
W0127468 O RING FERRULE MANIFOLD
W0127485 HINGE DOOR KIT LH & RH
W0127513 SWITCH MICRO DOOR
W0127598 PUMP KIT COMPLETE
W0127601 IMPELLORS ASSEMBLY
W0127691 PANEL ASSY DOOR INNER
W0127749 ROLLER ASSY LOWER BASKET
W0127834 LATCH KIT BRIDGING PLUG
W0129222 SEAL AIR CHAMBER
