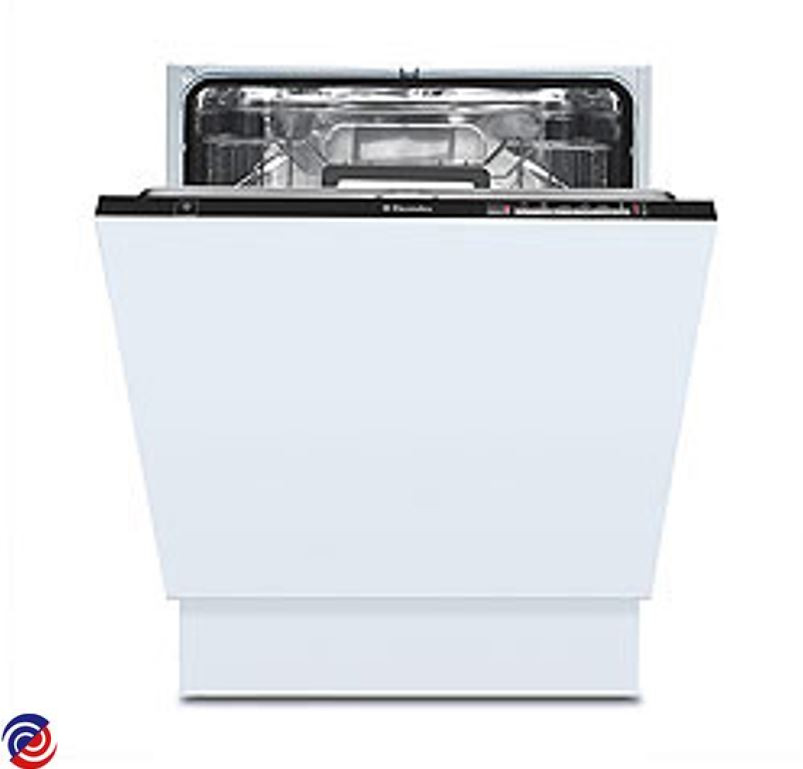

ESL66010 — 911936254 00
ELECTROLUX — Dishwasher
Parts for ESL66010
W0015721 MOUNT PRESSURE SWITCH
$50.00
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0015747 SCREW ADJUSTING CENTRAL FOOT
$12.90
W0015793 MANIFOLD HORIZONTAL DK GREY
W0019037 SPRAY ARM UPPER DARK GREY
$105.00
W0019038 SPRAY ARM LOWER DARK GREY
W0019083 MANIFOLD OUTER
W0025858 ROLLER KIT LOWER PKT 8
W0025941 PEG DOOR PANEL KIT OF 2 SM HD
$13.05
W0071641 DISPENSER DETERGENT
$116.00
W0072629 BUFFER BASKET UPPER
$12.30
W0072679 BASKET CUTLERY
W0072845 GASKET DOOR 1730MM
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090412 COUPLING MANIFOLD LIGHT GREY
.JPG)
W0090599 LATCH DOOR LOCK
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
W0090786 SUMP
$121.00
.JPG)
W0090799 SWITCH PRESSURE LEVEL 65/45
.JPG)
W0090800 SWITCH PRESSURE SAFETY 123/98
W0116461 CLIP FIXING STUD (PKT 4)
$5.50
W0128335 ELEMENT INLINE 230V/2000W 32MM
.JPG)
W0128336 FILTER DRAIN
W0128355 MOTOR WASH 2800RPM
$237.00
W0149911 STOP BASKET REAR DK GREY
W0015142 SWITCH MAIN ON/OFF
W0015326 TUBE VENTILATING INSTAL 1477MM
$25.30
W0015341 PIPE UNION HEATING ELEMENT
$18.90
W0015718 RACK CUP
$16.50
W0015741 BASKET UPPER DK GREY ESL66010
W0015742 RAIL BASKET UPPER
W0015751 CORD POWER AUST/NZ 10A
$40.00
W0018988 LATCH DOOR LOCK
W0019023 VENT VAPOUR OUTLET
$14.90
W0019025 BASEMENT
$55.00
W0019048 LEG ADJUSTABLE CENTRAL
$22.95
W0019054 COG LEG ADJUSTABLE CENTRAL
W0019065 ROLLER BASKET ADJUSTMENT
$16.00
W0023576 KIT HANDLE FRONT
$36.30
W0025794 O RING
W0025927 SWITCH MICRO DOOR
$35.00
W0032293 TAPE FOIL KIT STEAM PROTECTION
W0047345 FILTER EMC
W0050178 SEAL SUMP
W0050183 SEAL NTC TURBIDITY
W0071545 LAMP DOOR INDICATOR
W0071618 SENSOR TEMPERATURE & TURBIDITY
W0071815 HOLDER COLUMN LOWER SPRAY ARM
W0072611 BRACKET FIXING TOP
W0072639 BRACE REAR UPPER
W0072685 TUBE PRESSURE SWITCH SAFETY
W0072694 CONTAINER CUP SMALL ELECTRONIC
$50.00
W0072716 BASKET LOWER DK GREY ESL66010
W0072725 SPONGE DRAIN PUMP 'L
$4.50
W0072728 TEMPLATE INSTALL COLUMN
$5.50
W0072851 AIR GUIDE - ACTIVE DRY
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072906 FUNNEL FILLING D/W SALT TRANS
$6.00
W0072940 OPERATING PLATE
W0090280 TIE HINGE
W0090328 GASKET. DECALCIFIER
W0090332 BRACKET ROLLER REAR SIFFENING
$10.00
W0090369 TRIMMING, SIDE, L=592
$26.40
W0090380 COVER WIRING
W0090402 SEALING STRIP
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090453 GUIDE FOOT
$9.90
W0090465 FILTER. INOX ESL9163
W0090492 DOOR INTERGRATED ZINC PLATED
W0090526 CROSSBAR FRONT ZINC PLATED
W0090569 PANEL BASE
W0090577 FOOT SUPPORT. FRONT. LEFT
W0090579 SUPPORT FOOT FRONT RH
$10.00
W0090606 STOPPLE. DECALCIFIER ESL9163
W0090611 PLUG BRIDGING
$4.50
W0090612 CLAMP HOSE
W0090621 RING NUT. DECALCIFIER
W0090622 GASKET ANTI OVERFLOW
W0090627 GROMMET, DECALCIFIER ESL9163
$4.50
W0090636 COVER LATCH HOLE
W0090639 LAMP CAP, PUSH BUTTON PANEL
$4.00
W0090645 LEG ADJUSTABLE FRONT 121MM
W0090650 CHANNEL DRAINAGE DARK GREY
W0090656 TRIM TUB CAB L=1710 BLK
$30.00
W0090658 PIPE UNION. DECALCIFIER. SUMP
W0090697 ADAPTOR FLANGE DISCHARGE PIPE
$12.00
W0090711 RACK REAR BASKET LOWER DISH
$30.00
W0090712 RACK DISH
W0090726 CROSSBAR FRONT BOTTOM
W0090745 ROLLER BASKET ADJUSTMENT
$16.00
W0090746 PLUG DRAIN HOSE
W0090752 MICROSWITCH. ANTIOVERFLOW
W0090754 ON/OFF BUTTON
W0090766 DISCHARGE HOSE.INSTALLATION.CO
W0090774 HARNESS COMPLETE
W0090775 HOSE AIR DRYING L=680
W0090807 PUMP DRAIN
W0090817 SUPPORT CUP
$6.60
W0090835 VALVE SOLENOID WATER SOFTENER
W0090838 SALT SENSOR. DECALCIFIER. T&P
W0090851 FIXING CLAMP SENSOR
W0090868 PANEL CONTROL
W0116439 SERVICE KIT ELECTRIC CABLE
W0116463 SIDE PANEL LEFT - ZINC
W0116464 SIDE PANEL RIGHT - ZINC
W0116474 KIT DOOR HINGE RH-LH 'HEAVY
$55.00
W0127221 O RING MANIFOLD INNER
W0128153 NUT WATER DISTRIBUTOR
W0128154 DECALCIFIER COMPLETE ASSEMBLY
W0128208 CAPAC 3UF 450V 2PIN SPIGOT
$20.30
W0128257 INNER DOOR COMPLETE
$232.00
W0128259 PANEL FRONT LOWER
$30.00
W0128313 HOSE INLET WATER BLOCK L=1500
W0128334 KIT SUPPORT FLOAT
$17.80
W0128356 SUPPORT ROLLER KIT PKT 4
$58.00
W0129222 SEAL AIR CHAMBER
W0153300 BOARD CONFIGURED EDW 1503
