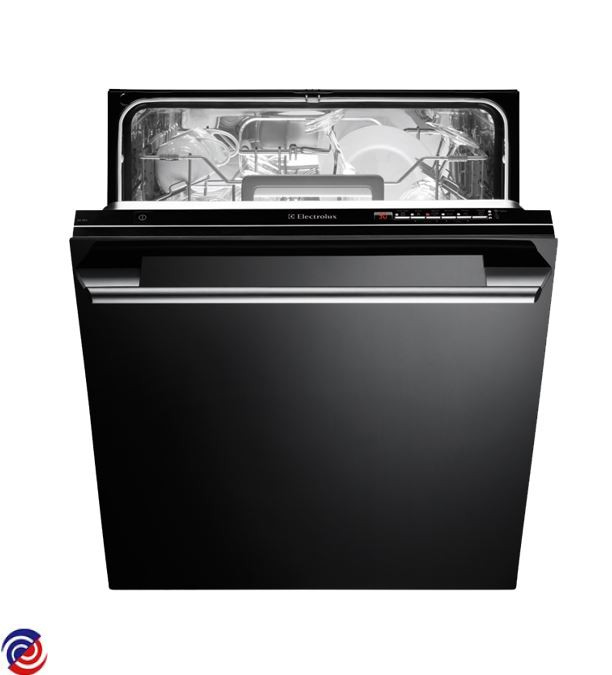

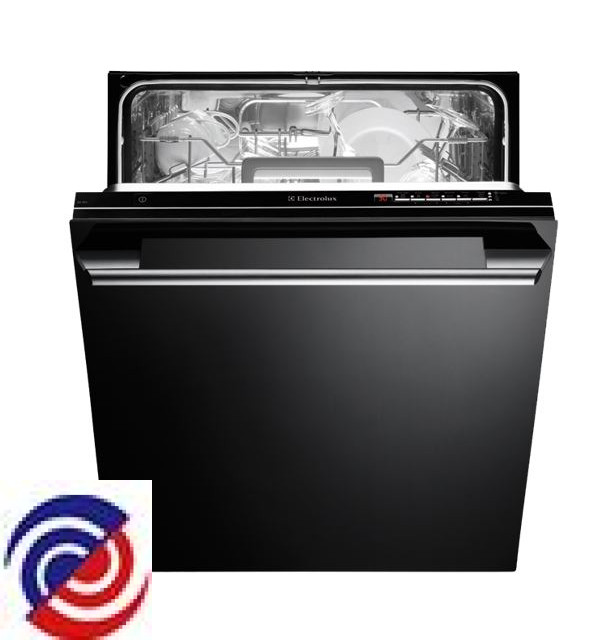

ESL66010B — 911936254 02
ELECTROLUX — Dishwasher
Parts for ESL66010B
W0015721 MOUNT PRESSURE SWITCH
$50.00
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0015747 SCREW ADJUSTING CENTRAL FOOT
$12.90
W0015793 MANIFOLD HORIZONTAL DK GREY
W0019037 SPRAY ARM UPPER DARK GREY
$105.00
W0019038 SPRAY ARM LOWER DARK GREY
W0019083 MANIFOLD OUTER
W0025858 ROLLER KIT LOWER PKT 8
W0025941 PEG DOOR PANEL KIT OF 2 SM HD
$13.05
W0071641 DISPENSER DETERGENT
$116.00
W0072629 BUFFER BASKET UPPER
$12.30
W0072679 BASKET CUTLERY
W0072845 GASKET DOOR 1730MM
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090412 COUPLING MANIFOLD LIGHT GREY
.JPG)
W0090599 LATCH DOOR LOCK
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
W0090786 SUMP
$121.00
.JPG)
W0090799 SWITCH PRESSURE LEVEL 65/45
.JPG)
W0090800 SWITCH PRESSURE SAFETY 123/98
W0116461 CLIP FIXING STUD (PKT 4)
$5.50
W0128335 ELEMENT INLINE 230V/2000W 32MM
.JPG)
W0128336 FILTER DRAIN
W0128355 MOTOR WASH 2800RPM
$237.00
W0149911 STOP BASKET REAR DK GREY
W0015142 SWITCH MAIN ON/OFF
W0015326 TUBE VENTILATING INSTAL 1477MM
$25.30
W0015341 PIPE UNION HEATING ELEMENT
$18.90
W0015718 RACK CUP
$16.50
W0015732 CONTAINER CUP SMALL ELECTRONIC
W0015741 BASKET UPPER DK GREY ESL66010
W0015742 RAIL BASKET UPPER
W0015751 CORD POWER AUST/NZ 10A
$40.00
W0015817 ROLLER BASKET ADJUSTMENT
$40.00
W0015818 ROLLER BASKET ADJUSTMENT
$40.00
W0015820 ON/OFF BUTTON BLACK
$14.50
W0018988 LATCH DOOR LOCK
W0019023 VENT VAPOUR OUTLET
$14.90
W0019026 BASEMENT
$99.00
W0019048 LEG ADJUSTABLE CENTRAL
$22.95
W0019054 COG LEG ADJUSTABLE CENTRAL
W0019074 DISCHARGE HOSE INSTALL COLOMN
$199.95
W0019077 HARNESS COMPLETE
W0023576 KIT HANDLE FRONT
$36.30
W0025794 O RING
W0025927 SWITCH MICRO DOOR
$35.00
W0032293 TAPE FOIL KIT STEAM PROTECTION
W0042962 HANDLE DOOR KIT
$43.90
W0047345 FILTER EMC
W0050178 SEAL SUMP
W0050183 SEAL NTC TURBIDITY
W0071545 LAMP DOOR INDICATOR
W0071618 SENSOR TEMPERATURE & TURBIDITY
W0071815 HOLDER COLUMN LOWER SPRAY ARM
W0072611 BRACKET FIXING TOP
W0072639 BRACE REAR UPPER
W0072685 TUBE PRESSURE SWITCH SAFETY
W0072717 BASKET LOWER DK GREY ESL66010
W0072725 SPONGE DRAIN PUMP 'L
$4.50
W0072728 TEMPLATE INSTALL COLUMN
$5.50
W0072851 AIR GUIDE - ACTIVE DRY
W0072894 SUPPORT BRACKET MOTOR RUBBER
W0072906 FUNNEL FILLING D/W SALT TRANS
$6.00
W0072940 OPERATING PLATE
W0090280 TIE HINGE
W0090328 GASKET. DECALCIFIER
W0090332 BRACKET ROLLER REAR SIFFENING
$10.00
W0090369 TRIMMING, SIDE, L=592
$26.40
W0090380 COVER WIRING
W0090402 SEALING STRIP
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090453 GUIDE FOOT
$9.90
W0090465 FILTER. INOX ESL9163
W0090492 DOOR INTERGRATED ZINC PLATED
W0090526 CROSSBAR FRONT ZINC PLATED
W0090569 PANEL BASE
W0090577 FOOT SUPPORT. FRONT. LEFT
W0090579 SUPPORT FOOT FRONT RH
$10.00
W0090606 STOPPLE. DECALCIFIER ESL9163
W0090611 PLUG BRIDGING
$4.50
W0090612 CLAMP HOSE
W0090621 RING NUT. DECALCIFIER
W0090622 GASKET ANTI OVERFLOW
W0090627 GROMMET, DECALCIFIER ESL9163
$4.50
W0090636 COVER LATCH HOLE
W0090639 LAMP CAP, PUSH BUTTON PANEL
$4.00
W0090645 LEG ADJUSTABLE FRONT 121MM
W0090650 CHANNEL DRAINAGE DARK GREY
W0090656 TRIM TUB CAB L=1710 BLK
$30.00
W0090658 PIPE UNION. DECALCIFIER. SUMP
W0090697 ADAPTOR FLANGE DISCHARGE PIPE
$12.00
W0090711 RACK REAR BASKET LOWER DISH
$30.00
W0090712 RACK DISH
W0090726 CROSSBAR FRONT BOTTOM
W0090746 PLUG DRAIN HOSE
W0090775 HOSE AIR DRYING L=680
W0090807 PUMP DRAIN
W0090817 SUPPORT CUP
$6.60
W0090835 VALVE SOLENOID WATER SOFTENER
W0090838 SALT SENSOR. DECALCIFIER. T&P
W0090851 FIXING CLAMP SENSOR
W0090868 PANEL CONTROL
W0116439 SERVICE KIT ELECTRIC CABLE
W0116463 SIDE PANEL LEFT - ZINC
W0116464 SIDE PANEL RIGHT - ZINC
W0116474 KIT DOOR HINGE RH-LH 'HEAVY
$55.00
W0127221 O RING MANIFOLD INNER
W0128153 NUT WATER DISTRIBUTOR
W0128154 DECALCIFIER COMPLETE ASSEMBLY
W0128208 CAPAC 3UF 450V 2PIN SPIGOT
$20.30
W0128257 INNER DOOR COMPLETE
$232.00
W0128259 PANEL FRONT LOWER
$30.00
W0128313 HOSE INLET WATER BLOCK L=1500
W0128334 KIT SUPPORT FLOAT
$17.80
W0128356 SUPPORT ROLLER KIT PKT 4
$58.00
W0129222 SEAL AIR CHAMBER
W0153302 PCB CONFIGURED EDW 1503--
W0157981 DOOR INTEG PANEL KIT EBONY
