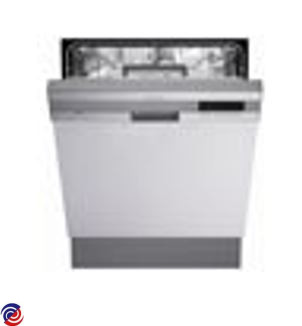

EX401ISB — 911926247 00
ELECTROLUX — Dishwasher
Parts for EX401ISB
W0015721 MOUNT PRESSURE SWITCH
$50.00
W0015729 TUBE PRESURE SWICH LEVEL 525MM
$21.00
W0019037 SPRAY ARM UPPER DARK GREY
$105.00
W0019038 SPRAY ARM LOWER DARK GREY
W0019083 MANIFOLD OUTER
W0025858 ROLLER KIT LOWER PKT 8
W0025941 PEG DOOR PANEL KIT OF 2 SM HD
$13.05
W0072629 BUFFER BASKET UPPER
$12.30
W0072679 BASKET CUTLERY
W0090295 CLIP BASKET STOP FRONT
$11.15
W0090412 COUPLING MANIFOLD LIGHT GREY
W0090623 HOSE OUTLET COMPLETE L=1930
W0090747 GASKET DOOR LOWER BLK L=550
$31.00
W0149911 STOP BASKET REAR DK GREY
W0015142 SWITCH MAIN ON/OFF
W0015340 PIPE UNION HEATING ELEMENT
W0015742 RAIL BASKET UPPER
W0018988 LATCH DOOR LOCK
W0019019 TUBE AIR CHAMBER
W0019021 SUPPRESSOR INTERFERENCE
$28.00
W0019023 VENT VAPOUR OUTLET
$14.90
W0019029 BASE CABINET
$29.70
W0019033 HOSE INLET WATER BLOCK L=1500
$185.00
W0019034 CORD POWER AUSTRALIA
W0019048 LEG ADJUSTABLE CENTRAL
$22.95
W0019054 COG LEG ADJUSTABLE CENTRAL
W0025794 O RING
W0025927 SWITCH MICRO DOOR
$35.00
W0071710 TEMPERATURE SENSOR ESL9163
W0071799 SPACER PANEL CONTROL
$100.05
W0071815 HOLDER COLUMN LOWER SPRAY ARM
W0071820 SEAL TEMPERATURE SENSOR
W0071857 RUBBER DAMPER RECIRC PUMP
W0072611 BRACKET FIXING TOP
W0072613 HANDLE FRONT OUTSIDE
W0072614 HANDLE FRONT INSIDE
W0072616 HANDLE FRONT PANEL - INOX
W0072617 BUTTON ON/OFF S/S
W0072627 HANDLE INTERNAL DK GREY
W0072628 HANDLE OUTER DK GREY
W0072632 PARTITION FRONT. LEFT
W0072633 SEPARATOR FRONT. RIGHT
W0072636 SEPARATOR BACK. LEFT
W0072637 PARTITION REAR. RIGHT
W0072639 BRACE REAR UPPER
W0072686 TUBE PRESSURE SWITCH SAFETY
W0072697 CONTAINER CUP SMALL ELECTRONIC
W0072712 BASKET UPPER D/GREY - EX401ISB
W0072713 SUPPORT CUP COMPLETE
W0072722 BASKET LOWER D/GREY - EX401ISB
W0072727 TEMPLATE. 600 BUILT IN
W0072742 METAL PANEL UPPER - BLACK
W0072749 HARNESS
W0072758 CONTROL PANEL SILK SCREENED
W0072763 BUTTON WASH MODE SS
W0072842 SEALING OUTER X 1730 LONG
W0090249 SUPPORT. FLOAT
W0090280 TIE HINGE
W0090331 BRACKET ROLLER REAR SIFFENING
W0090366 TRIMMING. SIDE L=623 ESL4143
W0090380 COVER WIRING
W0090402 SEALING STRIP
W0090413 SEAL CHANNEL DRAINAGE
W0090423 NUT SPEED CLIP
W0090427 SCREW ADJUSTING CENTRAL FOOT
$7.70
W0090452 GUIDE FOOT
$12.00
W0090465 FILTER. INOX ESL9163
W0090489 DOOR BLACK INTEGRATED LS60/IT
W0090524 CROSSBAR FRONT UPPER BLK
W0090529 SIDE PLATE CONT PANEL RIGHT
W0090530 SIDE PLATE CONT PANEL LEFT
W0090551 SPRING, HANDLE, LATCH
$16.00
W0090562 BASEMENT
W0090577 FOOT SUPPORT. FRONT. LEFT
W0090579 SUPPORT FOOT FRONT RH
$10.00
W0090591 SWITCH PRESSURE LEVEL 65/45
W0090594 SWITCH PRESSURE SAFETY 123/98
W0090597 LATCH BRIDGING PLUG COMP
W0090605 MANIFOLD. HORIZONTAL. DIVA/60
W0090611 PLUG BRIDGING
$4.50
W0090612 CLAMP HOSE
W0090622 GASKET ANTI OVERFLOW
W0090636 COVER LATCH HOLE
W0090642 DRAIN FILTER. COMPLETE
W0090645 LEG ADJUSTABLE FRONT 121MM
W0090646 SPRING. HINGE ESL6143
W0090650 CHANNEL DRAINAGE DARK GREY
W0090653 TRIM TUB CAB L=1710 WHT
W0090662 FLOAT SWITCH
$10.00
W0090676 PANEL SIDE LEFT BLACK
W0090679 PANEL SIDE RIGHT BLACK
W0090697 ADAPTOR FLANGE DISCHARGE PIPE
$12.00
W0090707 SEPARATOR FRONT. BACK
W0090708 SEPARATOR FRONT
W0090713 PARTITION BACK
W0090714 SEPARATOR REAR. FRONT
W0090726 CROSSBAR FRONT BOTTOM
W0090744 ROLLER BASKET ADJUSTMENT
$11.90
W0090745 ROLLER BASKET ADJUSTMENT
$16.00
W0090746 PLUG DRAIN HOSE
W0090752 MICROSWITCH. ANTIOVERFLOW
W0090764 CHAMBER ACTIVE DRYING
$13.20
W0090775 HOSE AIR DRYING L=680
W0090781 SUMP. PIPE UNION. COMPLETE
W0090818 SUPPORT MEASURE CUP DK GREY
W0115613 LID ASSY
W0115614 LID ASSY
W0115615 GASKET
W0116808 REED SWITCH RINSE AID
W0127221 O RING MANIFOLD INNER
W0128041 HEATER. 230V/2000W 32MM O/LETS
$85.40
W0128074 DOOR PANEL INNER
W0128097 CLIP FIXING STUD (PKT 4)
$4.50
W0128149 KIT. DISPENSER. DETERGENT
W0128153 NUT WATER DISTRIBUTOR
W0128187 KIT, DOOR HINGE, RIGHT-LEFT
$110.00
W0128207 DRAIN PUMP 50HZ
W0128208 CAPAC 3UF 450V 2PIN SPIGOT
$20.30
W0128223 WASHING MOTOR TACHOMETRIC
W0128246 SUPPORT ROLLER KIT PKT 4
W0128259 PANEL FRONT LOWER
$30.00
W0128261 TRIM STEAM PROTECTION
$30.00
W0129222 SEAL AIR CHAMBER
W0149895 O RING SUMP
W0153290 BOARD CONFIGURED EDW 1510
$259.20
