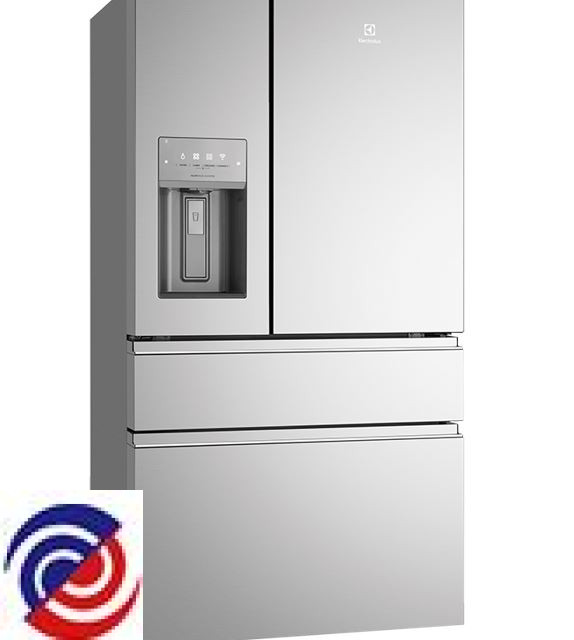

EHE6899SA — 925060324 00
ELECTROLUX — Fridge

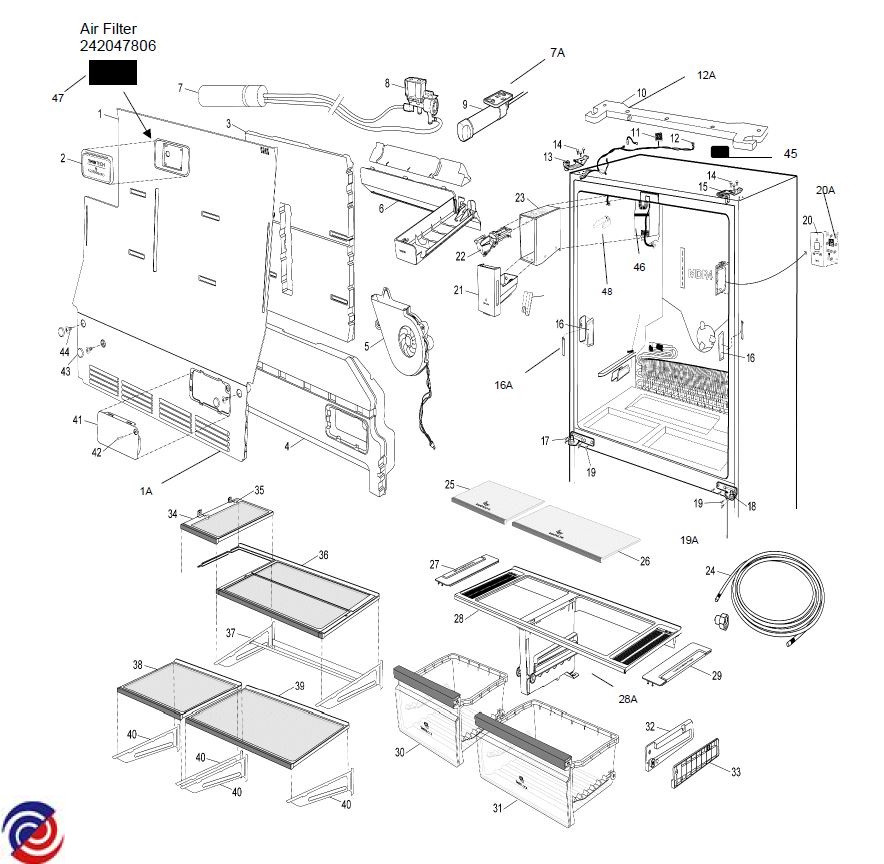

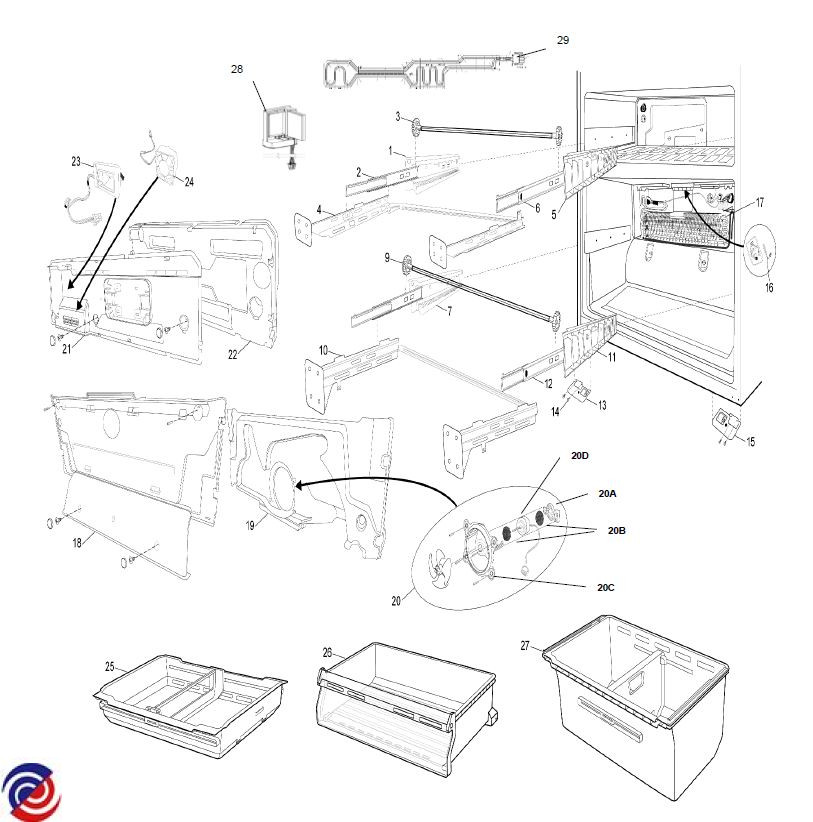

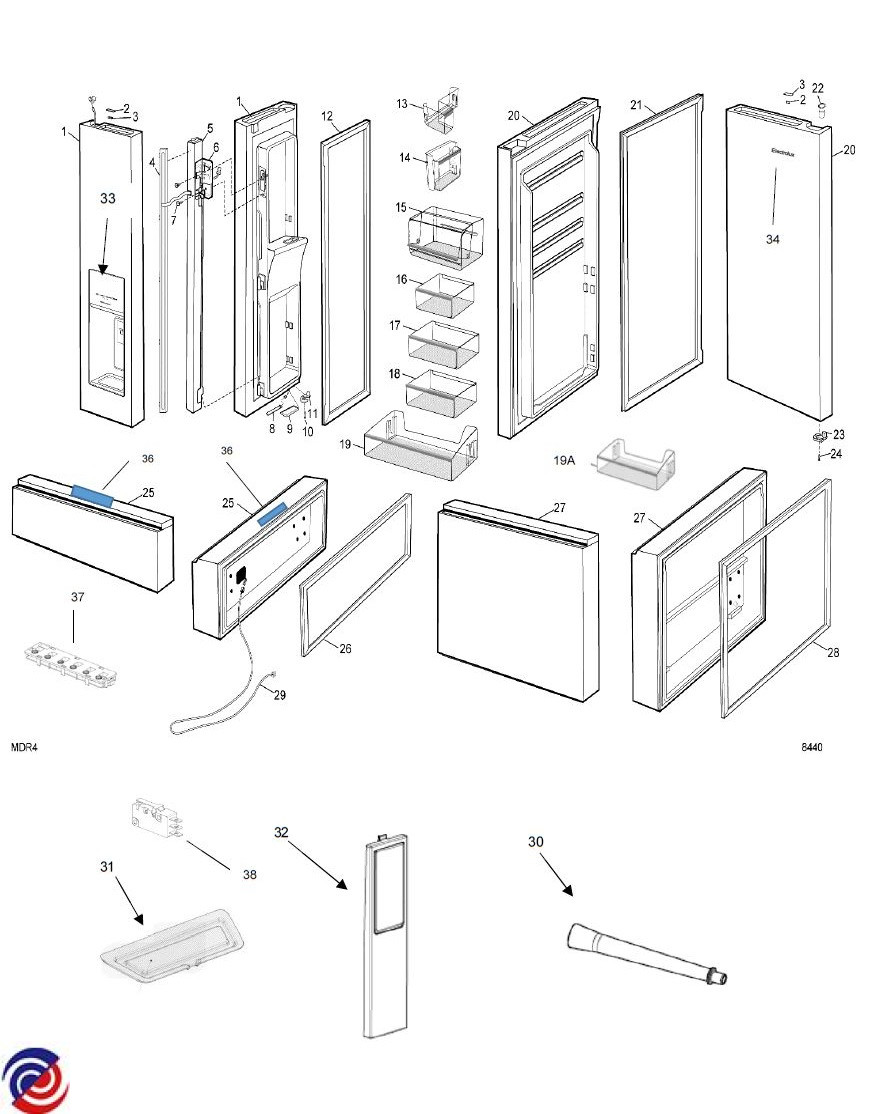

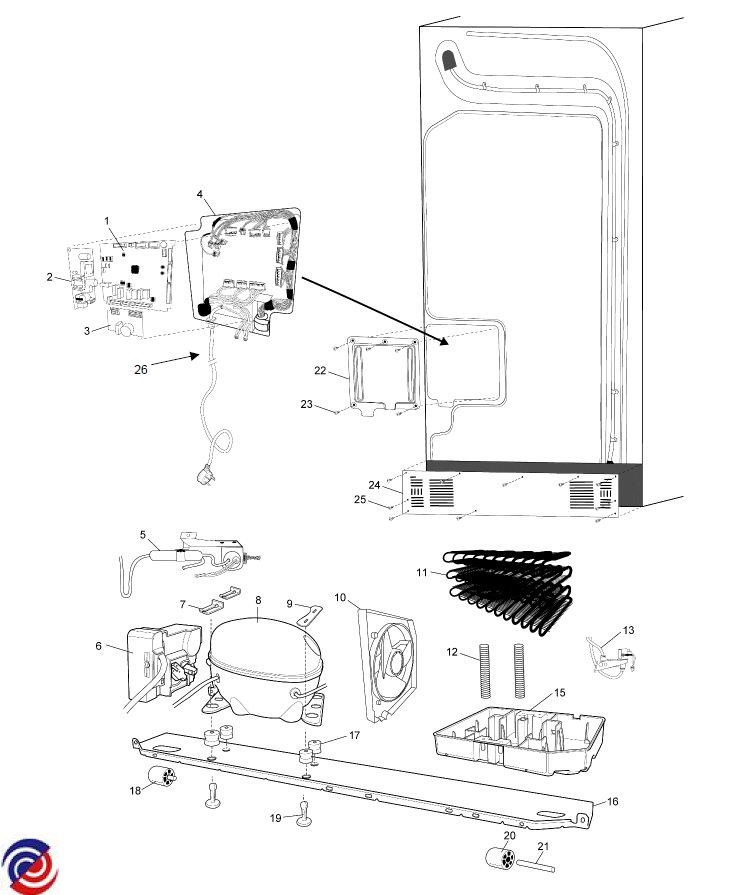

Parts for EHE6899SA

W0027140 FILTER WATER (PINOT)

W0027439 SCREW TRILOB M5X16
$4.50

W0027522 COVER SCREW
$4.50

W0027560 GROMMET COMPRESSOR
$11.50

W0027610 CLAMP COMPRESSOR
$4.50

W0029938 SENSOR MAGNET REED SW
$35.75

W0281944 AIR HANDLING ASSY INC AUGER

W0282000 ICE MAKER MDR4

W0282091 BAR DRIVE BM FFIM

W0283308 HEATER DEFROST 230V MD36
$91.30

W0283467 DAMPER HEATED ASSY

W0284124 FILTER AIR MDR4
W0284260 BIN DOOR FLEX DAIRY ASY WHMD36
$37.30

W0284309 DRAWER CRISPER ASSY LH EL MD36

W0284350 DRAWER CRISPER ASSY RH EL 36

W0284367 VALVE DOUBLE WATER 220V

W0284422 FAN VCZ ASSY MDR4

W0284455 FAN ASSY FZR MD36 L

W0018166 GROMMET FAN MOTOR
$16.45

W0020671 SWITCH DOOR REED

W0027411 BLADE FAN,NAT
$32.25

W0027441 SCREW TRUSS 4.2X13

W0027530 GROMMET FLIP MULLION
$5.85

W0029638 HINGE FLIP MULLION MD

W0029817 RETAINER CLIP
$4.50

W0029903 GEAR

W0030024 BADGE ELECTROLUX ELECTROFORMED

W0087409 SCREW EVAP COVER 8 X 1/2
$4.00

W0275612 CLAMP COMPRESSOR SINGLE
$4.50

W0282132 COVER COMP BASE ASSEMBLY MD36
$21.80

W0282375 SWITCH IW DISPENSER PADDLE
$37.65

W0282376 DISPLAY ASSY WATER DISP PADDLE

W0282377 PCB POWER SUPPLY

W0283262 GASKET DOOR FF L MD36
$20.90

W0283324 BEARING PAD PA66
$7.00

W0283326 TUBE DRAIN CORRUGATED MDR4
$4.50

W0283349 SHAFT TELESCOPIC SLIDE MD36

W0283350 SUPPORT SLIDER MID LH MD 36
$16.70

W0283351 SUPPORT SLIDER MID RH MD 36
$16.90

W0283352 SUPPORT SLIDING FRZ LH MD36

W0283353 SUPPORT SLIDING FRZ RH MD36

W0283354 CONDENSER DYNAMIC MD36 45DG
$82.65

W0283356 COVER EVAPORATOR FF MD36
$14.90

W0283357 DUCT EVAPORATOR FF MD36S
$13.65

W0283373 COVER CRISPER ASSY WH MD36
$106.55

W0283377 RAIL SIDE CRISPER ASSY RH MD36
$18.35

W0283378 RAIL SIDE CRISPER ASSY LH MD36
$18.35

W0283379 LENS ENDCAP FF MD36
$4.50

W0283380 COVER MULTIFLOW MD36S LH
$39.70

W0283393 DISPLAY ASSY UI I&W EXT EL AU

W0283404 HOUSING AUTOMATIC HUMIDITY
$4.50

W0283442 DRAWER BASKET FRZ ASSY

W0283443 SUPPORT MAGNET SWITCH
$4.50

W0283444 SUPPORT DIVIDER CRISPER ASSY
$41.10

W0283461 COVER WINDOW FF MDRA
$4.50

W0283466 BIN DOOR FIX CHUTE IW WH HOTF
$46.60

W0283477 LENS 3 LEDS CLUSTER GALAGA
$19.75

W0283590 GASKET DOOR MID MD36
$21.50

W0283601 GUIDE WATER DISPENSER TUBE
$4.50

W0283644 COVER ASSY PCB BOX MD36
$17.65

W0284072 ROLLER CABINET MDR4
$4.50

W0284080 COVER DEODORIZER WH MDR4
$5.30

W0284103 SHAFT ROLLER
$7.50

W0284130 TRAY WATER DRIP

W0284131 GROMMET BASE SHROUD FRZ FAN
$10.00

W0284153 HOSE WATER, PEX

W0284160 DUCT EPS VCZ MD36 L
$18.20

W0284167 COVER RH MULLION STORAGE SEA36
$17.15

W0284168 COVER LH MULLION STORAGE SEA36
$11.30

W0284169 DUCT EPS FF MD36S
$18.00

W0284172 COVER WINDOW VCZ MDR4
$14.95

W0284182 MEMBRANE HUMIDITY CTRL ASSY

W0284194 PCB 0.9W LITEON 6500

W0284206 FOOT ASSY RH INCLUDES ROLLER

W0284207 FOOT ASSY LH INCLUDES ROLLER

W0284209 WIRING ECDC_3WAYS_ERF2600

W0284211 SWITCH FFIM DOOR SAFE

W0284214 GASKET DOOR FF R MD36
$21.90

W0284242 PAN DRAIN MD36
$32.15

W0284244 COVER FASCIA FILTER SS AU MD36
$34.40

W0284250 BIN DOOR FLEX 1/3 WH MD36 HOTF
$37.30

W0284263 CORD POWER AU MDR4
$23.25

W0284265 FASCIA UI VCZEXT EL AU SEA MDR

W0284266 PCB AMBIENT & HUMIDITY BOARD
$45.95

W0284271 BIN DOOR FLEX 2/3 WH MD36 HOTF
$37.30

W0284286 HINGE CENTRE RIGHT MD36

W0284287 HINGE CENTRE LEFT MD36
$11.50

W0284288 HINGE TOP RH MD 36

W0284289 HINGE TOP LH MD 36
$52.45

W0284290 BIN DOOR TILT-OUT ASSY WH
$63.80

W0284295 BIN DOOR FIX IW WH MD36 HOTF
$46.60

W0284296 KIT I&W INSTALL MDR4 AU

W0284318 GASKET DOOR FZR MD36

W0284323 BIN DOOR FLEX SLID ASY WH MD36

W0284336 DRAWER SUP FRZ ASSY MD36

W0284337 PCB AC LINE FILTER EMC

W0284356 BIN DOOR BOTTLE WH MD36 HOTF
$59.65

W0284386 ASSEMBLY FLIP MULLION GR MD36

W0284394 MANIFOLD WATER FILTER

W0284405 HEATER VCZ ASSY MDR4 230V
$76.95

W0284408 FAN UNIT VCZ 60MM AXIAL
$130.55

W0284421 SHELF FLIP UP ASSY WH MD36 F
$102.35

W0284452 VALVE (220, PLASTIC FITTING)

W0284457 DRAWER VCZ ASSY MASS
$124.75

W0284461 FAN ASSY FF MD36
$110.25

W0284486 DISPLAY ASSY UI VCZ EL AP MD36

W0284487 FAN DYCO ASSY MDR4
$130.55

W0284503 ASSEMBLY STEP VALVE
$145.05

W0284510 DISPLAY UI ASSY MDR4 ELUX AU I
$195.80

W0284511 DISPLAY UI MDR4 ELUX INTL ASSY

W0284513 SHELF LH ASSY MD36 WINE RACK F
$182.90

W0284518 TANK WATER DISPENSER RESERVOIR

W0284528 SHELF RH WH ASSY MD36 FOIL
$201.30

W0284537 SLIDER ASSY W BRACKET VCZ LH
$248.70

W0284538 SLIDER ASSY W BRACKET VCZ RH
$248.70

W0284544 PCB NIU-X WIFI MODULEPROG UART

W0284548 COVER TOP HINGE ASSY EYEB MD36

W0284554 PANEL UI I&W EXT EL AU MD36

W0284572 BUCKET ASS3.5 SLIM SS E SANS
$265.00

W0284582 SHELF FOLDABLE ASSY MD36 FOIL
$281.55

W0284617 PCB ERF2600_PROG_ELUX EHE6899

W0284646 PCBA DRIVE EMBRACO VESD11C
$338.60

W0284660 DOOR SPARE MID MD36 SS SQ

W0284661 DOOR SPARE MID MD36 BSS SQ

W0284668 COMPRESSOR EMB VESD11C

W0284671 DOOR SPARE FZR MD36 SS SQ
$482.25

W0284673 DOOR SPARE FZR MD36 BSS SQ

W0284677 DOOR SPARE FF-R MD36 SS SQ
$590.00

W0284678 DOOR SPARE FF-R MD36 BSS SQ

W0284679 DOOR SPARE FF-L MD36 SS SQ

W0284680 DOOR SPARE FF-L MD36 BSS SQ AU

W0365652 DRAWER SUP FRZ ASSY MD36
$137.00
