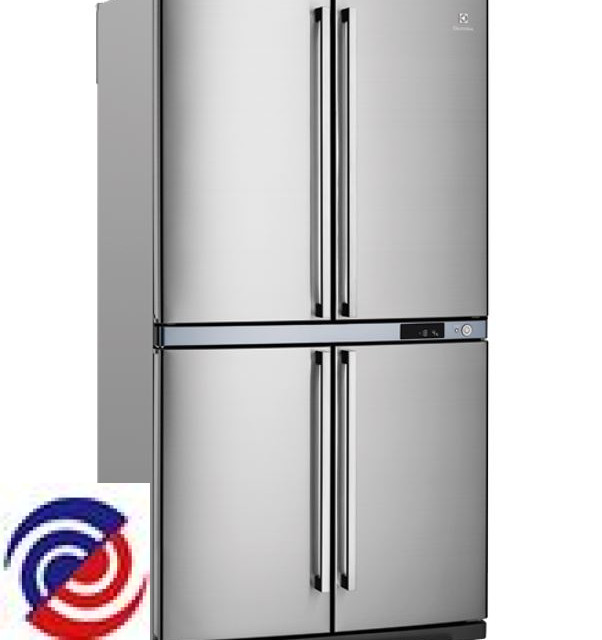

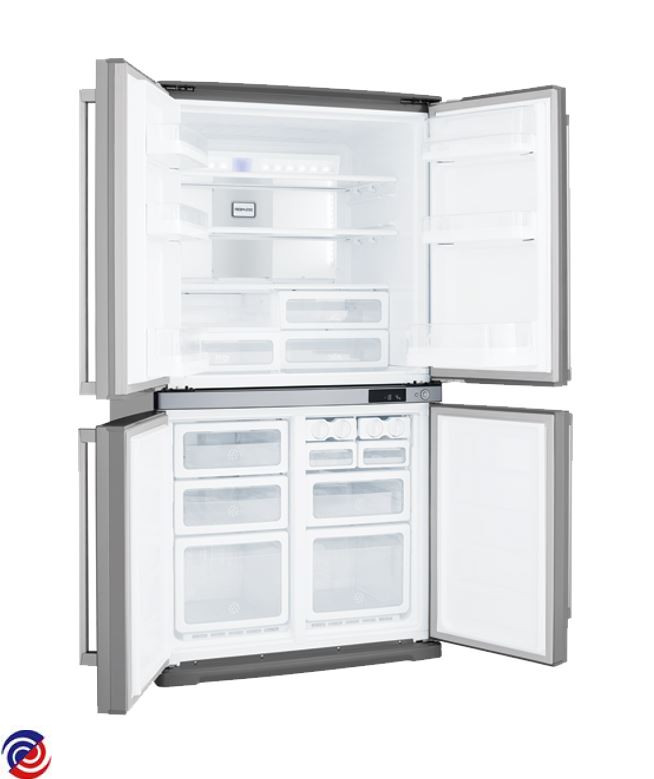

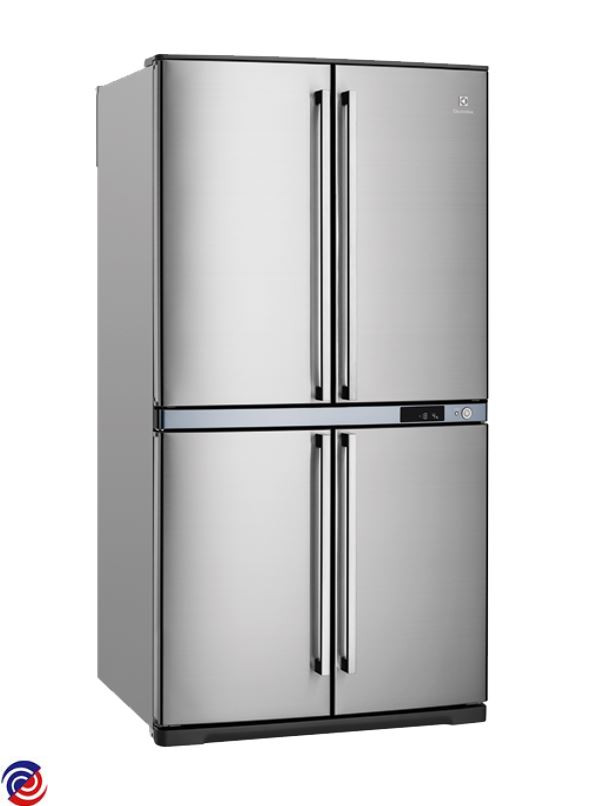

EQE6207SD — 923011683 00
ELECTROLUX — Fridge
Parts for EQE6207SD

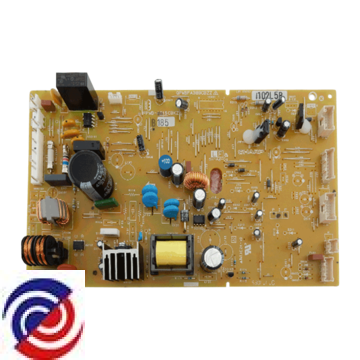

W0032824 BOARD PWB MAIN ASS'Y
$250.00

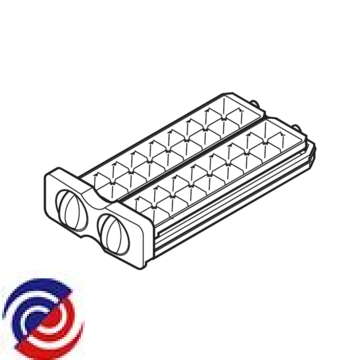

W0032842 TRAY ICE CUBE
W0032844 LID CRISPER
$52.00
W0032845 SHELF ASSY FC
$73.00
W0033401 DOOR CAM LH UPPER DOOR BTM
W0034675 EGG TRAY
$17.15
.JPG)
W0087784 BADGE NAMEPLATE
W0160556 BOARD DISPLAY LCD INTERNAL
$252.35
W0031938 HINGE FZR R/H TOP
$101.10
W0031939 HINGE FZR L/H LOWER
$101.10
W0032750 LEG ASSY ADJUSTABLE
$11.95
W0032751 COMPRESSOR ASSY
W0032756 HARNESS RELAY S ASS'Y
$23.10
W0032765 DOOR FZR LH
$375.00
W0032766 DOOR FZR RH
$325.00
W0032772 DOOR ASSY LH FC EQE6207
$464.50
W0032773 DOOR ASSY RH FC EQE6207
$271.40
W0032787 FUSE ASSY EQE6007SA-NAU
W0032788 DEFROST HEATER EQE6007SB
W0032792 HANDLE ASSY FZR
W0032794 HANDLE ASS'Y RH 6207
W0032795 HINGE TOP FC LH
W0032811 DCP ASS'Y
$23.10
W0032814 BIN BOTTLE
$55.95
W0032815 BIN DOOR
$46.60
W0032816 BIN DAIRY ASS'Y
W0032818 BIN EGG ASS'Y 6207
$18.65
W0032820 LIGHT LH FC ASSY 6207
$62.70
W0032821 LIGHT ASSY TOP
$43.00
W0032822 BOARD POWER MULTICOLOR
$214.50
W0032850 BIN CRISPER FRUIT ASSY
$86.00
W0032851 BIN CRISPER FRESH ASS'Y
$67.10
W0032852 BIN CRISPER VEGE ASS'Y
W0032853 DRAWER FZR LGE
$49.95
W0032854 DRAWER FZR SML
W0032855 ICE STORAGE ASS'Y
W0032952 COVER EVAP
$59.40
W0032953 COVER FZR B RH
W0032955 CONNECT COVER EQE6007SA-NAU
$11.00
W0032957 COVER-C FC BOX
$59.40
W0032958 TERMINAL COVER
$44.00
W0032959 HOUSING CONTROL BASE
$146.90
W0032967 BIN DOOR CRISPER
W0033044 DUCT PANELREAR FAN
$52.80
W0033058 PANEL CONTROL
$215.00
W0033152 BUTTON CONTROL PANEL
$7.70
W0033153 BUTTON CONTROL PANEL
$7.70
W0033154 BAR CARRYING
$9.90
W0033296 COVER SCREW
$8.75
W0033297 HOLDER LED LH [6207]
W0033298 HOLDER LED RH [6207]
W0033301 HOLDERDEO.
W0033309 PANEL SS [6207]
W0033310 PANEL HINGE SUPPORT
$32.95
W0033314 HEATER SUPPORT EQE6007SB
$27.50
W0033315 RAIL ICE ROOM
$14.30
W0033319 STOPPER DOOR FZR
W0033320 STOPPER CHILLED EQE6007SA-NAU
$3.30
W0033321 SPRING STOP FZR DOOR L/H
W0033322 SPRING STOP FZR DOOR R/H
W0033323 SPRING LOCK DOOR LH
W0033324 SPRING LOCK DOOR RH
W0033329 DIVIDER BIN
$22.00
W0033331 SCREW SPECIAL
$4.50
W0033388 LOUVER FC [6207]
W0033399 DOOR CAM RH UPPER DOOR TOP
W0033400 DOOR CAM RH UPPER DOOR BTM
W0033402 CAM HINGE LOWER RH
$9.60
W0033403 CAM HINGE UPPER RH
$6.85
W0033404 CAM DOOR TOP LH
W0033412 BEARING NYLON BEARING 4
$6.60
W0033644 TERMINAL BOX B
W0033658 COVER LAMP FC TOP
$32.00
W0033659 COVER FCCON S
$16.50
W0033660 COVER FC LAMP LH 6207
$29.70
W0033661 COVER FC LAMP RH 6207
$29.70
W0033662 COVER DEO.
W0033664 COVER SCREW HOLE
W0033670 COVER TERMINAL B
W0033671 COVER FC-LOUVER LH
W0033672 COVER FC-LOUVER RH
W0033676 EVAPORATOR
$198.00
W0033686 LOUVER INSU FC [6207]
W0033695 DUCT FC AIR GUIDER A
$18.20
W0033696 DUCT FC AIR GUIDER B
$113.80
W0033811 TRIM BIN T
$32.50
W0033814 DRAIN PIPE S EQE6007SA-NAU
$11.00
W0033821 SEAL C
W0033822 SEAL D
W0033823 SEAL E
W0033824 SEALC-PANEL
W0033825 SEAL A
W0033827 SEAL RC-F
$9.90
W0033828 SEALR RC-H
W0033830 SEAL A R-LV B
W0033831 SEALER A R-LV A [6207]
W0033832 SEAL RC-I
W0033834 HEATER COVER EQE6007SA-NAU
$11.00
W0033837 PARTITION FZR RHS EQE6007SA
$29.70
W0034104 RELAY WIRE SC EQE6007SB
$33.00
W0034106 LEAD CONTROL BOX
$16.50
W0034109 HARNESS LED LH FC
$17.60
W0034110 LED HARNESS TOP
$9.90
W0034111 HARNESS FC-TP
$17.60
W0034130 FERRITE CORE
W0034131 FERRITE CORE
W0034163 THERMISTOR FC
$42.55
W0034170 OVERLOAD PROTECTOR
W0034176 MOTOR FAN FC
W0034177 MOTOR FAN FZR
W0034203 RELAY PTC
W0034670 DRAIN PAN EQE6007SA-NAU
$22.00
W0084342 TAPE (9MM 3M TAPE)
W0157508 HINGE FZR L/H TOP
$101.10
W0157509 HINGE FZR R/H LOWER
W0157935 DAMPER ASSY THERMOSTAT
W0160468 DRYER ASS'Y
W0160484 HINGE LOWER FC RH
$40.00
W0160485 HINGE TOP FC RH
$14.95
W0160486 R-HINGE IBK EQE6007SB01
$33.00
W0160489 LEG HOLDER ASSY - L EQE6007SA
W0160490 LEG HOLDER ASSY - R EQE6007SA
$55.00
W0160533 GASKET DOOR FZR
W0160534 GASKET DOOR FC LH
W0160535 GASKET DOOR FC RH
W0160551 BIN BTL FC ASS'Y
W0160567 REED SW EQE6007SA-NAU
$60.10
W0163203 COVER BOTTOM FZR L EQE6007SA
$44.00
W0163215 LID BIN DOOR
W0163594 COVER BASE
W0163890 BUTTON CONTROL
$14.30
W0166006 EVAP HOLDER 75 EQE6007SA-NAU
W0166009 FASTENING BAND A STB2300WA-XAU
W0166015 HOLDER TERMINAL BOX
$9.90
W0166024 LCD-PWB HOLDER EQE6007SA-NAU
$9.90
W0166092 SPRING DOOR HINGE TR
W0166093 SPRING DOOR HINGE BR
W0166094 SPRING DOOR HINGE TL
W0166095 SPRING DOOR HINGE BL
W0166099 SUPPORT TRAY ICE
$50.00
W0166101 BIN PARTITION
W0166108 SCREW DOOR HANDLE M4 X 10 PAN
W0166111 WASHER
$4.50
W0166427 CAM HINGE LOWER LH
$10.00
W0166428 HINGE CAM TL EQE6007SA-NAU
W0167123 CAP SLIDING
$11.55
W0167139 COVER HINGE
W0167405 FILTER
W0167406 INSULATION FOAM COVER EVAP
$5.50
W0168737 SP-BUTYL H EQE6007SB
W0169156 PROTECTOR STRIP O/S EQE6007SA
$10.00
W0169162 TRIM DOOR SIDE STRIP
W0169163 TRIM BIN B
$28.00
W0169165 CHRG PIPE HC S EQE6007SB
W0169180 A-SEALER RC-C EQE6007SB
W0169182 EV-COVER SEALER EQE6007SB
W0169183 SEALEV-COV. B
W0169184 SEALEV-COV C
W0169185 SEALEV-COV L
W0169186 SEAL RC-D
W0169190 PARTITION FZR LHS EQE6007SA
$29.70
W0169956 SOURCE CORD WTB2000PA-XAU
W0169965 SOLDERLESS TERM. B EQE6007SB
W0169966 SOLDERLESS TERM. A EQE6007SB
W0170039 CAPAC 4UF 400V 2 SMALL PINS
W0170242 THERMISTOR FZR
