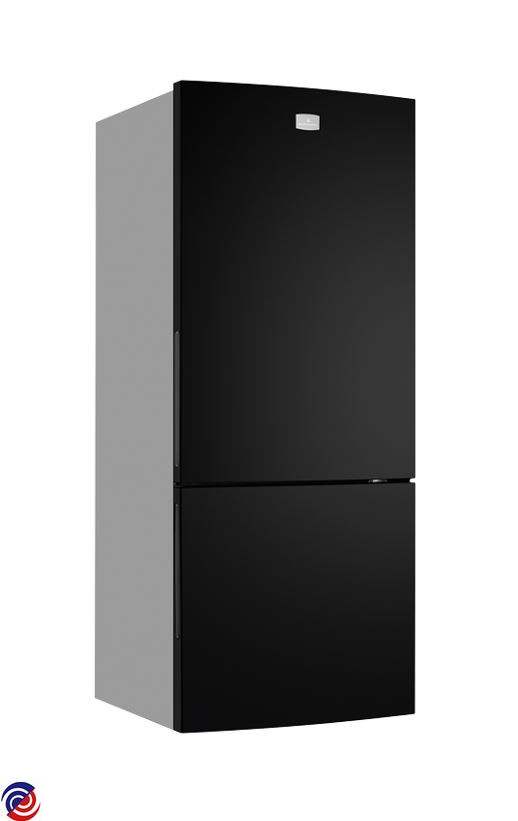

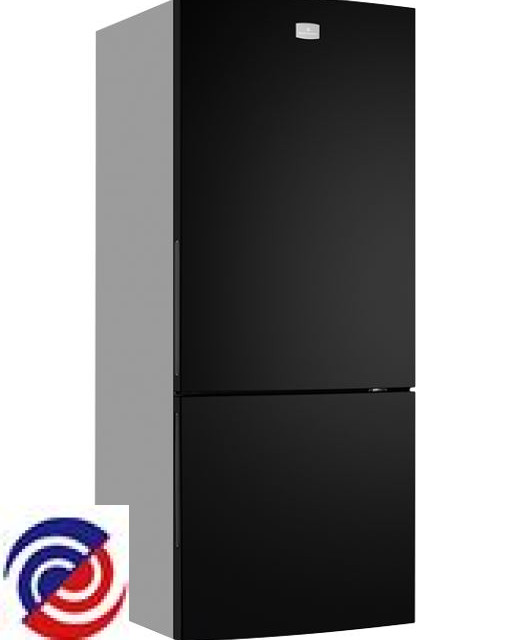

KBM4502BA — 925060260 00
ELECTROLUX — Fridge
Parts for KBM4502BA
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027081 SCREW TRILOB M3X6
$4.50
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027433 CAPACITOR 4UF
$14.90
W0027439 SCREW TRILOB M5X16
$4.50
W0027507 GEAR CONTROL TEMP
$18.30
W0027522 COVER SCREW
$4.50
W0027550 SHROUD FAN ASSY BF DC 50HZ
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029559 HEATER RAD DEF R600 240V BF70W
W0029587 HARNESS-ASSY SENSOR DEFROST
W0029699 FOOT BASE THREAD
$8.75
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0030069 TRAY ICE CUBE PINOT
$41.55
W0030315 WESTINGHOUSE FRIDGE STARTING DEVICE QPA-20A
$27.50
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027119 SCREW TRILOB M6X18
$4.50
W0027413 SEAL FOAM BOTTOM MF PINOT BF-N
$12.65
W0027429 POWERCORD RF AU EMBRACO
$26.70
W0027544 BAFFLE SLIDER FRONT BF
$6.50
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027579 RAIL DOOR SUPPORT 70W WHT
$8.10
W0027601 GASKET FRZ BF70
$101.55
W0027603 GASKET FC BF70
$116.05
W0029309 HINGE TOP RIGHT
$8.65
W0029360 MULTIFLOW ASSY BF KLVN
W0029365 COVER MFLOW UPPER BF1725 KELV
$30.00
W0029366 COVER MF UPPER BF1725 KELV-ART
$30.00
W0029369 EPS MULTIFLOW BF1725 KELV
$20.00
W0029376 DRAWER BODY BF70
$34.10
W0029408 DOOR BIN FLEX 1/2 TF70W EL
$85.00
W0029417 DOOR BIN FC SHALLOW 70 EL
W0029445 SHELF FC TF70W
W0029465 COVER TOP HINGE RIGHT GR
$4.50
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029484 COVER EVAPORATOR BF70 ASY 1-Z
$65.00
W0029534 HARNESS-ASSY MULTIFLOW KEL
$55.90
W0029536 BEARING AUTO CLOSER R TF SL
W0029565 BEARING HINGE FC TOP TF SL R
$10.90
W0029567 BEARING HINGE FZR TOP CLOSED
$8.15
W0029568 DRAWER WIRE BASKET LOW 70
$60.00
W0029572 TRAY EVAP DRAIN BM/SD 70W
$16.50
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029604 REAR HOUSING PCB ADAPTER
W0029652 HOUSING SUPPORT SUSPENDED LH
W0029653 HOUSING SUPPORT SUSPENDED RH
W0029654 SUPPORT LINER CLOSURE LH KEVL
W0029655 SUPPORT LINER CLOSURE RH KEVL
W0029666 DOOR BIN FC BOTTLE TF70 KEL
$67.05
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029702 HINGE BASE RIGHT ASSY
W0029731 SCREW TRILOBULAR M4X12
$4.00
W0029732 SCREW TRILOBULAR M4X12
$4.50
W0029744 SHELF WIRE BF70
$41.50
W0029746 CRISPER SUPPORT LH
$17.75
W0029747 CRISPER SUPPORT RH
$17.75
W0029753 COVER CRISPER ASSY BF70 KEL
$75.00
W0029796 FOOT BASE BF
$7.55
W0029820 EPS FZ AIR STOPPER
$5.00
W0029843 TUBE CORRUGATE PF
W0030033 SEAL LOWER MULTIFLOW
$10.00
W0030034 BAFFLE SLIDE BACK
$5.80
W0030050 DRAWER CRISPER FRONT BF70 KELV
$70.70
W0030064 COMPRESSOR EMB66CLC
W0030111 HEATER TUBE DRAIN PAN (TYPE M)
$106.75
W0030113 SPACER 3 TURN HEATER
$4.50
W0030139 SUPPORT WIRE SHELF LH
$8.50
W0030140 SUPPORT WIRE SHELF RH
$8.55
W0030160 SLIDER BF WHT KV
$14.95
W0030167 DRAWER WIRE BASKET MID 70
$86.00
W0030268 DOOR SPARE FZR KBM4502BA-R
$162.00
W0030269 DOOR SPARE FC KBM4502BA-R
$252.95
W0030287 EVAPORATOR FF BF70
$95.75
W0030312 TERMINAL BLOCK EMBRACO
$19.10
W0030313 TERMINAL COVER EMBRACO
$25.00
W0030314 OVERLOAD PROTECTOR EMBRACO
$30.50
W0030381 TUBE JUMPER H/X 70W EMBRACO
$8.00
W0087504 CAP SNAP ETE3900SA
W0087750 WASHER SLINGER NYLON
W0088702 BADGE NAMEPLATE
$8.70
W0147520 SWITCH DOOR
$26.50
W0154045 PCBA_P_ERF1600 FCT
