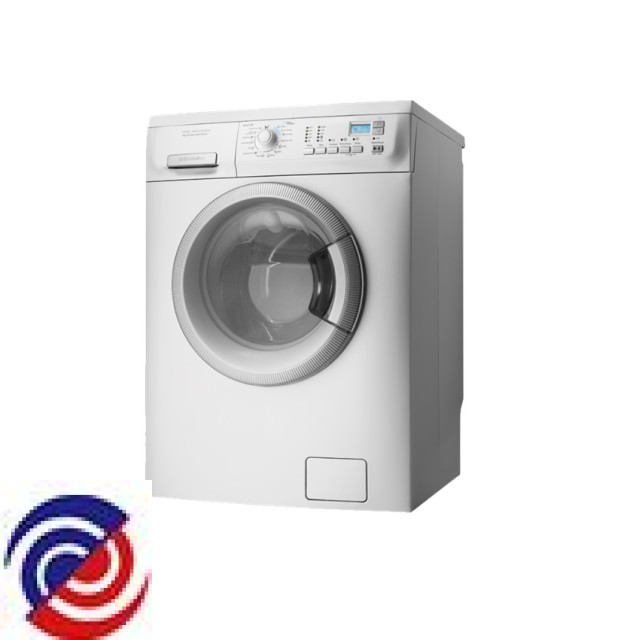

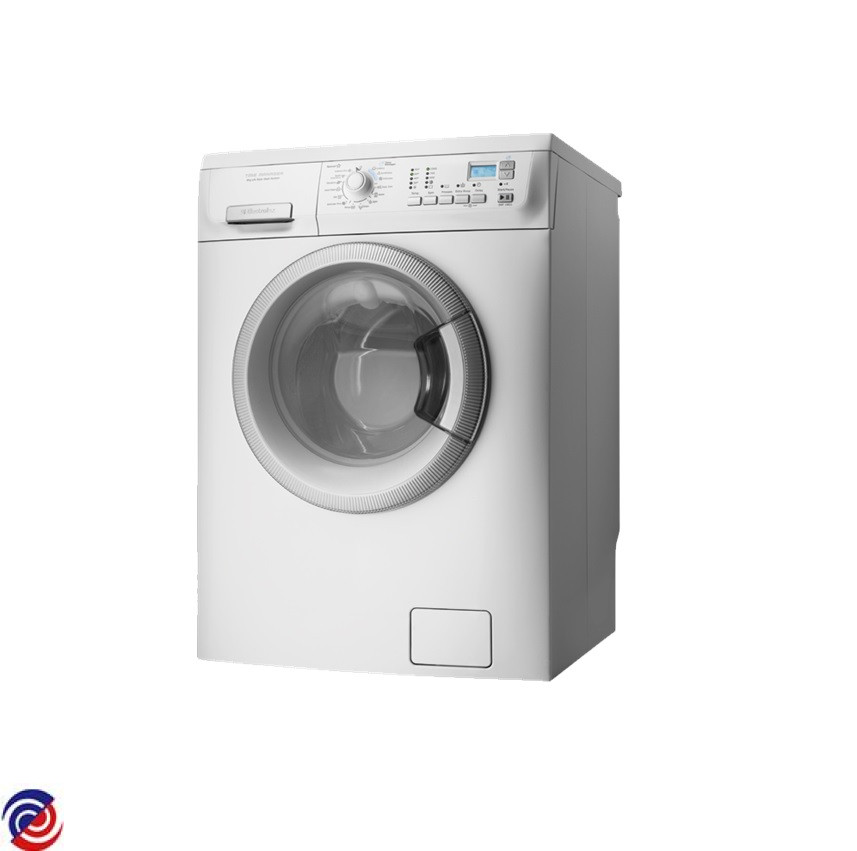

EWF1083 — 914900156 00
ELECTROLUX — Washing Machine

W0016550 SPRING CATCH

W0016563 SUPPRESSOR INTERFERENCE

W0016619 HOSE ELECTRIC VALVE CONT L=125

W0016838 DOOR FILTER ACCESS

W0016844 SHAFT PROGRAMME SELECTOR

W0016865 FILTER

W0016866 PROTECTION DOOR INTERLOCK

W0016870 ELECTROLUX SIMPSON FRONT LOAD WASHER DOOR CATCH

W0016935 HINGE DOOR

$14.25

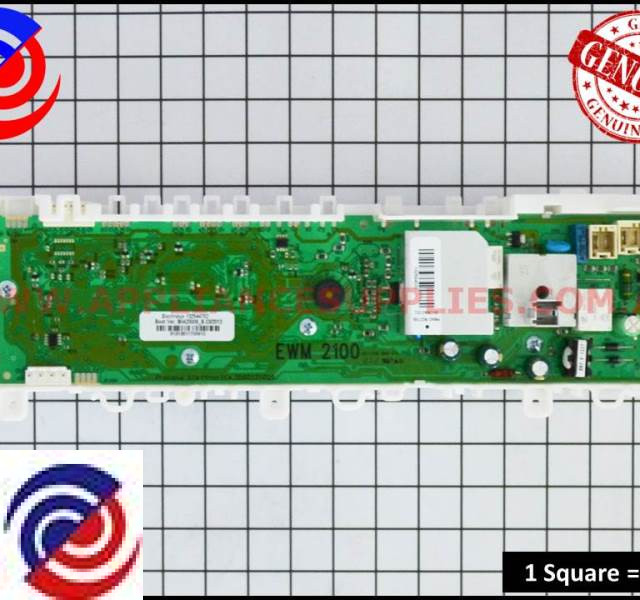

W0017037 BOARD CONFIGURED EWM2100 132594030K

W0018724 SPRING SUSPENSION DRUM

W0018729 FRAME DOOR OUTER

W0018731 POWER CORD WITH PLUG

W0018733 HANDLE DOOR

$52.50

W0025833 FIN INNER DRUM

$18.15

W0034761 HOSE INLET 2_5 D/W NUT/TAIL 2

W0071374 PULLEY G22/16

$33.40

W0074384 ELECTROLUX WASHING MACHINE DRAIN HOSE 2370mm LONG

W0074631 LOCK DOOR

W0075739 PUMP ASSY RECIRCULATION

W0075953 BELT DRIVE 1184J6

W0075983 SOLENOID VALVE 2-WAY/FLOWMETER

W0076054 SWITCH PRESSURE LOW FREQUENCY

W0076089 HOSE FILLER

W0089140 PUMP DRAIN

W0089227 SUPPORT INNER DRUM SPIDER

$278.15

W0133353 BEARING 30X72X19

$45.05

W0016590 SPRING HANDLE DOOR

W0016609 SPACER HEATER ELEMENT

$5.50

W0016616 HOLDER SOLENOID

$8.15

W0016830 RING LOCKING

$8.80

W0016832 COVER FILTER

W0016868 DOOR GLASS

$49.05

W0016881 SCREW SHELL TUB 6 5X50

$4.50

W0016958 NAMEPLATE ELECTROLUX

$12.00

W0016960 LENS LED DIFFUSER

$4.50

W0016963 SUPPORT PUSH BUTTON TC2/3/4

$10.00

W0016965 COVER BOARD MAIN

$11.00

W0016986 HARNESS WIRING

$7.70

W0018718 DRUM OUTER FRONT

$93.00

W0018719 SEAL DRUM OUTER REAR

$27.30

W0018760 DRUM INNER COMPLETE

$186.90

W0018764 FRAME DOOR INNER

W0018778 BUTTON PUSH START

$6.00

W0018780 BUTTON PUSH FUNCTION SPUN

$6.00

W0070002 HOSE CLAMP. 50. 6-53.2MM

W0071337 PIN DOOR HINGE

$6.00

W0074251 TUBE CONNECTOR

W0074253 BOLT CUSHION

W0074259 CLAMP HOSE

W0074262 STOPPER CAPACITOR CABLE

W0074277 LEVER LOCK PORTHOLE

W0074280 BOLT CATCH DOOR EWF1087

W0074289 ASSY. CONVEYOR. WATER

W0074295 GASKET HOSE

W0074340 SCREW BEARING SPIDER

W0074343 SCREW MOTOR 5.5 X 38 EWF1092

W0074371 SPRING SAFETY DOOR

$9.85

W0074398 WASHER COUNTERWEIGHT FRONT

$4.50

W0074434 HOOK DRAIN HOSE

W0074473 HOSE INLET (1300MM)

W0074481 LEG ASSY 30MM

W0074484 BRACKET HOSES & HARNESS

W0074489 SCREW COUNTERWEIGHT

W0074492 STAND P62S/RIM

W0074501 CLAMP CABLE

W0074503 DRAWER ASSY DETERGENT

W0074508 SYPHON ADDITIVES

W0074535 PLUG CABINET WHT

W0074544 SPANNER LEG LEVELLING

W0074574 SPRING RETAINING HEATER

$2.20

W0074586 DISPENSER ASSY

$41.80

W0074608 CONNECTOR 2 WAY

W0074614 HOSE SOLENOID VALVE CONTAINER

W0074626 SEAL DRUM SHAFT G21 1600

W0074972 CUSHION. 80N ROSA PLAST

W0075541 SPRING FIXING

W0075542 BUSH HINGE

W0075612 BUTTON PUSH (PORTHOLE)

W0075629 HOSE FILTER DRAIN

W0075651 SEAL FILTER

W0075676 SUPPORT HOSES REAR PANEL

W0075682 DOOR REINFORCEMENT

W0075741 HOSE SUCTION CIRCULATION L=242

W0075745 COVER. DRAIN PUMP. CIRCULATION

W0075777 LEG ASSY

W0075819 SUPPORT TUBE CIRCULATION RIM

W0075822 LEG ADJUSTABLE ANTI VIBRATE

W0075881 COVER INSPECTION PLATE

W0075938 DRAIN PUMP

W0076003 PLATE HINGE

$9.00

W0076014 HEATING ELEMENT(240V.1950W)

W0076061 WORK TOP ASSY (ELUX)

W0076098 CONTROL PANEL SUPPORT

W0076146 EWM2100 MAIN BOARD ASSY

W0089111 SEALING. BELLOW. PORTHOLE

W0089117 HOSE ASSY AIR CHAMBER

W0089120 AIR CHAMBER G23

W0089123 HOSE CIRCULATION DOOR

$42.00

W0089125 CABINET. BACK EWF1495

W0089136 SUPPORT. HOSES. HARNESS

W0089150 COUNTER WEIGHT EWF1090

W0089159 DAMPER VIBRATION EWF1495

W0089166 UNIVERSAL MOTOR. 65MM

W0089183 CROSSBAR SUSPENSION

W0089218 HOSE STEAM +HOSE CLAMP ASSY

W0089230 WIRING HARNESS ASSY

W0089237 DRUM OUTER REAR

$297.60

W0089259 FRONT CABINET SHELL PAINTED

W0089267 CONTROL PANEL PRINTED

W0089270 KNOB CONTROL PROGRAM SELECTOR

$29.30

W0089272 BUTTON PUSH DELAY SPUN PEAR

W0089276 HANDLE PRINTED

W0130194 SCREW PULLEY M10X25 AF TSP

$4.50

W0133356 BEARING 35X80X21

$62.00
