EWF7524D3WB — 914900879 00

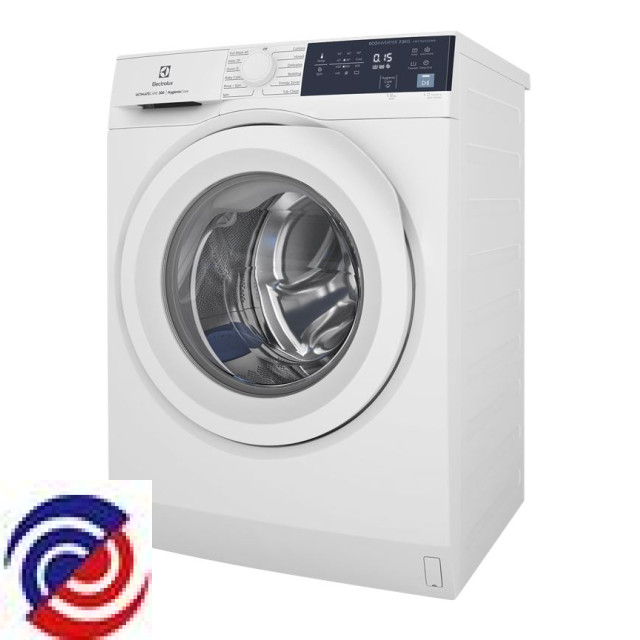

ELECTROLUX — Washing Machine
Parts for EWF7524D3WB
W0075951 BELT DRIVE
W0274160 HOSE ASSY INLET COLD GREY
W0365703 ELECTROLUX FRONT LOAD WASHER DOOR LOCK
$88.50
W0366203 PUMP-ASSY DRAIN AL 50HZ LL
$52.00
W0366242 ELECTROLUX SIMPSON FRONT LOADER 2 WAY INLET VALVE
W0368099 AEG ELECTROLUX FRONT LOADER WASHER EMERGENCY STRIP DOOR LOCK
W0016544 WASHER, PLAIN
$30.00
W0016559 SCREW PULLEY
$4.50
W0016881 SCREW SHELL TUB 6 5X50
$4.50
W0016944 CAP REAR PANEL
$16.00
W0017040 DISPENSER & CONVEYER ASSY COMP
W0017066 SUPPORT,WG SPRING, LH
$38.50
W0017204 TUBE INLET DETERGENT
W0018752 HOSE & CLAMP VALVE L=175 D=10
W0018753 HOSE & CLAMP VALVE L=175 D=12
$21.40
W0027083 DIAPHRAGM
W0027095 FILTER DIAPHRAGM
$22.80
W0027107 LIFTER DRUM
$18.70
W0030077 PCBA MB EWX14 POTTED RAW
W0074259 CLAMP HOSE
W0074341 SCREW BEARING SPIDER M8X25 5
W0075694 BRACKET HOSES
W0076136 SPRING BELLOW. TUB.G33
W0076182 SCREW COUNTERWEIGHT.TOP
W0076222 PANEL, BACK, HIGH
$47.00
W0112796 BEARING. 25X52X15
W0274403 HINGE REINFORCEMENT
$22.10
W0282621 CROSSBAR, COMMAND
W0283245 PROTECTION DOOR LOCK
W0364665 HINGE AL CASTING
$16.80
W0365722 HOSE DRAIN ASSY
W0365754 PULLEY
W0365768 LOW FREQENCY ANALOG PRESSUR
W0365778 PCBA MCB EMC18 PMM W/O PFC
$205.00
W0365801 ELEMENT HEATING
W0365827 AIR CHAMBER ASSY
$12.60
W0365832 SPRING, TUB
$14.00
W0365870 FRAME REAR DOOR
$14.80
W0365916 CORD POWER SUPPLY AUSTRALIA
$20.00
W0366041 SEAL SPIDER
$27.05
W0366042 SEAL DRUM OUTER REAR
$29.00
W0366080 SHOCK ABSORBER ASSY
W0366096 FLAP,PARTITION,DET DRAWER
$35.00
W0366163 VALVE FLOATING
$41.55
W0366244 SUPPORT,WG SPRING, RH
$55.00
W0366246 DRAWER DETERGENT
W0366331 GLASS, DOOR
$85.00
W0366346 WORK TOP ASSEMBLY
$94.00
W0366363 DISPENSER DETERGENT ASSY
$100.00
W0366366 DOOR BELLOW UC2
$121.00
W0366380 PANEL,FRONT,WHITE
$111.00
W0366386 CROSS SPIDER ASSEMBLY
$111.00
W0366467 C/PANEL ASSY,EWF7524D3WB EN
$168.00
W0366632 CABLE CLIP
$4.00
W0366641 FOOT ASSEMBLY
$5.50
W0366644 HOSE SUPPORT
$4.00
W0366645 DRAIN HOSE SUPPORT HIGH
$4.00
W0366646 DRAIN HOSE SUPPORT LOW
$5.50
W0366648 BALL BEARING 20X47X14
$8.60
W0366649 SHOCK ABSORBER PIN
$5.50
W0366651 SCREW M6X30 TTE (CH8)
$4.00
W0366843 KNOB ASSY,300EL,WHITE 7820
$8.00
W0366895 HARNESS-ASSY MAIN P49-EMC18
$140.00
W0367040 MOTOR PM 30STK AL
$310.00
W0367042 PCBA UI UC2 300 TC4 WM WHITE
$200.00
W0367073 EXTERNAL FRAME,DOOR, 3XL,WHITE
$35.00
W0367779 SHOCK ABSORBER SUPPORT
$5.50
W0367780 REAR TUB SHELL ASSY
$153.00
W0367805 PCB CONFIGURED EWX14 EWF7524D3
$242.00
W0367993 BUSHING HINGE
$5.50
W0368016 PEG, FRONT PANEL, CATCH
$4.00
W0368017 PIN DOOR HINGE
$5.50
W0368024 HEATING ELEMENT SUPPORT SPRING
$4.00
W0368036 SYPHON ADDITIVE
$5.50
W0368037 CAP EMERGENCY STRIP
$4.00
W0368049 NUT, PLASTIC EWN14991W
$5.50
W0368067 DRAIN BODY INTEGRATED
$7.00
W0368087 SPACER,ASSY,,PACK
$5.55
W0368088 SPACER,ASSY,LOWER INTERNAL
$5.55
W0368091 CLAMP BELLOWS WITH SPRING
$6.00
W0368121 HOSE PRESSURE SENSOR L620
$7.00
W0368181 LATCH, DOOR
$10.00
W0368204 BOX EMERGENCY STRIP
$10.00
W0368207 HOOK OUTLET HOSE
$10.05
