EWF8024Q5WB — 914900902 00

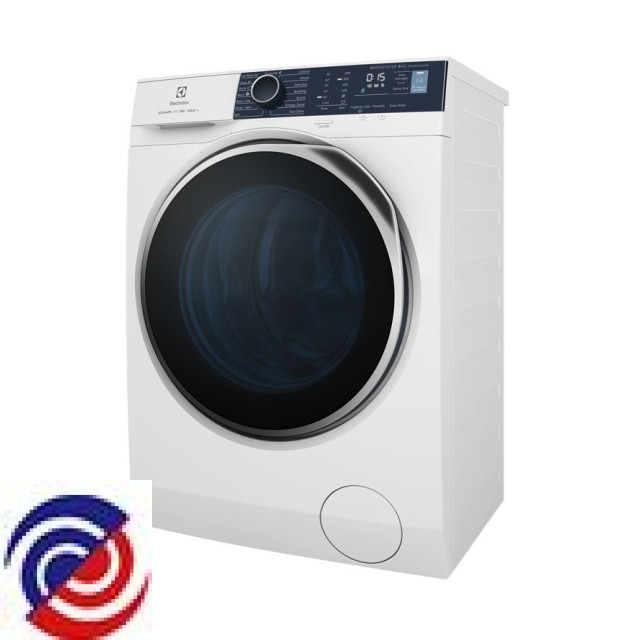

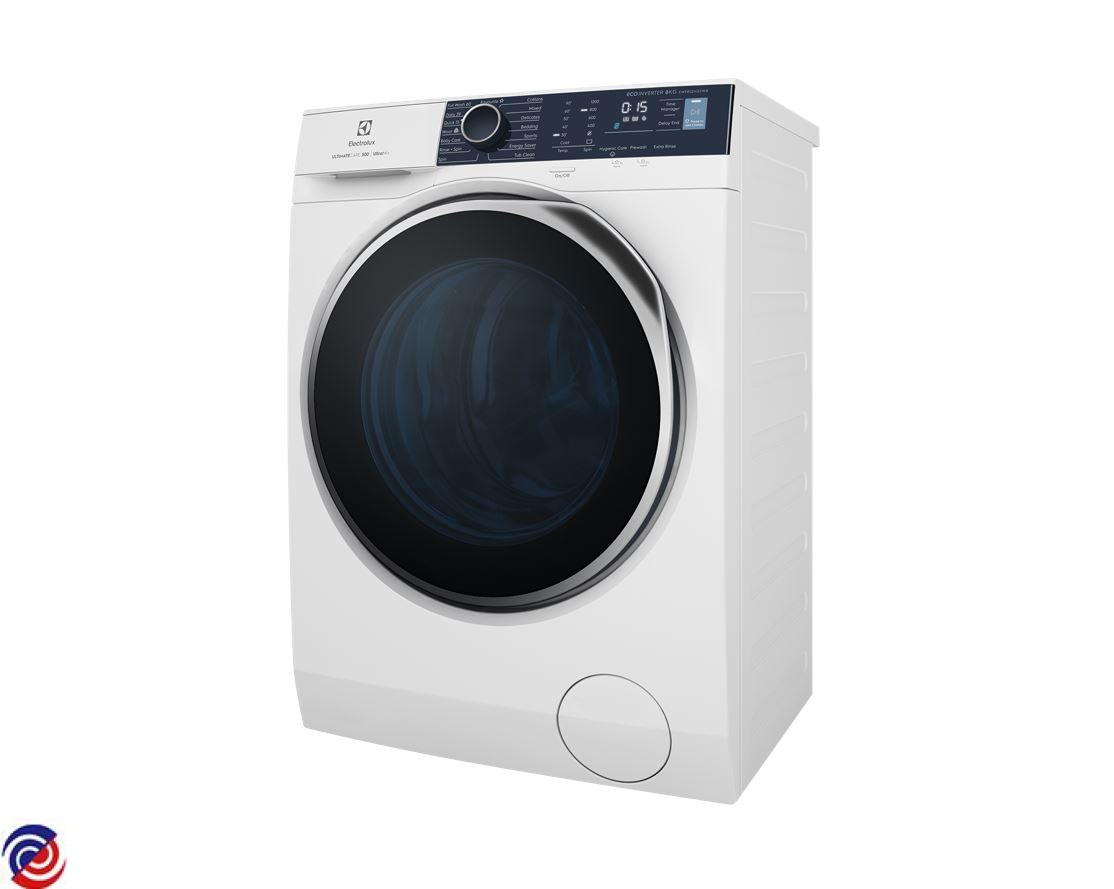

ELECTROLUX — Washing Machine

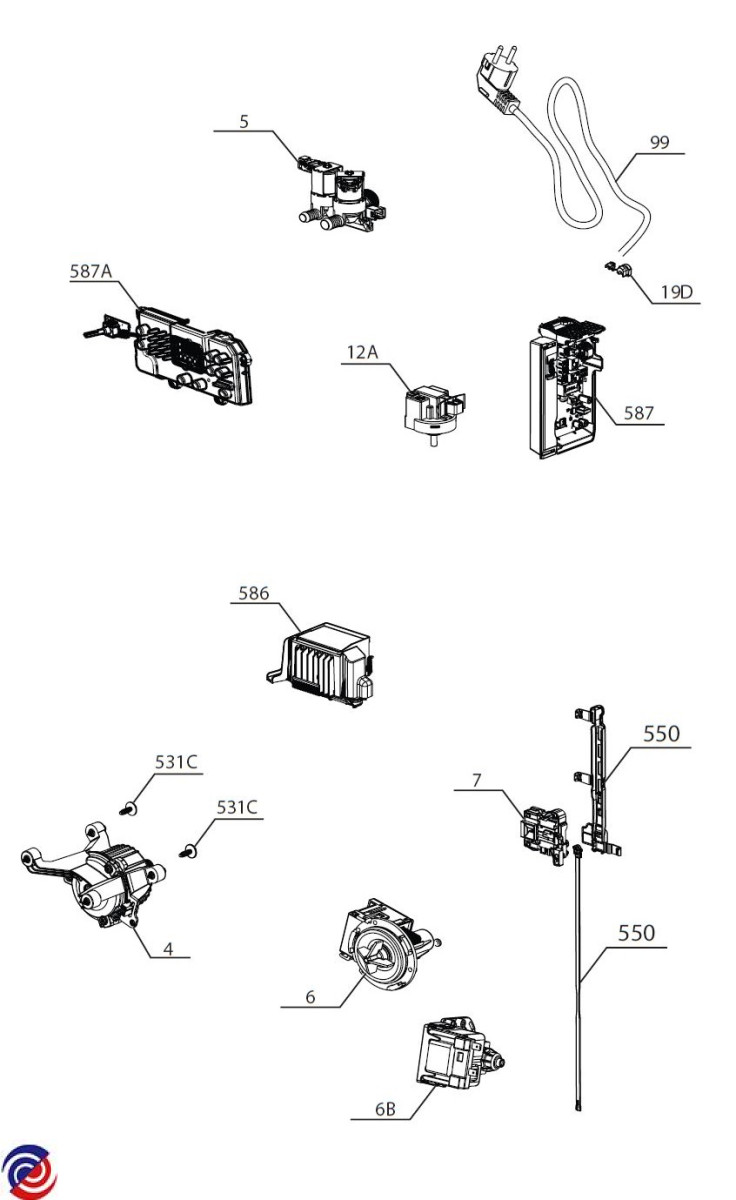

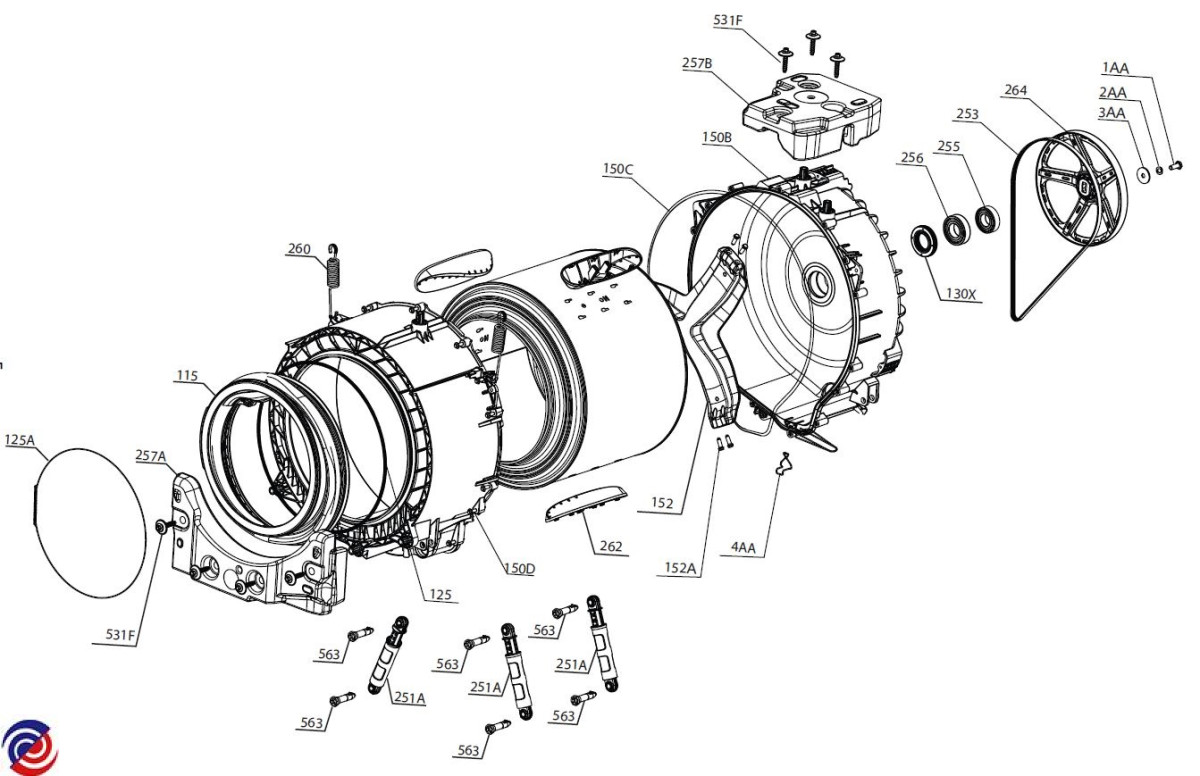

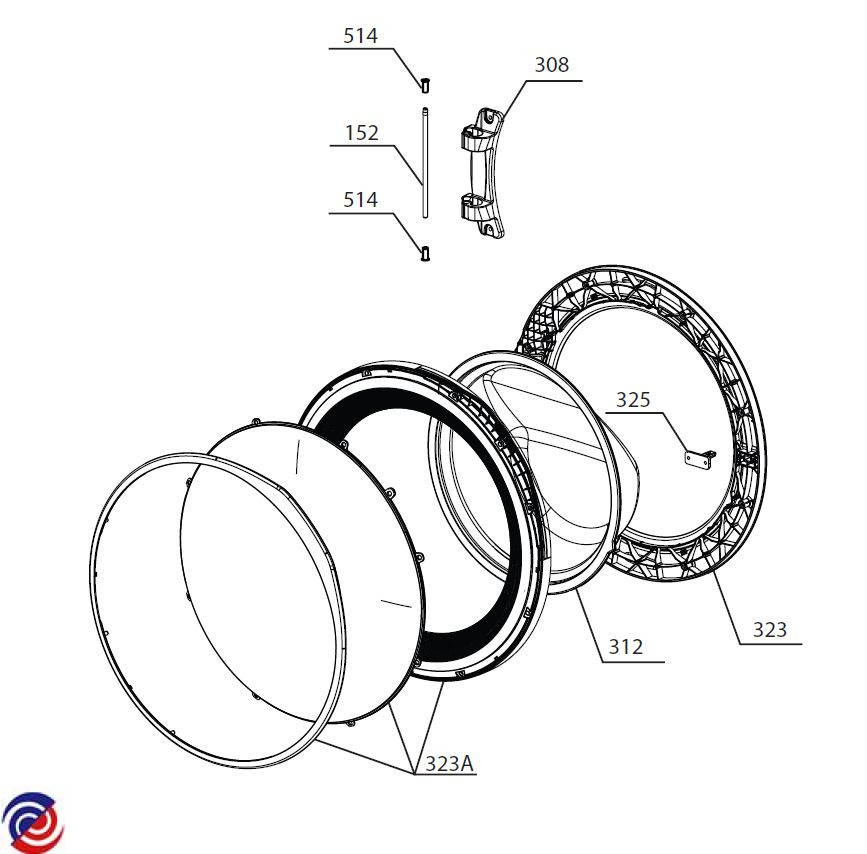

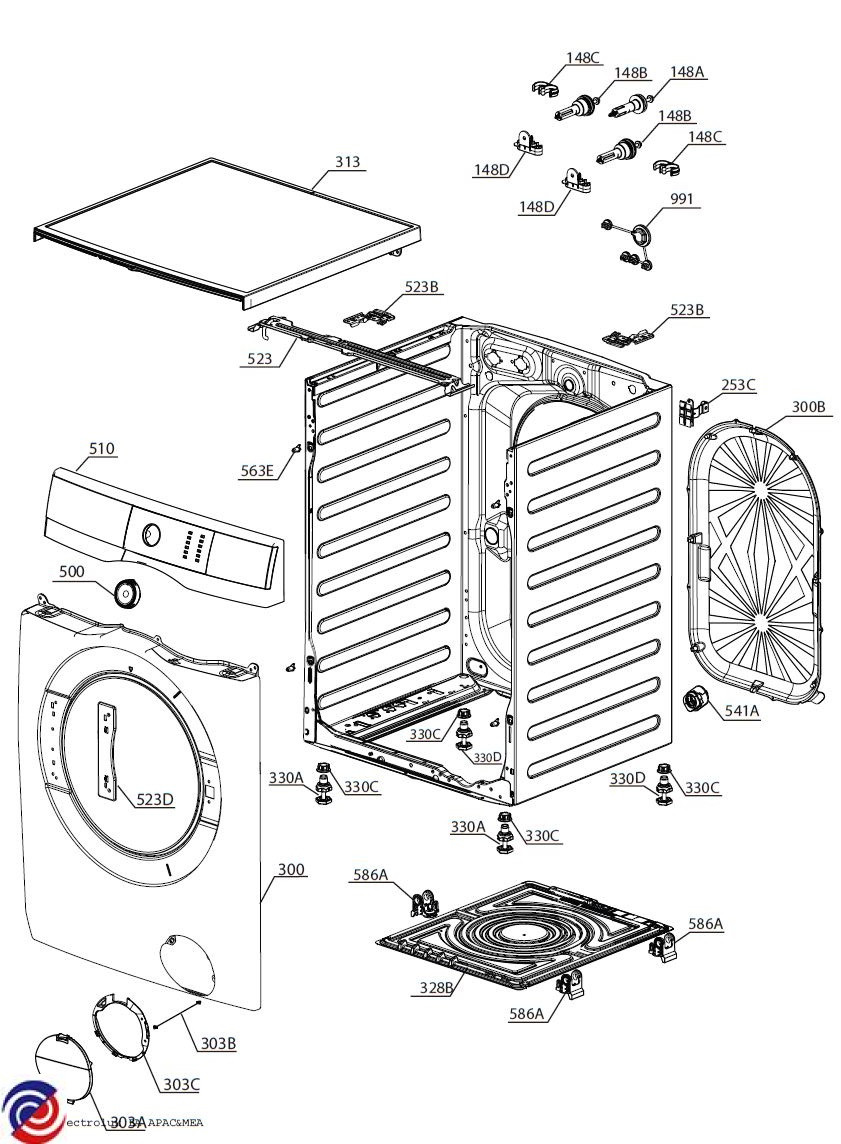

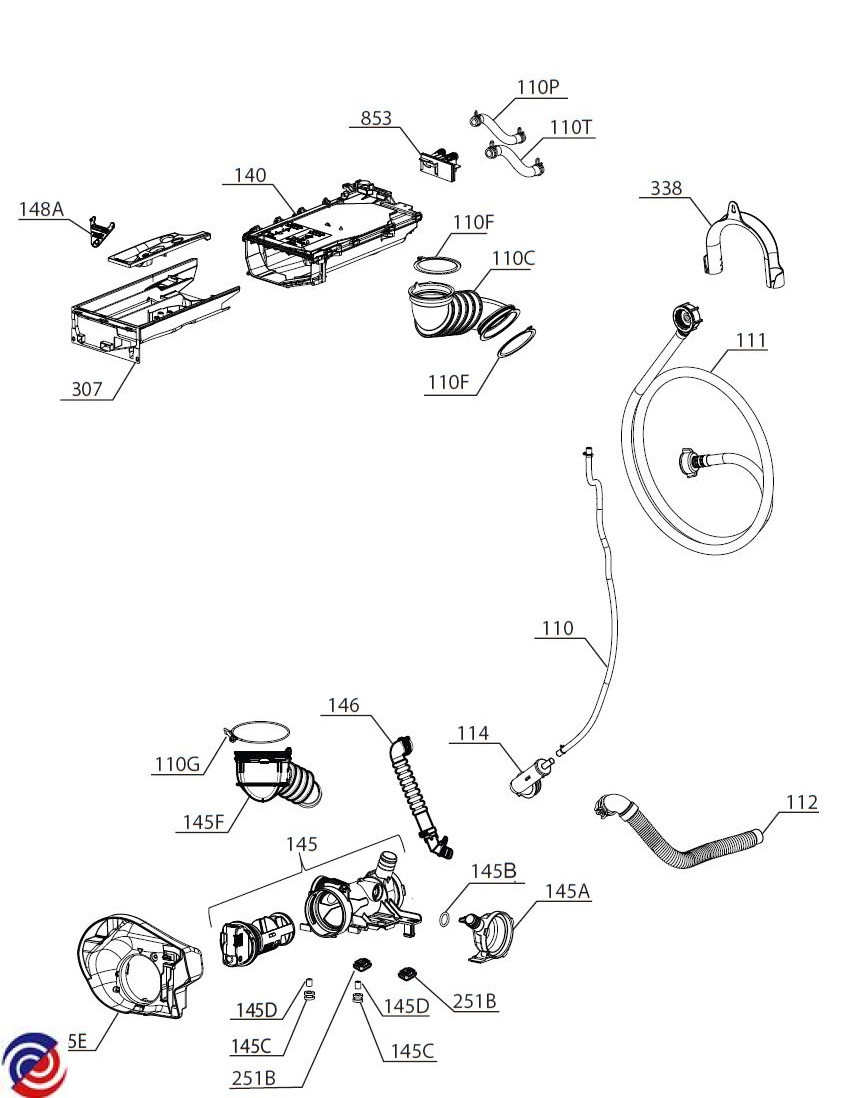

Parts for EWF8024Q5WB
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0075951 BELT DRIVE
W0076089 HOSE FILLER
W0365703 ELECTROLUX FRONT LOAD WASHER DOOR LOCK
$88.50
W0366203 PUMP-ASSY DRAIN AL 50HZ LL
$52.00
W0366242 ELECTROLUX SIMPSON FRONT LOADER 2 WAY INLET VALVE
W0368099 AEG ELECTROLUX FRONT LOADER WASHER EMERGENCY STRIP DOOR LOCK
W0016544 WASHER, PLAIN
$30.00
W0016559 SCREW PULLEY
$4.50
W0016881 SCREW SHELL TUB 6 5X50
$4.50
W0016944 CAP REAR PANEL
$16.00
W0016977 SPACE COMPENSATOR, FIXING, PUM
$27.50
W0017040 DISPENSER & CONVEYER ASSY COMP
W0018750 HOSE & CLAMP ASSY FOR SOLENOID
$4.50
W0018751 HOSE & CLAMP ASSY FOR SOLENOID
$19.45
W0027108 LIFTER DRUM
$18.70
W0030077 PCBA MB EWX14 POTTED RAW
W0074259 CLAMP HOSE
W0074341 SCREW BEARING SPIDER M8X25 5
W0075694 BRACKET HOSES
W0076002 BUFFER UPPER PUMP BODY
W0076136 SPRING BELLOW. TUB.G33
W0076182 SCREW COUNTERWEIGHT.TOP
W0076222 PANEL, BACK, HIGH
$47.00
W0112796 BEARING. 25X52X15
W0112867 ELEMENT HEATER ALT +NTC 23/19
W0274403 HINGE REINFORCEMENT
$22.10
W0275320 CLAMP HOSE TUB DRAIN D79MM
$4.50
W0275321 O RING CW SCROLL
W0282621 CROSSBAR, COMMAND
W0283245 PROTECTION DOOR LOCK
W0283309 FRONT PANEL PCM WHT 0.7MM
$129.25
W0364665 HINGE AL CASTING
$16.80
W0365722 HOSE DRAIN ASSY
W0365768 LOW FREQENCY ANALOG PRESSUR
W0365778 PCBA MCB EMC18 PMM W/O PFC
$205.00
W0365827 AIR CHAMBER ASSY
$12.60
W0365833 SPRING, TUB SUSPENSION
$14.00
W0365870 FRAME REAR DOOR
$14.80
W0365881 CW PIPE ASSY,P69
$16.00
W0365916 CORD POWER SUPPLY AUSTRALIA
$20.00
W0366029 BODY PUMP ASSY,CW 2.0
$28.00
W0366042 SEAL DRUM OUTER REAR
$29.00
W0366043 PULLEY PLASTIC
$29.50
W0366050 GASKET DRUM SHAFT
$28.55
W0366080 SHOCK ABSORBER ASSY
W0366082 BEARING DRUM (6206Z)
$31.55
W0366194 PUMP-ASSY RECIR AL 50HZ
$61.00
W0366247 DRAWER DETERGENT 3 SCOMPARTI
W0366331 GLASS, DOOR
$85.00
W0366347 WORK TOP ASSY
$94.00
W0366364 DISPENSER & CONVEYER ASSY COMP
$100.00
W0366366 DOOR BELLOW UC2
$121.00
W0366385 CROSS SPIDER ASSEMBLY
$111.00
W0366453 EXT. FRAME ASSY,M-BLUE+C-SIL
$147.00
W0366632 CABLE CLIP
$4.00
W0366641 FOOT ASSEMBLY
$5.50
W0366643 BUSH SPACER
$4.00
W0366644 HOSE SUPPORT
$4.00
W0366645 DRAIN HOSE SUPPORT HIGH
$4.00
W0366646 DRAIN HOSE SUPPORT LOW
$5.50
W0366649 SHOCK ABSORBER PIN
$5.50
W0366651 SCREW M6X30 TTE (CH8)
$4.00
W0366704 DRAIN HOSE P69 CORE
$25.00
W0366785 INTERFACE BODY CONNECTION
$6.00
W0366794 FILTER DOOR,WHITE 7820
$4.50
W0366819 BOTTOM COVER, HEC60
$17.25
W0366882 PCBA UI DM TC4 WM UC2 COATED
$200.00
W0366894 HARNESS-ASSY MAIN P69,TC4
$113.00
W0367037 KNOB ASSY,500EL,MIDNIGHT BLUE
$11.00
W0367040 MOTOR PM 30STK AL
$310.00
W0367065 C/P ASSY EWF9024Q5WB EN
$195.00
W0367108 FILTER DOOR SPACER, GREY
$5.50
W0367779 SHOCK ABSORBER SUPPORT
$5.50
W0367781 REAR TUB SHELL ASSY
$162.00
W0367806 PCB CONFIGURED EWX14 EWF8024Q5
$247.00
W0367993 BUSHING HINGE
$5.50
W0368012 DRAWER PARTITION RIB L.D.
$5.50
W0368016 PEG, FRONT PANEL, CATCH
$4.00
W0368017 PIN DOOR HINGE
$5.50
W0368024 HEATING ELEMENT SUPPORT SPRING
$4.00
W0368047 SYPHON ADDITIVE
$5.50
W0368049 NUT, PLASTIC EWN14991W
$5.50
W0368073 Foot front 44.5mm
W0368077 CW SCROLL,CW2.0 EVO
$6.00
W0368087 SPACER,ASSY,,PACK
$5.55
W0368088 SPACER,ASSY,LOWER INTERNAL
$5.55
W0368091 CLAMP BELLOWS WITH SPRING
$6.00
W0368121 HOSE PRESSURE SENSOR L620
$7.00
W0368181 LATCH, DOOR
$10.00
W0368207 HOOK OUTLET HOSE
$10.05
