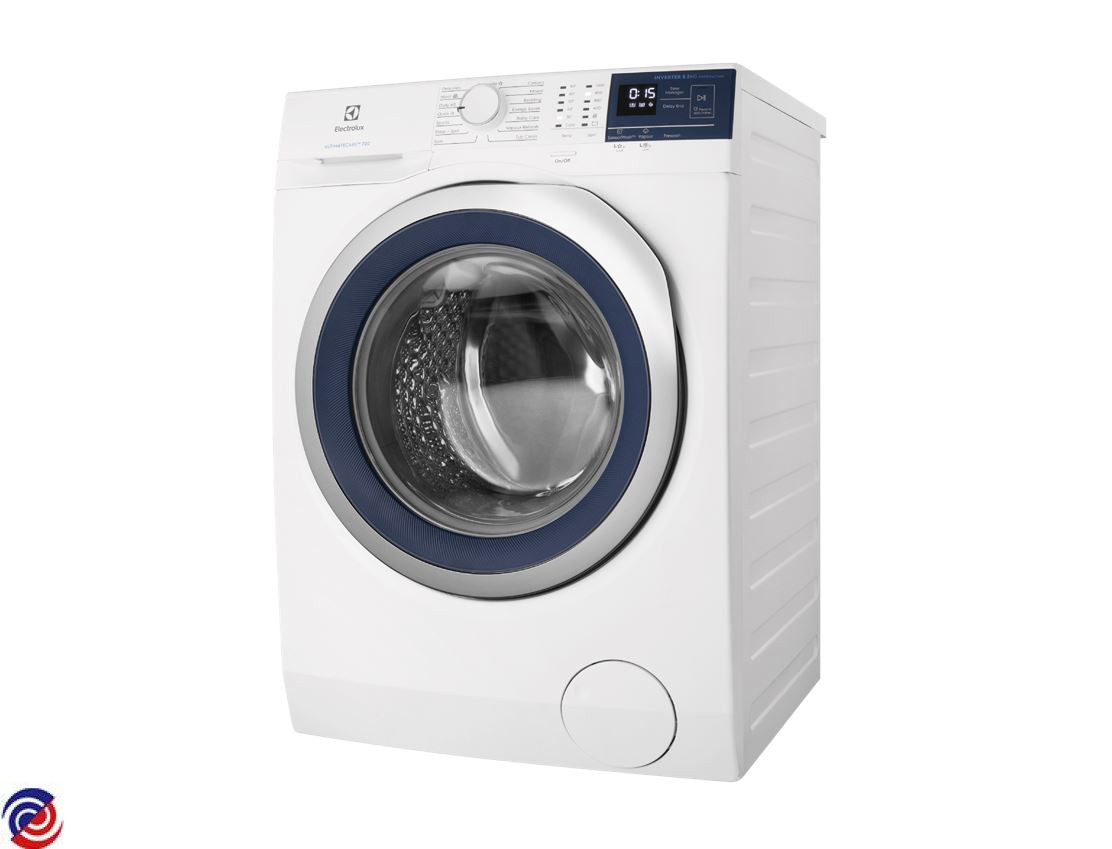

EWF8524CDWA — 914900766 00
ELECTROLUX — Washing Machine
Parts for EWF8524CDWA
W0016638 GASKET DRUM SHAFT
$28.55
W0016971 TRANSIT BOLTS KIT
W0017029 SPRING, BELLOW, TUB, G33
$15.00
W0017076 ELEMENT HEATING
W0017173 SPRING, SUSPENSION, TUB
$17.00
W0017199 BOLT SHOCK ABSORBER
W0017214 PUMP ASSEMBLY RECIRCULATION
W0026627 BEARING DRUM (6206Z)
$31.60
W0027221 HOSE DRAIN ASSY
W0075967 PULLEY PLASTIC
$27.50
W0076089 HOSE FILLER
W0274160 HOSE ASSY INLET COLD GREY
W0284368 LOCK DOOR
W0016544 WASHER, PLAIN
$30.00
W0016559 SCREW PULLEY
$4.50
W0016611 SPANNER FOR FOOT
$5.60
W0016906 SHOCK ABSORBER ASSY
W0016928 LEG ASSY
$18.90
W0016944 CAP REAR PANEL
$16.00
W0017016 CROSSBAR, COMMAND
$28.00
W0017040 DISPENSER & CONVEYER ASSY COMP
W0017081 DRAWER PARTITION RIB L.D.
$4.50
W0017098 CLAMP DET DISPENSER GASKET
W0017108 SUPPORT,HOSE DRAIN,LOW
$8.75
W0017171 SCROLL RECIRCULATION
$21.60
W0018732 CORD POWER SUPPLY AUSTRALIA
$18.25
W0018750 HOSE & CLAMP ASSY FOR SOLENOID
$4.50
W0018751 HOSE & CLAMP ASSY FOR SOLENOID
$19.45
W0018766 DRAWER DETERGENT 3 SCOMPARTI
W0026228 BEARING BALL 25X52X15
W0027045 STRIP, DOOR LOCK, EMERGENCY
$6.15
W0027079 LATCH, DOOR
$8.80
W0027099 PROTECTION DOOR LOCK
$4.50
W0029602 BRACKET SPRING SUPPORT
$19.75
W0029733 MOTOR AL PM HP
$355.00
W0029815 LIFTER DRUM
W0029989 SPIDER ASSEMBLY + BUSHING W30L
$134.85
W0074341 SCREW BEARING SPIDER M8X25 5
W0074343 SCREW MOTOR 5.5 X 38 EWF1092
W0075275 CLAMP CABLE
W0076222 PANEL, BACK, HIGH
$47.00
W0089302 HOSE SET,PRESSURE SWITCH L550
W0132184 PIPE CLIPM 22,1MM
W0274360 HOOK OUTLET HOSE
W0275648 PUMP-ASSY DRAIN AL 50HZ LL
W0275691 COVER DRAIN PUMP PROTECTION
W0282257 CLAMP HOSE
$4.50
W0282622 GASKET INTAKE HOSE
$4.50
W0282849 INTERNAL DRAIN ASSY G60XC JET
W0283300 BELLOW DOOR 3XL WM JET
W0283303 HINGE REINFORCEMENT
$4.50
W0283309 FRONT PANEL PCM WHT 0.7MM
$129.25
W0283327 GLASS, DOOR
W0283329 BUSHING HINGE
$4.50
W0283330 PIN DOOR HINGE
$4.50
W0283336 HINGE
$21.65
W0283338 PCBA MOTOR CONTROL EMC14 PMM
W0283339 BUTTON PUSHFILTER DOOR
$21.00
W0283343 FRAME REAR DOOR
$26.50
W0283360 COVER HINGE GREY
$4.00
W0283410 SENSOR TURBIDITY & CONDUCTIVIT
$111.30
W0283614 HARNESS ASSY WM G60XC TC3/4
$180.05
W0283626 EXTERNAL FRAME ASSY SIL+BLU
W0283628 PCBA X SELECTOR-TC3 TC4-EAX
W0283633 PCBA UI TC4 WM EUI
W0283640 CONTROL PANEL ASSY EWF8524CDWA
$125.25
W0283729 CLAMP BELLOWS WITH SPRING
W0284099 BRACKET SHOCK ABSORBER RH
$7.55
W0284411 WORK TOP ASSY
W0295040 KNOB ASSEMBLY TC4
$50.00
W0296500 PCBA MAIN BOARD EWX14 EWF8524
W0296510 FILTER DOOR
$18.90
W0296511 HOSE CW CW2.0 EVO
$11.50
W0296541 KNOB ASSY UNDER WHITE
W0296549 HOSE RECIRCULATION ASSY
W0359287 DRAIN FILTER
W0360883 VALVE INLET 2 WAY FLOWMETER
W0361059 SYPHON ADDITIVE
$4.50
W0361061 SUPPORT DRAIN HOSE HIGH
W0361736 HOSE RECIRC INTAKE TURB
$12.40
W0361849 BUTTON ON/OFF
$12.60
W0361872 PUMP CW 2.0 SCROLL ASSY
W0362522 BELT
W0363332 ANALOG PRESSURE SWITCH
