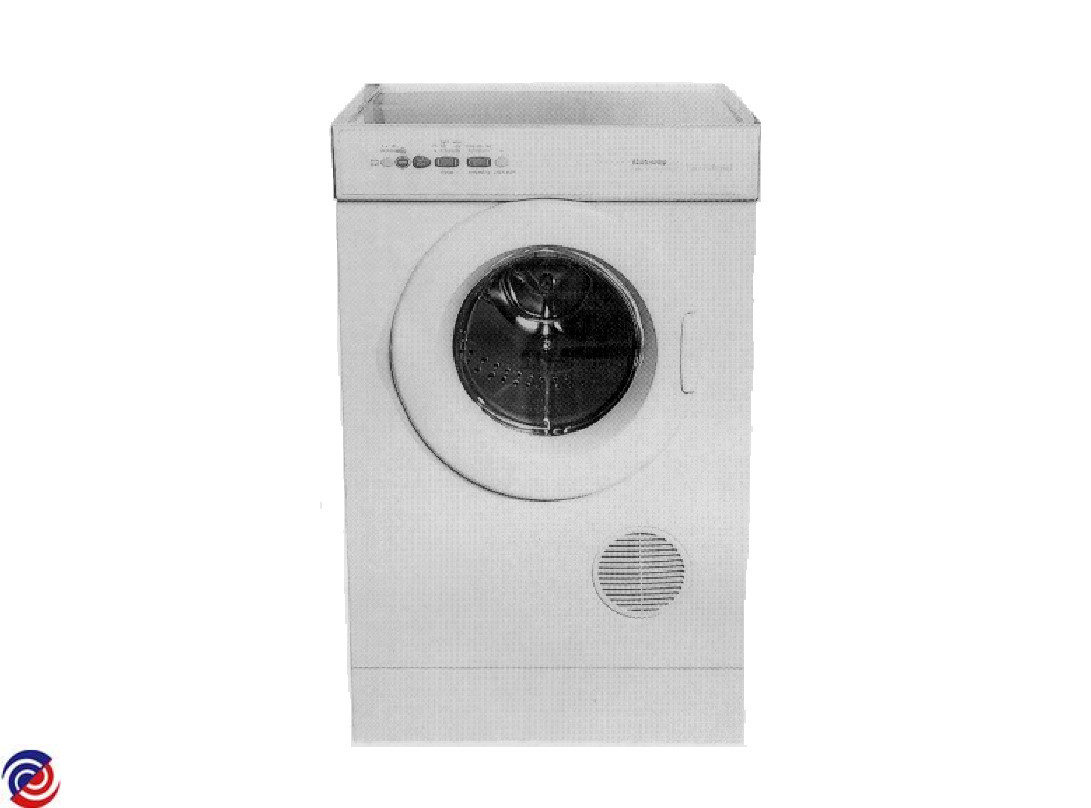

AD35A — 96435
FISHER & PAYKEL — Clothes Dryer

Parts for AD35A

W0182764 KIT WALL MOUNTING
W0189105 FISHER & PAYKEL DRYER GRILLE SPIGOT
$21.00
W0195474 FISHER & PAYKEL DRYER DOOR RIM-REAR VENTING TYPE
$97.00
W0195514 FISHER & PAYKEL DRYER DOOR FRONT FRAME SUB ASSY
$76.00
W0197467 FISHER & PAYKEL DRYER TIMER PKD
$184.70
W0200472 KIT CAPACITOR 7UF PRL
W0271394 FISHER & PAYKEL DRYER DOOR CATCH
$24.00
No image available
W0179385 PIN JOCKEY 63 DIA X 43 SQ HD
No image available
W0179391 BASE CABINET AD3
No image available
W0179396 FILTER LINT WHITE
No image available
W0179397 KIT WHEELS DRYER X 2
No image available
W0179404 WRAPPER CABINET WHITE AD3
No image available
W0179405 FAN AD3
No image available
W0179412 CAP DRUM REAR AD3 COATED
No image available
W0179415 NUT FLEXIBLE HOSE
No image available
W0179825 KIT DOOR ASSY REAR VENTED
No image available
W0179826 KIT DOOR ASSY FRONT VENTED
No image available
W0179827 BACK CABINET FRONT VENT
No image available
W0179828 BACK CABINET REAR VENT
No image available
W0179830 KIT CLAMP DOOR SWITCH
No image available
W0179831 GROMMET HARNESS DRYER
No image available
W0179832 BELT ELASTIC POLYV D3 SERIES
No image available
W0179840 COVER HINGE D3 WHITE
No image available
W0179842 CLAMP SWITCH WHITE
No image available
W0179855 KIT SHOE RACK D5 PRE 2000
No image available
W0179874 HINGE RIVETED ASSY SHORT
No image available
W0179878 PIPE EXHAUST PP
No image available
W0179891 WRAPPER CABINET WHITE AD3
No image available
W0179892 CLIP MOTOR MOUNTING
No image available
W0179902 BRACKET HEATER PLATE
No image available
W0179906 CAP DRUM REAR
No image available
W0179907 GRILLE AIR INTAKE AD3
No image available
W0179909 TIMER PROGRAMME PACKED
No image available
W0179913 SHIELD WIRING
No image available
W0179917 WINDOW DOOR
No image available
W0179924 PULLEY JOCKEY ASSEMBLY
No image available
W0179926 WRAPPER CABINET REAR VENTING A
No image available
W0179930 BOLT DRUM DRILLED
No image available
W0179933 SCREW ST 14 X 50 TIMBERTITE HX
No image available
W0179948 DEFLECTOR VENT D5 PACKED
No image available
W0179952 DRUM ASSY PPSS PKD
No image available
W0179955 DUCT SEAL ASSY WHITE
No image available
W0179956 KIT ANTICONDENSATION
No image available
W0179964 SPACER MOUNTING BRACKET
No image available
W0179970 CONSOLE LT GREY PACKED
No image available
W0179971 MICROSWITCH ROUNDED DOOR
No image available
W0179977 KNOB ASSY LT GREY
No image available
W0179981 GRILLE INTAKE ROUNDED
No image available
W0179994 KIT FOOT INSERT PKD
No image available
W0180004 KIT HEATER PLATE
No image available
W0180025 NUT M3 HEX MC MS ZNPL X10 PKD
No image available
W0180026 NUT LOCK M8 HEX FL MS ZNPL
No image available
W0180029 WASHER LOCK 516 INT ZP X10 PK
No image available
W0180032 SCREW ST 8X10 SD MSH PKT 10
No image available
W0180036 SCREW ST 6X30MM TAB PKTS X 10
No image available
W0180038 PIN ROLL 532 X 34 ST
No image available
W0180039 NUT CAPTIVE NO8 SPIRE SNU3194
No image available
W0181572 SCREW 8X12 PAN PH NIB PKT10
No image available
W0181574 KIT VENTING EXTERNAL WITH LOUV
No image available
W0182072 KIT VENT EXTERNAL WEATHER COWL
No image available
W0182359 MICROSWITCH
No image available
W0182529 HOSE EXHAUST FLEXIBLE 040 MT
No image available
W0182530 PLUNGER TACT SWITCH
No image available
W0182541 KIT VENT EXTERNAL 400MM HOSE
No image available
W0182547 CONSOLE GREY
No image available
W0183337 WASHER LOCK 316 EXT SERR ZNPL
No image available
W0183799 KIT DOOR FRONT VENT
No image available
W0183843 DRUM ASSY D3 PACKED
No image available
W0183890 LATCH MOTOR MOUNT M6
No image available
W0183897 WRAPPER CABINET D3 PKD
No image available
W0183948 NUT M6 HEX FS MS ZNPL PKD
No image available
W0185053 LEVER MICROSWITCH D3 RED
No image available
W0185126 RETAINER ELEMENT
$4.50
No image available
W0185162 CLIP PUSH ON SPIRE
$4.50
No image available
W0185318 MOUNTING THERMOSTAT
No image available
W0185393 BRACKET TWIN ELEMENT
$4.50
No image available
W0186137 BRACKET MAINS CABLE
No image available
W0186596 SCREW MC M3 04MM PAN PH MS X10
$4.50
No image available
W0186705 SCREW ST 8X38 TAB MUSH PH X10
$4.50
No image available
W0186810 CLAMP DISC
$4.80
No image available
W0186945 BUTT HINGE ROUNDED DOOR
$5.40
No image available
W0187254 NUT M4 HEX FS PKT 10
$7.10
No image available
W0187342 SCREW ST 8X34 TAB PKT 10
$6.70
No image available
W0187426 DISC CLAMPING SLOTTED
$6.80
No image available
W0187434 SPRING JOCKEY PULLEY AD3
$8.30
No image available
W0187586 TRIM LINT FILTER WHITE
No image available
W0187597 WASHER PLAIN 5X10X09PKT 10
No image available
W0187635 GASKET DUCT
$7.80
No image available
W0187765 FOOT DRYER
$10.20
No image available
W0187960 SCREW MC M4X08 PAN MS PKT10
$11.40
No image available
W0187961 WASHER PLAIN M8X19X16 MS Z X1
$9.50
No image available
W0188195 ARM JOCKEY
$13.20
No image available
W0188224 SCREW ST 6X38 T23 PAN PH HS P
$11.00
No image available
W0188324 SCREW SET M8X8 HEX SOC PKT 10
$11.60
No image available
W0188456 SCREW ST 10X38 TAB PAN PKT 10
$12.60
No image available
W0188470 SCREW 10X12 TAB PAN PKT10
$15.20
No image available
W0188471 SCREW ST 858 TAB MSH PKT10
$12.60
No image available
W0188473 SCREW SET M6X6 HEX W PKT10
$13.20
No image available
W0188474 SCREW ST 8X20MM HILO PKT10
$15.20
No image available
W0188933 BRACKET MOTOR MTG D3
$16.20
No image available
W0188978 KIT HARDWARE DRYER INVERTED
No image available
W0189047 KIT AD39 DOOR SWITCH
$17.60
No image available
W0189112 KNOB ASSY WHITE
$17.60
No image available
W0189118 SCREW ST 832X38 PKT 10
$17.60
No image available
W0189707 BOSS FAN
$17.60
No image available
W0190386 HOUSING CONTROL PLASTIC
$20.00
No image available
W0191728 THERMOSTAT OVERHEAT
$31.50
No image available
W0192010 PULLEY DRIVE
$29.70
No image available
W0192053 CAPACITOR NUT 8UF M8 STUD
$34.60
No image available
W0192237 CABLE ENTRY
$31.90
No image available
W0192896 CORD SETCLAMPBRKT DRYER ASSY
$56.04
No image available
W0193069 SUPPORT DRUM FRONT
$40.10
No image available
W0193078 BEARING REVERSIBLE PKT 6
$46.20
No image available
W0193606 SCREEN LINT WHITE
$63.00
No image available
W0193738 FISHER & PAYKEL DRYER LINT FILTER-AD53/55/ED54/55/56
$52.08
No image available
W0194702 CONSOLE WHITE PKD
$65.00
No image available
W0194989 TOP CABINET WHITE AD3 PKD
$58.20
No image available
W0195207 TRIM CABINET WHITE AD3 PKD
No image available
W0195959 ELEMENT DOUBLE 240V
$85.00
No image available
W0196060 SENSOR ASSY EXHAUST
No image available
W0196437 HOSE EXHAUST FLEXIBLE 200 MET
No image available
W0197136 ELEMENT SINGLE 240V
$116.40
No image available
W0200324 PIN JOCKEY PULLEY
No image available
W0200330 STRIKE
No image available
W0200450 GRILLE OUTLET ASSY WHITE
No image available
W0200457 BOOK USE CARE DRYER UNBRAND
No image available
W0200464 BOOK USE CARE DRYER FP
No image available
W0200469 BOOK USE CARE COMPACT DRYER
No image available
W0200483 KIT DRUM BEARING
No image available
W0279044 BELT POLY VEE AD3
$26.47
No image available
W0279046 SPRING RETAINER
$17.60
No image available
W0358719 DISC DRIVE
$9.10
