DE45F56AW1 — 93008-A

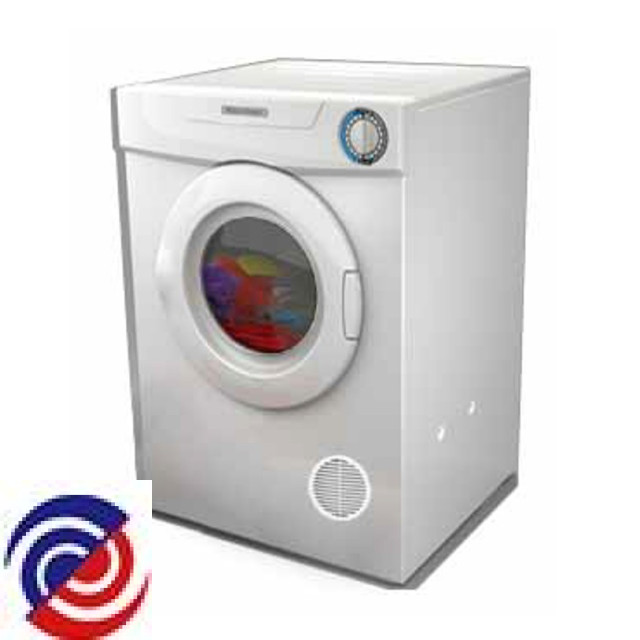

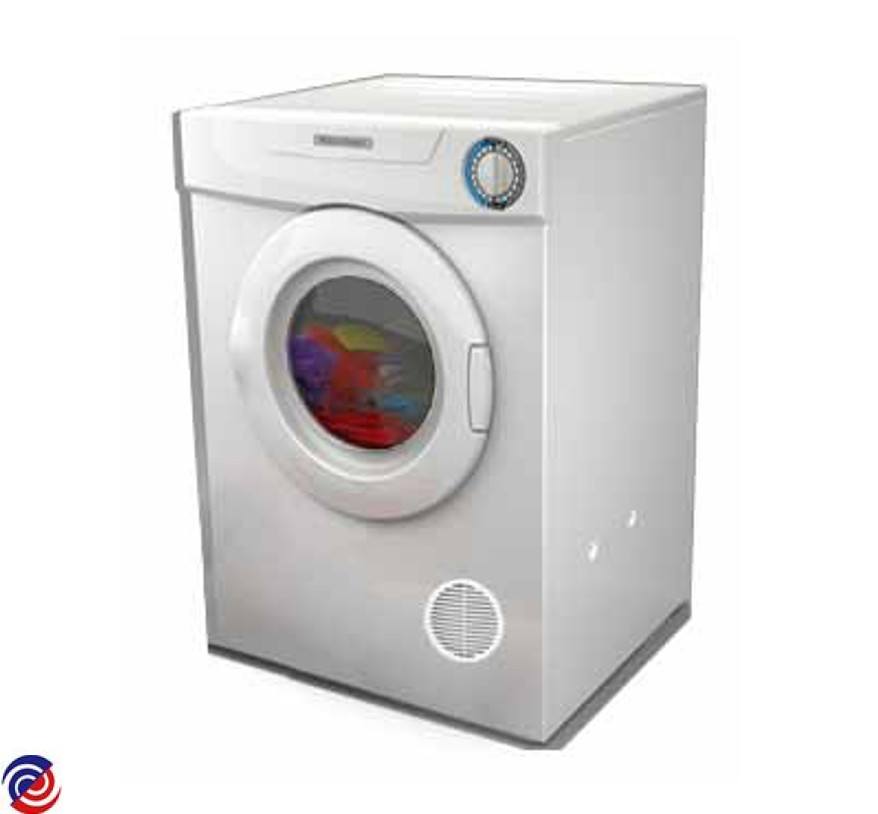

FISHER & PAYKEL — Clothes Dryer

W0182764 KIT WALL MOUNTING

W0188402 COVER HINGE D5 WHITE

W0194303 FISHER & PAYKEL DRYER V BELT- REAR VENTING MODELS ZI5180

$62.00

W0197467 FISHER & PAYKEL DRYER TIMER PKD

$184.70

W0200472 KIT CAPACITOR 7UF PRL

W0271394 FISHER & PAYKEL DRYER DOOR CATCH

$24.00

W0175968 BOOK USE CARE DRYER REFRESH

W0179415 NUT FLEXIBLE HOSE

W0179825 KIT DOOR ASSY REAR VENTED

W0179878 PIPE EXHAUST PP

W0179892 CLIP MOTOR MOUNTING

W0179917 WINDOW DOOR

W0179923 BASE CABINET D5

W0179924 PULLEY JOCKEY ASSEMBLY

W0179933 SCREW ST 14 X 50 TIMBERTITE HX

W0179948 DEFLECTOR VENT D5 PACKED

W0179981 GRILLE INTAKE ROUNDED

W0179994 KIT FOOT INSERT PKD

W0180004 KIT HEATER PLATE

W0182541 KIT VENT EXTERNAL 400MM HOSE

W0183842 DRUM ASSY PREPAINTED D5 PACKED

W0185126 RETAINER ELEMENT

$4.50

W0185270 SEAL TOP PANEL REAR PKD

$4.50

W0185393 BRACKET TWIN ELEMENT

$4.50

W0185406 BOLT DRUM TAPERED

$4.50

W0185436 SPRING JOCKEY PULLEY

$4.50

W0186037 SCREW ST 8X12 TDS PAN PKT10

$4.50

W0186137 BRACKET MAINS CABLE

W0186142 BADGE DEFAW FP PKD

$4.50

W0186596 SCREW MC M3 04MM PAN PH MS X10

$4.50

W0186810 CLAMP DISC

$4.80

W0186945 BUTT HINGE ROUNDED DOOR

$5.40

W0187202 SPACER MOUNTING BRKT PKT2

$6.70

W0187254 NUT M4 HEX FS PKT 10

$7.10

W0187342 SCREW ST 8X34 TAB PKT 10

$6.70

W0187451 PIN JOCKEY PULLEY PKD

$8.40

W0187474 KNOB TIMER DEFAW PKD

$10.00

W0187586 TRIM LINT FILTER WHITE

W0187597 WASHER PLAIN 5X10X09PKT 10

W0187635 GASKET DUCT

$7.80

W0187765 FOOT DRYER

$10.20

W0187843 COMPRESSION RING SPIRE PKT 10

$10.60

W0187960 SCREW MC M4X08 PAN MS PKT10

$11.40

W0188061 SCREW ST 10 32X38 TRILOB PKD

$10.00

W0188116 HINGE RIVETED ASSY SHORT PKD

$12.50

W0188137 PIN ROLL 532X34 PKT 10

W0188195 ARM JOCKEY

$13.20

W0188470 SCREW 10X12 TAB PAN PKT10

$15.20

W0188473 SCREW SET M6X6 HEX W PKT10

$13.20

W0188474 SCREW ST 8X20MM HILO PKT10

$15.20

W0188564 SCREW ST 8X12 SD TRS NIB PH P

$15.90

W0188653 BRACKET MOTOR MOUNTING

$13.90

W0188978 KIT HARDWARE DRYER INVERTED

W0189118 SCREW ST 832X38 PKT 10

$17.60

W0189902 PANEL CONTROL DEFAW PKD

$18.50

W0190447 CAP DRUM REAR WHITE PKD

$20.20

W0191018 NUT LOCK M8 HEX FL PKT 10

$22.50

W0191728 THERMOSTAT OVERHEAT

$31.50

W0192010 PULLEY DRIVE

$29.70

W0192237 CABLE ENTRY

$31.90

W0192451 HOSE EXHAUST FLEXI 400MM PKD

$33.80

W0192896 CORD SETCLAMPBRKT DRYER ASSY

$56.04

W0193069 SUPPORT DRUM FRONT

$40.10

W0193078 BEARING REVERSIBLE PKT 6

$46.20

W0193247 CONSOLE DEFAW PKD

$42.10

W0193446 FISHER & PAYKEL DRYER FAN BLADE-AD55/ED55/ED56

$63.00

W0193738 FISHER & PAYKEL DRYER LINT FILTER-AD53/55/ED54/55/56

$52.08

W0195426 KIT DUCT SEAL ASSY

$73.20

W0195573 TOP PANEL FORMED DE45 PKD

$72.40

W0196437 HOSE EXHAUST FLEXIBLE 200 MET

W0197093 UNIVERSAL DRYER VENT KIT

$91.90

W0197136 ELEMENT SINGLE 240V

$116.40

W0198121 WRAPPER DE45F56AW1 PKD

W0198398 FISHER & PAYKEL DRYER MOTOR PSC REVERSING D5 PKD

W0200330 STRIKE

W0200468 PANEL BACK FORMED D5

W0200470 MICROSWITCH AD5 KWMD0004 LEVER

W0200483 KIT DRUM BEARING

W0201972 MOUNTING THERMOSTAT PKD

W0358719 DISC DRIVE

$9.10
