DE45F56EW1 — 93010-A

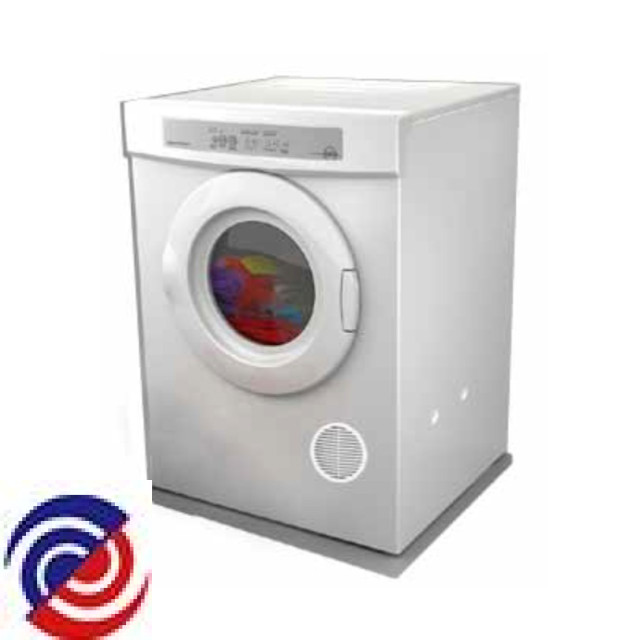

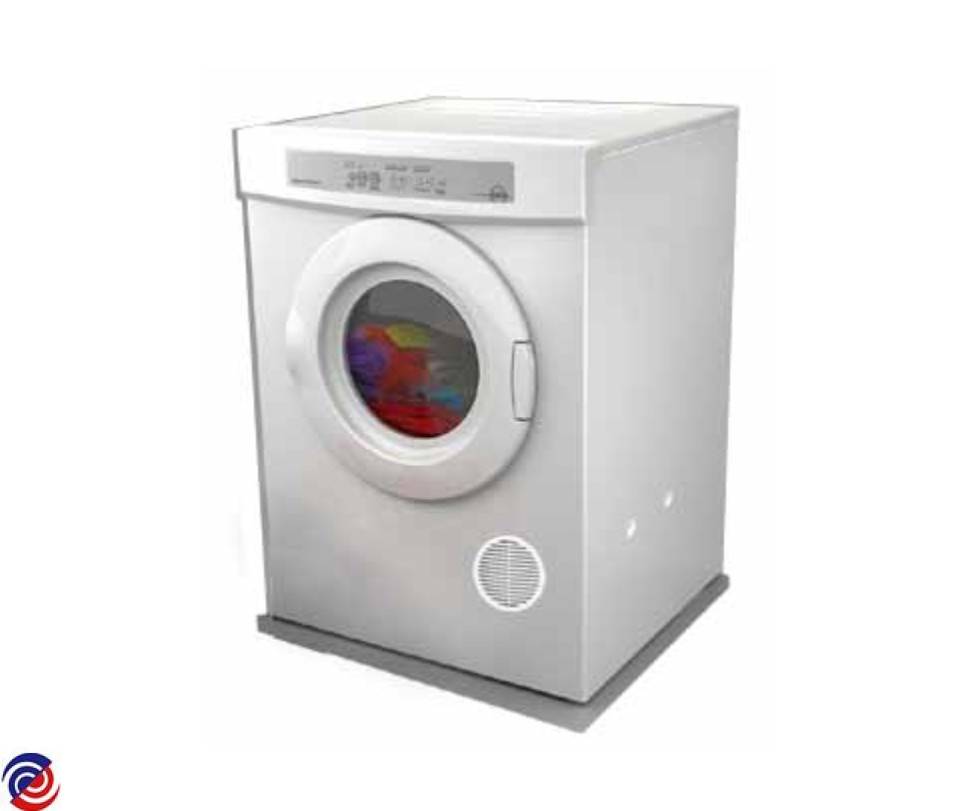

FISHER & PAYKEL — Clothes Dryer

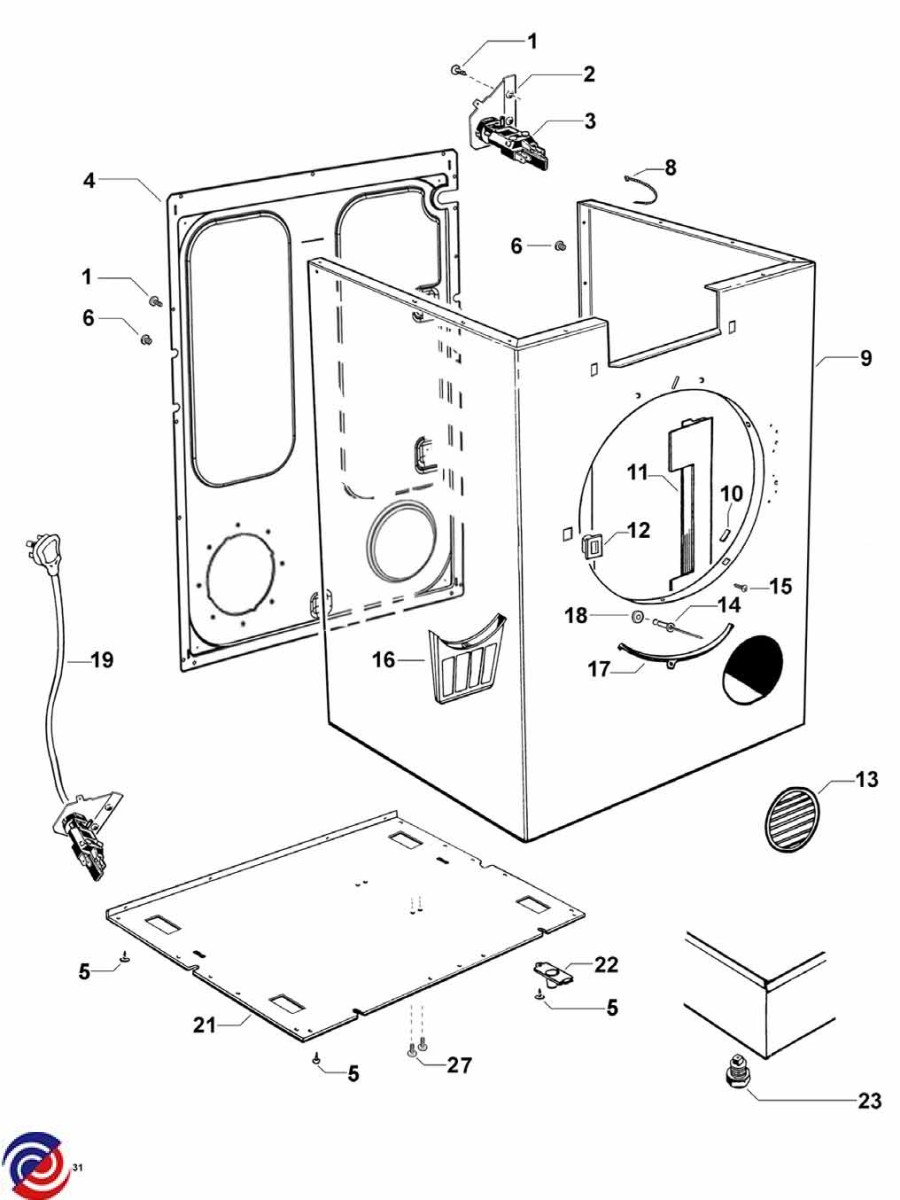

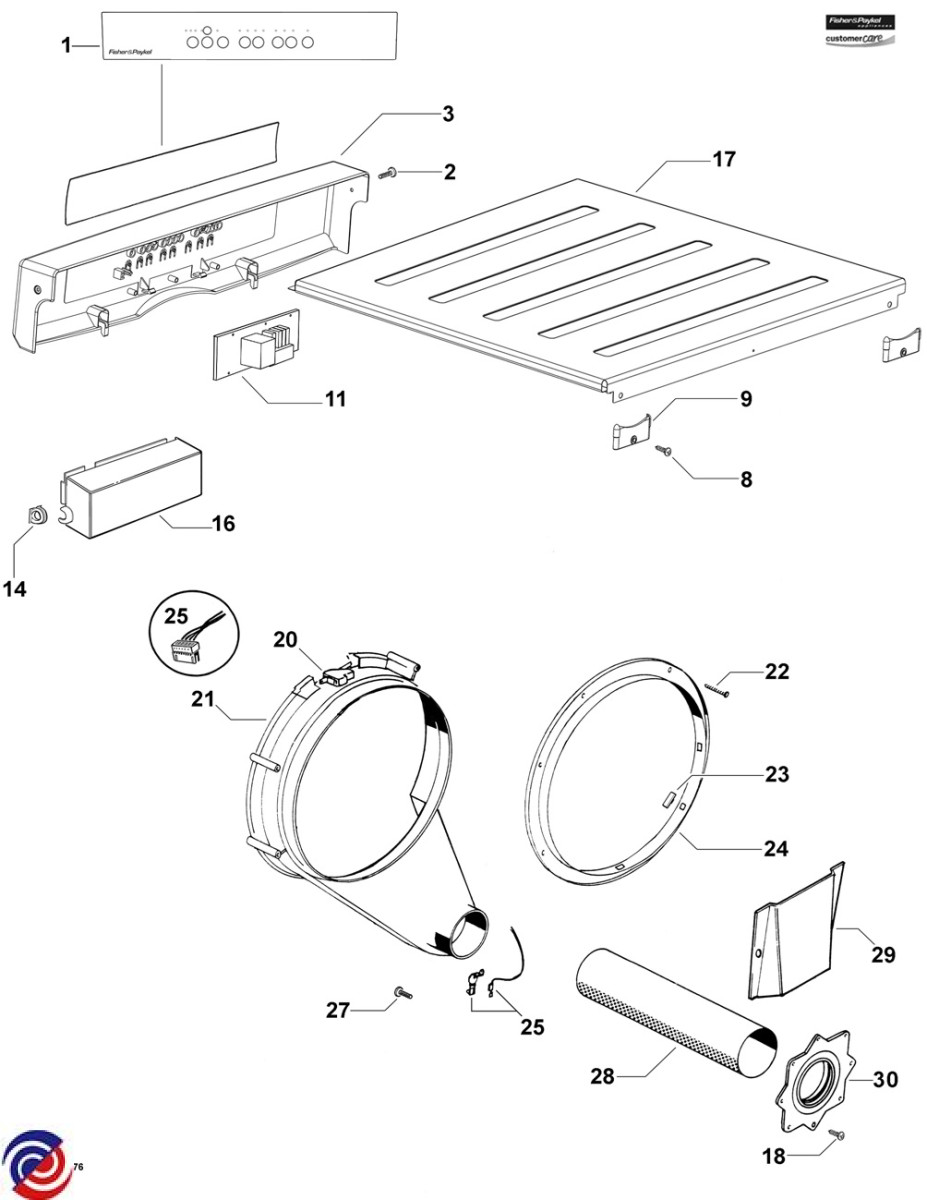

Parts for DE45F56EW1

W0182764 KIT WALL MOUNTING
W0188402 COVER HINGE D5 WHITE
W0200472 KIT CAPACITOR 7UF PRL
W0271394 FISHER & PAYKEL DRYER DOOR CATCH
$24.00
No image available
W0176012 MODULE CONTROL DEFEW1 SVC
No image available
W0176021 PANEL CONTROL DEFEW INV PKD
No image available
W0176022 BOOK USE CARE DRYER PKD
No image available
W0179415 NUT FLEXIBLE HOSE
No image available
W0179825 KIT DOOR ASSY REAR VENTED
No image available
W0179878 PIPE EXHAUST PP
No image available
W0179892 CLIP MOTOR MOUNTING
No image available
W0179893 MICROSWITCH ED KWBE0001
No image available
W0179917 WINDOW DOOR
No image available
W0179920 BELT POLY VEE D5 ZI5180
No image available
W0179923 BASE CABINET D5
No image available
W0179924 PULLEY JOCKEY ASSEMBLY
No image available
W0179933 SCREW ST 14 X 50 TIMBERTITE HX
No image available
W0179946 DEFLECTOR VENT D5
No image available
W0179955 DUCT SEAL ASSY WHITE
No image available
W0179956 KIT ANTICONDENSATION
No image available
W0179981 GRILLE INTAKE ROUNDED
No image available
W0179994 KIT FOOT INSERT PKD
No image available
W0180004 KIT HEATER PLATE
No image available
W0182541 KIT VENT EXTERNAL 400MM HOSE
No image available
W0185126 RETAINER ELEMENT
$4.50
No image available
W0185270 SEAL TOP PANEL REAR PKD
$4.50
No image available
W0185393 BRACKET TWIN ELEMENT
$4.50
No image available
W0185406 BOLT DRUM TAPERED
$4.50
No image available
W0185436 SPRING JOCKEY PULLEY
$4.50
No image available
W0186037 SCREW ST 8X12 TDS PAN PKT10
$4.50
No image available
W0186137 BRACKET MAINS CABLE
No image available
W0186810 CLAMP DISC
$4.80
No image available
W0186945 BUTT HINGE ROUNDED DOOR
$5.40
No image available
W0187202 SPACER MOUNTING BRKT PKT2
$6.70
No image available
W0187254 NUT M4 HEX FS PKT 10
$7.10
No image available
W0187342 SCREW ST 8X34 TAB PKT 10
$6.70
No image available
W0187451 PIN JOCKEY PULLEY PKD
$8.40
No image available
W0187586 TRIM LINT FILTER WHITE
No image available
W0187597 WASHER PLAIN 5X10X09PKT 10
No image available
W0187635 GASKET DUCT
$7.80
No image available
W0187765 FOOT DRYER
$10.20
No image available
W0187960 SCREW MC M4X08 PAN MS PKT10
$11.40
No image available
W0188061 SCREW ST 10 32X38 TRILOB PKD
$10.00
No image available
W0188116 HINGE RIVETED ASSY SHORT PKD
$12.50
No image available
W0188137 PIN ROLL 532X34 PKT 10
No image available
W0188195 ARM JOCKEY
$13.20
No image available
W0188224 SCREW ST 6X38 T23 PAN PH HS P
$11.00
No image available
W0188470 SCREW 10X12 TAB PAN PKT10
$15.20
No image available
W0188473 SCREW SET M6X6 HEX W PKT10
$13.20
No image available
W0188474 SCREW ST 8X20MM HILO PKT10
$15.20
No image available
W0188564 SCREW ST 8X12 SD TRS NIB PH P
$15.90
No image available
W0188653 BRACKET MOTOR MOUNTING
$13.90
No image available
W0188978 KIT HARDWARE DRYER INVERTED
No image available
W0189115 CAP DRUM REAR SILVER PKD
$17.60
No image available
W0189118 SCREW ST 832X38 PKT 10
$17.60
No image available
W0190386 HOUSING CONTROL PLASTIC
$20.00
No image available
W0191018 NUT LOCK M8 HEX FL PKT 10
$22.50
No image available
W0191315 FISHER & PAYKEL PANEL CONTROL DEFEW
$27.80
No image available
W0191728 THERMOSTAT OVERHEAT
$31.50
No image available
W0192010 PULLEY DRIVE
$29.70
No image available
W0192177 RACK SHOE PLASTIC POST 2000
$36.10
No image available
W0192237 CABLE ENTRY
$31.90
No image available
W0192451 HOSE EXHAUST FLEXI 400MM PKD
$33.80
No image available
W0192896 CORD SETCLAMPBRKT DRYER ASSY
$56.04
No image available
W0193069 SUPPORT DRUM FRONT
$40.10
No image available
W0193078 BEARING REVERSIBLE PKT 6
$46.20
No image available
W0193322 CONSOLE DEFEW PKD
$47.30
No image available
W0193446 FISHER & PAYKEL DRYER FAN BLADE-AD55/ED55/ED56
$63.00
No image available
W0193550 HARNESS DR SW SENSOR DEFEW
$50.00
No image available
W0193738 FISHER & PAYKEL DRYER LINT FILTER-AD53/55/ED54/55/56
$52.08
No image available
W0195573 TOP PANEL FORMED DE45 PKD
$72.40
No image available
W0195959 ELEMENT DOUBLE 240V
$85.00
No image available
W0196437 HOSE EXHAUST FLEXIBLE 200 MET
No image available
W0197093 UNIVERSAL DRYER VENT KIT
$91.90
No image available
W0198398 FISHER & PAYKEL DRYER MOTOR PSC REVERSING D5 PKD
No image available
W0198453 WRAPPER DE45F56EW1 PKD
$162.00
No image available
W0200330 STRIKE
No image available
W0200468 PANEL BACK FORMED D5
No image available
W0200471 DRUM ASSY SILVER PKD
No image available
W0200483 KIT DRUM BEARING
No image available
W0201972 MOUNTING THERMOSTAT PKD
No image available
W0358719 DISC DRIVE
$9.10
