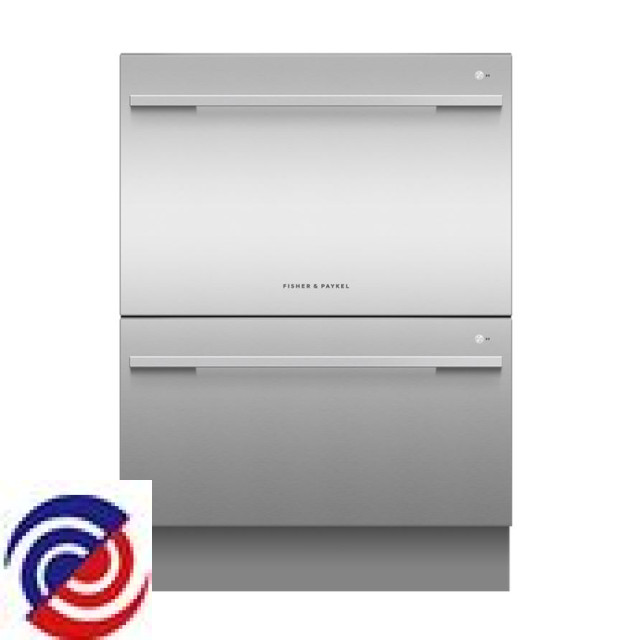

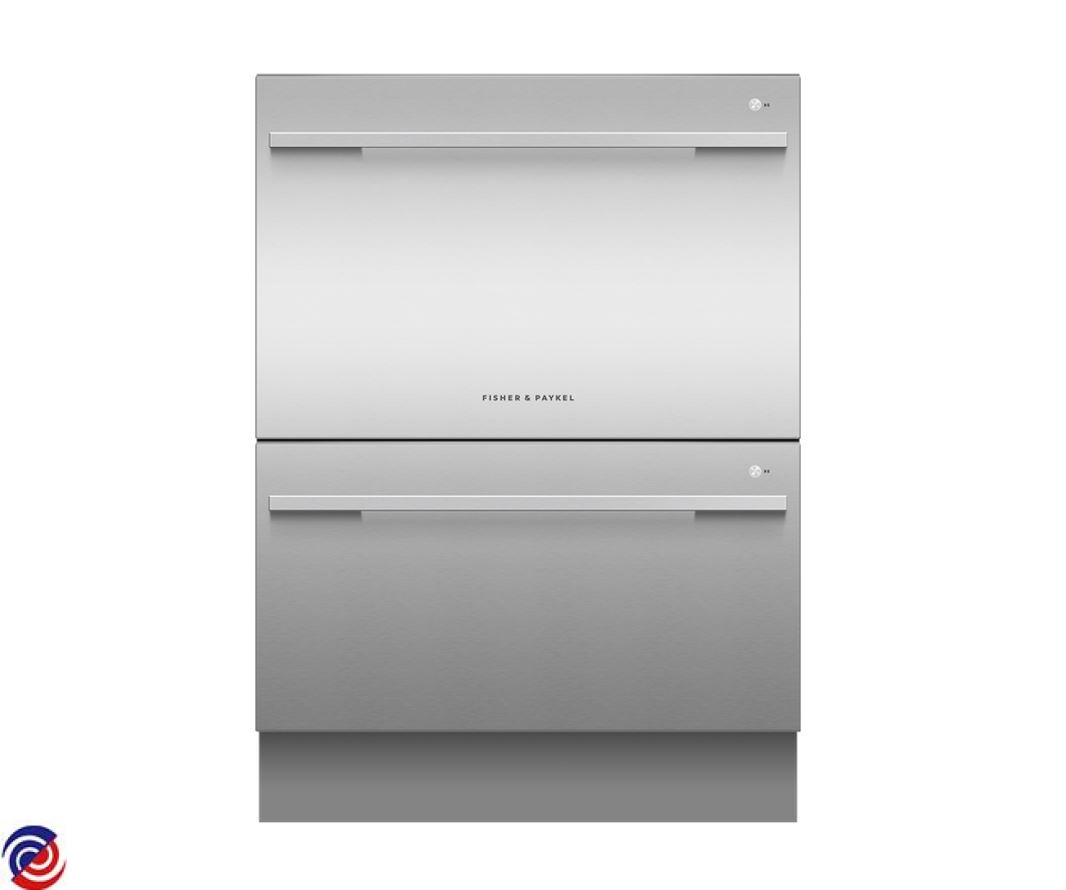

DD60DDFX9 — 81213-A
FISHER & PAYKEL — Dishwasher
Parts for DD60DDFX9
W0189874 FISHER & PAYKEL DISHDRAWER CUP RACK R/H DD60S/D 80MM ASSY
$32.90
.JPG)
W0190096 DRAIN SPIGOT CONNECTOR DOUBLE
$25.00
W0190365 FISHER & PAYKEL DISHDRAWER RACK CUP L/H DD60 100MM
$40.00
W0194560 FISHER & PAYKEL DISHDRAWER DOUBLE INLET VALVE 605
$70.00
W0194889 ADJUSTABLE CROCKERY INSERT
$85.75
W0196582 FISHER & PAYKEL DISHWASHER DISHDRAWER MOTOR ROTOR
$181.00
W0196838 KIT LID ACTUATORS 605 PKT 2
$143.00
W0196946 FISHER & PAYKEL DISHDRAWER DETERGENT DISPENSER
$134.93
W0185104 TAPE UNDERBENCH CONDENSATION
W0185171 SPACER THERMISTOR 608
$4.50
W0185172 CLIP LINK SUPPORT 608
$4.50
W0185173 CLIP LINK CHASSIS SIDE 608
$4.50
W0185174 3 DEGREE LIGHTPIPE PH8
$4.50
W0185175 PIN DOOR SQUARE
$4.50
W0185260 RETAINER FLAP FAN HOUSING 605
$4.50
W0185271 CLAMP HOSE TYPE 1223217
$4.50
W0185348 KIT FOOT TOOLS 605
$4.50
W0185438 O RING 152 SILICONE 40 608
$4.50
W0185441 ROD LINK SUPPORT 608
$4.50
W0185442 CLIP LINK TUB RIB
$4.50
W0185443 3 DEGREE PRISM
$4.50
W0185445 FLAP VALVE FAN HOUSING 605
$4.50
W0185449 TERM STRIP SADDLE NIPL
$4.50
W0185484 SCREW M35X14 PANTX K35 PKT10
$4.50
W0186144 TABLET INSERT 60
W0186576 CLIP TRAPDOOR 608
$4.50
W0186694 GROMMET 4MM THERMISTOR
$4.50
W0186852 MOUNT LINK TOP 608
$4.50
W0187040 CLIP TUB RELEASE LH MID GREY
$5.80
W0187041 CLIP TUB RELEASE RH MID GREY
$8.94
W0187130 BRACKET LINK SUPPORT
$6.30
W0187211 DD KNIFE CLIP COMBINED
$6.80
W0187221 REAR PANEL DD609 LWR
$5.70
W0187258 SUPPORT DRAIN HOSE
$7.10
W0187338 MOUNT LINK CHASSIS 608
$6.30
W0187421 ST INSERT C BASKET 60
W0187598 BRACKET DISPENSER SHORT
$8.00
W0187605 KIT SUPPORT GLASS CLIPON PKT
$9.30
W0187667 CLAMP HOSE HERBIE TYPE E
$9.60
W0187679 FOOT
$8.50
W0187744 BUNG ASSY DISP RAID MID GREY
$27.00
W0187794 ISOLATION DRYING FAN 605
$9.00
W0188073 CLAMP HOSE DIA 3214
$12.10
W0188078 MOTOR LOCKING RING
$10.60
W0188399 WIRE TRAPDOOR 608 LOOP CTD
$12.80
W0188534 CONTAINER CUTLERY BASKET ASSY
W0188600 KIT CLIP FRONTBACK PA
$35.00
W0188900 INSULATION CHASSIS BOTTOM LH
$15.80
W0188908 KIT FLAP VLVORING 605 PKT 2
$20.00
W0188918 ELEMENT COVER 608
$16.80
W0188940 REAR PANEL DD609 UPR
$17.60
W0189065 EXIT DUCT ASSY
$17.60
W0189070 SCREW ST 8X12MM TAB MTS PKT10
$17.60
W0189106 CLIP WIRE DRAIN PKT 2
$17.60
W0189236 WIRE SUPPORT CUP RACK STD
$17.60
W0189288 LATCH ASSY RH DD606
$20.00
W0189289 LATCH ASSY LH DD606
$17.70
W0189350 INSULATION CHASSIS TOP
$17.60
W0189434 INSULATION CHASSIS BOTTOM RH
$17.60
W0189553 LID YOKE RIGHT DD605
$19.20
W0189554 LID YOKE LEFT DD605
$19.20
W0189671 COVER TUB BASE 608
$17.60
W0190020 FISHER & PAYKEL DISHDRAWER INSTALL BRACKET KIT
$29.00
W0190198 SCREW MC M5X25 PN NIB PH PKT2
$21.30
W0190309 SPRAYARM ASSY 608
W0190455 KIT RIVET PUSH IN PKT 2
$19.30
W0190544 SCREW ST 8X516 NP PKT 10
$19.70
W0190697 SCREW ST 8X12 HILO ZP PKT 10
$20.00
W0191194 PUMP CAP ASSY 608
W0191214 SCREW M35X10 CSK BLK PKT 10
$22.20
W0191359 COVER CHASSIS MODULE 608
$23.30
W0191543 RETAINING RING E18 PKT 10
$24.60
W0191678 RIVET SNAP NYLON GREY PKT 10
$25.60
W0191774 HOUSING CHASSIS MODULE DD608
$31.90
W0191869 BRACKET INT SHIELD LH ROHS
$28.50
W0192068 HARNESS THERMISTOR
$34.80
W0192174 KIT CLIP FRONTBACK FD PH7
W0192203 BRACKET INT SHIELD RH ROHS
$31.60
W0192266 CUTLERY BASKET 60 ASSY
$46.90
W0192397 HOSE INLET ASSY AA TW KR
$38.40
W0192474 KIT DRAIN HOSE JOINER
$39.20
W0192735 KIT KICKSTRIP DD60D9 F PNL SLV
$48.00
W0192830 FLEX MAINS AA
$43.00
W0193276 KIT INSTAL DBLSGL PH5PH6
$47.30
W0193380 COWLING ASSY DD60D9 ADJ SLV
$41.60
W0193453 KIT DD FILL HOSE LOWER SPARE
$47.30
W0193772 CROCK INSERT MP 7PS
W0193860 KIT DD FILL HOSE UPPER SPARE
$83.00
W0194269 KIT DRAINMICROFILTER ASSY 608
$57.50
W0194930 HARNESS RINSEAID DRYFAN DET DI
$57.20
W0194945 KIT DD DRAIN HOSE SPARE
$69.00
W0195497 RACK BASE ASSY DD60C PH9 CTD
$67.40
W0195967 KIT TRIMSEAL DD60D
$143.00
W0196025 KIT DD HARNESS LOWER 608 SPARE
$90.16
W0196110 FISHER & PAYKEL DISHDRAWER OVERMOULDED 608 TYPE 16-DD60
$114.85
W0196256 KIT DD HARNESS UPPER 608 SPARE
$92.40
W0196744 HANDLE D3 565 BRUSHED
W0196763 KIT ELEMENT SEAL 608 230V
W0196863 KIT DRAIN HOSE EXTN KDDDEXT1
$79.90
W0196959 KIT MOTOR ASSY 608V
$198.00
W0197039 LID ASSY 605 SP
$124.00
W0197346 KIT BRACKET SLIDE RH LH ASSY
$126.60
W0199177 KIT REPLACE CHASSIS DD60DA8
$279.70
W0199441 FISHER & PAYKEL DISHDRAWER MOTOR CONTROL MODULE-DD60
W0202154 SCREW MC M5X10 TAPTITE PKT10
$17.30
W0279077 HANDLE SUPPORT PH9 DESIGNER
$26.40
W0279083 TUB STD WASSY DD609 DES
$101.30
W0279084 INSUL UPR DESIGNER PH9
$17.60
W0279085 INSUL LWR DESIGNER PH9
$17.20
W0279086 TOP CAP ASSY DESIGNER PH9
$54.90
W0279092 HARNESS TUB DETECT LOOP P9 525
$4.50
W0279102 KIT DOOR UPR DESIGNER PH9 BR
$108.90
W0279103 KIT DOOR LWR DESIGNER PH9
$102.00
W0279105 HARNESS ISOLATED RAIL TO EARTH
$31.40
W0279128 SEAL DOOR DD609 DES INT
$14.30
W0279509 BK INSTL DD60F PH9 FP AAGB
$7.00
W0279511 BOOKSET DD60F PH9 FP AAGB
$12.20
W0279739 MOD DISP FLANGE 525 P9 SP
$91.20
W0279740 MOD DISP DESIGNER UI 525 P9 SP
$100.66
W0279743 KIT WASH CTRL P9 V2 AA SG PF
