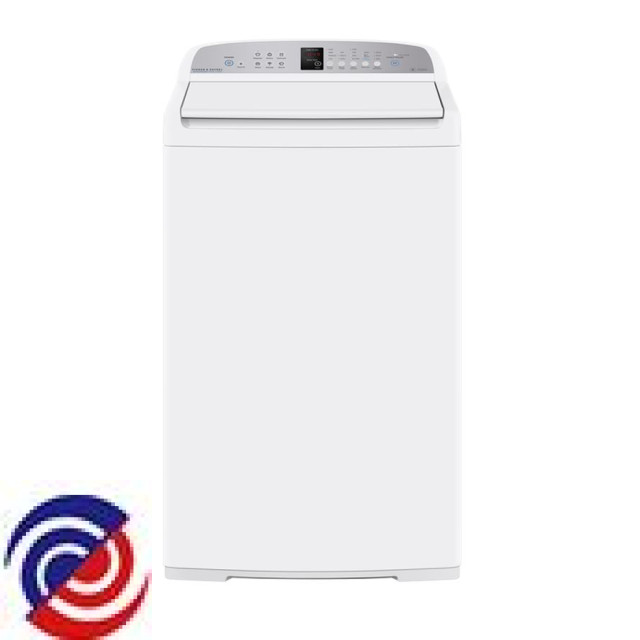

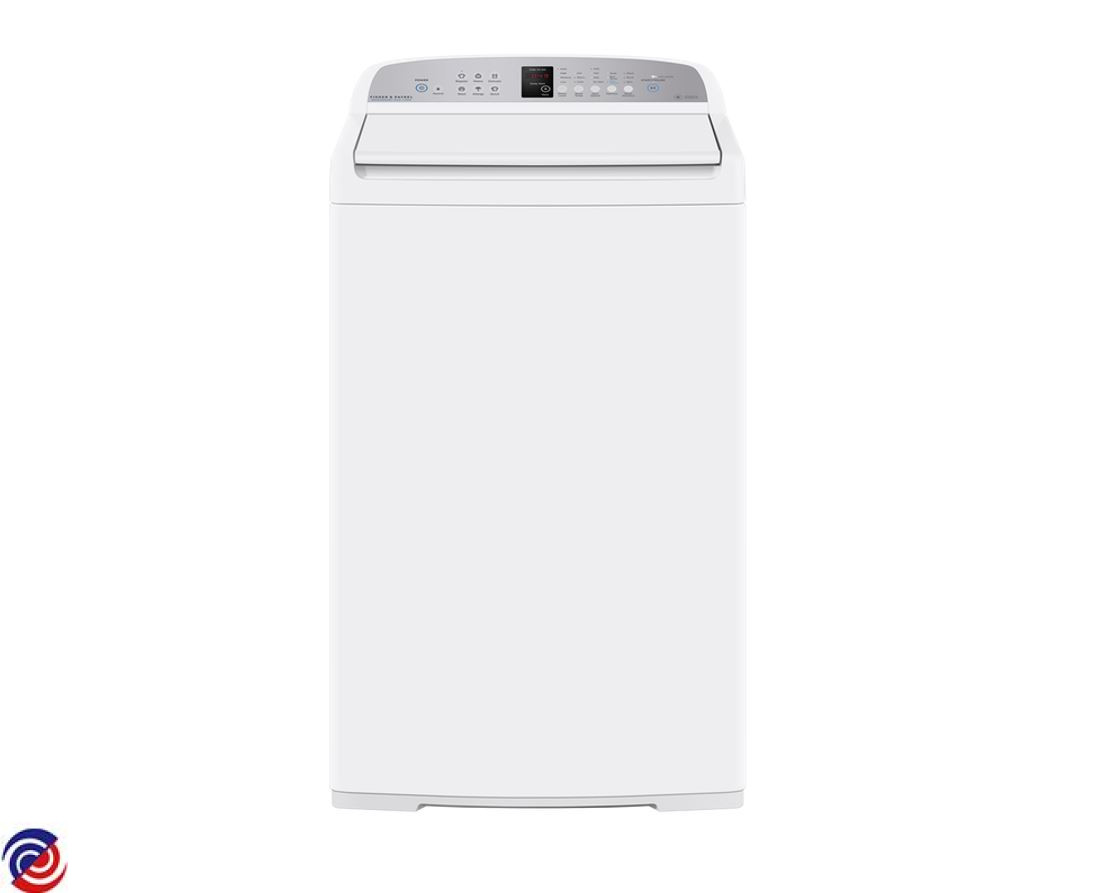

WA7560E1-5A
FISHER & PAYKEL — Washing Machine

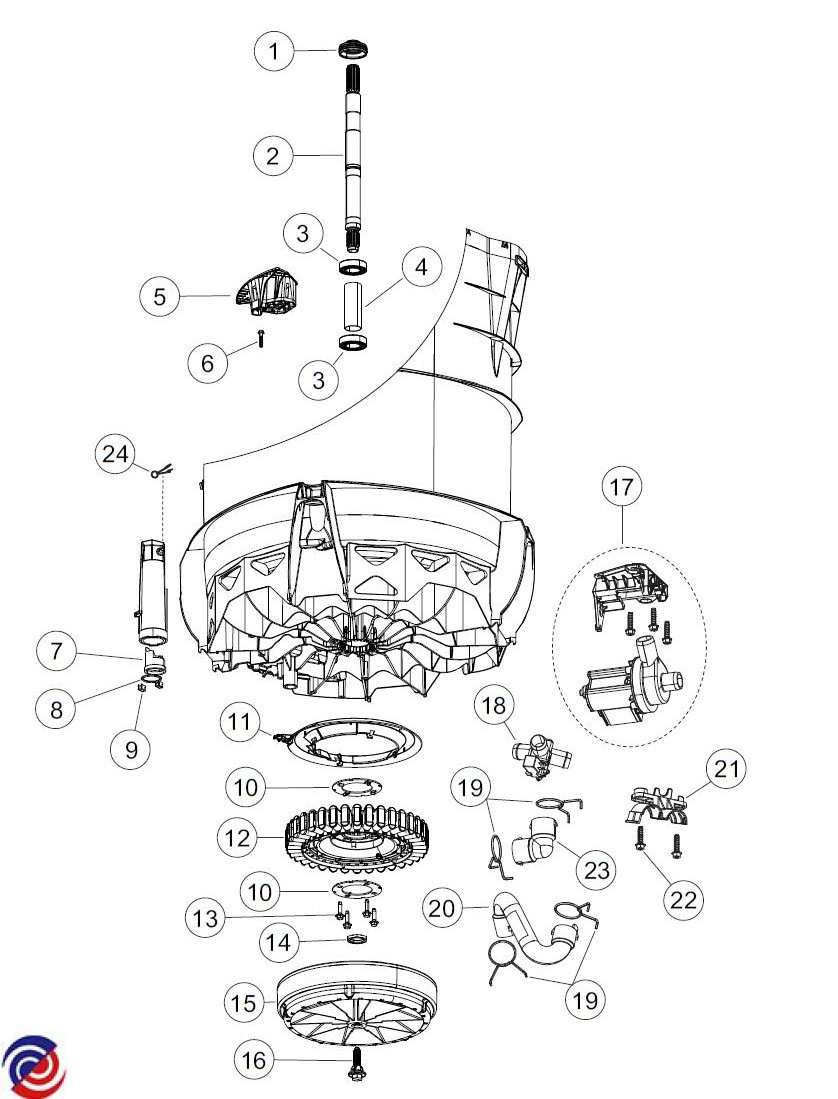

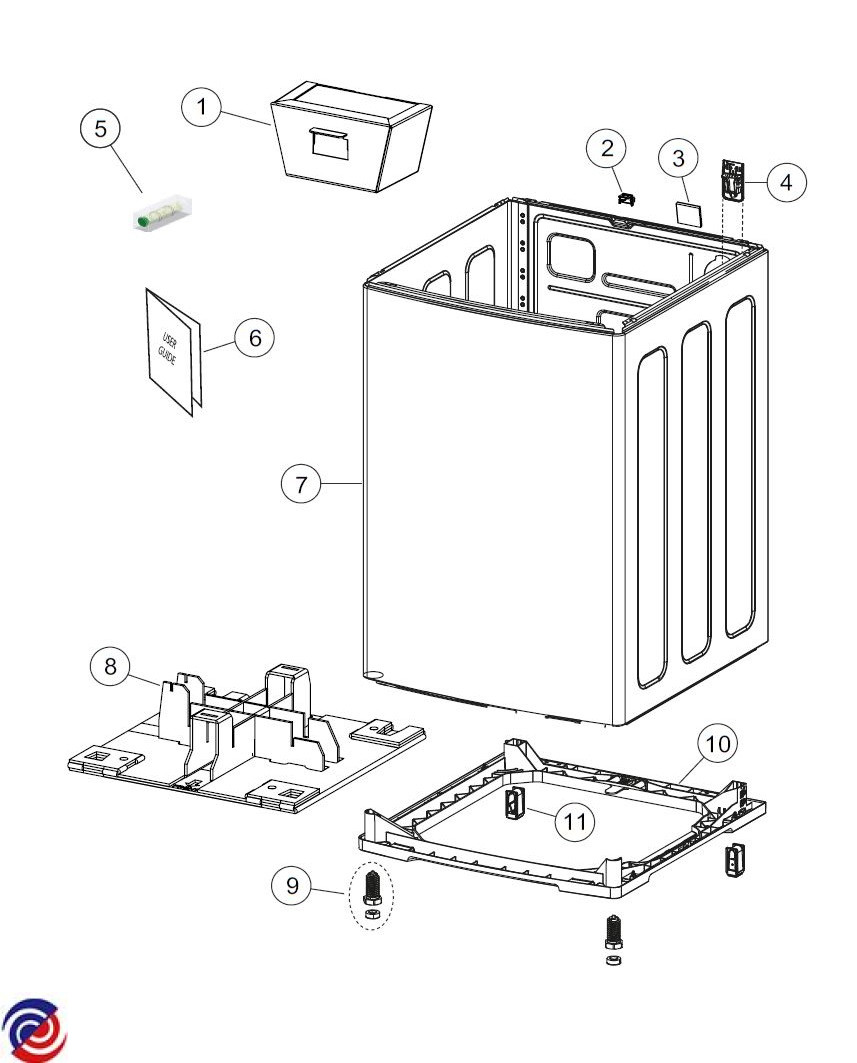

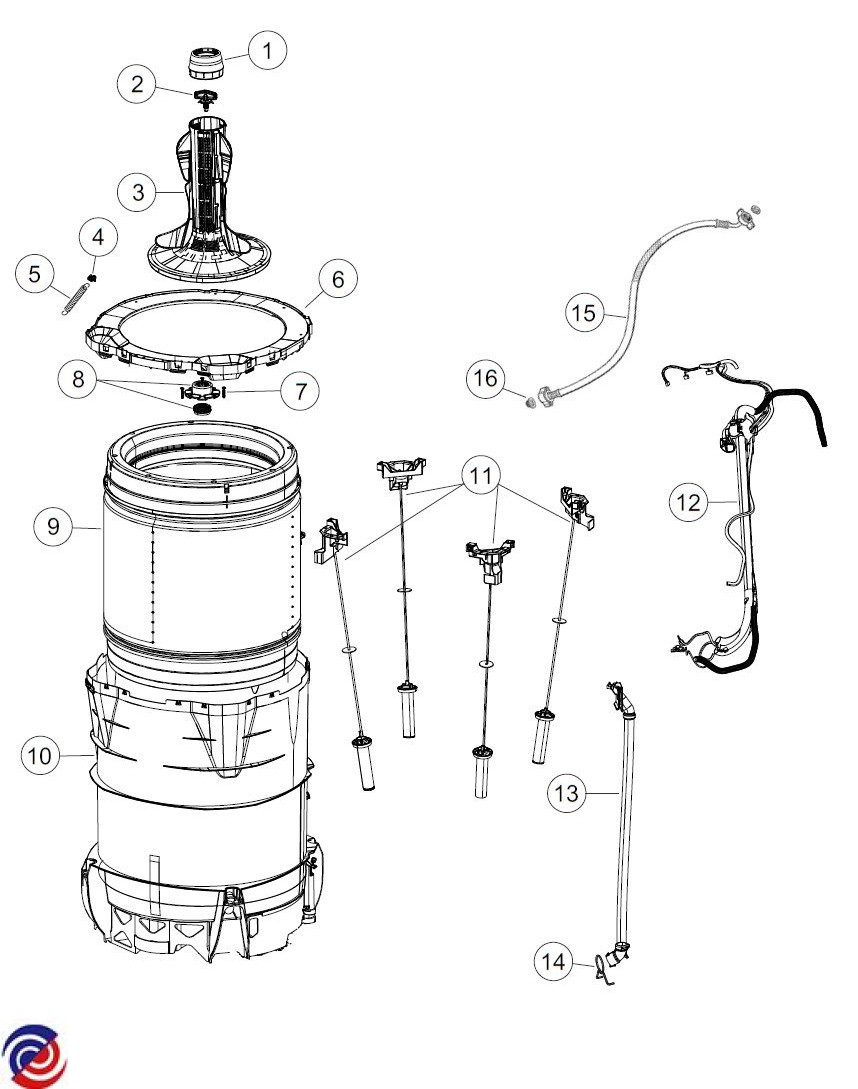

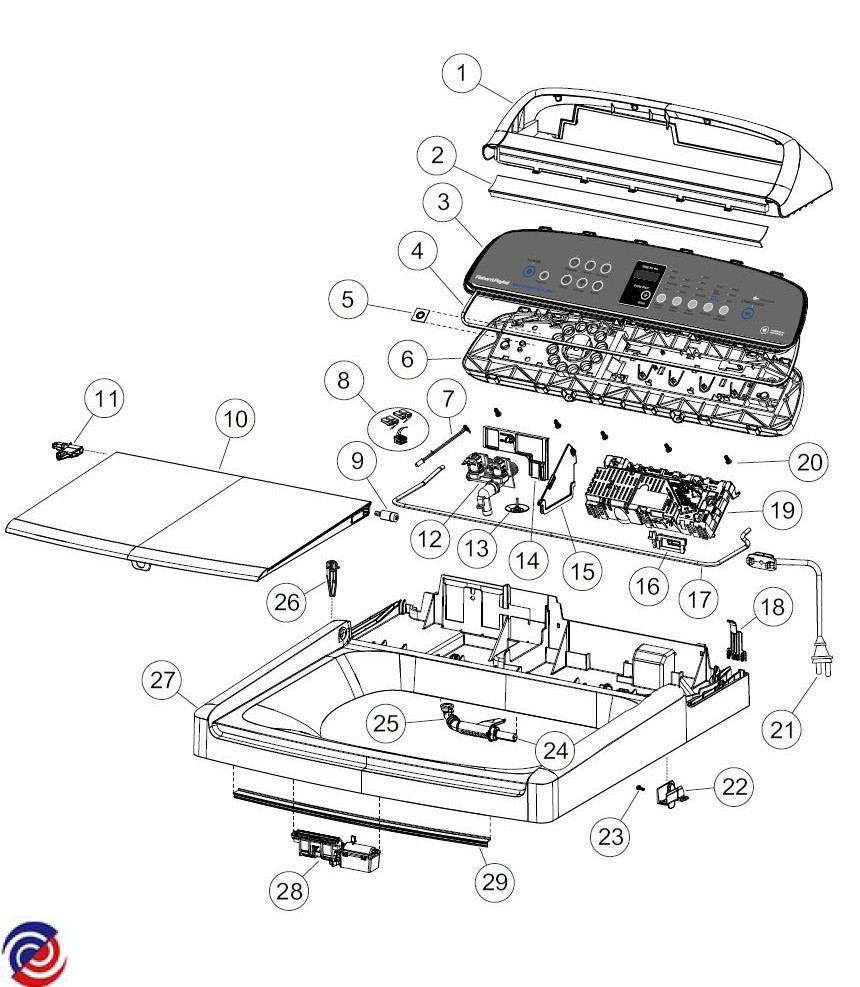

Parts for WA7560E1-5A
W0190229 KIT FILTERCONNECTOR 2EA
$22.50
.JPG)
W0192998 BEARING 6005LLU
.JPG)
W0193021 FISHER & PAYKEL TL WASHER AGITATOR DISPENSER CUP
$48.00
.JPG)
W0193602 LIPSEAL PKD
$36.02
.JPG)
W0193739 KIT SPLINE DRIVE PKD
$64.00
W0194670 HOSE INLET ASSY MIFLEX IIPKD
$47.70
.JPG)
W0195312 FISHER & PAYKEL TL WASHER LID LOCK & HARNESS
$84.00
W0197018 FISHER & PAYKEL TOP LOAD WASHING MACHINE AGITATOR 425025P
$79.00
.jpg)
W0197113 SUSPENSION KIT 685 PKT4BLK
$179.00
.JPG)
W0198054 KIT SHAFT DRIVE PKD
W0177429 BOOK USE CARE WS 60
W0177485 MOD MC SD9 C5D 230V NAP
W0179531 SCREW ST 14X25 PST HXW SPEC
W0183850 VALVE DIVERTER SD10
W0185107 COVER TOPDECK WIRING 68
$4.50
W0185160 SEAL ENCODER 68
$4.50
W0185170 PAD FELT PRESSURE TUBE 60
$4.50
W0185421 CLAMP HOSE 0315
$4.50
W0185422 WALL PARTITION TOPDECK
$4.50
W0185424 SPRING BIAS 68
$14.90
W0185427 BRACKET DRAINHOSE 60
$4.50
W0185428 SEAL FASCIA 60
$4.50
W0185429 STOP LID PLASTIC 60
$4.50
W0185430 HOLDER DAMPER LID PLASTIC 60
$5.00
W0185431 COVER EARTH CABINET
$4.50
W0185432 FIXTURE DRAIN HOSE LOWER
$4.50
W0185433 SEAL O RING PRESSURE CHAMBER
$4.50
W0185435 CLAMP HOSE 085 TALL GRIP
$4.50
W0186675 STRIP WEAR TOPDECK
$4.50
W0186960 FOOT LEVELLING OVERMOULD
$5.50
W0187070 CLIP EDGE PKT 2
$5.90
W0187174 PLUG ASSY PRESSURE CHAMBER
$6.60
W0187195 INSERT LID PLASTIC 60
$6.70
W0187210 ELBOW INLET 68
$6.80
W0187352 VALVE TOPDECK DRAIN
$6.70
W0187653 ELBOW HOSE PUMP
$12.00
W0187852 SCREW ST 8X16 PLASTITE PKT 10
$8.90
W0187962 SCREW ST 8X12 PAN SS PKT10
$9.50
W0188464 SCREW CLUTCH X10 PKD
$19.00
W0188580 CLIP BIAS SPRING SD11 PKD
$16.60
W0188777 PACKER BOWL 60
$14.90
W0189110 NUT BEARING
$17.60
W0189111 SCREW STATOR PKT OF 10
$17.60
W0189220 BRIDGE TRIM CS 60
$17.60
W0189433 INDICATOR LEVEL SQUARE
$17.60
W0189447 HARNESS VALVES 2 DISP 68
$18.60
W0189531 CLAMP PLATE STATOR PKT2
$17.60
W0189662 SCREW COVER X10 PKD
$19.70
W0190443 THERMISTOR ASSY EPCOS
W0190506 SPACER BEARING
$23.60
W0190790 SHIELD MOTOR UL PKD
$24.70
W0190835 BOLT ROTOR
$21.70
W0190968 HOSE DIVERTER 60
$24.50
W0191159 PIPE RECIRC 60 ASSY
$25.10
W0191704 PACKER BASE CARTON 60
$25.90
W0191921 CORDSET AA SR 60
$28.90
W0192440 FISHER & PAYKEL WASHER NECK RING 60
$52.95
W0193411 NOZZLE SPRAY FILL ASSY PKD
$47.30
W0194230 CONSOLE 60 PKD
$49.40
W0194614 DAMPER UDH16N PLASTIC LID
$63.50
W0194944 HOSE INLET LONG 2M PKD
$51.00
W0195223 BASE ASSEMBLY SA 60
$65.10
W0195681 FASCIA IML WS 75 ECO 60
W0196057 TOPDECK SUB ASSY NONDISP 60 P
$87.80
W0196307 HOSE HARNESS ASSY 60 RECIRC
$81.70
W0196804 PUMP HANNING 60 ASSYPKD
W0196922 STATOR MA35M ASSY
W0196964 FISHER & PAYKEL LID ASSY PLASTIC 60 PKD
$169.95
W0197128 ROTOR ASSY SPARES
W0197881 MOD DISP KNOBLESS 60 PKD
$199.00
W0198504 BOWL OUTER ASSY 60 HPUMPPKD
W0198641 WRAPPER AND BASE ASSY PKD
$212.30
W0198773 BOWL INNER ASSY 60 PKD
$226.30
W0200364 BOLT AGITATOR
W0200373 CLAMP HARNESS TOPDECK
W0296838 GASKET CONSOLE FOAM 5MM
$4.50
W0296839 COVER BITRON VALVES 60
$5.60
