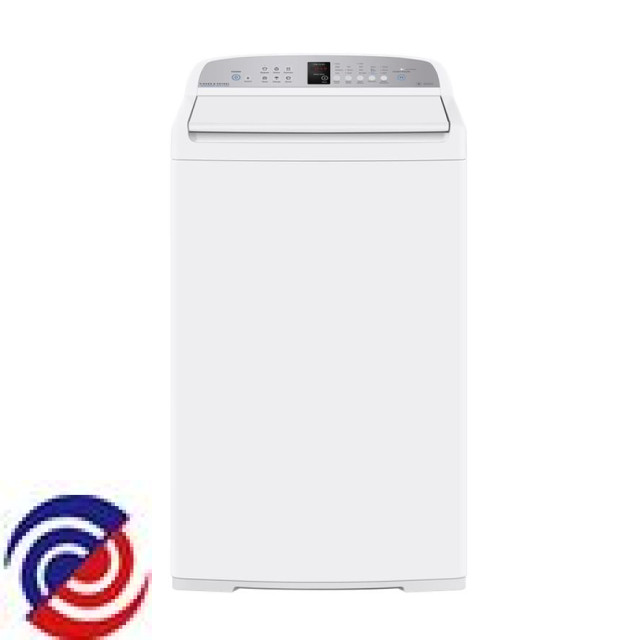

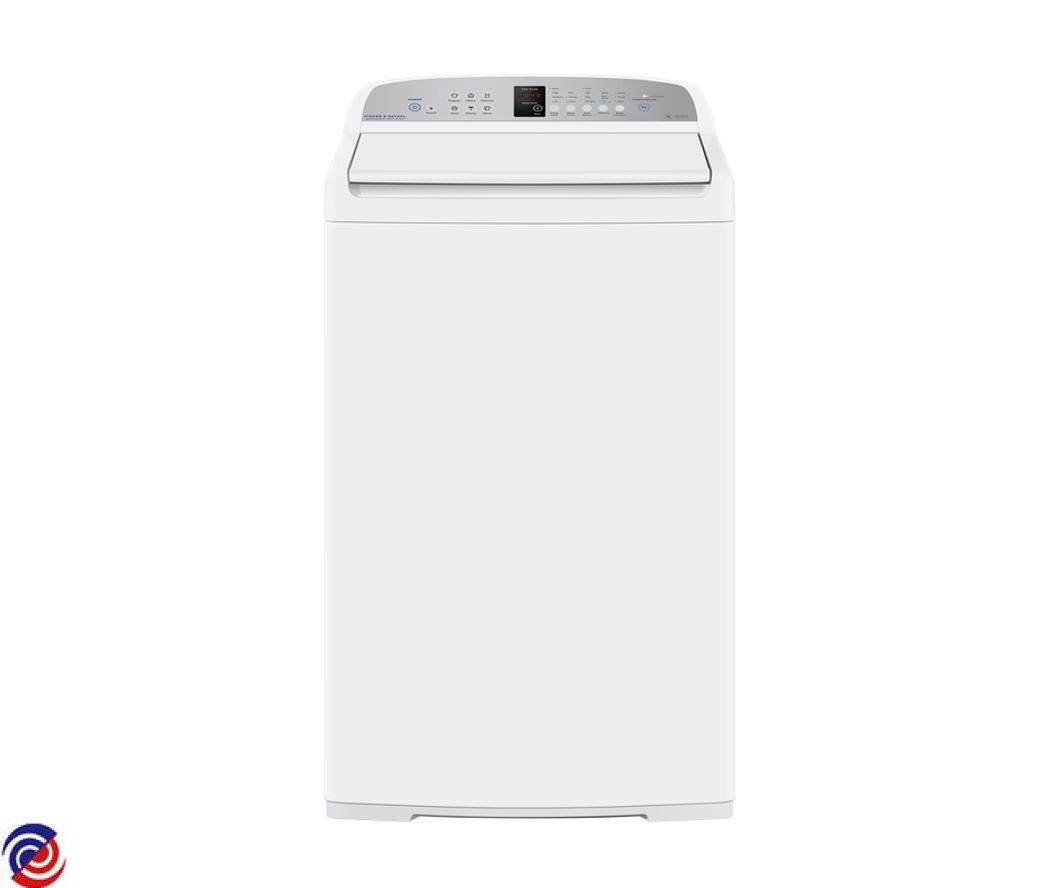

WA8560E1 — 93261-A
FISHER & PAYKEL — Washing Machine
Parts for WA8560E1
W0190229 KIT FILTERCONNECTOR 2EA
$22.50
.JPG)
W0193021 FISHER & PAYKEL TL WASHER AGITATOR DISPENSER CUP
$48.00
.JPG)
W0193739 KIT SPLINE DRIVE PKD
$64.00
W0194670 HOSE INLET ASSY MIFLEX IIPKD
$47.70
.JPG)
W0195312 FISHER & PAYKEL TL WASHER LID LOCK & HARNESS
$84.00
W0196933 FISHER & PAYKEL TOP LOAD WASHING MACHINE BEARING & SEAL
$134.95
W0197018 FISHER & PAYKEL TOP LOAD WASHING MACHINE AGITATOR 425025P
$79.00
.jpg)
W0197113 SUSPENSION KIT 685 PKT4BLK
$179.00
.JPG)
W0198054 KIT SHAFT DRIVE PKD
W0177518 MOD DISP KNOBLESS 60 PKD
W0183850 VALVE DIVERTER SD10
W0185107 COVER TOPDECK WIRING 68
$4.50
W0185170 PAD FELT PRESSURE TUBE 60
$4.50
W0185421 CLAMP HOSE 0315
$4.50
W0185422 WALL PARTITION TOPDECK
$4.50
W0185424 SPRING BIAS 68
$14.90
W0185427 BRACKET DRAINHOSE 60
$4.50
W0185428 SEAL FASCIA 60
$4.50
W0185429 STOP LID PLASTIC 60
$4.50
W0185430 HOLDER DAMPER LID PLASTIC 60
$5.00
W0185431 COVER EARTH CABINET
$4.50
W0185432 FIXTURE DRAIN HOSE LOWER
$4.50
W0185433 SEAL O RING PRESSURE CHAMBER
$4.50
W0185435 CLAMP HOSE 085 TALL GRIP
$4.50
W0186588 CLAMP HARNESS TOPDECK PKD
$4.50
W0186675 STRIP WEAR TOPDECK
$4.50
W0186960 FOOT LEVELLING OVERMOULD
$5.50
W0186971 BOOK USE CARE WS 60
W0187070 CLIP EDGE PKT 2
$5.90
W0187174 PLUG ASSY PRESSURE CHAMBER
$6.60
W0187195 INSERT LID PLASTIC 60
$6.70
W0187210 ELBOW INLET 68
$6.80
W0187352 VALVE TOPDECK DRAIN
$6.70
W0187653 ELBOW HOSE PUMP
$12.00
W0187852 SCREW ST 8X16 PLASTITE PKT 10
$8.90
W0187962 SCREW ST 8X12 PAN SS PKT10
$9.50
W0188243 BOLT AGITATOR
$17.00
W0188365 SCREW ST 14 X 1 PKD 10
$12.00
W0188464 SCREW CLUTCH X10 PKD
$19.00
W0188580 CLIP BIAS SPRING SD11 PKD
$16.60
W0188777 PACKER BOWL 60
$14.90
W0189110 NUT BEARING
$17.60
W0189111 SCREW STATOR PKT OF 10
$17.60
W0189220 BRIDGE TRIM CS 60
$17.60
W0189433 INDICATOR LEVEL SQUARE
$17.60
W0189447 HARNESS VALVES 2 DISP 68
$18.60
W0189531 CLAMP PLATE STATOR PKT2
$17.60
W0189662 SCREW COVER X10 PKD
$19.70
W0190506 SPACER BEARING
$23.60
W0190790 SHIELD MOTOR UL PKD
$24.70
W0190835 BOLT ROTOR
$21.70
W0190968 HOSE DIVERTER 60
$24.50
W0191159 PIPE RECIRC 60 ASSY
$25.10
W0191704 PACKER BASE CARTON 60
$25.90
W0192440 FISHER & PAYKEL WASHER NECK RING 60
$52.95
W0192651 THERMISTOR ASSY SVC KIT AA
$45.00
W0193411 NOZZLE SPRAY FILL ASSY PKD
$47.30
W0194230 CONSOLE 60 PKD
$49.40
W0194614 DAMPER UDH16N PLASTIC LID
$63.50
W0194944 HOSE INLET LONG 2M PKD
$51.00
W0195223 BASE ASSEMBLY SA 60
$65.10
W0195793 CORDSET AA 5660 PKD
W0196057 TOPDECK SUB ASSY NONDISP 60 P
$87.80
W0196549 HOSE HARNESS ASSY 60 RECIRC
$83.40
W0196804 PUMP HANNING 60 ASSYPKD
W0196922 STATOR MA35M ASSY
W0196964 FISHER & PAYKEL LID ASSY PLASTIC 60 PKD
$169.95
W0197128 ROTOR ASSY SPARES
W0198504 BOWL OUTER ASSY 60 HPUMPPKD
W0198641 WRAPPER AND BASE ASSY PKD
$212.30
W0198773 BOWL INNER ASSY 60 PKD
$226.30
W0198803 MOD MC SD9A C5D 230V NZAU
W0200373 CLAMP HARNESS TOPDECK
W0279062 FASCIA IML WS ECO 85 LGO
$72.40
W0296838 GASKET CONSOLE FOAM 5MM
$4.50
W0296839 COVER BITRON VALVES 60
$5.60
