WH8560F1 — 92228

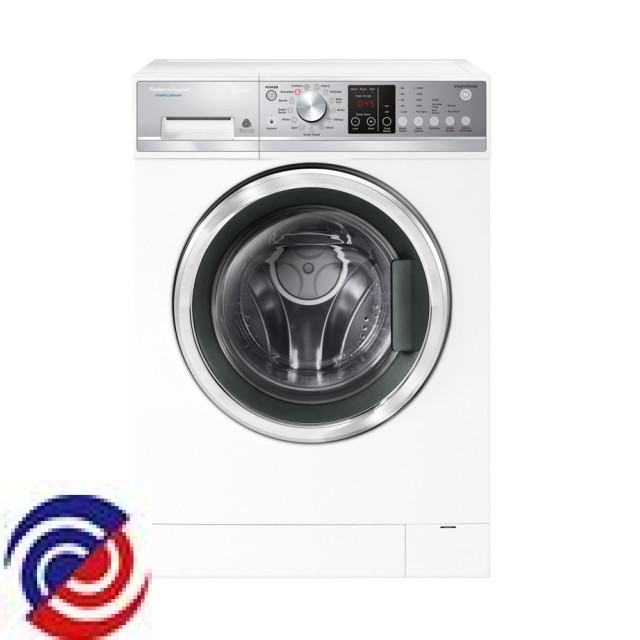

FISHER & PAYKEL — Washing Machine
Parts for WH8560F1
.jpg)
W0194268 FISHER & PAYKEL FRONT LOADER L WASHING MACHINE DOOR LOCK
W0194788 FISHER & PAYKEL HAIER FRONT LOADER WASHER HEATER ELEMENT
$102.00
W0196192 FISHER & PAYKEL FRONT LOADER WASHER DRAIN PUMP
$119.50
W0177356 HOUSING PCB TOP COVER
W0177357 HOUSING PCB BOTTOM COVER
W0177359 LIGHT GUIDE
W0177361 CABINET
W0177362 PANEL CABINET FRONT
W0177363 COVER INNER DOOR
W0177364 COVER MIDDLE OF DOOR
W0177365 COVER OUTER DOOR
W0177366 PCB MOTOR CONTROLLER
W0177367 PANEL KICK STRIP
W0177371 PANEL REAR COVER
W0185111 AIR BELL
$4.50
W0185620 SPRING FUNCTION BUTTON
$4.50
W0185621 GUIDE TOP PANEL
$4.50
W0185623 CAP HINGE
$4.50
W0185630 CAP DRUM COVER SCREW
$7.00
W0185644 BRACKET RH SUSPENSION SPRING
$4.50
W0185661 DRAIN HOSE HOLDER
$4.50
W0185667 BUFFER DOOR INNER
$4.50
W0185669 WASHER COUNTER WEIGHT
$4.50
W0185670 SCREW MOTOR INDUCTOR
$4.50
W0185677 SUPPORT SPRING
$4.50
W0185678 CLIP HARNESS
$4.50
W0185683 FIXING BOLT SHOCK ABSORBER
$4.50
W0185684 CLAMP BOWL VENT CABINET
$4.50
W0185685 CLIP VALVE ASSY
$4.50
W0185750 WASHER METAL
$4.50
W0185753 SCREW DRUM COVER
$4.50
W0186051 SPRAYER
$4.50
W0186052 HOSE CLAMP
$4.50
W0186124 NETHER SLOT CNTRL WIRING
$4.50
W0186209 CLAMP HOSE VALVE
$4.50
W0186213 CLIP
$4.50
W0186214 SPONGE PROTECTOR PRESSURE TUBE
$4.50
W0186219 DOOR CLAMP NUT NYLON
$4.50
W0186228 WASHER STEEL
$4.50
W0186233 SCREW
$4.50
W0186234 CLIP PRESSURE TUBE
$4.50
W0186239 CLAMP PUMP INNER HOSE
$4.50
W0186251 CLAMP HOSE DRAIN PUMP
$4.50
W0186254 CLAMP TUB DRAIN HOSE
$4.50
W0186384 BOLT
$4.50
W0186569 FISHER & PAYKEL FRONT LOAD WASHER DOOR (FRONT) SEAL WIRE CLAMP
W0186610 PIN SHOCK ABSORBER
W0186820 BRACKET HEATER
$4.50
W0186821 DOOR LOCKPLASTIC POLE
$4.80
W0186882 WASHER ROTOR
$4.50
W0186889 UPPER SLOT CTRL WIRING
$4.90
W0186992 BOOK USE CARE AW
$4.70
W0187227 BRACKET RETAINER DOOR HINGE
$5.90
W0187231 HOSE PUMP DRAIN
$13.90
W0187319 BOLT DRUM
W0187364 BOLT ROTOR
$6.80
W0187514 DRUM VANE
W0187645 TUBE PRESSURE
$9.50
W0187649 COVER DRUM REAR
$14.00
W0187873 CLAMP INLET HOSE
$9.40
W0188094 FOOT LEVELLING WM
$17.54
W0188161 CLAMP TUB BELLOWS
$12.90
W0188271 BUTTON POWER
$13.60
W0188380 BOLT COUNTERWEIGHT
$12.10
W0188417 HOSE
$14.90
W0188554 SPRAYER
$15.10
W0188664 SPANNER INSTALLATION
$16.10
W0188670 SPRING SUSPENSION
$17.60
W0189192 HOSE
$17.60
W0189244 SYPHON DISPENSER
$17.60
W0189254 HARNESS MOTOR
W0189301 CLAMP 43 TUB DISPENSER
$17.80
W0189417 DISPENSER BOX
$18.40
W0189418 COVER
$18.40
W0189468 TRANSIT BOLT
$18.70
W0189488 HOOK DOOR LATCH
$24.00
W0189534 CLIP
$17.60
W0189743 HOUSING B MOTOR CONTROLLER
$20.20
W0189780 FISHER & PAYKEL HAIER FRONT LOAD WASHING MACHINE DRAIN HOSE H0020300148
$38.00
W0189886 HOUSING A MOTOR CONTROLLER
$20.20
W0190283 SHIELD FLAME
$23.70
W0190566 HANDLE DISPENSER
$20.80
W0190567 HOSE DISPENSER TUB
$30.00
W0190687 SHOCK ABSORBER 80N
$24.10
W0190729 COUNTER WEIGHT REAR
$28.00
W0191212 SEAL TUB FRONT TO REAR
$34.55
W0191425 SHOCK ABSORBER
$24.40
W0191430 BRACKET REINFORCING
W0191440 HOSE TUB PUMP
$38.00
W0191497 INLET HOSE HOT
$29.40
W0191824 BRACKET MAIN BEAM
$28.10
W0191840 PRESSURE SENSOR
$32.50
W0191942 HOSE INLET AW COLD
$35.95
W0192239 DOOR PUMP FILTER
W0192708 PANEL DISPLAY CONTROLLER
$36.10
W0192935 CAPACITOR MAINS FILTER
$44.30
W0193005 FISHER & PAYKEL FRONT LOAD WASHING MACHINE DOOR HINGE
$40.75
W0193119 HOT WATER VALVE
$66.00
W0193593 DISPENSER
$49.95
W0193712 COUNTERWEIGHT L
$44.20
W0193713 CABLE MAINS
$49.30
W0194299 BARREL LAMP
W0194392 COUNTERWEIGHT R
$56.50
W0194720 KNOB PROGRAMME SELECTOR
$65.50
W0194872 DECAL HANDLE DISPENSER
$56.50
W0195107 HOSE BREATHER
$63.10
W0195116 INDUCTOR MOTOR
$63.20
W0195456 TUB FRONT
$112.90
W0195639 PORTHOLE DOOR
W0195792 PCB BUTTON TOUCH
$101.83
W0196504 PANEL TOUCH
$86.30
W0196517 PANEL TOP COVER
$99.70
W0196740 COLD WATER VALVE
$102.00
W0197009 BELLOWS
$170.00
W0197367 WIRING HARNESS 075MM2
$105.60
W0197491 ROTOR
$132.70
W0197710 SPIDER DRUM
$143.20
W0198060 STATOR
$165.90
W0198466 DETERGENT DISPENSER ASSY
$197.30
W0199266 DRUM WH8560
$268.90
W0199273 PCB DISPLAY
$192.92
W0199403 TUB REAR COMPLETE
