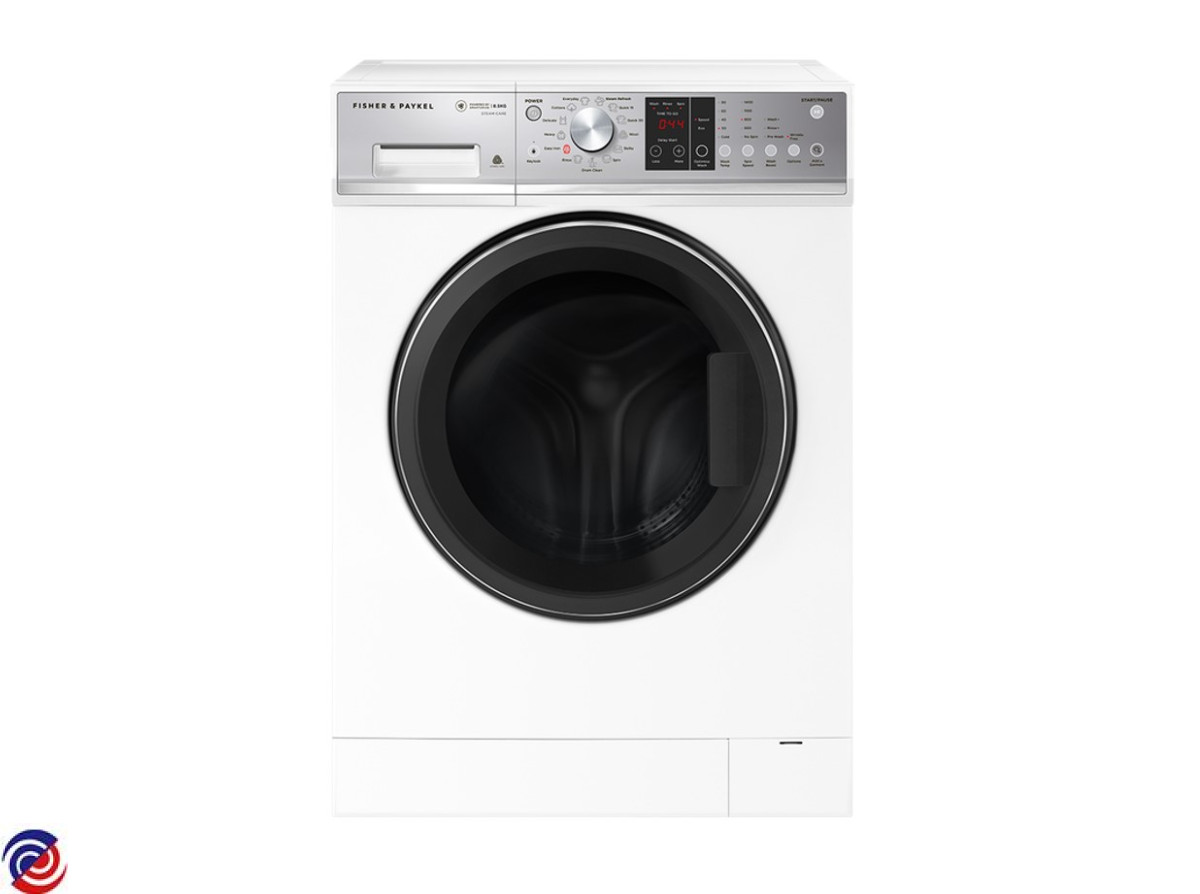

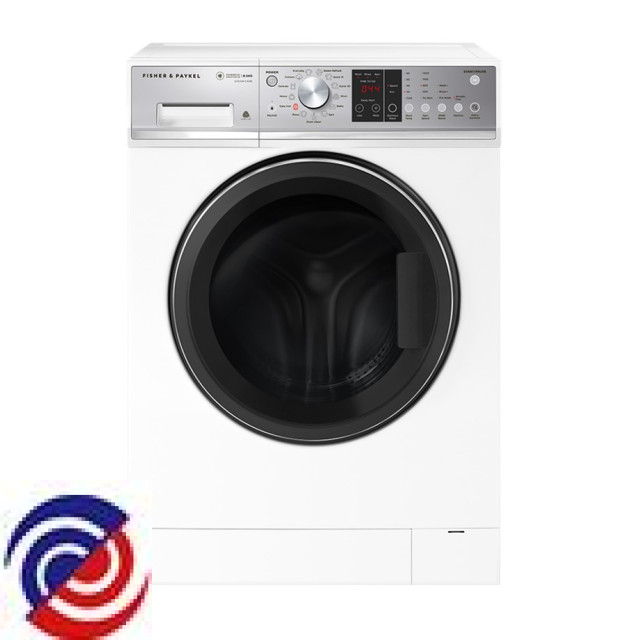

WH8560P3 — 92288-A
FISHER & PAYKEL — Washing Machine
Parts for WH8560P3
_1.jpg)
W0194264 FISHER & PAYKEL FRONT LOADER L WASHING MACHINE DOOR LOCK
$78.00
W0176914 BRACKET DRAIN HOSE
$4.50
W0185111 AIR BELL
$4.50
W0185620 SPRING FUNCTION BUTTON
$4.50
W0185623 CAP HINGE
$4.50
W0185661 DRAIN HOSE HOLDER
$4.50
W0185667 BUFFER DOOR INNER
$4.50
W0185669 WASHER COUNTER WEIGHT
$4.50
W0185677 SUPPORT SPRING
$4.50
W0185678 CLIP HARNESS
$4.50
W0186050 SCREW
$4.50
W0186055 SCREW STATOR
$4.50
W0186213 CLIP
$4.50
W0186214 SPONGE PROTECTOR PRESSURE TUBE
$4.50
W0186221 NUT
$4.50
W0186233 SCREW
$4.50
W0186234 CLIP PRESSURE TUBE
$4.50
W0186239 CLAMP PUMP INNER HOSE
$4.50
W0186245 WASHER RFI FILTER
$4.50
W0186254 CLAMP TUB DRAIN HOSE
$4.50
W0186380 SCREW SELF TAPPING
$4.50
W0186569 FISHER & PAYKEL FRONT LOAD WASHER DOOR (FRONT) SEAL WIRE CLAMP
W0186820 BRACKET HEATER
$4.50
W0186821 DOOR LOCKPLASTIC POLE
$4.80
W0187227 BRACKET RETAINER DOOR HINGE
$5.90
W0187232 BOLT SHOCK ABSORBER
$5.70
W0187264 CLIP DISPENSOR HOSE
$5.90
W0187335 GUIDE HARNESS SHORT
$6.30
W0187412 SCREW
$6.80
W0187645 TUBE PRESSURE
$9.50
W0187659 GUIDE HARNESS LONG
$9.10
W0187830 BOLT ROTOR
$9.40
W0188380 BOLT COUNTERWEIGHT
$12.10
W0188528 CLAMP TUB BELLOWS
$17.00
W0188664 SPANNER INSTALLATION
$16.10
W0188670 SPRING SUSPENSION
$17.60
W0189244 SYPHON DISPENSER
$17.60
W0189301 CLAMP 43 TUB DISPENSER
$17.80
W0189417 DISPENSER BOX
$18.40
W0189418 COVER
$18.40
W0189488 HOOK DOOR LATCH
$24.00
W0189534 CLIP
$17.60
W0189780 FISHER & PAYKEL HAIER FRONT LOAD WASHING MACHINE DRAIN HOSE H0020300148
$38.00
W0190566 HANDLE DISPENSER
$20.80
W0190567 HOSE DISPENSER TUB
$30.00
W0190583 BRACKET FRONT
$19.90
W0191212 SEAL TUB FRONT TO REAR
$34.55
W0191440 HOSE TUB PUMP
$38.00
W0191824 BRACKET MAIN BEAM
$28.10
W0191942 HOSE INLET AW COLD
$35.95
W0191957 ABSORBER SHOCK 60N
$30.90
W0192908 COVER INNER DOOR
$66.00
W0193005 FISHER & PAYKEL FRONT LOAD WASHING MACHINE DOOR HINGE
$49.00
W0193057 BASE PANEL
$38.10
W0193593 DISPENSER
$49.95
W0194423 PANEL REAR COVER
$52.00
W0194720 KNOB PROGRAMME SELECTOR
$65.50
W0195663 PORTHOLE DOOR
$135.00
W0195792 PCB BUTTON TOUCH
$101.83
W0197491 ROTOR
$132.70
W0198060 STATOR
$165.90
W0280255 FRONT PANEL
$122.00
W0280263 POWER BOARD PLATE
$18.90
W0280304 HOUSING PCB
$19.70
W0280305 FRAME MIDDLE
$42.00
W0280322 PIN SHOCK ABSORBER
$4.50
W0280326 FOOT WH1060P1
$17.60
W0280457 LIGHT BULB
$38.40
W0298221 OUTER CYLINDER ASSEMBLY
$106.95
W0298238 COVER MOTOR CONTROLLER
$19.10
W0298245 DRUM VEIN
$10.30
W0298276 POWER CORD
$41.20
W0298309 GUIDE TOP COVER
$4.50
W0298320 TOP COVER BRACKET
$229.20
W0298363 REAR TUB ASSEMBLY
$336.20
W0298373 POWER SUPPLY BOARD
$265.00
W0298383 SUPRESSOR INTERFERENCE
$24.00
W0298386 HEATING ELEMENT
$95.00
W0298394 PRESSURE SWITCH
$31.70
