WL8060P1 — 92111-A

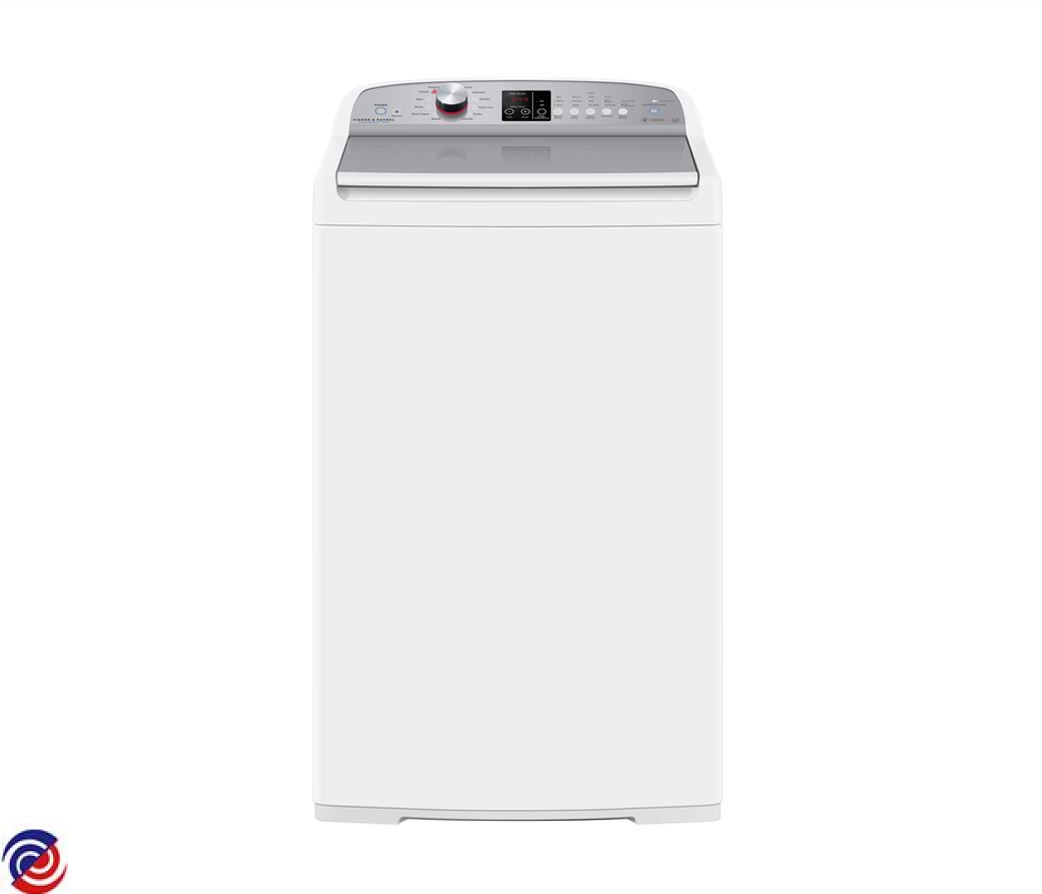

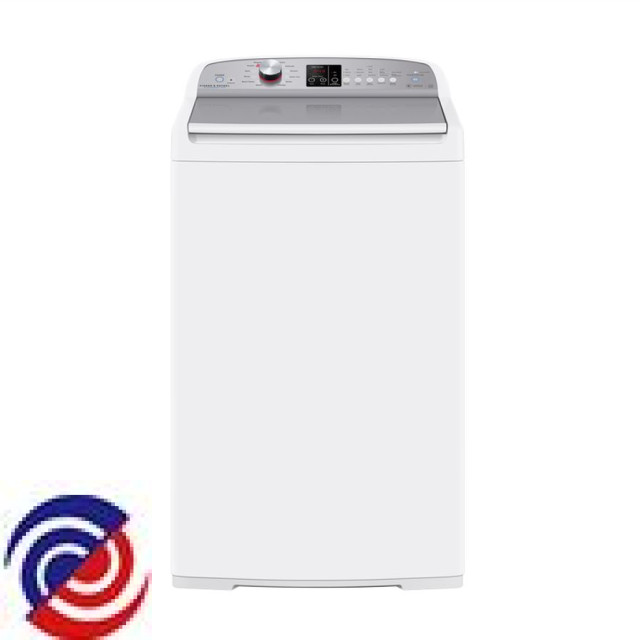

FISHER & PAYKEL — Washing Machine
Parts for WL8060P1
W0190229 KIT FILTERCONNECTOR 2EA
$22.50
.JPG)
W0192998 BEARING 6005LLU
.JPG)
W0193602 LIPSEAL PKD
$36.02
.JPG)
W0193739 KIT SPLINE DRIVE PKD
$76.93
W0194670 HOSE INLET ASSY MIFLEX IIPKD
$47.70
.JPG)
W0195312 FISHER & PAYKEL TL WASHER LID LOCK & HARNESS
$88.00
.jpg)
W0197113 SUSPENSION KIT 685 PKT4BLK
$179.00
.JPG)
W0198054 KIT SHAFT DRIVE PKD
W0177485 MOD MC SD9 C5D 230V NAP
W0177487 MOD DISP KNOB 60 FS PKD
W0183850 VALVE DIVERTER SD10
W0185107 COVER TOPDECK WIRING 68
$4.50
W0185108 RETAINER ARM
$4.50
W0185160 SEAL ENCODER 68
$4.50
W0185170 PAD FELT PRESSURE TUBE 60
$4.50
W0185421 CLAMP HOSE 0315
$4.50
W0185422 WALL PARTITION TOPDECK
$4.50
W0185424 SPRING BIAS 68
$14.90
W0185427 BRACKET DRAINHOSE 60
$4.50
W0185428 SEAL FASCIA 60
$4.50
W0185431 COVER EARTH CABINET
$4.50
W0185432 FIXTURE DRAIN HOSE LOWER
$4.50
W0185433 SEAL O RING PRESSURE CHAMBER
$4.50
W0185435 CLAMP HOSE 085 TALL GRIP
$4.50
W0186675 STRIP WEAR TOPDECK
$4.50
W0186960 FOOT LEVELLING OVERMOULD
$5.50
W0187070 CLIP EDGE PKT 2
$5.90
W0187174 PLUG ASSY PRESSURE CHAMBER
$6.60
W0187210 ELBOW INLET 68
$6.80
W0187352 VALVE TOPDECK DRAIN
$6.70
W0187438 MANIFOLD DISPENSING 68
$8.30
W0187653 ELBOW HOSE PUMP
$12.00
W0187852 SCREW ST 8X16 PLASTITE PKT 10
$8.90
W0187857 BOOK USER GUIDE WL8060P
$9.30
W0188365 SCREW ST 14 X 1 PKD 10
$12.00
W0188464 SCREW CLUTCH X10 PKD
$19.00
W0188545 SCREW SS410 4X8 PLAST PKD
$13.70
W0188580 CLIP BIAS SPRING SD11 PKD
$16.60
W0188597 BEZEL HALO 68
$14.10
W0188743 ARM HINGE METAL
$15.30
W0188777 PACKER BOWL 60
$14.90
W0189073 COVER DISPENSER LH 60
$17.20
W0189110 NUT BEARING
$17.60
W0189111 SCREW STATOR PKT OF 10
$17.60
W0189126 HOSE DISP DETERGENT 60
$17.50
W0189127 HOSE DISP SOFTENER 60
$17.50
W0189196 COVER DISPENSER RH 60
$17.60
W0189220 BRIDGE TRIM CS 60
$17.60
W0189268 COVER DETERGENT PRINTED 68 PKD
$17.60
W0189433 INDICATOR LEVEL SQUARE
$17.60
W0189531 CLAMP PLATE STATOR PKT2
$17.60
W0189662 SCREW COVER X10 PKD
$19.70
W0190443 THERMISTOR ASSY EPCOS
W0190506 SPACER BEARING
$23.60
W0190790 SHIELD MOTOR UL PKD
$24.70
W0190835 BOLT ROTOR
$21.70
W0190890 CAP BOLT KIT WHITE
$38.45
W0190968 HOSE DIVERTER 60
$24.50
W0191159 PIPE RECIRC 60 ASSY
$25.10
W0191319 WASHPLATE PUMPING
$27.80
W0191704 PACKER BASE CARTON 60
$25.90
W0191921 CORDSET AA SR 60
$28.90
W0192428 DIAL SS AQS CL ASSY
$38.70
W0192440 FISHER & PAYKEL WASHER NECK RING 60
$52.95
W0193411 NOZZLE SPRAY FILL ASSY PKD
$47.30
W0193889 HINGE LID GLASS 60
$47.30
W0194230 CONSOLE 60 PKD
$49.40
W0194944 HOSE INLET LONG 2M PKD
$51.00
W0195223 BASE ASSEMBLY SA 60
$65.10
W0196186 TOPDECK SUB ASSY DISP 60 PKD
$75.10
W0196304 HINGE LID GLASS DAMPER 60
$77.60
W0196307 HOSE HARNESS ASSY 60 RECIRC
$81.70
W0196668 FASCIA IML CS AA 60
W0196804 PUMP HANNING 60 ASSYPKD
W0196922 STATOR MA35M ASSY
W0197128 ROTOR ASSY SPARES
W0197230 LID ASSY GLASS 60 PKD
$121.70
W0198504 BOWL OUTER ASSY 60 HPUMPPKD
W0198641 WRAPPER AND BASE ASSY PKD
$212.30
W0198773 BOWL INNER ASSY 60 PKD
$226.30
W0200373 CLAMP HARNESS TOPDECK
W0296838 GASKET CONSOLE FOAM 5MM
$4.50
W0296839 COVER BITRON VALVES 60
$5.60
W0296840 HOSE DISP WASH BOOST 60
$17.60
W0296841 HARNESS VALVE 5 DISP 60
$32.40
