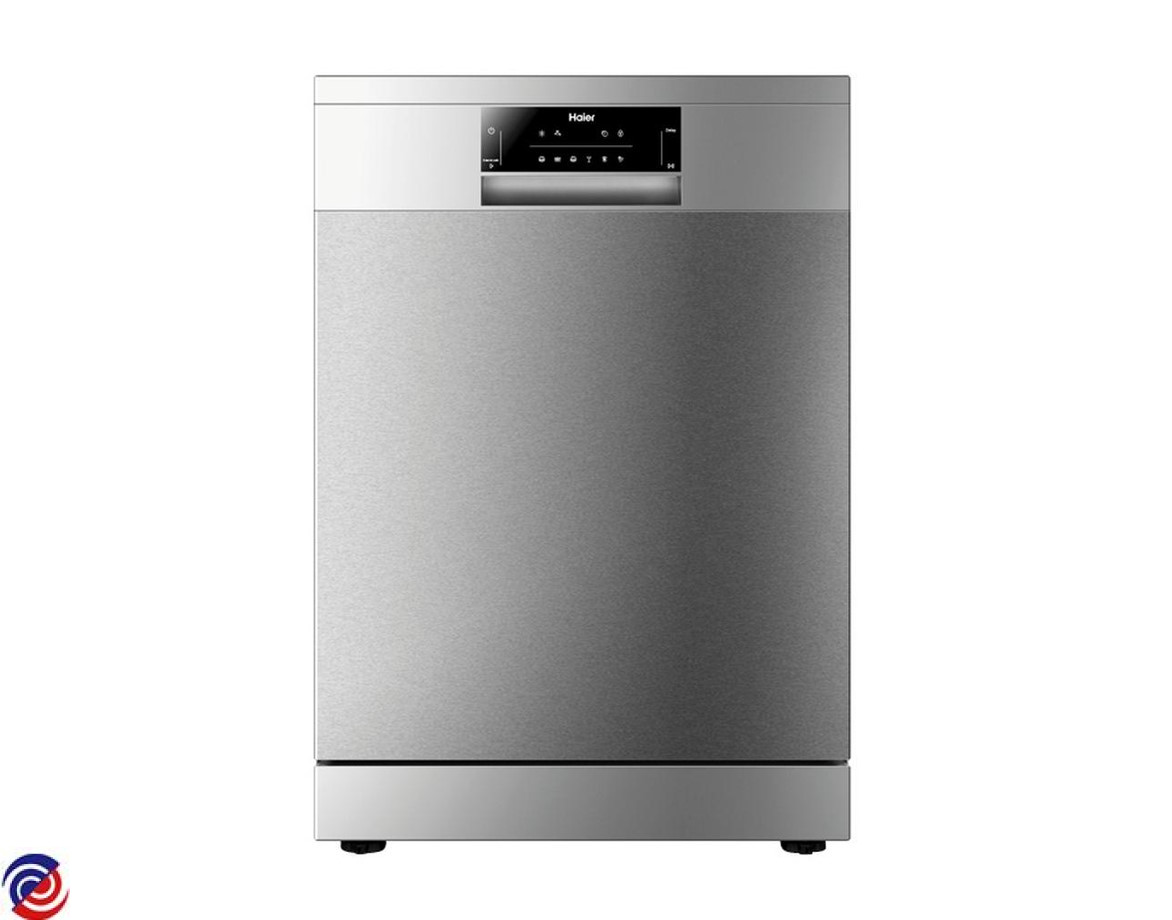

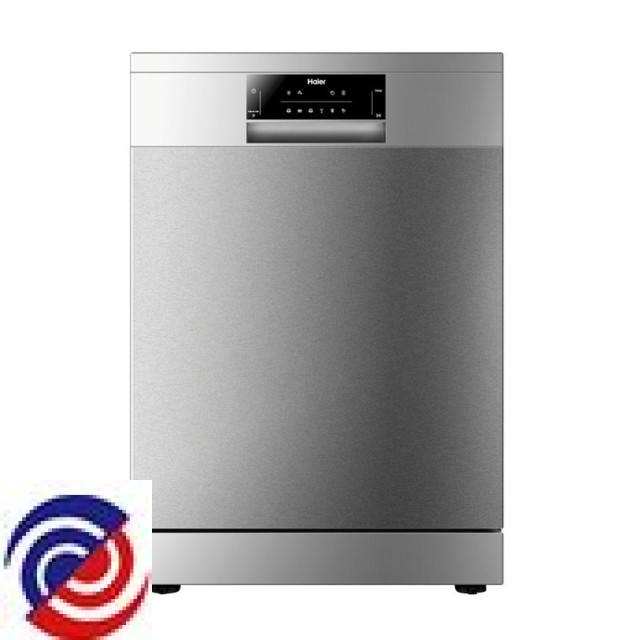

HDW15G3X — 61594-A
HAIER — Dishwasher
Parts for HDW15G3X
W0185381 AXEL STUB LOWER BASKET
$6.00
W0186104 FISHER & PAYKEL DISHWASHER LOWER RACK WHEEL
$14.00
W0190000 HOSE DRAIN LONG
$73.00
W0192618 FISHER & PAYKEL/HAIER SECOND SPRAYER ASSEMBLY
$42.00
W0176228 CLAMP HOSE 3250MM
W0176254 CLAMP HOSE 2032MM
W0177038 FIXING SCREW
$4.50
W0177160 END CAP RAIL
W0185088 BOLT
$4.50
W0185096 ORING THERMO LIMITER DDW9SST
$4.50
W0185354 RAIL SUPPORT ASSY
$4.50
W0185615 SCREW M4 8
$4.50
W0185920 FLAP NON RETURN VALVE
$4.50
W0185921 FRAME NON RETURN VALVE
$4.50
W0185922 PLUG
$4.50
W0185923 BRACKET POWER SUPPLY CABLE
$4.50
W0185924 BLOCK SUPPORT
$4.50
W0185925 ENDCAP RAIL
$4.50
W0185926 BRACKET CUP RACK FRONT
$4.50
W0185927 BRACKET CUP RACK REAR
$4.50
W0185949 SCREW M5 10 SS
$4.50
W0185950 HOSE CLAMP
$8.00
W0185952 SCREW NST42 X 13
$4.50
W0185953 SCREW ST35 17
$4.50
W0185955 CLAMP DRAIN HOSE
$7.00
W0185958 SCREW ST5 20HB
$4.50
W0185959 SCREW ST39 19
$4.50
W0185960 BOLT
$4.50
W0186107 O RING GASKET
$4.50
W0186108 ROLLER RAIL SUPPORT
$4.50
W0186691 CLAMP HOSE
$4.50
W0186716 PLATE PLASTIC OVERFLOW
$4.50
W0186932 CLIP FOLD DOWN
$9.90
W0186950 CLIP FOLD DOWN
$12.00
W0187021 NUT BREATHER RING WEIR
$4.50
W0187285 HOUSING FLAP VALVE
W0187378 VALVE FLAP UPPER SPRAYARM
$8.00
W0187379 NUT OUTER DUCT GREY
W0187380 COVER TOP TRANSITION GREY
W0187381 ORING AIR VENT
$14.00
W0187773 SCREEN SUMP OUTLET
$8.70
W0187880 FIRE BLANKET
$9.00
W0187957 COVER FOR SUMP
W0188054 HOSE OVERFLOW PLATE
$10.40
W0188086 FLOAT SUPPORT
$10.60
W0188204 PANEL SEALING SHORT
$11.50
W0188205 FOOT FRONT FREESTANDING
$13.20
W0188208 FOOT REAR ADJUSTABLE FREESTAND
$13.30
W0188294 HOSE THERMO DRY
$16.46
W0188299 ORING GASKET WEIR
$13.90
W0188337 GASKET SEALING
$18.00
W0188587 COVER DISPENSER
$14.00
W0188912 HOSE
$20.00
W0188934 MOUNT RUBBER WASH PUMP
$16.20
W0189372 KNIFE RACK SIDE
$17.60
W0189388 PANEL UPPER REAR
$17.00
W0189398 RAIL SUPPORT BASKET
$17.60
W0189494 TRANSITION TOP GREY
W0189500 BRACKET MIDDLE REAR
$17.60
W0189604 HOSE DRAIN SHORT
$26.00
W0189701 RAIL BASKET RH
$17.60
W0189702 RAIL BASKET LH
$17.60
W0189994 DOOR SPRING
$21.50
W0189998 COVER LOWER SPRAYER
$17.20
W0190001 O RING GASKET
$21.50
W0190004 CROSSPIECE SUPPORT UPPER REAR
$15.90
W0190005 FLOAT
$21.50
W0190006 CLAMP HOSE
W0190007 ROPE CONNECTING SPRING
$21.50
W0190441 HINGE LEFT SPCC
$29.00
W0190552 HOSE DIVERTER OUTER DUCT
$23.80
W0190572 HINGE RIGHT SPCC
$29.95
W0190696 DOOR INSULATION
$24.10
W0190717 COMB ADJUSTABLE LH
$24.30
W0190718 COMB ADJUSTABLE RH
$24.30
W0190719 UPPER SPRAY BASE
$20.10
W0190722 UPPER SPRAYER ASSY
$23.20
W0190864 HANDLE CONTROL PANEL SS
$20.80
W0190865 OUTER DUCT
$25.10
W0190869 COVER PCB
$34.00
W0190927 HOUSING THERMO DRY
$33.00
W0191234 LOWER SPRAYER
$49.00
W0191261 GASKET SUMP
$22.60
W0191287 BRACKET LOWER REAR
$22.70
W0191615 SEAL TUBE TOP SPRAYARM
$35.00
W0191632 MICROSWITCH
$39.37
W0191733 HOSE TOP SPRAYER
W0191817 CUP RACK
$26.70
W0192380 CABLE POWER SUPPLY 3 X 1 MM
$38.30
W0192717 BRACKET LOWER FRONT
$29.50
W0192729 VALVE INLET
$41.80
W0193123 DOOR SWITCH
$46.80
W0193520 LIFTING MECHANISM RIGHT
$45.30
W0193662 SENSOR TEMPTURBIDITY EMZ
$73.64
W0193668 LIFTING MECHANISM LEFT
$46.20
W0193688 KNIFE RACK MAIN
$45.20
W0193919 FELT SOUND DEADENING SIDETOP
$47.30
W0194175 GASKET TUB
$47.30
W0194329 TRAY BOTTOM BASE
$48.20
W0194539 MOBILE RAIL INCLUDES WHEELS
$62.00
W0194641 WEIR INCL FLOW METER
$66.00
W0194883 FRAME KNIFE RACK
$65.10
W0194948 PANEL LH SIDE SS
$64.90
W0195019 HARNESS CONTROL PANEL
$47.30
W0195400 BASEBOARD SS
$65.40
W0195430 SUMP ASSY
$66.00
W0195500 DETERGENT DISPENSER
$72.40
W0195554 DRAIN PUMP
$96.00
W0195585 DOOR LOCKHOOK ASSEMBLY
$136.00
W0195819 FILTER COARSE
$72.40
W0196741 PANEL RH SIDE SS
$101.50
W0197170 DOOR INNER INCL GASKET
$157.00
W0197514 PANEL TOP HDW13G1 SS
W0197623 BASKET LOWER
$115.60
W0197677 BOARD PCB
$135.00
W0197864 BASKET UPPER
$126.10
W0198139 PANEL HINGE LOWER DOOR
$142.10
W0198256 MOTOR CONTROL INC BOX COVER
$172.20
W0199045 WASH PUMP1PS HEATER ASSY
$295.23
W0199739 DOOR OUTER SS
$348.40
W0280329 HOSE INLET AQUASTOP
$125.00
W0281003 SUPPORT FRONT FOOT
$14.70
W0281050 CONTROL PANEL HDW15G3X
$86.60
W0281069 SCREW ST35 13
$4.50
