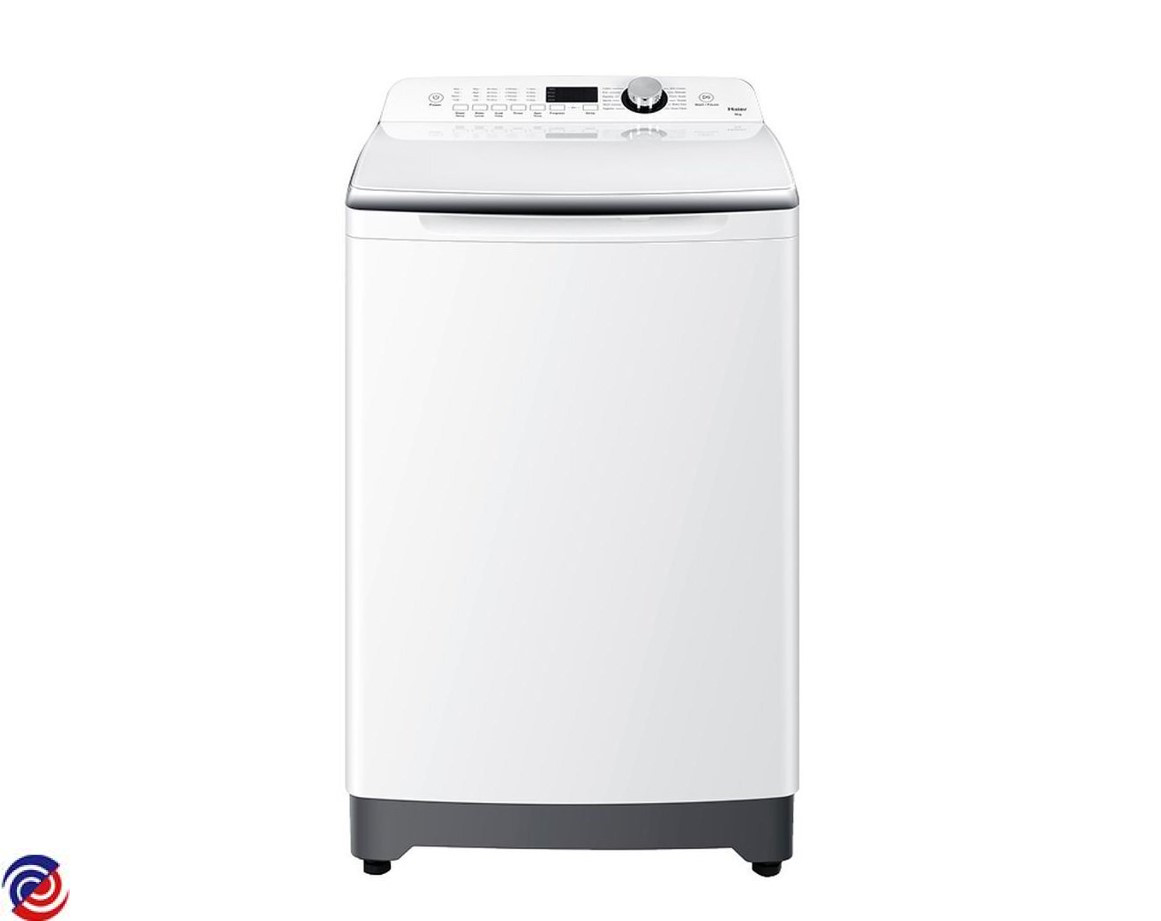

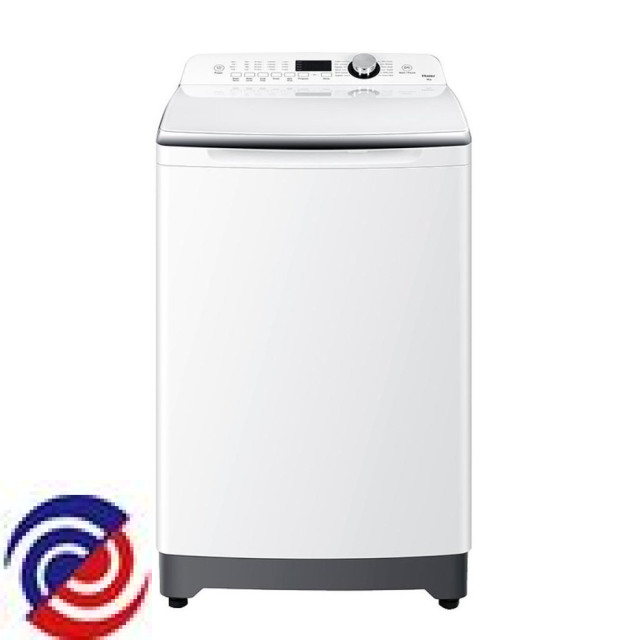

HWT10MW1 — 61389-A
HAIER — Washing Machine

W0196941 FISHER & PAYKEL HAIER PUMP DRAIN RECIR PUMP H0034000110D

$69.00

W0176307 HOSE INLET COLD

W0176417 BUFFER WHITE

W0185693 CLAMP INLET HOSE

$4.50

W0185696 CLAMP INLET TUBE

$4.50

W0185720 PAD FELT

$4.50

W0185732 BRACKET OOB ASSY

$4.50

W0185755 COVER AIR BELL

$4.50

W0185759 GASKET WATER INLET

$4.50

W0185768 CLAMP PRESSURE TUBE HOSE

$4.50

W0186056 PRESSTUBE 8MM X 740 MM

$4.50

W0186279 FOOT FIXED

$4.50

W0186305 ROD CONNECTING

$4.50

W0186316 BOLT ASSEMBLY PULSATOR

$5.95

W0186330 BUSH A

$4.50

W0186331 BUSH B

$4.50

W0186379 BOLT SUB ASSY

$4.50

W0186392 WASHER CUP

$4.50

W0186633 INSERT DRAIN HOOK

$4.50

W0186635 GASKET PULSATOR

$4.50

W0186698 ARM DRAIN MOTOR

$4.50

W0186757 SPRING OUT OF BALANCE

$4.60

W0186930 HANDLE CABINET

$4.50

W0187138 PIPE OVERFLOW

$5.30

W0187255 BUFFER BLACK

$5.90

W0187550 BRACKET DRAIN PUMP

$9.60

W0188037 LEVER OUT OF BALANCE

$11.20

W0188352 SWITCH OUT OF BALANCE

$17.60

W0190285 CLAMP DRAIN HOSE

$19.80

W0190415 HOSE DRAIN TUB PUMP

$30.00

W0191025 BRACKET U SHIELD

$25.40

W0191265 HOSE INLET HOT

$27.30

W0191441 HOSE DRAIN EXTERNAL

$31.00

W0191475 PRESSURE SWITCH

$37.00

W0191949 PANEL REAR

$27.70

W0192005 CORD MAINS

$29.70

W0194182 HAIER TL WASHER ACTUATOR/SOLENOID BRAKE

$64.00

W0196413 BASE ASSY

$56.90

W0197649 BOWL OUTER

$116.80

W0280474 HINGE BASE LH

$23.20

W0280475 LID HINGE RH

$23.20

W0280480 PCB COVER

$11.30

W0280483 DRAIN CONNECTOR

$4.50

W0280485 PULSATOR CAP

$4.50

W0280487 PULSATOR

$49.00

W0280490 NECK RING

$38.50

W0280502 SPLASH SHIELD RH BACK

$4.50

W0280506 HOOK

$4.50

W0280510 SCREW COVER

$4.50

W0280513 HOSE PUMP TO CONNECTOR

$17.60

W0280515 TOP DECK

$72.40

W0280516 SPLASH SHIELD RHS

$10.70

W0280517 SPLASH SHIELD LHS

$9.50

W0280518 KNOB

$17.20

W0280522 DIVERTER VALVE

$17.60

W0280523 HOSE RECIRCULATION

$17.60

W0280527 HINGE GASKET

$4.50

W0280531 HOSE

$12.20

W0280532 HOSE

$4.50

W0280533 DIVERTER DRAIN PUMP HOSE

$26.20

W0280537 WIRING HARNESS

$81.90

W0280540 EARTH WIRE

$8.00

W0280541 BAG PROTECTION

$20.10

W0280545 TRANSMISSION

$214.00

W0280549 HOSE TO BOWL RECIRC

$22.70

W0280551 INNER TUB ASSY

$200.40

W0280556 LINT FILTER

$29.00

W0280563 SUSPENSION ROD

$28.60

W0280576 LID ASSY

$156.50

W0280577 CONTROL PANEL

$90.70

W0280581 DISPENSER TANK

$22.20

W0280583 DETERGENT DISPENSER

$23.20

W0280585 PCB

$162.13

W0280586 MOTOR CONTROLLER

$237.10

W0280587 DISPLAY BOARD

$102.00

W0280595 REED SWITCH

$19.50

W0280596 HOT INLET VALVE

$44.00

W0280598 EMI FILTER

$56.00

W0280599 COLD INLET VALVE

$47.30

W0280601 MOTOR

$174.80

W0280603 DOOR LOCK

$57.50

W0358698 CABINET
