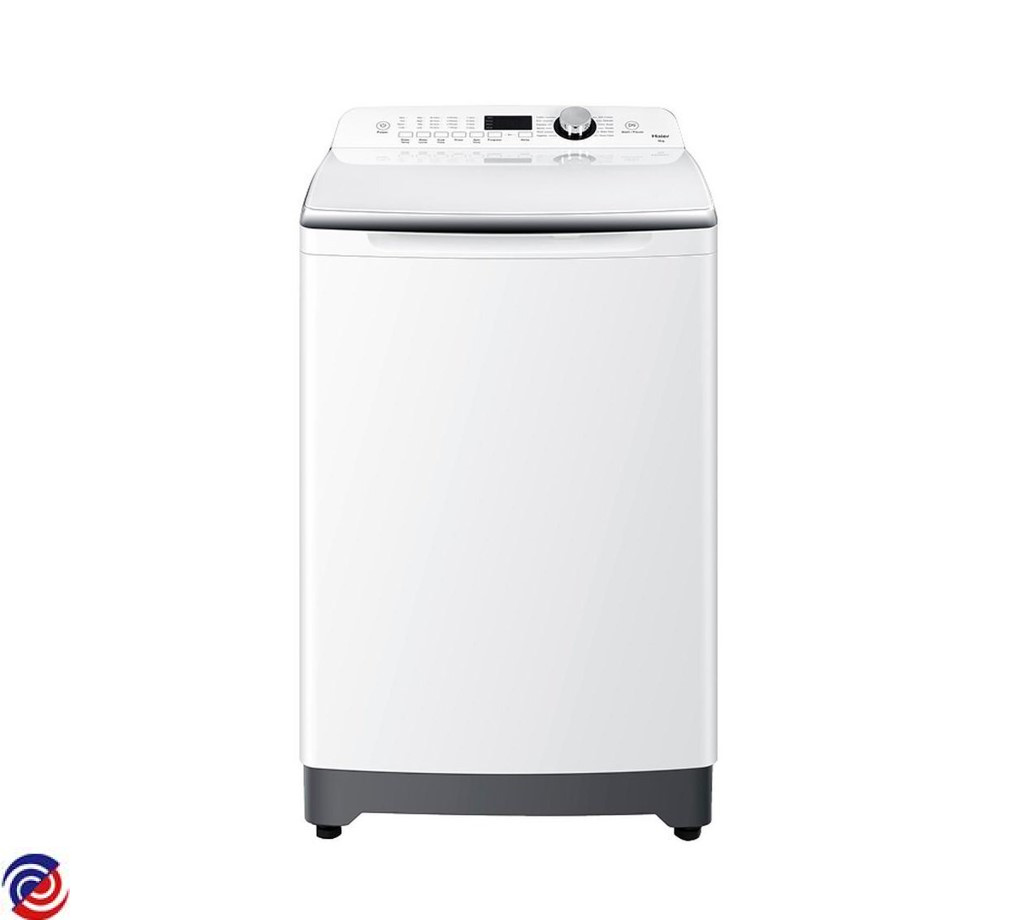

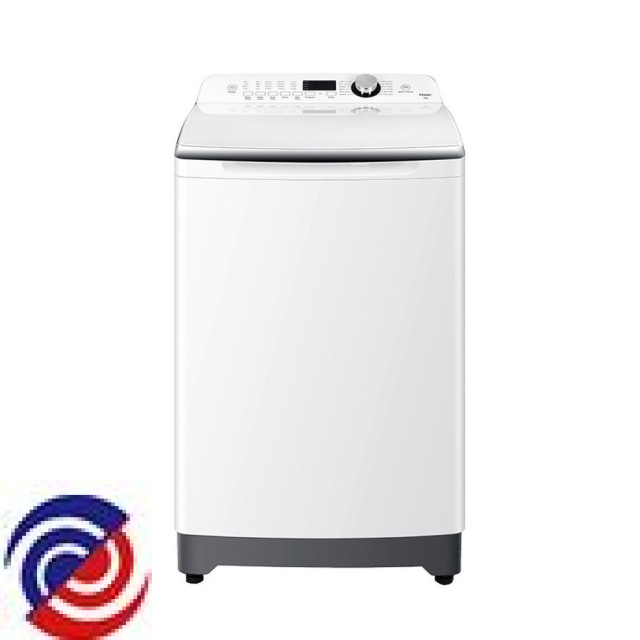

HWT90MW1 — 61388-A
HAIER — Washing Machine
Parts for HWT90MW1
W0196941 FISHER & PAYKEL HAIER PUMP DRAIN RECIR PUMP H0034000110D
$69.00
W0176307 HOSE INLET COLD
W0185380 CLAMP DRAIN HOSE INNER
W0185688 CLAMP DRAIN HOSE
W0185701 BUSH DRAIN HOSE
$4.50
W0185720 PAD FELT
$4.50
W0185732 BRACKET OOB ASSY
$4.50
W0185743 FOOT FIXED
$4.50
W0185755 COVER AIR BELL
$4.50
W0185759 GASKET WATER INLET
$4.50
W0185768 CLAMP PRESSURE TUBE HOSE
$4.50
W0186056 PRESSTUBE 8MM X 740 MM
$8.00
W0186256 CLAMP DRAIN INNER TUB
W0186275 BUSH B
$4.50
W0186305 ROD CONNECTING
$4.50
W0186354 HARNESS EARTHING
$4.50
W0186413 TIE TWIST
$4.50
W0186631 GASKET BUFFER
$4.50
W0186635 GASKET PULSATOR
$4.50
W0186698 ARM DRAIN MOTOR
$4.50
W0186757 SPRING OUT OF BALANCE
$4.60
W0186930 HANDLE CABINET
$4.50
W0187550 BRACKET DRAIN PUMP
$9.60
W0188352 SWITCH OUT OF BALANCE
$17.60
W0188691 FOOT ADJUSTABLE
$14.20
W0188748 RING MAGNET
$14.60
W0190284 PANEL BACK COVER
$18.80
W0190415 HOSE DRAIN TUB PUMP
$30.00
W0191025 BRACKET U SHIELD
$25.40
W0191265 HOSE INLET HOT
$27.30
W0191441 HOSE DRAIN EXTERNAL
$31.00
W0191475 PRESSURE SWITCH
$37.00
W0194182 HAIER TL WASHER ACTUATOR/SOLENOID BRAKE
$64.00
W0195306 BASE INCL FEET
$63.70
W0280450 BINDING WIRE
$4.50
W0280474 HINGE BASE LH
$23.20
W0280475 LID HINGE RH
$23.20
W0280478 PCB COVER
$13.30
W0280492 CONTROL ROD
$9.10
W0280494 NECK RING
$23.60
W0280502 SPLASH SHIELD RH BACK
$4.50
W0280503 TOP DECK
$76.50
W0280504 SPLASH SHIELD RHF
$10.00
W0280505 SPLASH SHIELD LHF
$11.00
W0280506 HOOK
$4.50
W0280508 PULSATOR COVER
$4.50
W0280511 FILTER COVER
$16.50
W0280514 BASE PLATE
$17.60
W0280518 KNOB
$17.20
W0280520 OVERFLOW PIPE
$4.50
W0280527 HINGE GASKET
$4.50
W0280530 INNER DRAIN HOSE
$23.20
W0280535 MAINS CABLE
$36.70
W0280536 WIRING HARNESS
$79.00
W0280541 BAG PROTECTION
$20.10
W0280558 DAMPING CLUTCH
$233.40
W0280559 INNER TUB
$224.70
W0280560 OUTER TUB
$112.60
W0280561 SUSPENSION ROD
$26.30
W0280569 LID ASSY
$196.90
W0280570 LINT FILTER
$16.00
W0280571 CONTROL PANEL MODULE
$97.70
W0280573 PULSATOR
$47.30
W0280574 CABINET
$121.80
W0280582 INLET VALVE ASSY
$123.80
W0280583 DETERGENT DISPENSER
$23.20
W0280585 PCB
$162.13
W0280586 MOTOR CONTROLLER
$237.10
W0280587 DISPLAY BOARD
$102.00
W0280588 CABINET BUFFER
$4.50
W0280595 REED SWITCH
$19.50
W0280597 REACTOR
$47.30
W0280598 EMI FILTER
$56.00
W0280601 MOTOR
$174.80
W0280603 DOOR LOCK
$57.50
