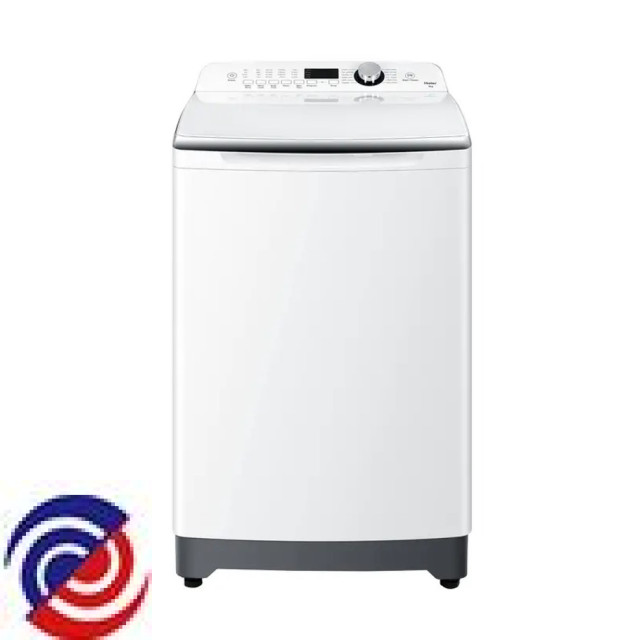

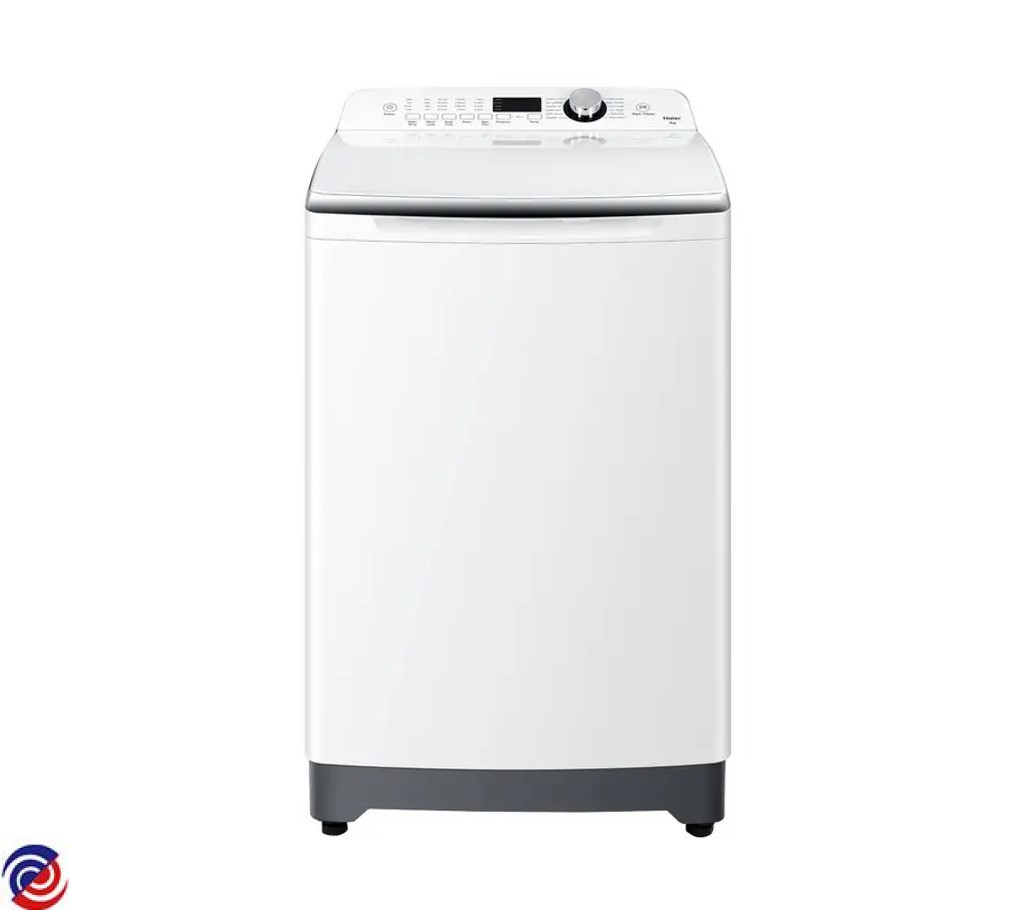

HWT90MW2 — 61393-A
HAIER — Washing Machine

W0196941 FISHER & PAYKEL HAIER PUMP DRAIN RECIR PUMP H0034000110D

$69.00

W0176307 HOSE INLET COLD

W0185380 CLAMP DRAIN HOSE INNER

W0185688 CLAMP DRAIN HOSE

W0185701 BUSH DRAIN HOSE

$4.50

W0185720 PAD FELT

$4.50

W0185732 BRACKET OOB ASSY

$4.50

W0185743 FOOT FIXED

$4.50

W0185755 COVER AIR BELL

$4.50

W0185759 GASKET WATER INLET

$4.50

W0185768 CLAMP PRESSURE TUBE HOSE

$4.50

W0186056 PRESSTUBE 8MM X 740 MM

$4.50

W0186256 CLAMP DRAIN INNER TUB

W0186275 BUSH B

$4.50

W0186305 ROD CONNECTING

$4.50

W0186354 HARNESS EARTHING

$4.50

W0186413 TIE TWIST

$4.50

W0186631 GASKET BUFFER

$4.50

W0186635 GASKET PULSATOR

$4.50

W0186698 ARM DRAIN MOTOR

$4.50

W0186757 SPRING OUT OF BALANCE

$4.60

W0186930 HANDLE CABINET

$4.50

W0187550 BRACKET DRAIN PUMP

$9.60

W0188352 SWITCH OUT OF BALANCE

$17.60

W0188691 FOOT ADJUSTABLE

$14.20

W0188748 RING MAGNET

$14.60

W0190284 PANEL BACK COVER

$18.80

W0190415 HOSE DRAIN TUB PUMP

$30.00

W0191025 BRACKET U SHIELD

$25.40

W0191265 HOSE INLET HOT

$27.30

W0191441 HOSE DRAIN EXTERNAL

$31.00

W0191475 PRESSURE SWITCH

$37.00

W0194182 HAIER TL WASHER ACTUATOR/SOLENOID BRAKE

$64.00

W0195306 BASE INCL FEET

$63.70

W0280450 BINDING WIRE

$4.50

W0280474 HINGE BASE LH

$23.20

W0280475 LID HINGE RH

$23.20

W0280478 PCB COVER

$13.30

W0280492 CONTROL ROD

$9.10

W0280494 NECK RING

$23.60

W0280502 SPLASH SHIELD RH BACK

$4.50

W0280503 TOP DECK

$76.50

W0280504 SPLASH SHIELD RHF

$10.00

W0280505 SPLASH SHIELD LHF

$11.00

W0280506 HOOK

$4.50

W0280508 PULSATOR COVER

$4.50

W0280511 FILTER COVER

$16.50

W0280514 BASE PLATE

$17.60

W0280518 KNOB

$17.20

W0280520 OVERFLOW PIPE

$4.50

W0280527 HINGE GASKET

$4.50

W0280530 INNER DRAIN HOSE

$23.20

W0280535 MAINS CABLE

$36.70

W0280536 WIRING HARNESS

$79.00

W0280541 BAG PROTECTION

$20.10

W0280558 DAMPING CLUTCH

$233.40

W0280559 INNER TUB

$224.70

W0280560 OUTER TUB

$112.60

W0280561 SUSPENSION ROD

$26.30

W0280569 LID ASSY

$196.90

W0280570 LINT FILTER

$16.00

W0280571 CONTROL PANEL MODULE

$97.70

W0280573 PULSATOR

$47.30

W0280574 CABINET

$121.80

W0280582 INLET VALVE ASSY

$123.80

W0280583 DETERGENT DISPENSER

$23.20

W0280585 PCB

$162.13

W0280586 MOTOR CONTROLLER

$237.10

W0280587 DISPLAY BOARD

$102.00

W0280588 CABINET BUFFER

$4.50

W0280595 REED SWITCH

$19.50

W0280597 REACTOR

$47.30

W0280598 EMI FILTER

$56.00

W0280601 MOTOR

$174.80

W0280603 DOOR LOCK

$57.50
