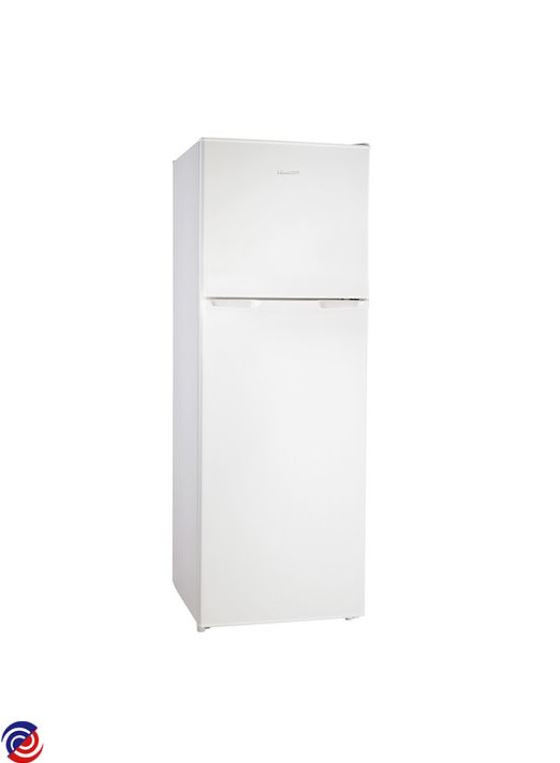

HR6TFF222
HISENSE — Fridge
Parts for HR6TFF222
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0014506 END WFM1800
$4.00
W0014541 CONNECTING TUBE WFM0900WC
$11.00
W0014593 BOX WIRING RJ182T
$11.00
W0014594 COVER WIRING BOX RJ182T
$8.80
W0014600 KNOB THERMOSTAT KTM2700WE
$13.30
W0014606 KNOB CONTROL
W0014619 DOOR STOP
$4.00
W0014633 WIRE COMPRESSOR GROUNDING
W0014646 MOUNTING COMPRESSOR
W0014653 FOOT ADJUSTABLE
$11.90
W0014717 BLOCK SLIDE TEMP ADJUST
$10.00
W0014735 SCREW COVER WTM1800WA
$5.50
W0014737 COVER MIDDLE HINGE HOLE
W0014745 POWER CORD WITH PLUG
$78.50
W0014751 BLADE FAN WTM1800WA
$30.00
W0014756 HOLDING BLANK RJ182T
$6.60
W0014757 SHEATH
$6.60
W0014762 SCREW. ST44.2X9.5 WFM0900WC
$4.50
W0014767 FAN MOTOR SUPPORT
$6.60
W0014768 PAN DRAIN
$76.60
W0014769 HINGE MIDDLE KTM2700WE
$33.00
W0014888 SCREW SELF-TAPPING
$4.00
W0014892 FLANGE SCREW M5X16
$4.50
W0014896 NUT WTM1800WA
$4.50
W0014897 BOLT WTM1800WA
$4.50
W0014898 ROUND-PAD WFM1800
$4.00
W0014899 WASHER SINGLE COIL SPRING LOCK
$4.00
W0014900 SPRING WASHER WTM1800WA
$6.60
W0014926 FOOT ADJUSTABLE
$19.90
W0015085 VIBRATION PAD
$4.50
W0015090 SPRING
W0015100 HINGE UPPER RIGHT
W0015101 BASE PLATE COMPRESSOR
$41.80
W0015118 STOP DOOR UPPER KTM2700WE
$6.60
W0015125 HOLDING BLANK RJ182T
$6.60
W0015146 MOUNT ANTI VIBRATION
$4.00
W0015148 SCREW M6 X 25 RJ182T
$4.00
W0015239 FLANGE SCREW ST4.8X16
$4.50
W0015300 TIMER COVER WTM1800WA
$14.95
W0015429 RACK LOWER DOOR
$43.05
W0015430 SHELF MIDDLE
W0017323 HOLDER LOCK
W0017324 SCREW M5 X 6 KTM2700WE
$4.00
W0017327 FUSE TEMPERATURE KTM2700WE
$35.05
W0017343 GASKET DOOR FZR KTM2700WE
$87.05
W0017344 GASKET DOOR FC KTM2700WE
$85.60
W0017556 TRAY ICE
W0017557 BOX ICE
W0017558 BRACKET ICE TRAY
W0017559 MOTOR FAN KTM2700WE
W0017560 BRACKET ICE TRAY
W0017561 SHELF GLASS FC KTM2700WE
$69.95
W0017562 DRAWER FRESH
W0017564 CHANNEL WIND FOAM
W0017565 SUPPORT FAN MOTOR KTM2700WE
$11.95
W0017567 COVER LAMPSHADE KTM2700WE
$14.95
W0017568 PANEL CRISPER KTM2700WE
$49.50
W0017569 RACK LOWER LOWER DOOR
W0017575 COVER SCREW HOLE KTM2700WE
$8.80
W0017597 EVAPORATOR KTM2700WE
$146.00
W0017599 COVER WIND FREEZER CHAMBER
W0017600 COVER FC AIR DUCT KTM2700WE
$44.95
W0017774 RACK UPPER DOOR
$30.00
W0017783 DRAWER CRISPER KTM2700WE
W0019275 FLANGE SCREW M5X30 WTM1800WA
$4.50
W0069963 LAMP 10W 240V
W0070042 TROUGH WATER
W0070080 SWITCH DOOR WTM1800WA
W0070260 HOLDER LAMP ASSY RJ182T
$57.05
W0070283 TIMER DEFROST WTM1800WA
W0070354 LOWER HINGE ASSY
W0071535 RING FIXING FAN BLADE
$4.00
W0071606 THERMOSTAT CONTROL WTM1800WA
W0071874 HANDLE COVER WFM1800
W0076520 HEATER KTM2700WE
$72.00
W0076701 HEATER
W0076826 THERMOSTAT DEFROST
W0076828 DOOR UPPER
W0076829 DOOR LOWER
W0076845 COMPRESSOR
W0076915 COVER UPPER HINGE
W0076916 COVER FRESH DRAWER
