104.196.29 — 94406659701

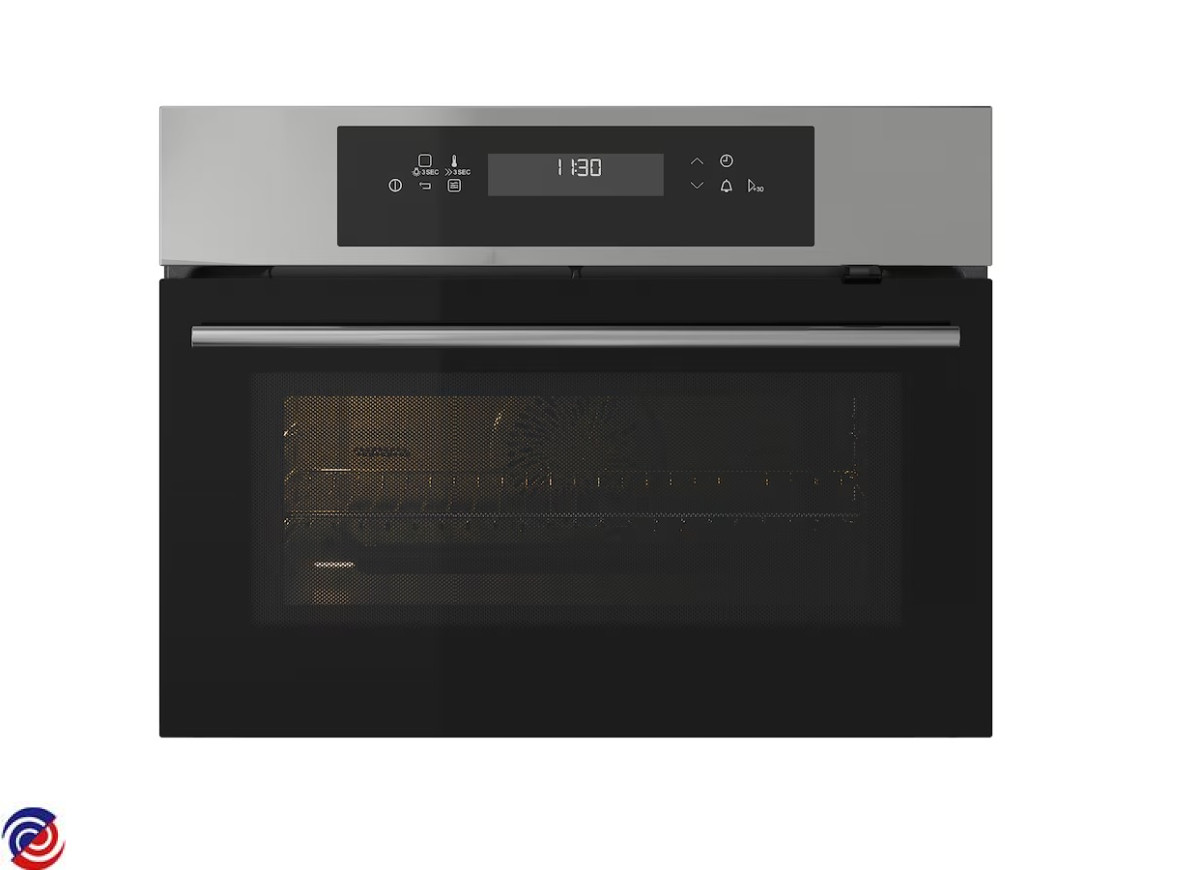

IKEA — Microwave
Parts for 104.196.29
W0017871 ASSEMBLY CONDENSATION MOTOR 24
$347.00
W0022985 HARNESS USER INTERFACE BOARD S
$229.00
W0023180 GRILL SHELF 466X385 . .
W0026274 MOTOR CONVEYOR 230V . .
$174.00
W0026279 HEATING ELEMENT UPPER 230V 190
$147.00
W0026281 MAGNETRON
$231.00
W0026282 TRANSFORMER HV
$447.00
W0026283 MOTOR STIRRER 230V
$111.00
W0026285 ASSEMBLY COOLING FAN COMPLETE
$120.00
W0026301 FAN STIRRER
$31.95
W0026302 SENSOR PT500
$68.00
W0026303 HEATING ELEMENT ROUND 230V 165
$142.00
W0026306 LAMP ASSEMBLY G9 230V 25W
$34.00
W0026472 HARNESS USER INTERFACE BOARD X
$34.50
W0026986 GASKET OVEN DOOR
$62.00
W0027116 GRID SIDE R
$68.00
W0027117 GRID SIDE L
$68.00
W0114339 BUSH, FIXING, OVEN D41116
$8.00
W0114583 HEATING ELEMENT, BOTTOM, 1000W
W0147313 AEG WALL OVEN MICROWAVE PCB
$305.00
W0147344 LAMP HALOGEN BULB 25W G9 230V
W0017784 MOUNTING PLATE BACK
$66.00
W0017861 HANDLE-DOOR
$84.65
W0017873 SWITCH SAFETY LEFT
$59.50
W0017874 SWITCH SAFETY RIGHT
$50.85
W0017899 DOOR LOCK MECHANISM
$30.00
W0017922 TRAY GLASS MICROWAVE 280 X 280
$96.00
W0022369 THERMOSTAT RED BLK 145.C
W0022555 BOLT TORX B63 5X6
$5.50
W0022556 SCREW TORX 4 X 10 T20
$5.50
W0022645 KEY TORX T20 - T20
$19.45
W0023126 PANEL BASE
$41.80
W0023165 SCREW MOUNT 4.2MM X 9.5MM
$17.00
W0023181 SUPPORT, HINGE, LEFT
$29.50
W0023182 SUPPORT, HINGE, RIGHT
$29.50
W0023209 CLAMP CABLE 15x 16mm
$4.00
W0023211 CLAMP CABLE 22 MM
$4.50
W0023212 SHIELD, BOTTOM, HEATER, STEAM
$44.00
W0023274 RETAINER FUSE COMPLETE
$52.00
W0024456 SEAL KIT
$39.00
W0026025 KIT SPACE COMPENSATOR CARD .
$14.30
W0026251 SIDE PANEL LEFT-RIGHT .
$77.00
W0026272 WHEEL CONVECTION FAN .
$54.00
W0026284 SENSOR MAGNETRON NTC
$68.00
W0026286 SHIELD CONVECTION FAN
$16.50
W0026290 BEARING STIRRER
$35.05
W0026291 RETAINER MOTOR
$14.30
W0026292 COVER TOP MICA
W0026296 SUPPORT CONNECTION BOX
$14.30
W0026297 WASHER AXLE 21/11MM
$14.50
W0026299 INNER DOOR FRAME
$153.00
W0026300 DIODE HV
W0026320 BOARD INTERFACE VCU UNPROG WHT
$389.00
W0026337 CONNECTION BOX WITH CABLE 3X1
$77.00
W0026385 NUT FAN
$6.00
W0026395 GASKET ROUND 892 5MM
$42.00
W0026422 REFLECTOR RH
$15.00
W0026434 REFLECTOR LH
$15.00
W0026474 HARNESS POWER BOARD DOOR SWITC
$23.10
W0026487 FRONT GLASS INOX 594 X327MM
$216.00
W0026515 COVER UI
$30.00
W0026564 BOARD USER INTERFACE TOUCH
$123.30
W0027064 AXLE STIRRER
$12.20
W0027100 MOUNTING SET FIXING
$30.00
W0027124 RING NUT
$11.00
W0027159 GASKET DOOR MICROWAVE OVENS
$56.00
W0027169 TAPE DRIP PROTECTION FRONT GLA
$77.00
W0027232 PIVOT SIDE GRID
$17.00
W0077100 HOLDER SIDE GRID 4MM PIN
$33.00
W0103137 LOCKING SPRING. 9MM
W0105621 CLIP.FIXING.ELECTRONIC.I=22.9M
W0106497 BOLT TORX B63 5X9 5 T20
W0134350 NUT, HEATING ELEMENT, UPPER,M4
$5.50
W0134463 DOOR FRAME
W0274457 CAP NUT MX6
W0274671 PANEL TOP COVER
$137.00
W0274698 DOOR OVEN TOP CAP
$18.00
W0274706 PANEL BACK OVEN
$55.00
W0274711 FILTER VOLTAGE
$36.00
W0275130 KIT, BOLT, HANDLE
$109.00
W0275323 LAMP GLASS MICROWAVE
W0275324 SHEILD PROTECTION LARGE
W0282766 HINGE DO0R LONG 5.8KG
$59.00
W0282767 HINGE DO0R 7.1KG
$62.00
W0282777 PANEL BACK FAN
W0283243 GLASS DOOR 474X327MM
$83.00
W0283295 BOARD USER INTERFACE PROGRAMED
$526.00
W0296347 KIT MOUNTING
$10.00
W0364030 FILLER PANEL INOX
$58.00
W0364122 CONTROL PANEL,INOX,60CM,VCU
$161.45
W0367998 SPACER FILLER
$5.50
W0369878 BOLT, HANDLE, M4 X 16T
W0375332 CAPAC 1.05UF 2300V 6PIN MICROW
$55.00
