KSD35HRG — 956002862 00
KELVINATOR — Air-Conditioner

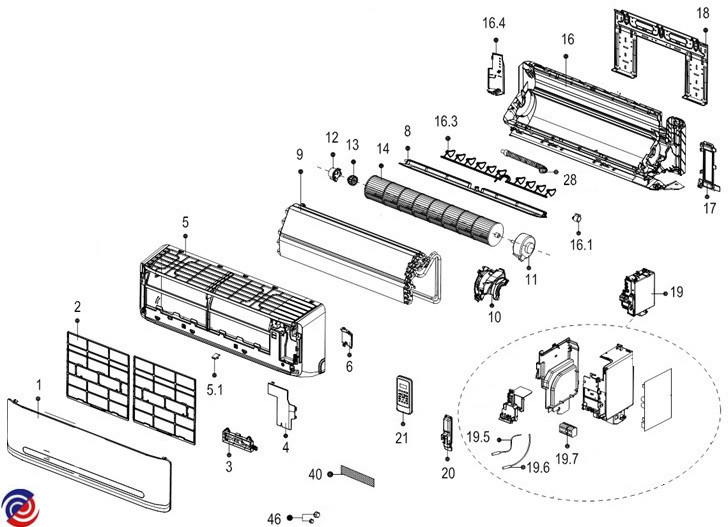

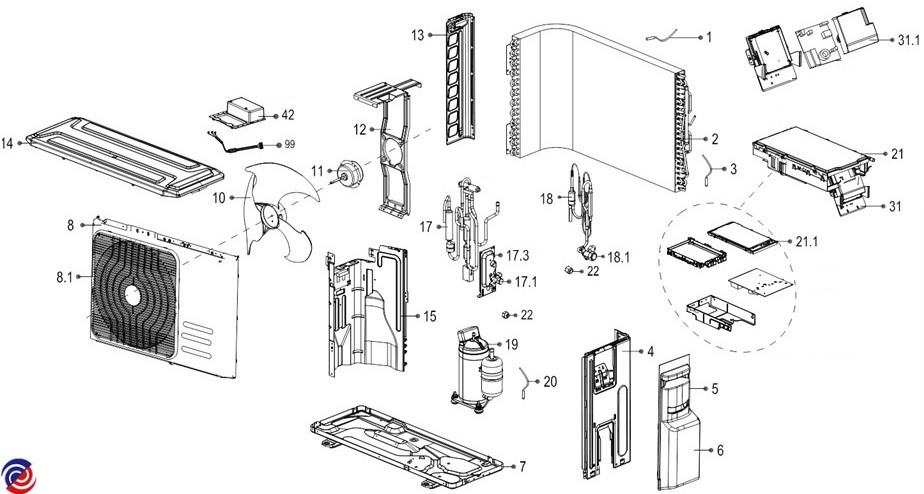

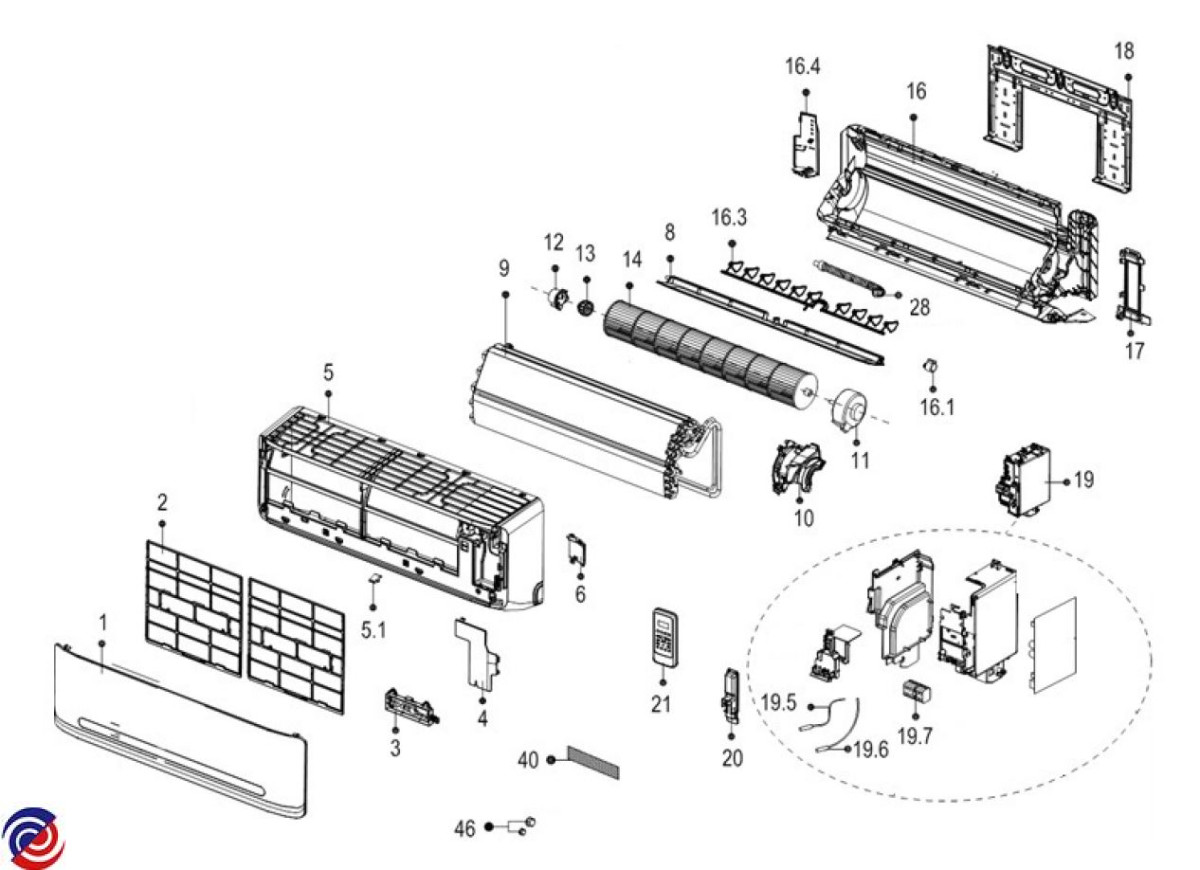

Parts for KSD35HRG
W0014920 MOTOR FAN INDOOR
W0019307 KELVINATOR AIRCON OUTDOOR TERMINAL & POWER PCB
W0014917 MOTOR LOUVRE
W0014919 MOTOR FAN OUTDOOR
W0015091 COMPRESSOR
W0015407 SENSOR TEMP ASSY DISCHARGE
W0015409 SENSOR AMBIANT TEMP ASSY
$49.35
W0015411 SENSOR AMBIENT TEMP ASSY
W0015413 SENSOR PIPE TEMP ASSY
W0015415 SENSOR PIPE TEMP ASSY
W0016446 FAN CROSS FLOW
W0016447 BLADE AXIAL FLOW
W0016451 FILTER AIR
$49.40
W0016452 FILTER AIR FRESHENING
W0016453 FILTER AIR FRESHENING
$41.70
W0016455 HOSE DRAIN
$23.20
W0016456 JOINT DRAIN
$4.50
W0016466 HOLDER, REMOTE CONTROL
W0016468 LOUVRE VERTICAL
$29.05
W0016470 HOLDER BEARING
W0016471 FRAME PANEL ASSEMBLY
$103.25
W0016473 CHASSIS ASSEMBLY
$263.80
W0016476 COVER CHASSIS RIGHT
$34.40
W0016481 COVER ELECTRONIC BOX
$9.85
W0016484 COVER FAN MOTOR
$91.75
W0016485 LOUVRE HORIZONTAL ASSEMBLY
$29.05
W0016488 COVER ELEC EQUIPMENT
$11.50
W0016490 COLLECTOR WATER
$57.35
W0016492 CAP SCREW
$4.50
W0016493 COVER CHASSIS LEFT
$34.40
W0016494 GRILLE AIR OUTLET
$45.00
W0016496 COVER ELECTRONIC CONTROL BOX
$6.05
W0016499 CLAMP PIPE BOARD
$6.50
W0016502 PANEL ASSEMBLY
W0016509 PLATE INSTALLATION
$305.05
W0016511 CHASSIS ASSEMBLY
$200.00
W0016514 COVER PCB OUTDOOR
W0016516 COVER TOP ASSEMBLY
W0016517 PLATE VALVE
$34.40
W0016518 PARTITION BOARD ASSEMBLY
$45.85
W0016519 PANEL RIGHT ASSEMBLY
W0016520 PANEL FRONT
W0016537 SUPPORT FAN MOTOR
$40.00
W0016766 SEAL RING
$4.50
W0016770 BASE BEARING
W0019117 VALVE ASSEMBLY 4-WAY
$255.05
W0019118 VALVE LIQUID ASSY (DISCHARGE)
$58.05
W0019138 VALVE GAS (SUCTION)
$39.85
W0019141 VALVE LIQUID (DISCHARGE)
$25.35
W0019146 NUT, FLARE NUT 1/2 - 12.7mm
$6.50
W0019147 NUT, FLARE NUT 1/4 - 6.35mm
$4.50
W0019186 CONDENSER ASSEMBLY
$830.25
W0019187 EVAPORATOR ASSEMBLY
W0019303 PCB MODULE DEMAND RESPONSE
W0019308 BOARD PCB DISPLAY BOX ASSY
W0019310 ELEC CONTROL BOX PCB ASSY
W0019322 ELEC CONTROL BOX PCB ASSY
W0019326 REMOTE CONTROLLER
W0019330 TERMINAL BLOCK
W0019332 WIRE ASSY COMPRESSOR
$24.50
W0274358 HANDLE, BIG 'STEEL TYPE
W0274813 PCB WIFI BOX ASSY
$33.00
W0282454 NUT, FAN BLADE. OUTDOOR
$4.00
W0284375 PANEL, REAR LEFT PLATE ASSY
$73.70
