KSV35HRF — 950001552 00
KELVINATOR — Air-Conditioner

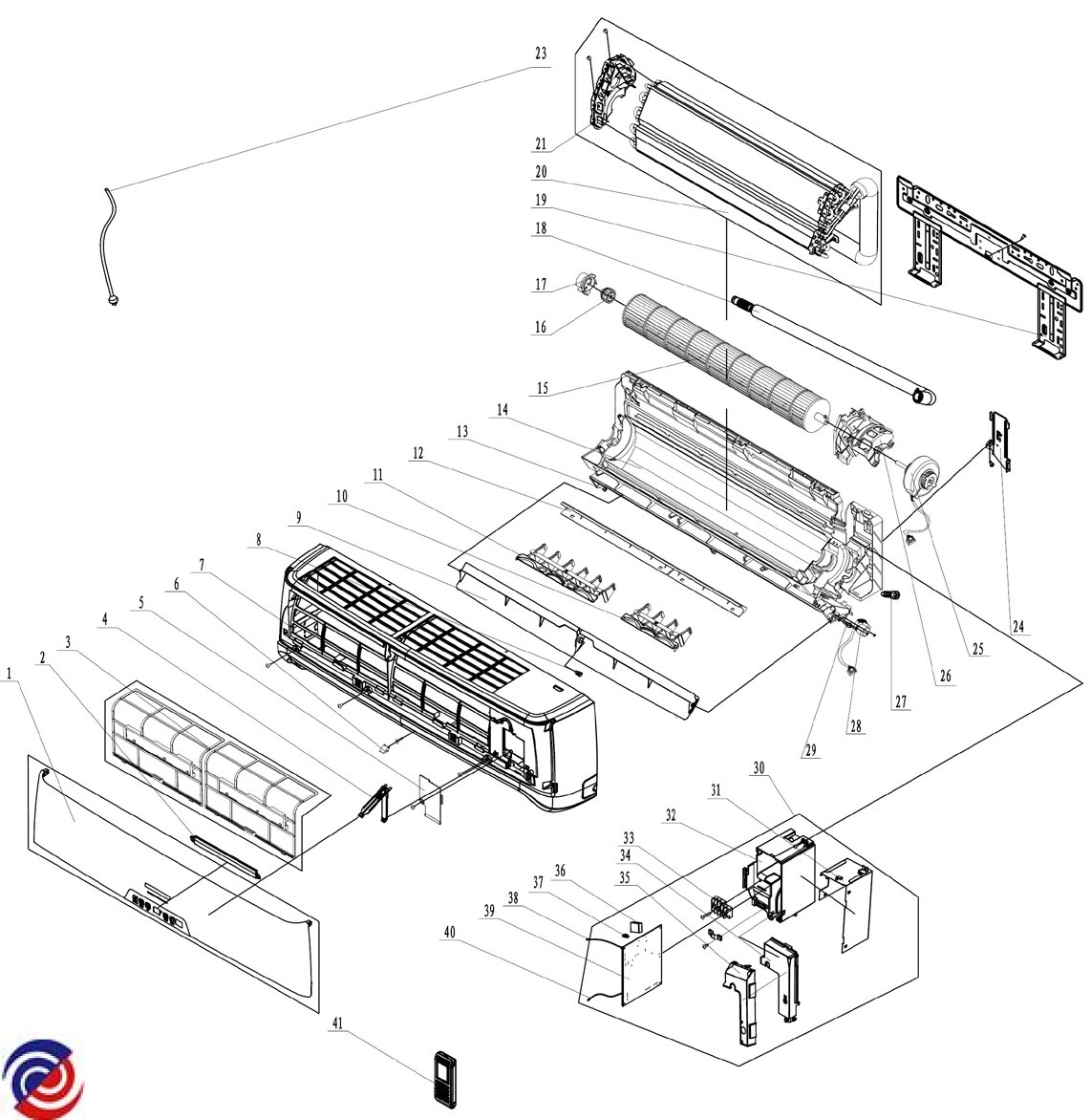

Parts for KSV35HRF
W0014946 FILTER CARBON
W0011175 COMPRESSOR KSV35CRE
$624.15
W0012111 EVAPORATOR ASSY
$369.55
W0012196 CONDENSER ASSY
$627.65
W0012299 CLAPBOARD SUB ASSY
$50.00
W0012331 FRAME, WALL MOUNTING
W0012341 COVER, TOP SUB ASSY
$60.95
W0012373 PLATE, LEFT SIDE
$30.00
W0012512 REAR GRILL KSV35CRC
$26.40
W0012537 PANEL FRONT ASSY
$100.00
W0012552 SHIELD, LOWER SUB ASSY ELEC
$40.00
W0012557 SHIELD COVER OF ELECTRIC BOX
$11.00
W0012592 SUPPORT, MOTOR
$40.00
W0012611 SUPPORT, VALVE
$47.00
W0012948 BOARD MAIN ASSY OUTDOOR ELECT
W0012949 BOARD MAIN ASSY OUTDOOR ELECT
$293.70
W0013016 CHASSIS SUB ASSY
$200.00
W0013152 VALVE ASSY, 4-WAY
$410.20
W0013183 CAPILLARY SUB-ASSY
$50.00
W0013514 DRAIN PIPE KSV35CRC
$15.20
W0014086 VALVE CUT-OFF DISCHARGE 1/4
W0014087 VALVE CUT OFF
$50.00
W0014104 VALVE, ELECTRONIC EXPANSION
$105.80
W0014458 FAN, AXIAL FLOW
$54.95
W0014484 FAN, CROSS FLOW
W0014562 BUSH AXILE LH
W0014569 LOUVER, AIR 2
W0014570 LOUVER, AIR 1
$4.00
W0014631 BUSH AXILE
W0014667 CRANK
$5.50
W0015173 FILTER, SUB ASSY
W0015175 FILTER (HEPPA)
W0018884 MOTOR FAN INDOOR KSV26CRE
W0018903 MOTOR FAN OUTDOOR
$215.00
W0018975 MOTOR LOURVE
W0019464 CASE ASSY, REAR
$116.85
W0019465 CASE, FRONT
$69.95
W0019467 PANEL, FRONT ASSY
$60.05
W0019540 BOX, ELECTRIC
$40.00
W0019600 COVER, BOX ELECTRIC 2
$40.00
W0019937 BOARD MAIN INDOOR ASSY ELECT
$290.05
W0020512 COVER, ELECTRIC BOX 1
$10.00
W0020559 GRILL, FRONT
$30.00
W0020659 SUPPORT, EVAPORATOR
$10.00
W0020660 BAR, STAY SUB ASSY
$10.00
W0020774 PLATE, PRESS MOTOR
$30.00
W0020775 HELICOID TONGUE
$7.00
W0020857 RING, BEARING
W0020881 HANDLE BIG
$15.00
W0020950 LOUVER, GUIDE
W0021051 FILTER PC BOARD OUTSIDE
$344.85
W0021242 BOARD MAIN INDOOR
W0021244 BOARD MAIN OUTDOOR KSV35HRE
$380.20
W0021799 BOARD, DISPLAY INDOOR
W0022348 CAPAC CBB61S
$5.45
W0023277 SENSOR TEMPERATURE
$44.05
W0023279 SENSOR TUBE TEMP (20K BLK)
W0023352 CORD POWER KSV26CRC
$33.00
W0024728 TERMINAL BOARD KSV26HRC
$14.90
W0024732 TERMINAL BOARD 4-BIT
$14.90
W0024761 WIRE JUMPER
$20.00
W0024867 MAGNET COIL KSV26NRC-OUD
$70.10
W0024876 COIL REACTOR
$85.65
W0026765 CLAMP, WIRE
$4.00
W0026843 COMPRESSOR GASKET KWH07CRC
$10.00
W0026850 PLUG WATER TRAY
W0096142 SCREW COVER
$4.00
W0096481 PIPE CLAMP KSV26CRC
$4.00
W0102058 REMOTE CONTROL
W0142539 BEARING. O-GASKET SUB ASSY
