KSV52HRF — 950001553 00

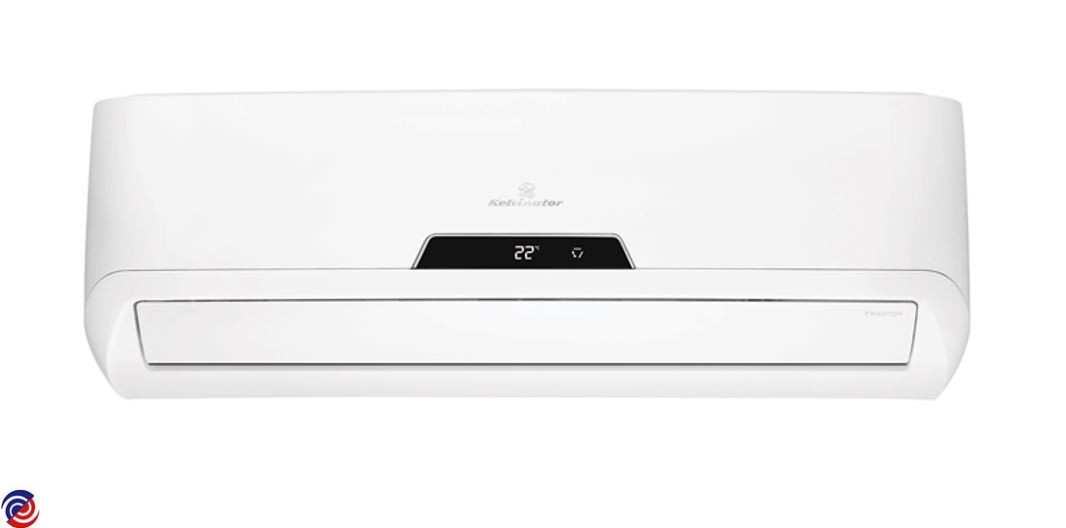

KELVINATOR — Air-Conditioner

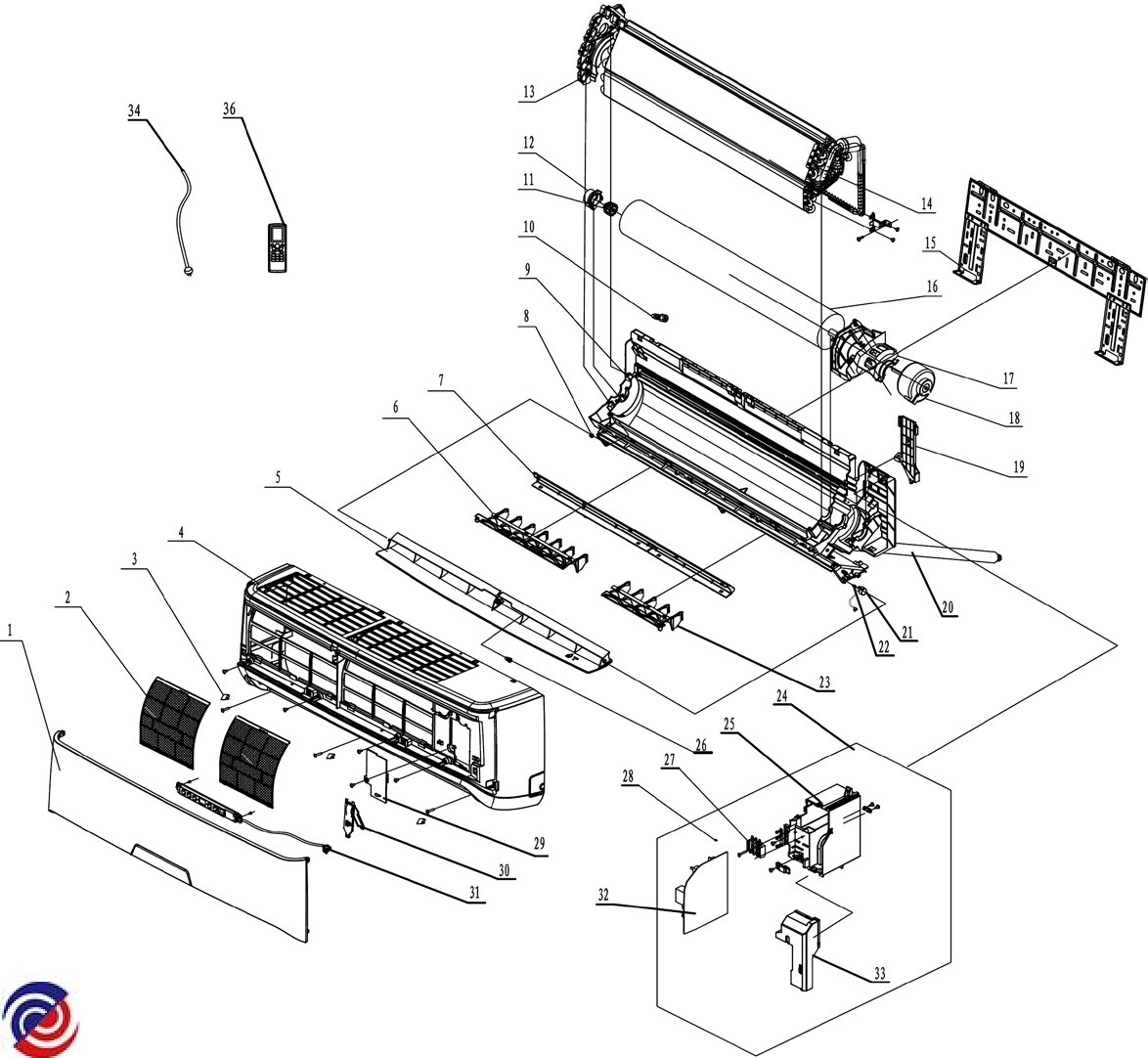

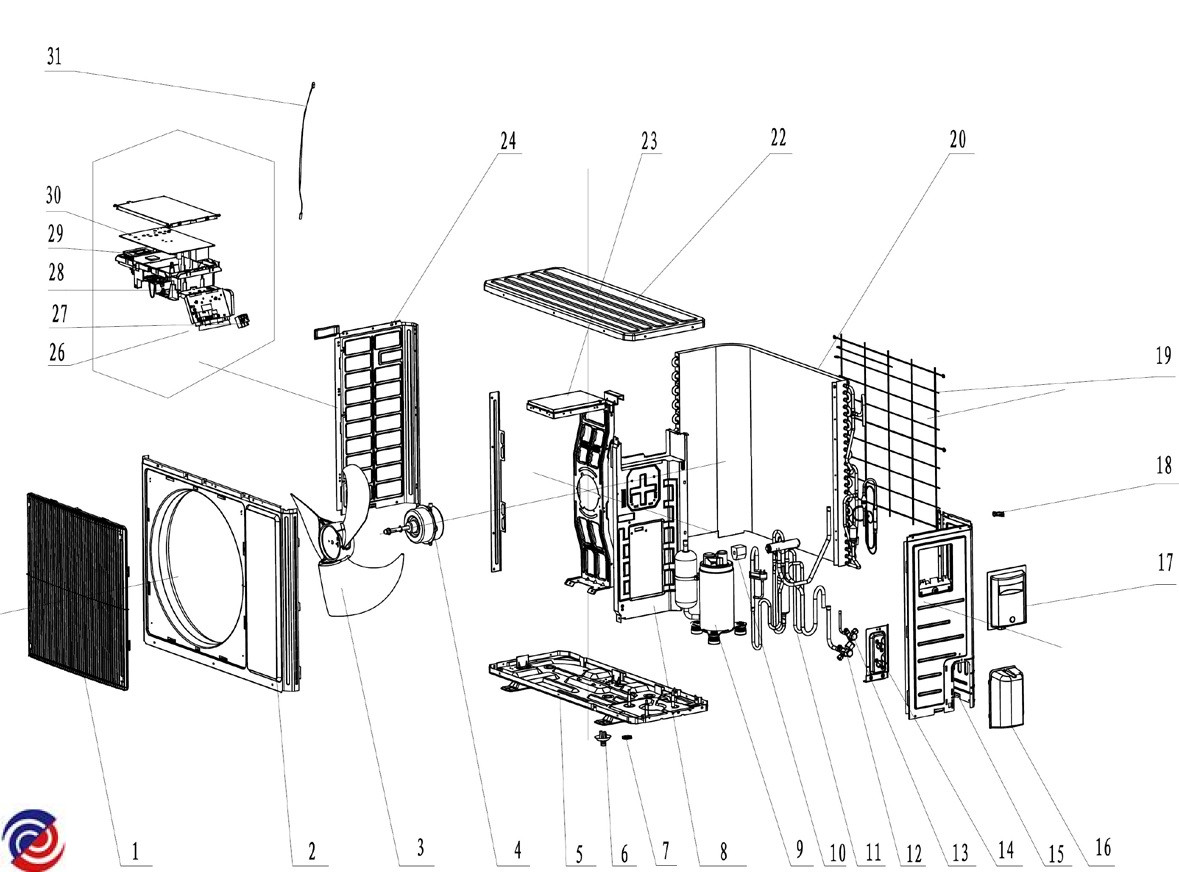

Parts for KSV52HRF
W0014946 FILTER CARBON
W0023278 SENSOR TEMPERATURE
W0011113 PANEL ASSY-FRONT
$140.00
W0011173 COMPRESSOR KSV53HRE
$982.90
W0012095 EVAPORATOR ASSY
$519.75
W0012199 CONDENSER ASSY
$847.25
W0012298 CLAPBOARD ASSY
$50.00
W0012335 FRAME, WALL MOUNTING
$30.00
W0012347 TOP COVER KSV53HRC
$70.00
W0012378 PLATE ASSY, RIGHT SIDE
$44.95
W0012388 LEFT SIDE PLATE KSV53HRC
$27.50
W0012507 REAR GRILL KSV53HRC
$14.30
W0012593 SUPPORT, MOTOR SUB ASSY
$50.00
W0012614 SUPPORT, VALVE ASSY
$14.95
W0013018 CHASSIS, SUB ASSY
$200.00
W0013157 VALVE ASSY, 4-WAY
$259.95
W0013514 DRAIN PIPE KSV35CRC
$15.20
W0013881 COUPLING CONNECTER DRAINAGE
W0013998 SEAL DRAINAGE
$6.00
W0014094 VALVE, CUT OFF SUB ASSY 1/4
$23.10
W0014099 VALVE, CUT OFF SUB ASSY 1/2
$52.25
W0014257 BOX ASSY, ELECTRIC OUTDOOR
$591.45
W0014464 FAN AXIAL FLOW KSV53HRC
W0014485 FAN, CROSS FLOW
W0014562 BUSH AXILE LH
W0014584 LOUVER, AIR 1
$54.95
W0014585 LOUVER, AIR 2
$4.00
W0014631 BUSH AXILE
W0014667 CRANK
$5.50
W0015163 FILTER, SUB ASSY
W0015175 FILTER (HEPPA)
W0018893 MOTOR, FAN FN20V-PG
W0018912 MOTOR FAN OUTDOOR KSV53HRC 01
W0018978 MOTOR STEP KSV53HRE
W0019454 FRONT PANEL ASSY
$57.50
W0019457 CASE, FRONT
$100.00
W0019458 CASE ASSY, REAR
$130.00
W0019538 BOX. ELECTRIC ONLY
$40.00
W0019549 BOX ELECTRIC ONLY (FIRE PROOF)
$40.00
W0019604 COVER, BOX ELECTRIC 1
$10.00
W0019607 COVER, BOX ELECTRIC 2
$40.00
W0019939 BOARD MAIN ASSY INDOOR ELECT
W0020514 COVER, VALVE
$10.00
W0020562 FRONT GRILL KSV53HRC
W0020663 SUPPORT, EVAPORATOR
$10.00
W0020665 BAR, STAY SUB ASSY
$10.00
W0020779 TONGUE, HELICOID
$7.00
W0020789 PLATE, MOTOR PRESS
$30.00
W0020949 LOUVER, GUIDE
$19.85
W0021206 BOARD MAIN
W0021238 BOARD MAIN INDOOR
W0021803 BOARD, DISPLAY
W0023284 SENSOR TEMPERATURE
W0023290 SENSOR TEMPERATURE
W0023350 CORD, POWER
$35.00
W0024729 TERMINAL BOARD 3-BIT ASSY
$20.00
W0024732 TERMINAL BOARD 4-BIT
$14.90
W0024862 COIL, MAGNETIC (4-WAY VALVE)
$50.00
W0024938 SWITCH PRESSURE PROTECT
W0025273 RADIATOR
$41.80
W0026834 BEARING FAN BLADE
W0026850 PLUG WATER TRAY
W0096142 SCREW COVER
$4.00
W0096481 PIPE CLAMP KSV26CRC
$4.00
W0096483 CLAMP WIRING
$4.50
W0096528 HANDLE
W0102058 REMOTE CONTROL
W0117886 JUMPING CONNECTOR KSV26HRC
$20.00
W0142539 BEARING. O-GASKET SUB ASSY
