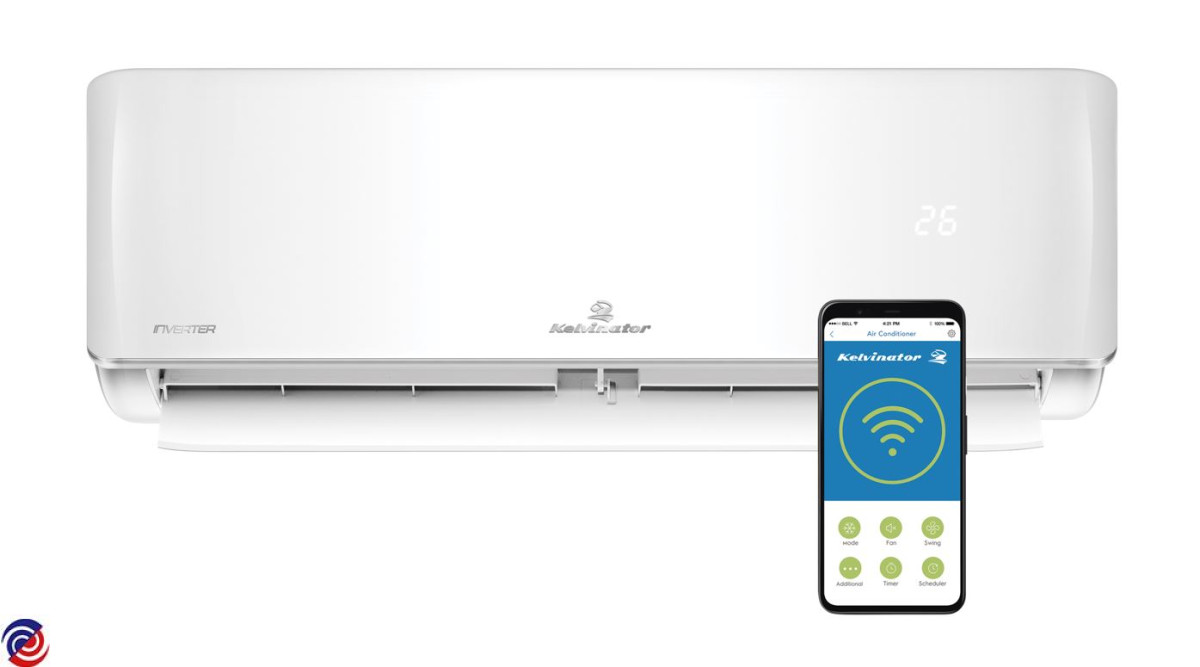

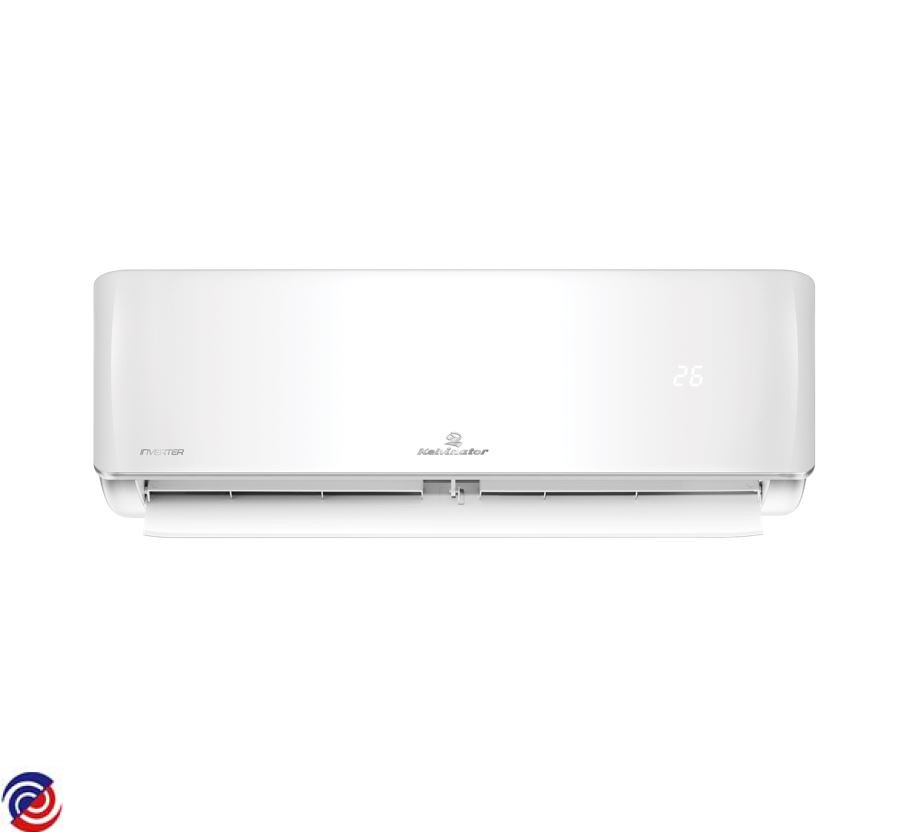

KSV71HWH — 956004522 00
KELVINATOR — Air-Conditioner

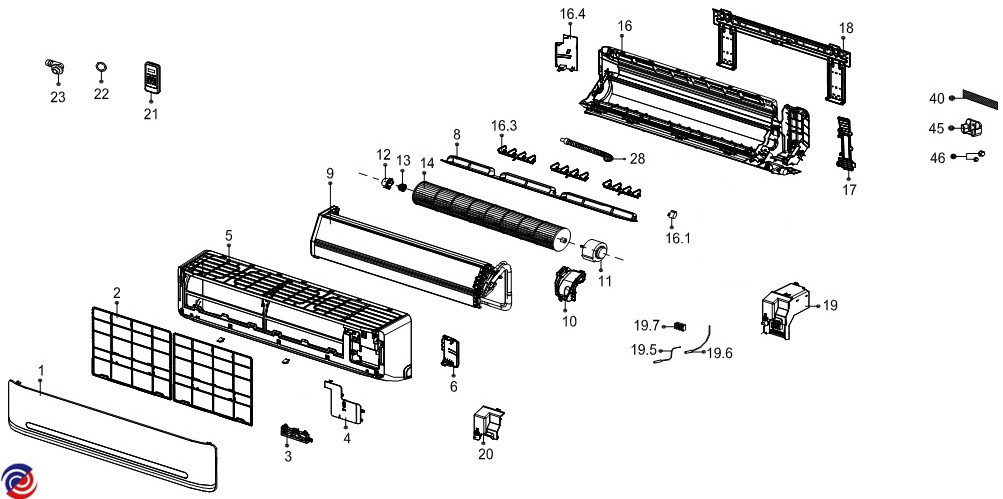

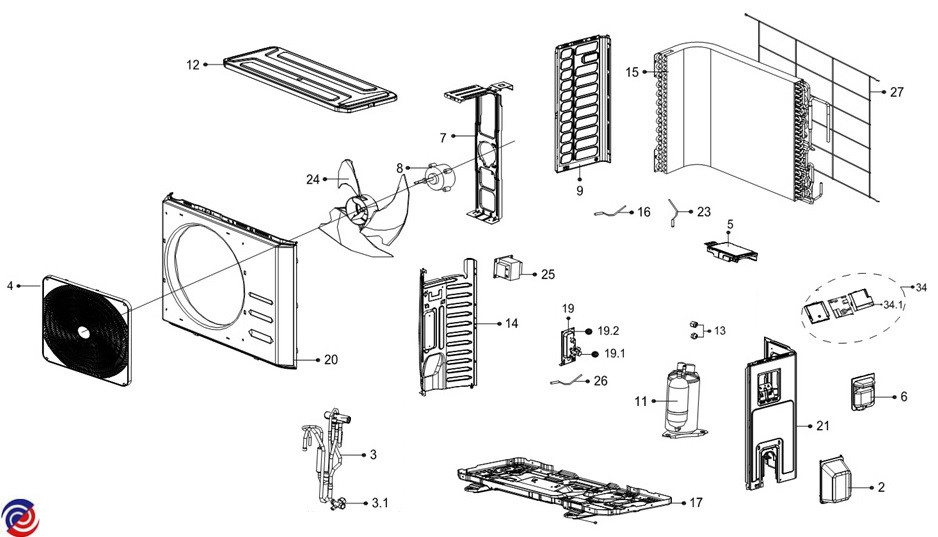

Parts for KSV71HWH
W0019307 KELVINATOR AIRCON OUTDOOR TERMINAL & POWER PCB
.jpg)
W0284450 REMOTE CONTROLLER
W0014916 MOTOR LOUVRE
$79.00
W0015092 COMPRESSOR
W0015407 SENSOR TEMP ASSY DISCHARGE
W0015410 SENSOR PIPE TEMP ASSY
W0016445 BLADE FAN CROSS FLOW
W0016449 BLADE FAN AXIAL FLOW
W0016450 FILTER AIR
$34.90
W0016453 FILTER AIR FRESHENING
$41.70
W0016454 FILTER AIR FRESHENING
$28.35
W0016455 HOSE DRAIN
$23.20
W0016456 JOINT DRAIN
$4.50
W0016469 LOUVRE VERTICAL
$84.35
W0016470 HOLDER BEARING
W0016474 CHASSIS ASSEMBLY
$290.20
W0016477 COVER CHASSIS RIGHT
$30.00
W0016478 COVER CHASSIS LEFT
$30.00
W0016482 COVER ELEC CONTROL BOX
$11.30
W0016483 COVER FAN MOTOR
$78.45
W0016486 LOUVER HORIZONTAL ASSEMBLY
$43.55
W0016487 COVER ELEC EQUIPMENT
$9.85
W0016490 COLLECTOR WATER
$57.35
W0016492 CAP SCREW
$4.50
W0016496 COVER ELECTRONIC CONTROL BOX
$6.05
W0016498 CLAMP PIPE BOARD
$5.00
W0016501 PANEL ASSEMBLY
W0016510 PLATE INSTALLATION
$36.30
W0016517 PLATE VALVE
$34.40
W0016522 BOARD TERMINAL
$76.45
W0016523 PARTITION BOARD ASSEMBLY
$40.00
W0016524 PLATE RIGHT SIDE
W0016527 PLATE LEFT SIDE ASSEMBLY
W0016528 PANEL FRONT
W0016529 CHASSIS ASSEMBLY
$200.00
W0016531 SUPPORT FAN MOTOR ASSY
$40.00
W0016766 SEAL RING
$4.50
W0016770 BASE BEARING
W0019121 VALVE ASSEMBLY 4-WAY
W0019136 VALVE GAS (SUCTION)
$59.45
W0019144 NUT, FLARE NUT 5/8 - 15.9mm
$10.75
W0019145 NUT , FLARE NUT 3/8 - 9.52mm
$6.25
W0019312 ELEC CONTROL BOX PCB ASSY
W0019328 REACTOR
$117.90
W0019329 JOINT WIRE
W0019333 WIRE ASSY COMPRESSOR
$24.50
W0282441 MOTOR BRUSHLESS DC
W0282450 SENSOR TEMP ROOM
$12.50
W0282451 SENSOR PIPE TEMPERATURE
$6.15
W0282496 PANEL FRAME ASSEMBLY
$162.45
W0282536 COVER NET, REAR
$34.30
W0282857 VALVE ASSEMBLY, LIQUID
W0282860 PIPE NUT
$4.00
W0282864 CONDENSER ASSEMBLY
W0282873 EVAPORATOR ASSEMBLY
$714.65
W0282894 ELEC CONTROL BOX PCB ASSY
W0282897 DISPLAY PCB & WI-FI DOGLE
W0284111 SENSOR TEMP ROOM
W0284115 HOLDER, REMOTE CONTROL
W0284177 HANDLE, BIG
$16.55
W0284322 VALVE ASSEMBLY, LIQUID
$33.95
W0284373 GRILLE, AIR OUTLET
W0284431 PANEL, TOP
W0284570 MOTOR FAN OUTDOOR BRUSHLESS
