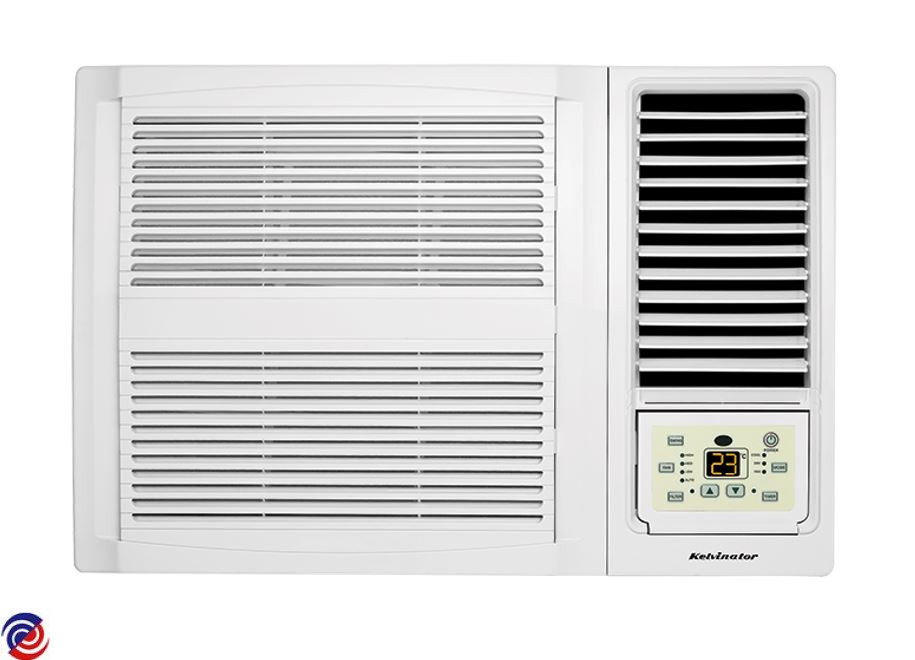

KWH26CRE — 950001229 AFTER S/N 83380001
KELVINATOR — Air-Conditioner
Parts for KWH26CRE
W0022340 CAPAC 3.5UF450V 4SMALL PIN RUN
$6.25
W0011163 COMPRESSOR KWH26CRE
$856.15
W0012087 EVAPORATOR ASSY
$360.00
W0012154 CONDENSER ASSY
$355.20
W0012208 CHASSIS SUB ASSY
$88.00
W0012244 CLAMP CHASSIS TO CABINET
$4.50
W0012281 FRONT CLAPBOARD KWH07HRC
$59.40
W0012282 FRONT CLAPBOARD OF PROPELLER H
$29.70
W0012457 PLATE, BASE ASSY
W0012466 TOP CONNECTING PLATE ASSY
$55.00
W0012481 CABINET ASSY
$198.40
W0013083 CAPILLARY SUB ASSY
W0013281 TUBE, SUCTION
$27.50
W0013285 TUBE, INHALATION SUB ASSY
$49.50
W0014422 BLADE FAN CENTRIFUGAL
$91.30
W0014456 BLADE FAN
$91.30
W0014535 LOUVRE AIR
$11.65
W0014539 LOUVRE AIR
$11.95
W0014615 BASE SWING LOUVRE
$6.60
W0014662 GUIDE BLADE LEVER KWH07CRC
$13.65
W0015160 FILTER SUB-ASSY
$28.60
W0016460 SHROUD FAN ASSY
$29.70
W0018880 MOTOR FAN (CJ60V)
$254.40
W0019414 GRILL FRONT KWH20CRC
W0019509 BOX ASSY, ELECTRIC
W0019590 LCD BOARD (REMOTE CONTROL)
W0019790 TRAY, WATER
$25.00
W0021191 BOARD MAIN
W0021740 BOARD, DISPLAY
W0022309 CAPACITOR CBB65 30UF/450V(P2/S
W0023293 SENSOR INDOOR KSV53HRE
W0023294 SENSOR INDOOR KWH20CRE
W0023351 POWER CORD 10A EWJ16CRA & HRA
$22.90
W0024770 SLEEVING KWH15CMC
$7.70
W0026655 DECAL
$9.65
W0026843 COMPRESSOR GASKET KWH07CRC
$10.00
W0026848 PLUG, OVER FLOW
$4.50
W0046334 REAR CLAPBOARD KWH07CRC
$44.00
W0070096 LEVER DOOR
$11.60
W0090326 MOTOR STEP KWH07CRC
$44.20
W0096138 SUPPORT CROSS BEAM
$10.00
W0096777 FRONT CASE KWH07CRC
W0274875 HOLDER REMOTE CONTROL
W0274881 KELVINATOR AIRCON REMOTE CONTROL
W0283018 TRAY, WATER (BW)
$7.00
