KWH39HRE — 950001235 AFTER S/N 83380763

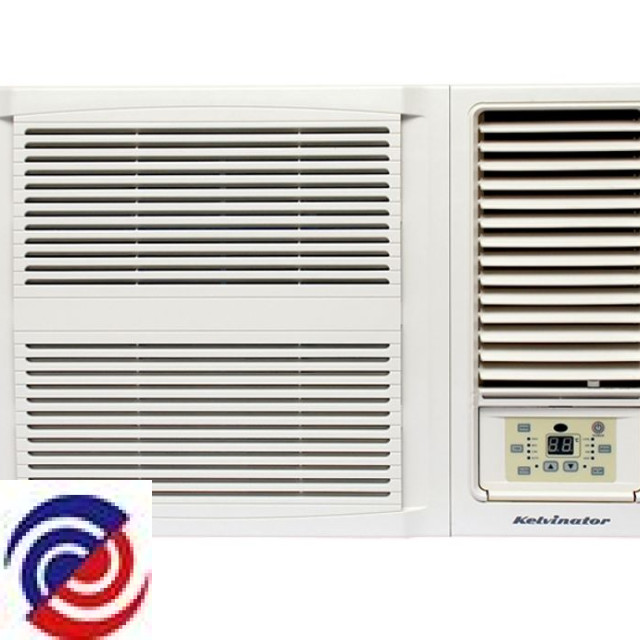

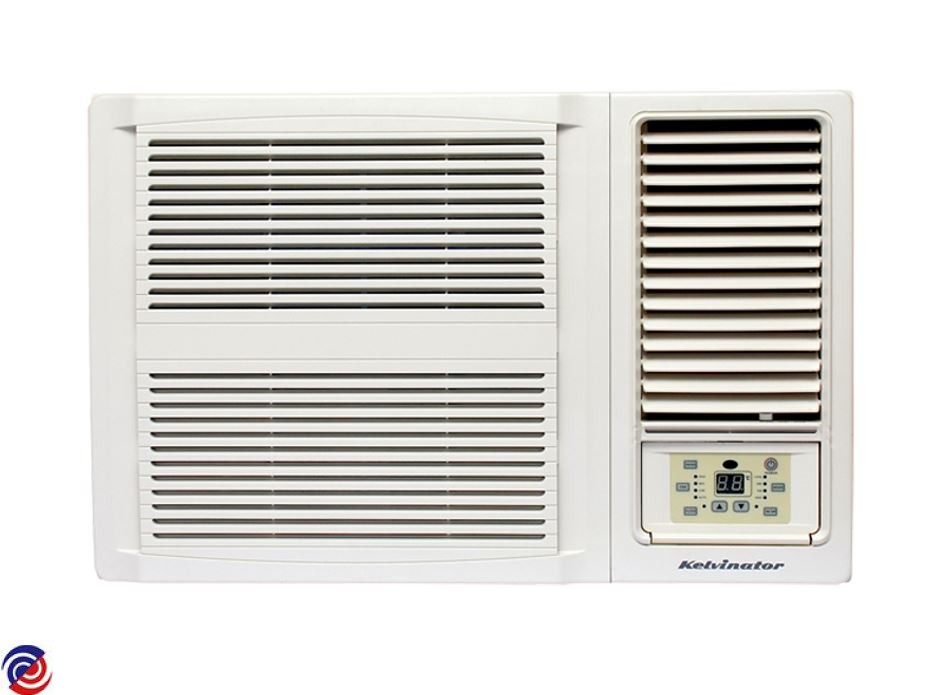

KELVINATOR — Air-Conditioner

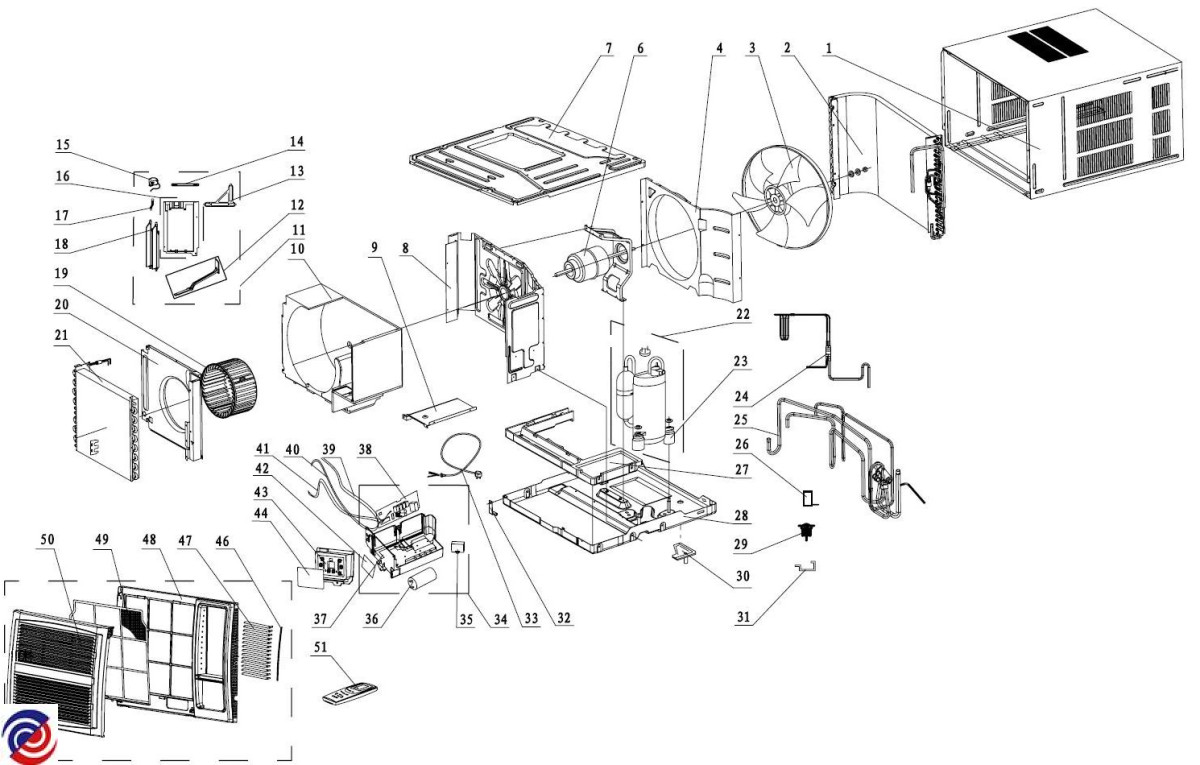

Parts for KWH39HRE
W0011165 COMPRESSOR KWH39CRE
$375.95
W0012088 EVAPORATOR ASSY
$322.95
W0012157 CONDENSER ASSY
$292.00
W0012217 CHASSIS, SUB ASSY
$99.00
W0012269 BASE PLATE OF AIR FLUE
$6.60
W0012284 REAR CLAPBOARD KWH12CRC
$43.55
W0012286 COVER FRONT FAN KWH47CRB
$29.70
W0012288 FRONT CLAPBOARD KWH12HRC
$66.00
W0012327 TOP COVER BOARD SUB-ASSY
$66.00
W0013084 CAPILLARY, SUB ASSY
$38.50
W0013124 VALVE, 4-WAY ASSY
$290.00
W0014547 LOUVRE HORIZONTAL
W0014663 VENT FRESH AIR
$20.00
W0014664 LINKAGE HORIZONTAL AIR GUIDE
$4.50
W0015161 FILTER
$41.65
W0016461 SHROUD FAN SHELL EWJ16&18
$44.00
W0018881 MOTOR FAN (CJ100R)
$297.00
W0018968 MOTOR LOURVE KWH47HRB
$51.65
W0019413 GRILL FRONT
W0019422 OUTLET, AIR SUB ASSY
$45.85
W0019502 BOX ASSY, ELECTRIC KWH39HRE
W0019531 BOX, ELECTRIC ONLY KWH39CRE
W0019791 TRAY, WATER
$27.05
W0020887 CLIP PROTECTOR EWJ16HRA
$4.50
W0020945 FRAME FRONT CASE
W0021192 BOARD MAIN
W0021740 BOARD, DISPLAY
W0022310 CAPACITOR
$30.10
W0022343 CAPAC 6UF 500V 4 SMALL PIN FAN
$11.40
W0023293 SENSOR INDOOR KSV53HRE
W0023294 SENSOR INDOOR KWH20CRE
W0023295 SENSOR INDOOR KWH20HRE
W0023351 POWER CORD 10A EWJ16CRA & HRA
$22.90
W0024865 VALVE 4 WAY
$58.05
W0026654 DECAL
$11.65
W0045930 CLIP RETAINING CHASSIS
W0065196 VALVE DRAINAGE
$57.45
W0069477 BLADE FAN CENTRIFUGAL
$62.00
W0069630 FAN AXIAL FLOW
$91.30
W0070000 LOURVE SWING
$54.90
W0070095 LEVER SWING
$11.60
W0070097 LINKAGE SWING MECHANISM
W0070098 FRAME SWING MECHANISM
W0138648 CRANK LOUVER
$11.50
W0142561 COMPRESSOR GASKET
$7.70
W0274875 HOLDER REMOTE CONTROL
W0274881 KELVINATOR AIRCON REMOTE CONTROL
W0283019 DRAIN CORNER PLASTIC
$4.50
W0283225 CABINET ASSY
W0284183 PANEL, CONTROL
