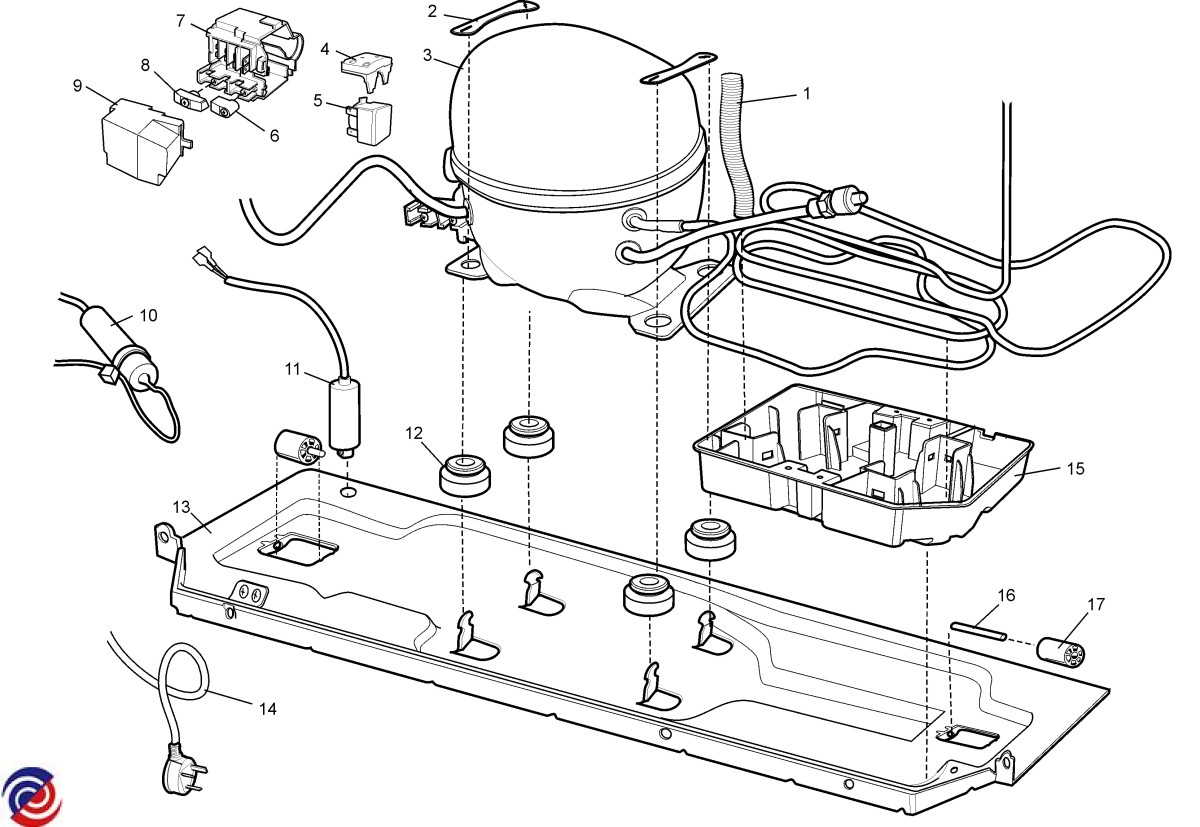

KBM4502WA — 925060084 00
KELVINATOR — Fridge
Parts for KBM4502WA
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0027222 TUBE PROCESS
$19.15
W0027373 MOTOR FAN DC 3W
W0027433 CAPACITOR 4UF
$14.90
W0027439 SCREW TRILOB M5X16
$4.50
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029516 KELVINATOR FRIDGE MAIN PCB ERF1600I KBM4502
W0029559 HEATER RAD DEF R600 240V BF70W
W0029587 HARNESS-ASSY SENSOR DEFROST
W0029700 ROLLER FOOT
$17.10
W0029701 FOOT LEVER
W0030315 WESTINGHOUSE FRIDGE STARTING DEVICE QPA-20A
$27.50
W0087752 BLADE FAN
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0027441 SCREW TRUSS 4.2X13
W0027539 BRACKET MOUNT FAN SURROUND
$14.50
W0027544 BAFFLE SLIDER FRONT BF
$6.50
W0027547 SHROUD FAN BF
W0027553 VALVE DRAIN ASSY BF
$184.20
W0027601 GASKET FRZ BF70
$101.55
W0027603 GASKET FC BF70
$116.05
W0029309 HINGE TOP RIGHT
$8.65
W0029360 MULTIFLOW ASSY BF KLVN
W0029373 SUPPORT EVAPORATOR LEFT TF
$6.20
W0029376 DRAWER BODY BF70
$34.10
W0029388 CRISPER DIVIDER BF WH-ART
$11.90
W0029396 DOOR BIN LOCKABLE TF70 WH ASY
$44.90
W0029408 DOOR BIN FLEX 1/2 TF70W EL
$85.00
W0029417 DOOR BIN FC SHALLOW 70 EL
W0029434 TRAY EGG 70W
W0029445 SHELF FC TF70W
W0029466 COVER TOP HINGE RIGHT WHT
$4.50
W0029476 COVER GRID AIR RETURN BF
$4.50
W0029480 COVER SCREW MULTIFLOW LH
$4.50
W0029481 COVER SCREW MULTIFLOW RH
$4.50
W0029482 EVAPORATOR COVER BF70 ASY 2-Z
$65.00
W0029534 HARNESS-ASSY MULTIFLOW KEL
$55.90
W0029535 BEARING AUTO CLOSER R TF WHT
$8.80
W0029536 BEARING AUTO CLOSER R TF SL
W0029563 BEARING HINGE FC TOP TF SL L
$13.85
W0029565 BEARING HINGE FC TOP TF SL R
$10.90
W0029566 BEARING HINGE FZR TOP OPEN
$6.30
W0029568 DRAWER WIRE BASKET LOW 70
$60.00
W0029572 TRAY EVAP DRAIN BM/SD 70W
$16.50
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029640 EXTENSION SLIDE INSERT FZR LH
$9.40
W0029666 DOOR BIN FC BOTTLE TF70 KEL
$67.05
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029702 HINGE BASE RIGHT ASSY
W0029744 SHELF WIRE BF70
$41.50
W0029749 CRISPER COVER ASSY BF70 WH
$72.70
W0029820 EPS FZ AIR STOPPER
$5.00
W0029830 SUPPORT EVAPORATOR RIGHT TF
$6.20
W0029843 TUBE CORRUGATE PF
W0029925 CRISPER GASKET 70
$11.40
W0030034 BAFFLE SLIDE BACK
$5.80
W0030050 DRAWER CRISPER FRONT BF70 KELV
$70.70
W0030064 COMPRESSOR EMB66CLC
W0030111 HEATER TUBE DRAIN PAN (TYPE M)
$106.75
W0030113 SPACER 3 TURN HEATER
$4.50
W0030139 SUPPORT WIRE SHELF LH
$8.50
W0030140 SUPPORT WIRE SHELF RH
$8.55
W0030167 DRAWER WIRE BASKET MID 70
$86.00
W0030248 DOOR PACKED FZR D WHT KEL
$256.75
W0030249 DOOR PACKED FC WHT KEL
$480.25
W0030287 EVAPORATOR FF BF70
$95.75
W0030312 TERMINAL BLOCK EMBRACO
$19.10
W0030313 TERMINAL COVER EMBRACO
$25.00
W0030314 OVERLOAD PROTECTOR EMBRACO
$30.50
W0030381 TUBE JUMPER H/X 70W EMBRACO
$8.00
W0030382 TUBE JUMPER H/X 80W EMBRACO
$7.25
W0086608 CORD SERVICE INSULATED
W0088702 BADGE NAMEPLATE
$8.70
W0147520 SWITCH DOOR
$26.50
W0147553 SHAFT ROLLER
W0273634 RUNNER RAIL CRISPER SLIDE RH
W0273635 RUNNER RAIL CRISPER SLIDE LH
