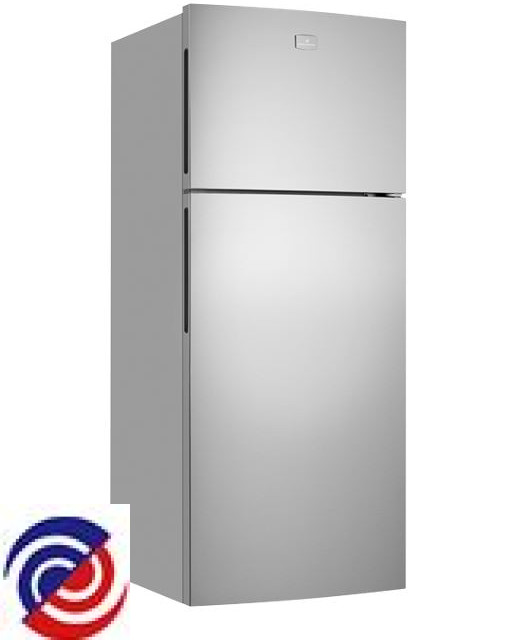

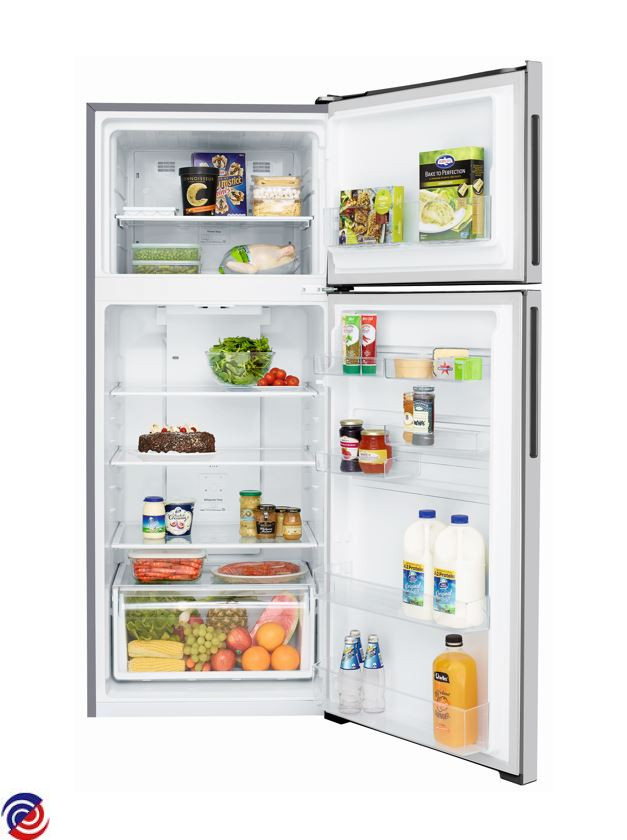

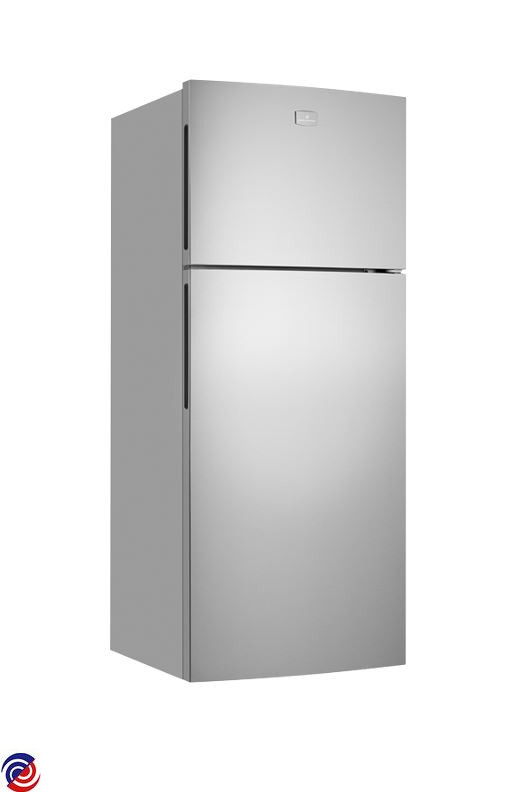

KTM4602AA — 925060081 00
KELVINATOR — Fridge

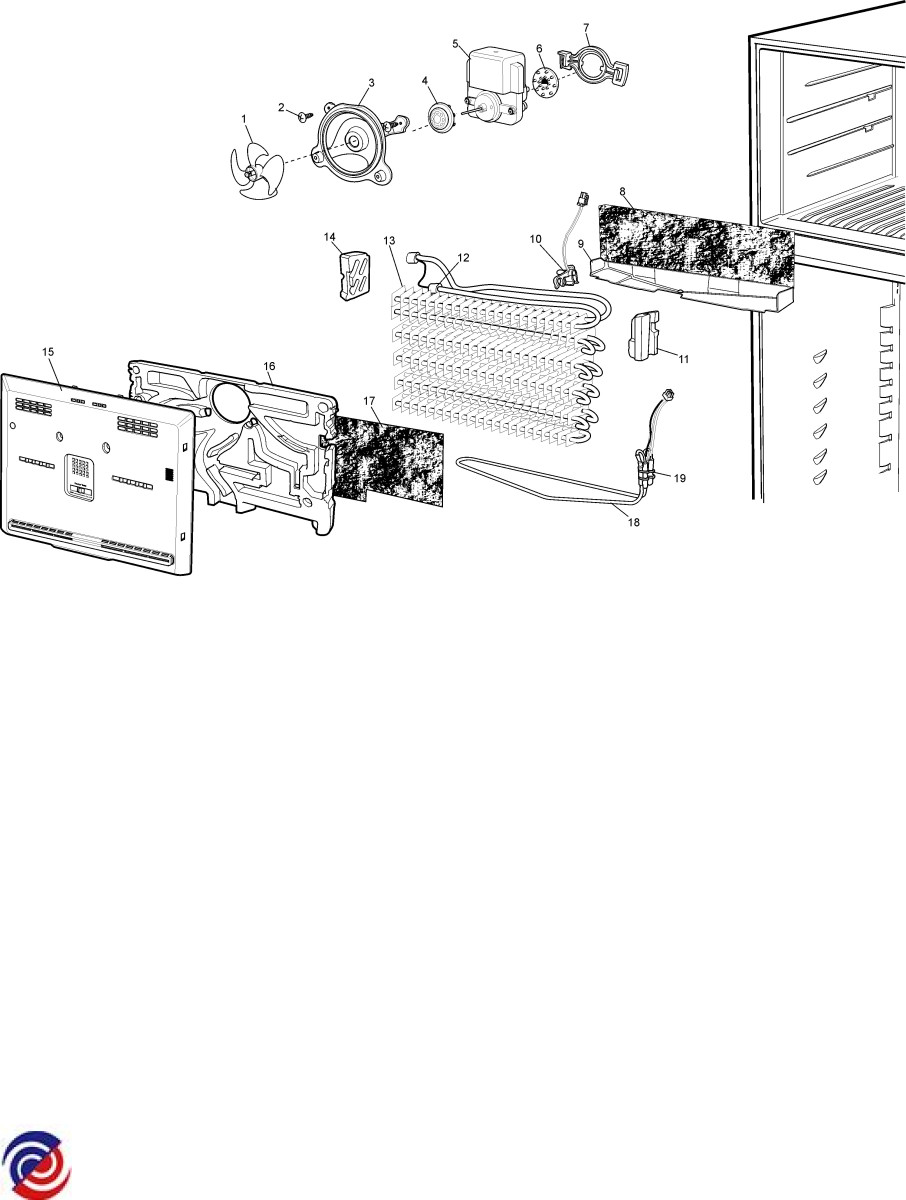

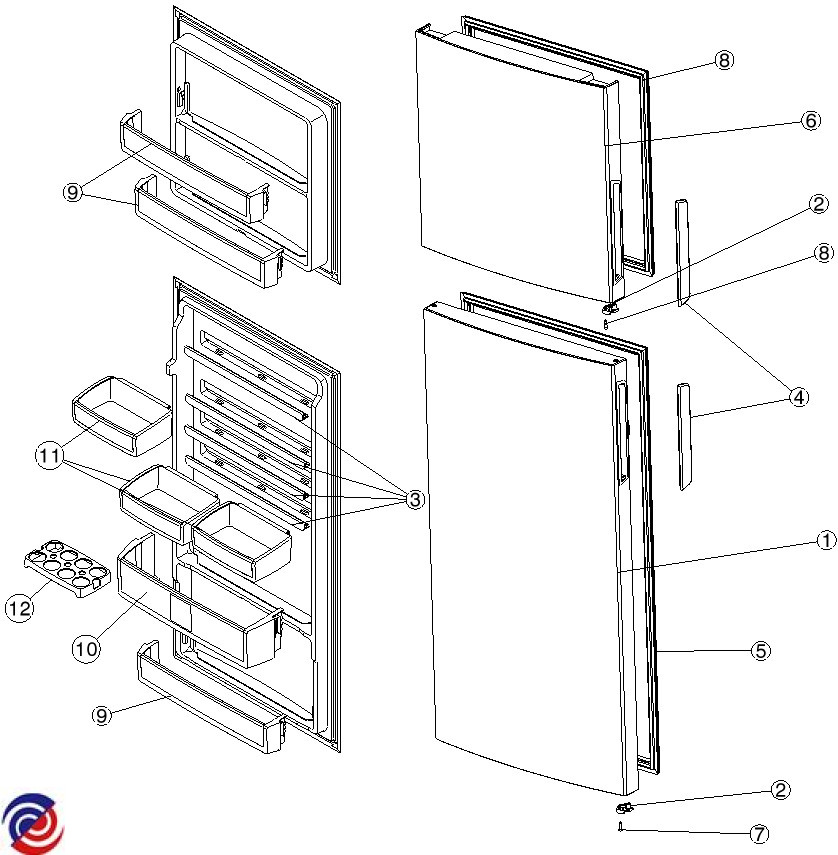

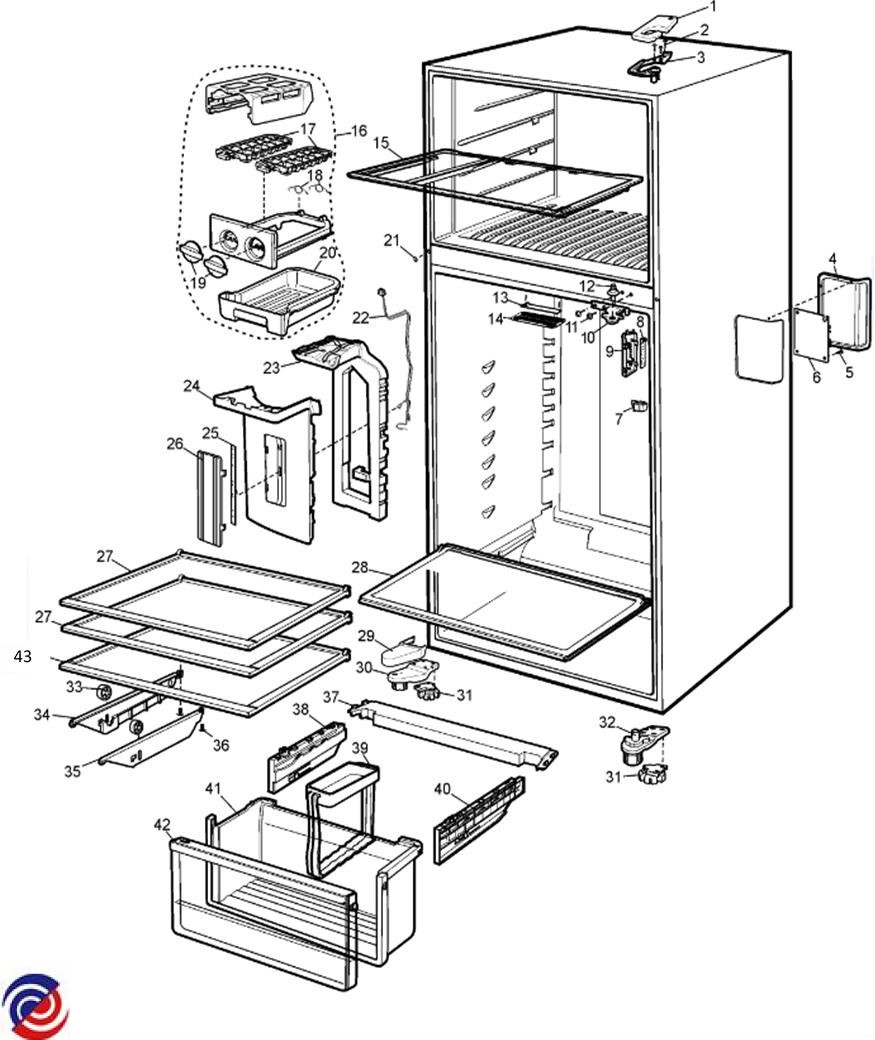

Parts for KTM4602AA
W0020667 PCBA 3 LEDS CLUSTER GALAGA
W0020674 TERMINAL BLOCK TH1116Y
W0027433 CAPACITOR 4UF
$14.90
W0027439 SCREW TRILOB M5X16
$4.50
W0027522 COVER SCREW
$4.50
W0027529 GROMMET FAN SIDE
$8.75
W0027532 MOTOR FAN L 240V/50HZ 350MM TY
W0027540 SHROUD FAN
$55.00
W0027560 GROMMET COMPRESSOR
$11.50
W0027562 CLAMP NTC EVAPORATOR
W0027610 CLAMP COMPRESSOR
$4.50
W0029453 DRAWER CRISPER BODY TF70
W0029517 PCB PROGRAAMED KTM4602
W0029587 HARNESS-ASSY SENSOR DEFROST
W0029699 FOOT BASE THREAD
$8.75
W0030069 TRAY ICE CUBE PINOT
$41.55
W0087752 BLADE FAN
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0018166 GROMMET FAN MOTOR
$16.45
W0020669 LENS 3 LEDS CLUSTER GALAGA
$26.80
W0020681 CLAMP CABLE JIAX-C
$4.50
W0020682 TERMINAL COVER JIAX-C
$9.00
W0027119 SCREW TRILOB M6X18
$4.50
W0027539 BRACKET MOUNT FAN SURROUND
$14.50
W0027597 GASKET FZR TF70
$105.00
W0027599 GASKET FC TF70
W0029309 HINGE TOP RIGHT
$8.65
W0029332 DUCT EVAPORATOR
$30.45
W0029334 COVER EVAP ASSY TF70 WH/KL
$45.85
W0029373 SUPPORT EVAPORATOR LEFT TF
$6.20
W0029374 TRAY EVAP DRAIN TF70W
$16.50
W0029408 DOOR BIN FLEX 1/2 TF70W EL
$85.00
W0029417 DOOR BIN FC SHALLOW 70 EL
W0029434 TRAY EGG 70W
W0029436 SHELF FZR TF70W
$53.00
W0029445 SHELF FC TF70W
W0029454 DRAWER CRISPER FR TF70 WH ASY
W0029465 COVER TOP HINGE RIGHT GR
$4.50
W0029487 MULTIFLOW ASSY KTM
$62.65
W0029536 BEARING AUTO CLOSER R TF SL
W0029561 HEATER RAD DEF R600 240V TF70W
$74.30
W0029597 PAN DRAIN DYN CON
W0029603 REAR HOUSING PCB COVER
$164.80
W0029604 REAR HOUSING PCB ADAPTER
W0029611 DRAWER C/COVER TF70 K ASSY
$78.15
W0029666 DOOR BIN FC BOTTLE TF70 KEL
$67.05
W0029674 HINGE CENTRE BASE ASSY
$37.75
W0029675 HINGE CENTRE PIN SWING DOOR
$8.15
W0029697 COVER FOOT LEFT HINGE GREY
$12.95
W0029702 HINGE BASE RIGHT ASSY
W0029703 HINGE BASE LEFT ASSY
$29.00
W0029830 SUPPORT EVAPORATOR RIGHT TF
$6.20
W0029842 TUBE CORRUGATE TF
$16.95
W0029905 EVAPORATOR FF TF70 N
$72.95
W0030011 DOOR BIN FZR TF70 KELV
$85.00
W0030235 DOOR PACKED FZR KTM4602PA-R
$300.00
W0030236 DOOR PACKED FC KTM4602PA-R
$535.00
W0086608 CORD SERVICE INSULATED
W0088702 BADGE NAMEPLATE
$8.70
W0147391 COMPRESSOR JIAX TH1116Y
W0147520 SWITCH DOOR
$26.50
W0147552 ROLLER REAR WTB4600WA RAYONG
$7.20
W0147553 SHAFT ROLLER
W0154023 HARNESS-ASSY SENSOR KTM5402
W0284102 SEAL FOAM
$8.70
