SDV501 — 916002083 00

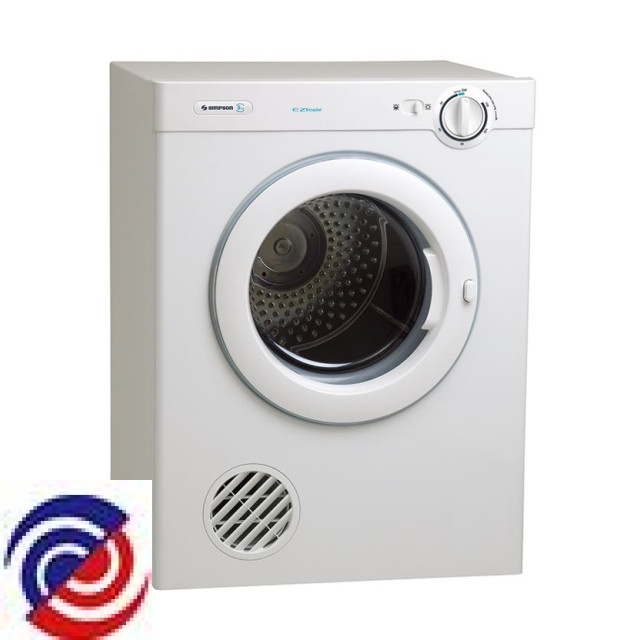

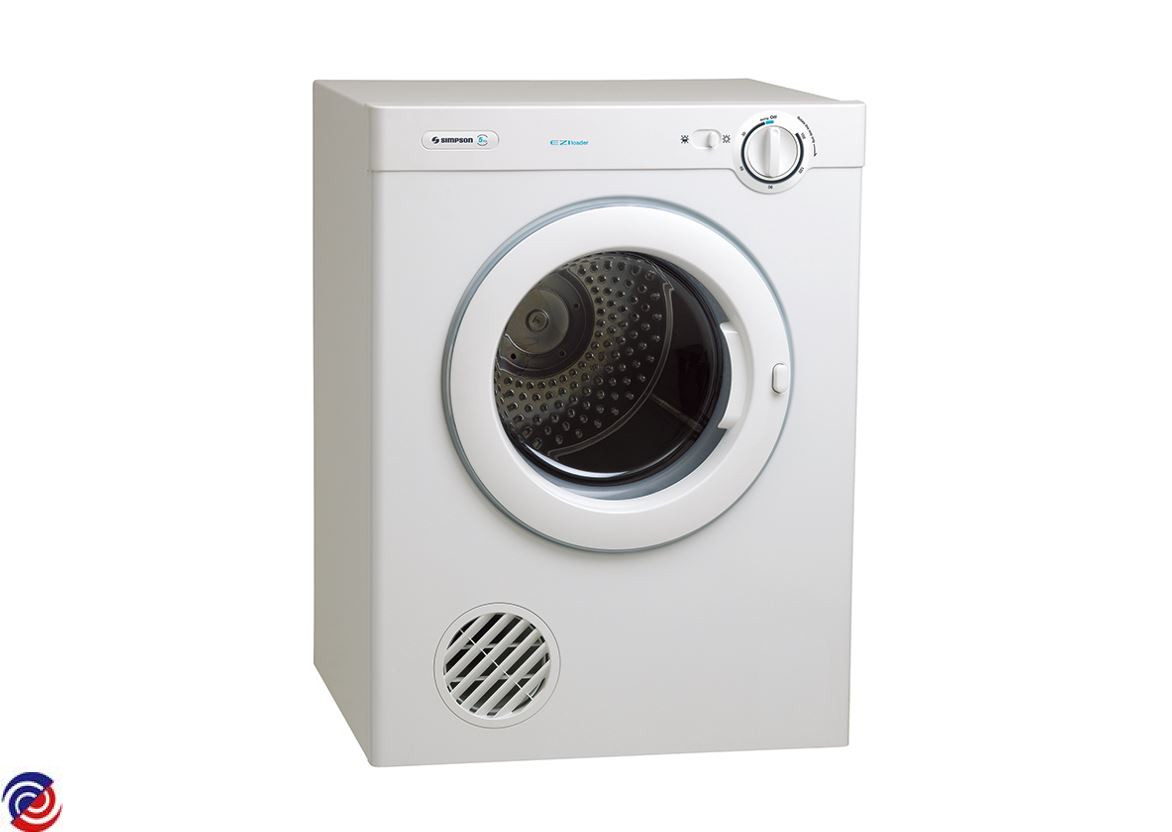

SIMPSON — Clothes Dryer

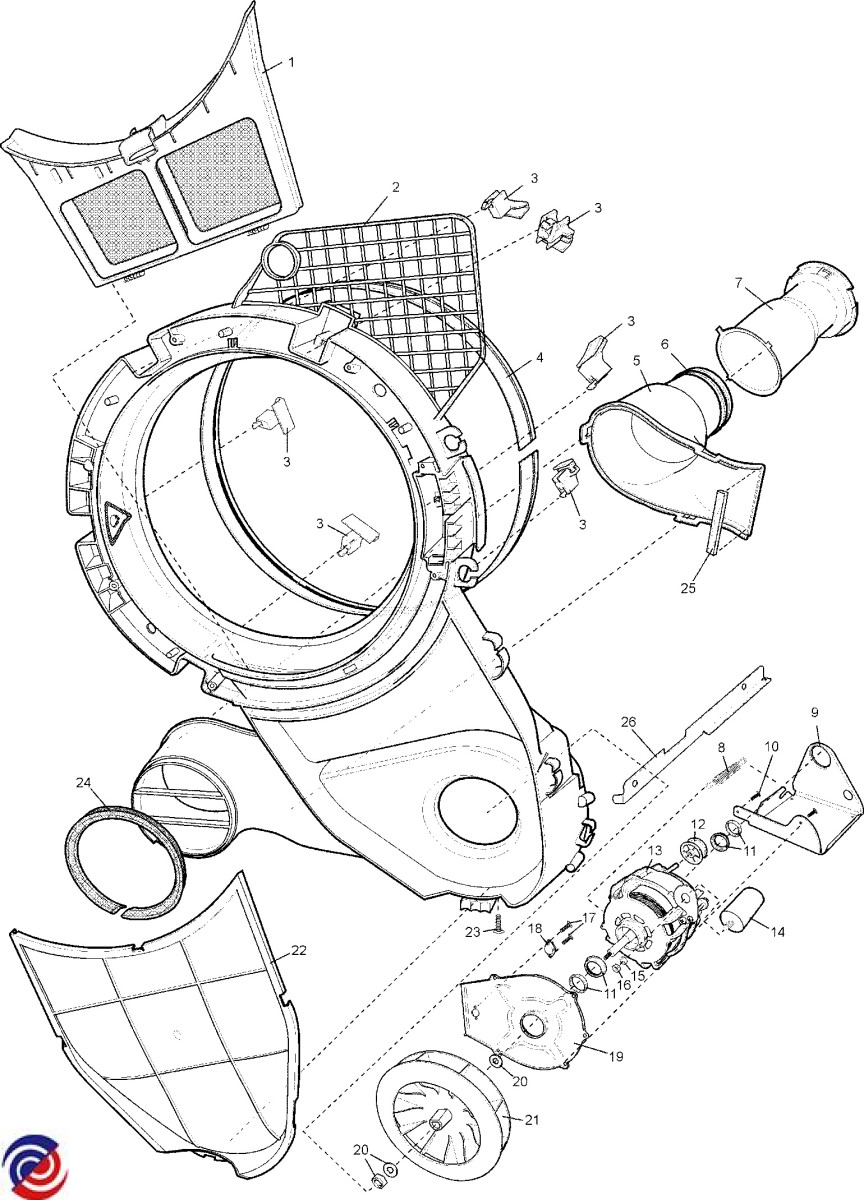

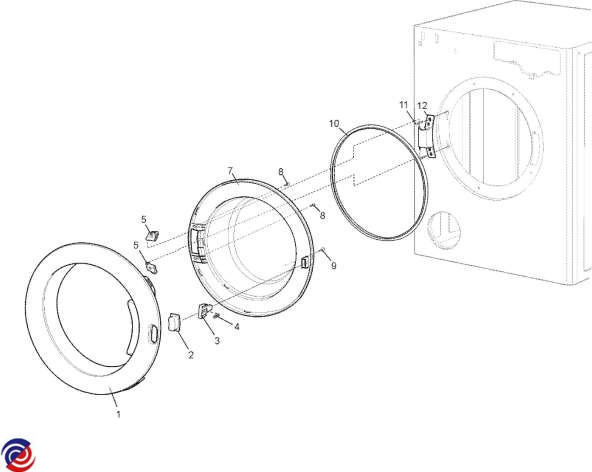

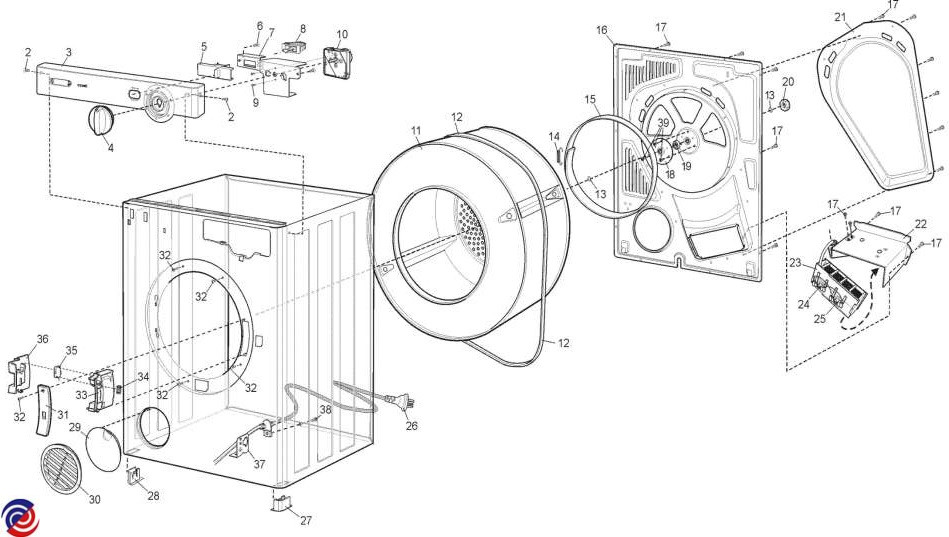

Parts for SDV501

W0011300 ELECTROLUX SIMPSON DRYER FAN BLADE BLOWER
W0011332 ELECTROLUX SIMPSON WESTINGHOUSE DRYER COVER DOOR SWITCH ASSY 0028300024
W0011333 COVER EXHAUST
$5.40
W0012228 SPRING DOOR LATCH
W0012502 FILTER ASSY
W0012767 MOTOR KIT
W0013000 ELECTROLUX SIMPSON DRYER SPACER FOR WALL MOUNT
W0013272 ELEMENT & THERMO ASSY
W0013457 GRILLE EXHAUST COVER WHITE
W0013609 BEARING KIT INC FRONT SEAL
W0013724 TIMER
W0016718 CAPACITOR 8UF WITH NUT
W0017290 BEARING HINGE
W0017291 STRIKER & BRACKET ASSY
W0017292 ELECTROLUX SIMPSON WESTINGHOUSE DRYER DOOR WINDOW CLEAR
W0017297 STRIKER DOOR LATCH
W0017301 COVER DOOR EXTERNAL
W0022222 COVER BEARING ELEM CARRIER
W0038938 ELECTROLUX SIMPSON DRYER WALL BRACKET INCLUDING 2 SPACERS FOR WALL
$50.00
W0042416 HINGE DOOR
$25.00
W0049534 PULLEY IDLER
W0049589 ELECTROLUX SIMPSON WESTINGHOUSE DRYER DRUM BELT
W0050693 CORD SERVICE
W0057973 ELECTROLUX SIMPSON WESTINGHOUSE DRYER REAR DRUM BEARING
W0076309 KNOB TIMER
$32.80
W0278525 BRACKET MOTOR SUPPORT REAR
No image available
W0011288 RING KIT MOTOR MOUNT
No image available
W0011901 COVER CORNER RH
No image available
W0011998 NUT & WASHER KIT
No image available
W0012229 SPRING DOOR LATCH
No image available
W0012525 SCREW NO 6 X 12MM HEX HD
$4.00
No image available
W0012661 HARNESS WIRING
No image available
W0012740 SEAL KIT DRUM
No image available
W0012796 GREASE MOLYKOTE 25ML
$57.05
No image available
W0013582 SWITCH HEAT SELECTOR
$23.90
No image available
W0013604 THERMOSTAT 55C
No image available
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
No image available
W0017284 NUT M8 22441-518
$4.50
No image available
W0017307 DRUM ASSY 5KG SS - ETOSHA
No image available
W0017313 PANEL CONTROL 5KG
$66.85
No image available
W0038226 COVER DUCT HOUSING
No image available
W0038230 COVER ASSY BACK PANEL
No image available
W0038934 BRACKET TIMER & SWITCH MOUNT
No image available
W0041581 PANEL REAR
No image available
W0042790 COVER CORNER LH
No image available
W0045848 SPRING BELT TENSION
No image available
W0047526 SCREW ST 10 X 1/2 HEX W/HD
No image available
W0047555 SCREW NO 8 X 1/2 CSK PD
No image available
W0047556 SCREW NO 8 X 12MM
No image available
W0047561 SCREW M4 PLASTITE X 14MM PAN
No image available
W0047567 SCREW M4 PLASTITE X 14MM HEX
No image available
W0047568 SCREW M4 PLASTITE X 20MM PAN
No image available
W0047569 SCREW M4 TAPTITE X 18MM PAN
No image available
W0050080 GASKET DOOR
No image available
W0050088 SEAL BLOWER HOUSING
No image available
W0050089 SEAL HOUSING DUCT COVER
No image available
W0059846 DUCT EXTENSION
No image available
W0062656 BUTTON DOOR
No image available
W0064403 SCREW ST 6 X 3/8 PAN ZC
$2.80
No image available
W0094855 SCREW NO 8 X 13MM FLANGE HD
No image available
W0095871 SCREW
No image available
W0099490 SWITCH MICRO DOOR CATCH
