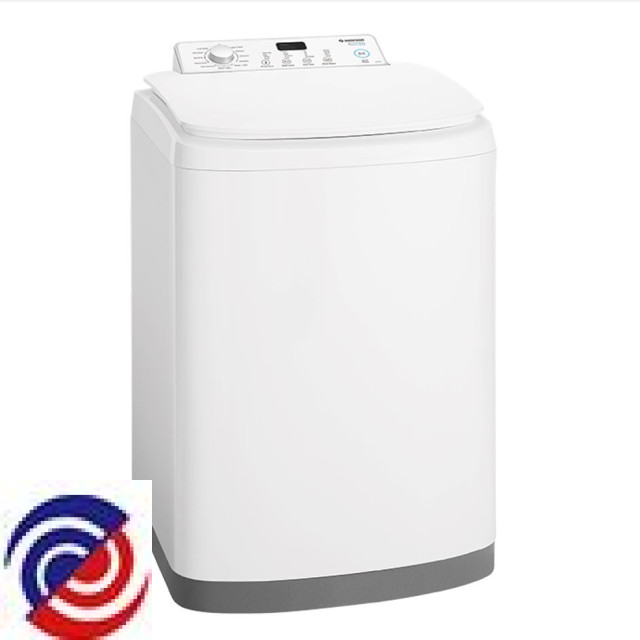

SWT6041 — 913041168 01
SIMPSON — Washing Machine
Parts for SWT6041
W0012745 GREASE NULON L90 125G TUBE
$79.00
W0016323 SWITCH LID
W0016354 HOSE DRAIN
W0026936 /SIMPSON TOP LOAD WASHER ROD SUSPENSION KIT
W0026947 LID ASSEMBLY
W0026968 SIMPSON WESTINGHOUSE WASHER WIRING HARNESS REED
W0026975 HOSE BOWL TO PUMP
W0029262 DISPENSER HOUSING
.JPG)
W0029263 VALVE INLET COLD
W0029264 VALVE INLET HOT

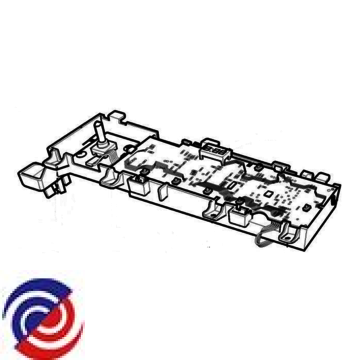

W0029267 PCB ASSY, POWER & UI 6041
W0029272 LEVELLING LEG & PAD ASSY
W0029280 PLATE BOWL SUPPORT ASSY

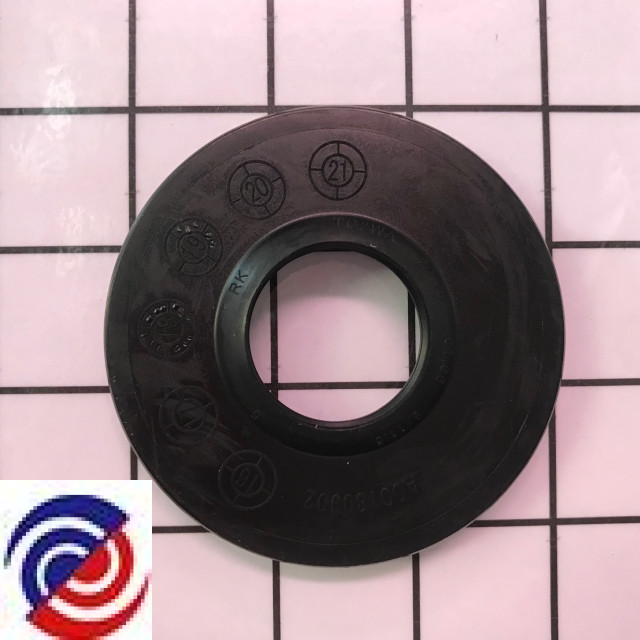

W0029281 SEAL TUB MINI
W0029282 COVER OUTER BOWL MED
W0029290 LINK, BRAKE MOTOR
$5.70
W0030746 ACTUATOR CLUTCH 220V
.JPG)
W0035722 CAP DISPENSER
$28.55
W0048965 HOOK OUTLET HOSE
.JPG)
W0049041 LEVER KNOCK OFF
W0060242 TOOL AGITATOR SCREW LONG
$96.75
W0060454 WASHING MACHINE HOSE ASSY INLET COLD BLUE
W0060456 WASHING MACHINE HOSE ASSY INLET HOT RED
.JPG)
W0073232 SENSOR WATER LEVEL
W0073356 AGITATOR MEDIUM
.JPG)
W0073452 FILTER ASSEMBLY LINT
W0110636 CAP ROD SUSPENSION
W0016321 CAPACITOR 12UF/450V 5%
$34.90
W0016327 PUMP DRAIN ASSEMBLY
W0016330 CLAMP CAPACITOR
$4.00
W0016331 WASHER MOTOR MOUNTING
$4.50
W0016332 SCREW CAPACITOR CLAMP
$4.50
W0016333 SCREW 19X1/2 HIL
$4.50
W0016334 SCREW 10-16 ABX1/2
$4.50
W0016335 SCREW M6*1.0*
$4.50
W0016336 SCREW 1/4-10 X 28
$4.50
W0016337 SCREW M4 X 18 X 12MM PSSR SENS
$4.00
W0016338 SCREW CONTROL PANEL
$4.00
W0016342 CLAMP SPRING PUMP
$5.50
W0016375 BELT MOTOR M23
W0017286 SCREW M4X1.75X14 PCB
$4.50
W0026969 WIRING HARNESS ASSY, LOWER
$42.00
W0026976 HINGE LID LEFT
$4.00
W0026981 SCREW M6X26MM S/S HEX
W0026982 SCREW M6X24MM
$4.50
W0027024 TIE, PLASTIC, HARNESS
$4.50
W0027058 CABLE SERVICE CORD AU
$39.00
W0027093 KNOB ASSEMBLY
$27.80
W0027363 CAP CAPACITOR
$11.00
W0029258 DISPENSER GUIDE
$11.65
W0029269 HINGE LID RIGHT
$20.00
W0029273 PANEL REAR PLASTIC
$22.35
W0029277 PANEL CONTROL ASSEMBLY
$69.90
W0029278 RING BALANCE ASSY
$48.25
W0029279 SCREW TAPPING M5X16MM
$4.50
W0029284 MOTOR & PULLEY ASSY
W0029285 SCREW, MOTOR, M8X30MM
$4.50
W0029286 BUSH MOTOR INSULATION
$5.75
W0029287 GEARBOX ASSY COMPLETE
W0029288 SCREW, GEARBOX M8X16MM
$4.50
W0029289 FRAME SUPPORT
W0029291 FRAME GEAR BOX PROTECTION
$34.05
W0030002 COVER DRAWER
$11.95
W0038186 COVER PUMP MEDIUM
$7.20
W0047498 SCREW NO 6 X 1/2 W/HD
W0047519 SCREW M6 X 20MM HH SS
$4.50
W0073264 CLAMP HOSE DOUBLE SPRING WIRE
$5.75
W0073438 FRAME FILTER ASSEMBLY
W0141419 CLAMP HOSE (22 38 H541)
W0153986 PLINTH
W0153987 DRUM ASSY COMPLETE
W0153988 BOWL OUTER MEDIUM
W0153989 COVER INSERT BOTTOM
W0154062 COVER REED SWITCH
$5.80
W0275518 PANEL TOP MEDIUM - MINI
W0275520 PANEL BOTTOM COVER
W0275707 SEAL CORD CONNECTOR
$24.90
W0275758 TUBE, PRESSURE SENSOR
$24.25
W0276385 BRACKET KNOCK OFF SWITCH MTG
$6.95
