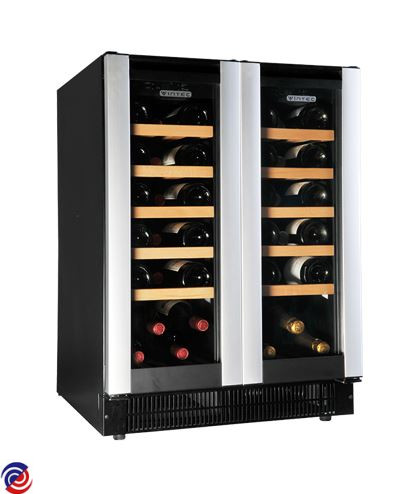

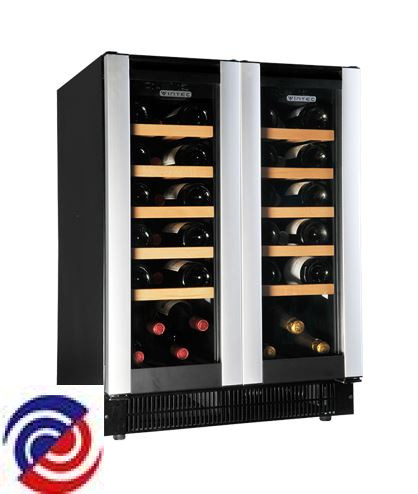

ALV40DG2E — 956003496
VINTEC — Fridge

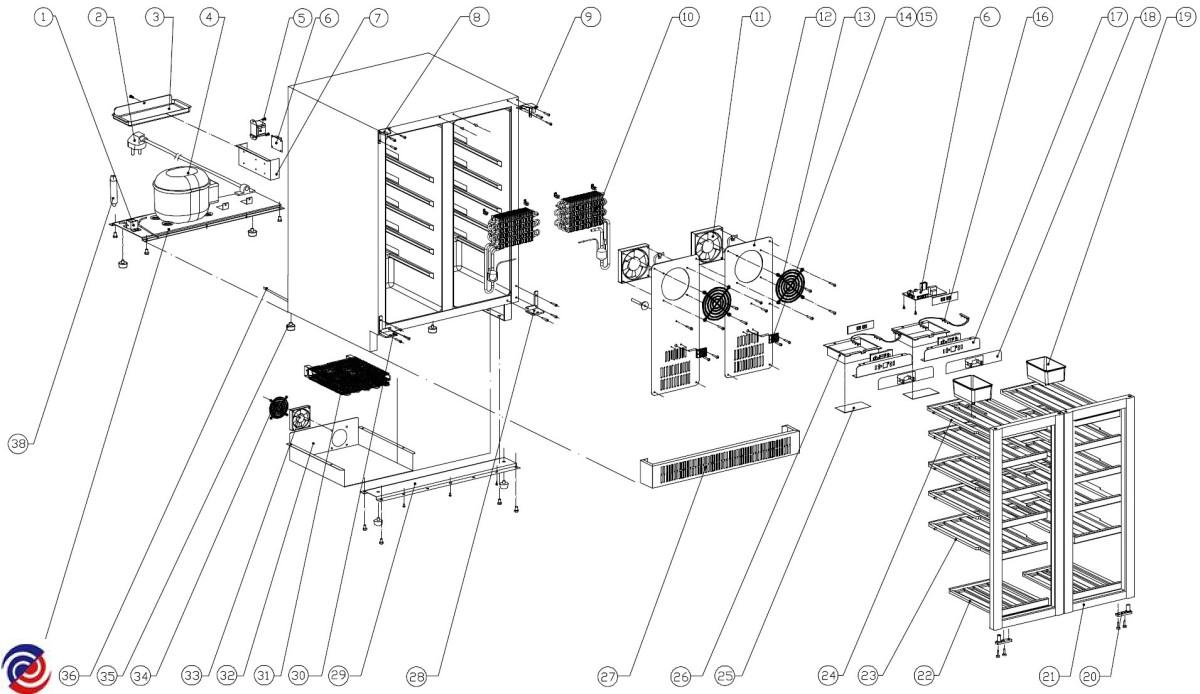

Parts for ALV40DG2E

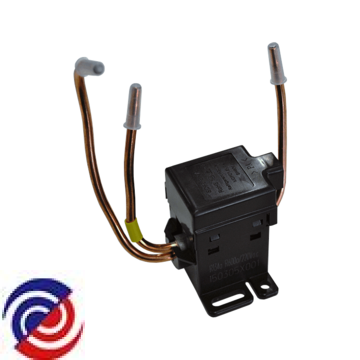

W0031601 SOLENOID SINGLE REF VALVE
W0031660 HINGE TOP LH ALV40
$20.55
W0031917 FAN 12V
W0031922 SENSOR V50/V40D2E
$26.20
W0159670 DRIER 12GM(XH9)DBLE/SGLE TAIL
W0275870 LEG CABINET V40S
$30.15
W0031595 EVAPORATOR ASSY W/CAP TUBE
W0031616 BOX HUMIDITY EXCEPT V30S
$13.00
W0031632 PCB BOARD COVER
$22.00
W0031641 PIECE AIRPROOF
$22.00
W0031643 COVER BOX ELECTRICAL
$22.00
W0031644 SPACER BACK
W0031645 WATER TANK
$16.50
W0031654 HINGE PLATE & PIN ALV40
$21.85
W0031661 HINGE TOP RH ALV40
$5.90
W0031677 HINGE BOTTOM LH ALV40
$21.55
W0031678 HINGE BOTTOM RH ALV40
W0031724 SHELF WD MIDDLE
$99.00
W0031725 SHELF WD TOP
$99.00
W0031726 SHELF WD HALF
$17.45
W0031733 WIRE CONDENSER FAN
$11.85
W0031744 COVER FAN
$19.85
W0031745 COMPRESSOR V26/30/40 R600A
W0031747 COVER CONDENSER
$10.00
W0031764 POWER CORD
$29.80
W0031773 AIR DUCT BOARD
$22.00
W0031800 BOX ELECTRICAL
$22.00
W0031801 FRAME GRILL V40 S3 BK
$38.50
W0031808 DOOR AL V40DG
$352.05
W0031856 LED LIGHT WHITE TOP V20 BK
$33.00
W0031885 PCB V40E-BK
W0031908 TRANSFORMER V50DG V110/V155
$99.75
W0033342 GASKET AL-V40
$64.90
W0275850 PIPE AIR CIRCULATING
$15.00
W0275852 CONDENSER
W0275869 COVER SENSOR
W0275922 COVER FAN
W0275937 CONTROL PANEL
$26.50
W0275965 SUPPORT BRKT FRONT LEGS
$11.00
W0275966 COMPRESSOR BRACKET
$25.00
