LD515A*00
WESTINGHOUSE — Clothes Dryer

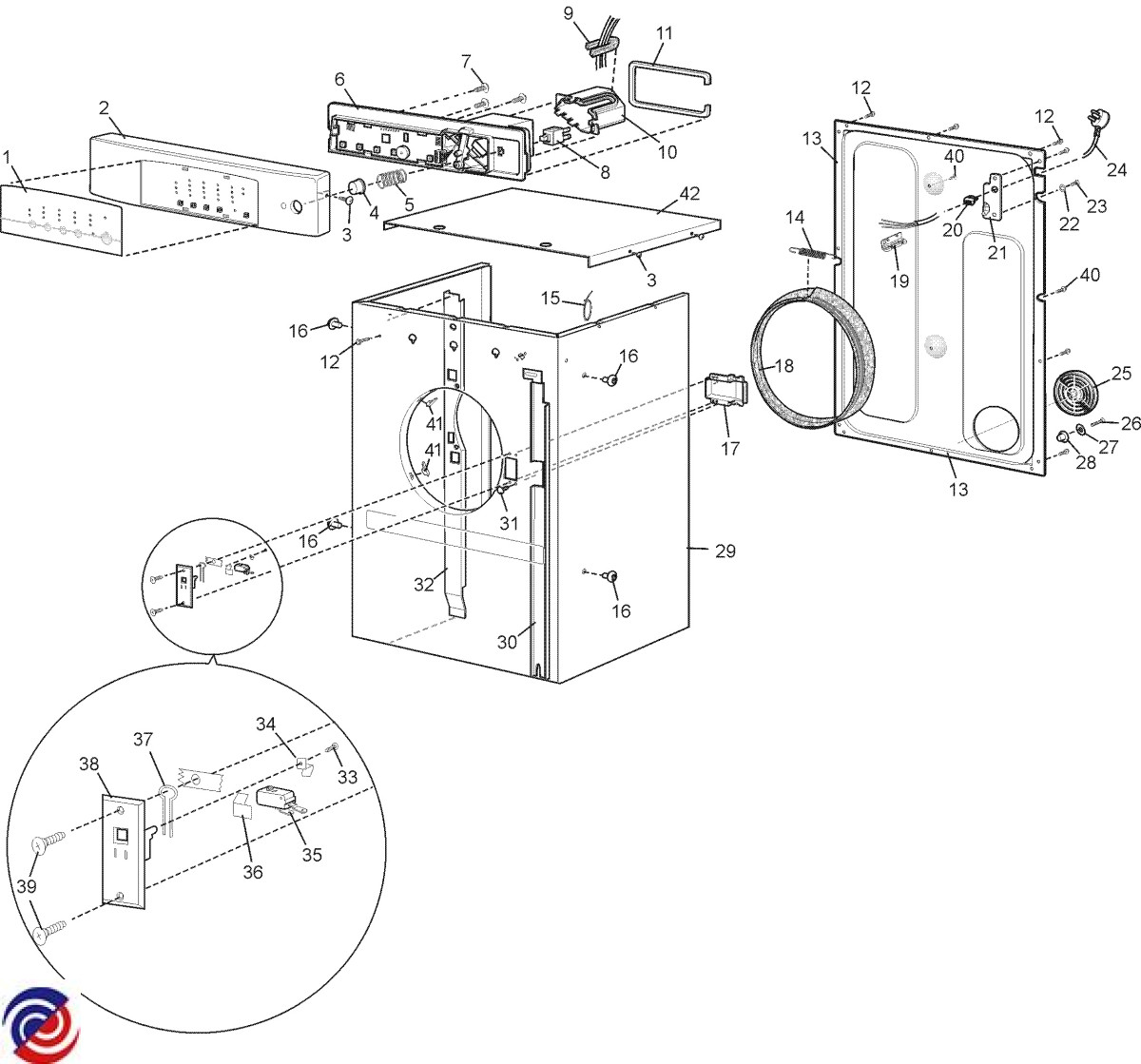

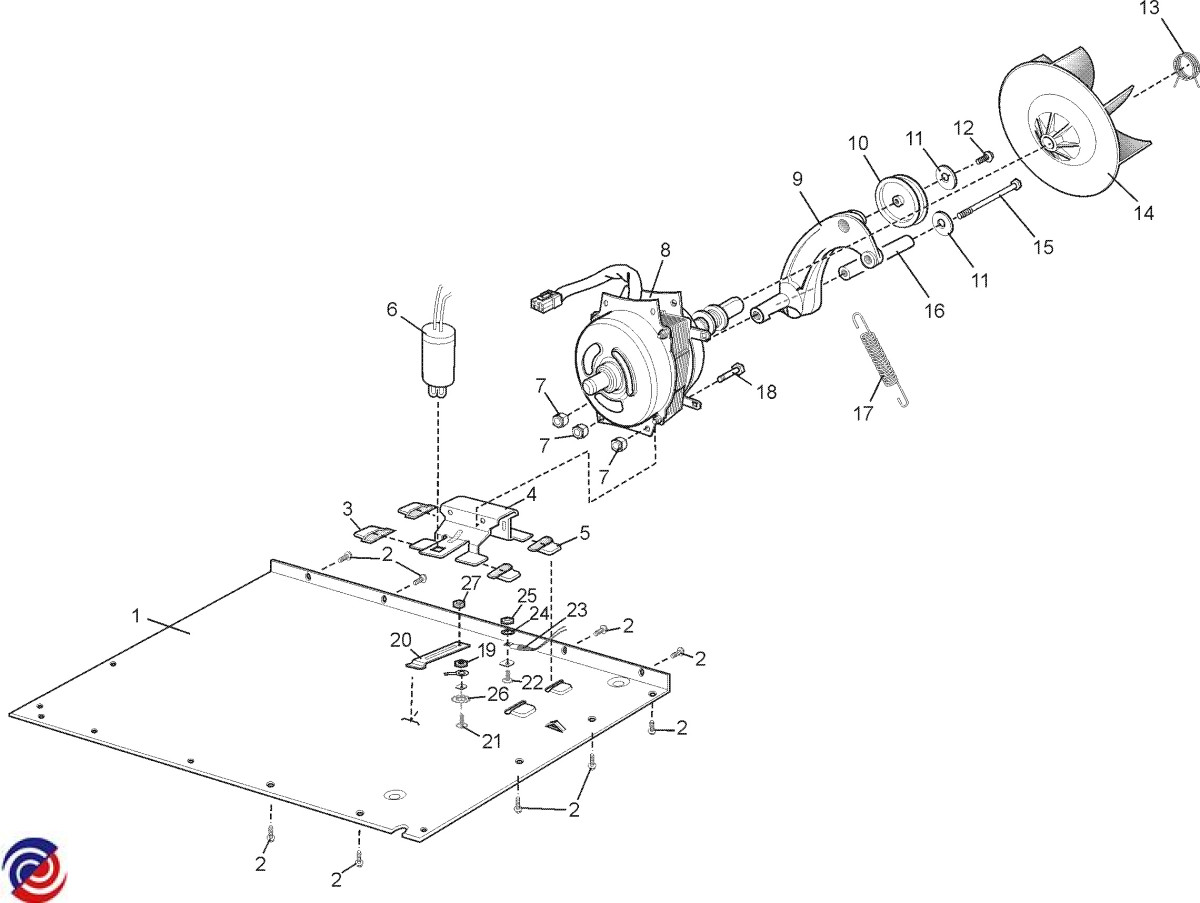

Parts for LD515A*00
.JPG)
W0012273 ELEMENT LOOPED
.JPG)
W0012689 SIMPSON DRYER BELT DRUM DRIVE REVERSING M75
W0022222 COVER BEARING ELEM CARRIER

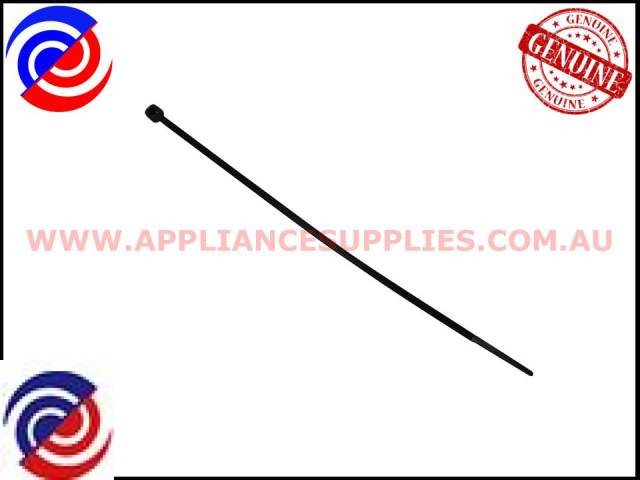

W0053178 STRAP CABLE T18R_NT_K

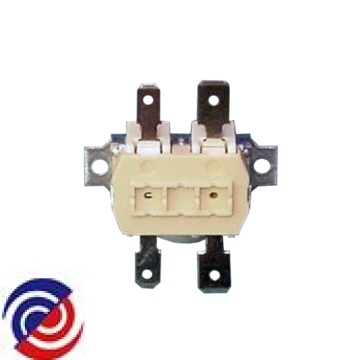

W0057814 DISCOMELT 1THERMO 52/65.C
W0096097 BEARING ELEMENT
.JPG)
W0106403 BRACKET DRYER WALL
W0118929 FILTER LINT
.JPG)
W0136862 SPRING DOOR LATCH
W0011203 SPIGOT GRILL
W0012168 WASHER (PLAIN)
$4.00
W0012914 INSULATOR (H2815)
$4.00
W0022936 SPRING LATCH RETAINING
W0035599 CLAMP RETAINING FAN
W0035918 MOULDING DOOR
W0037654 RING DOOR
$9.80
W0037763 BLADE FAN
$40.00
W0038227 COVER EXHAUST SENSOR
W0038228 COVER ELECTRONIC CONTROL
W0038927 BRACKET ELEMENT MOUNTING
W0038930 BRACKET IDLER
W0038931 BRACKET & TERMINAL
W0038933 LATCH GUIDE
$10.20
W0041584 PANEL BASE
W0042412 HINGE DOOR
W0042413 HINGE COVER DOOR
W0042492 LATCH GRILL
W0044100 NUT 10/32' UNFD
W0044101 NUT SENSOR
W0045401 WASHER 3/16 X 1/2 X 20G
W0045446 WASHER SERRATED
W0045447 WASHER SENSOR
W0045674 STIFFENER
W0045849 SPRING JOCKEY PULLEY
W0045851 SPRING ON/OFF BUTTON
W0046548 SLEEVE PIVOT IDLER
W0046984 HOUSING ELEMENT
W0047330 FILTER SCREEN 5040EDB
$22.55
W0047548 SCREW
$4.00
W0047557 SCREW
W0047558 SCREW BRACKET RETAINER
W0047559 SCREW
W0047562 SCREW 10/32' X 16 UNF PAN HD
W0047563 SCREW NO 8 X 3/8' HEX
W0047564 SCREW
W0047565 SCREW NO 10 X 20 MM PAN PD
W0047566 SCREW SENSOR
W0047893 DRUM ASSY SS 5.0KG HOOV / WEST
W0048581 SENSOR & WIRING ASSY EXHAUST
$44.90
W0048582 WIRE STATIC DISCHARGE
W0048583 SENSOR & WIRING ASSY AMBIENT
W0049530 PULLEY & BEARING ASSY IDLER
W0050084 SEAL ELECT CONTROL ASSY
W0050085 SEAL HARNESS
W0050458 MOTOR
W0050697 CORD & PLUG (INSULATED PINS)
W0052967 SPACER WALL MOUNTING
W0052968 SPACER SPIGOT
W0053016 SCREW T/C #4 40 X _313
W0053034 SCREW
W0053094 WASHER LOCK I_T #10
W0054135 SHIELD THERMOSTAT
W0054136 SHIELD CABLES
W0054138 SHIELD MICRO-SWITCH
W0056192 GRILLE OUTLET
W0057365 SWITCH ON/OFF
W0057964 BEARING SHELL
W0059092 TRIM DOOR WESTINGHOUSE
W0059102 TRIM INSERT CTRL PANEL LD515
W0059104 TRIM CONTROL PANEL REV
$34.90
W0059203 TRIM PANEL CONT MOULDING
W0060076 STRIKER DOOR
W0062643 BUTTON DOOR
$6.00
W0062655 BUTTON ON/OFF
W0063459 CONTROL ASSY ELECTRONIC
W0063986 WRAP CABINET (ELECTRONIC)
W0064406 SCREW ST 8 X 3/8 PAN H
W0064566 SCREW NO 8 X 3/8 HEX W/HD
W0065235 GROM CORD SERVICE 3/8 (H2097)
W0065442 SCREW M4 X 10MM TT
W0065448 BOLT IDLER PULLEY
W0071532 CAPAC 6UF 450V 2 WIRE+ CLIP
W0094746 SPACER PAD ELEM CARRIER
W0094810 CLIP CANOE
W0094829 SCREW FILTER RETAINING
W0094854 SCREW SWITCH PRESSURE
W0094855 SCREW NO 8 X 13MM FLANGE HD
W0095053 NUT JOCKEY PULLEY
W0095903 SCREW JOCKEY PULLEY
W0095913 BOLT DRUM TO ELEM CARRIER
W0095921 NUT ELEMENT TO DRUM BOLT
W0095924 NUT MOTOR
W0099490 SWITCH MICRO DOOR CATCH
W0103313 SPACER DRUM BOLT
W0103991 BUTTON RET DRYING RACK
W0105666 SPRING DOOR LATCH
W0106441 CLAMP SWITCH MICRO
W0108592 PANEL TOP CABINET 5KG
W0109080 CLIP BRACKET
W0112467 PANEL REAR
W0112510 COVER WIRING
W0112511 COVER HOUSING
W0112912 GUARD WIRING
W0113881 SPRING FELT SEAL
W0113994 PAD BRACKET
W0113995 PAD BRACKET
W0114453 GRILLE AIR INTAKE
$36.50
W0114498 GASKET DOOR
W0117231 SEAL DRUM
$19.80
W0117836 PLATE CLAMP
W0136906 WASHER LOCK SPECIAL
W0157928 RACK DRYING
$21.95
