LD605EB*00

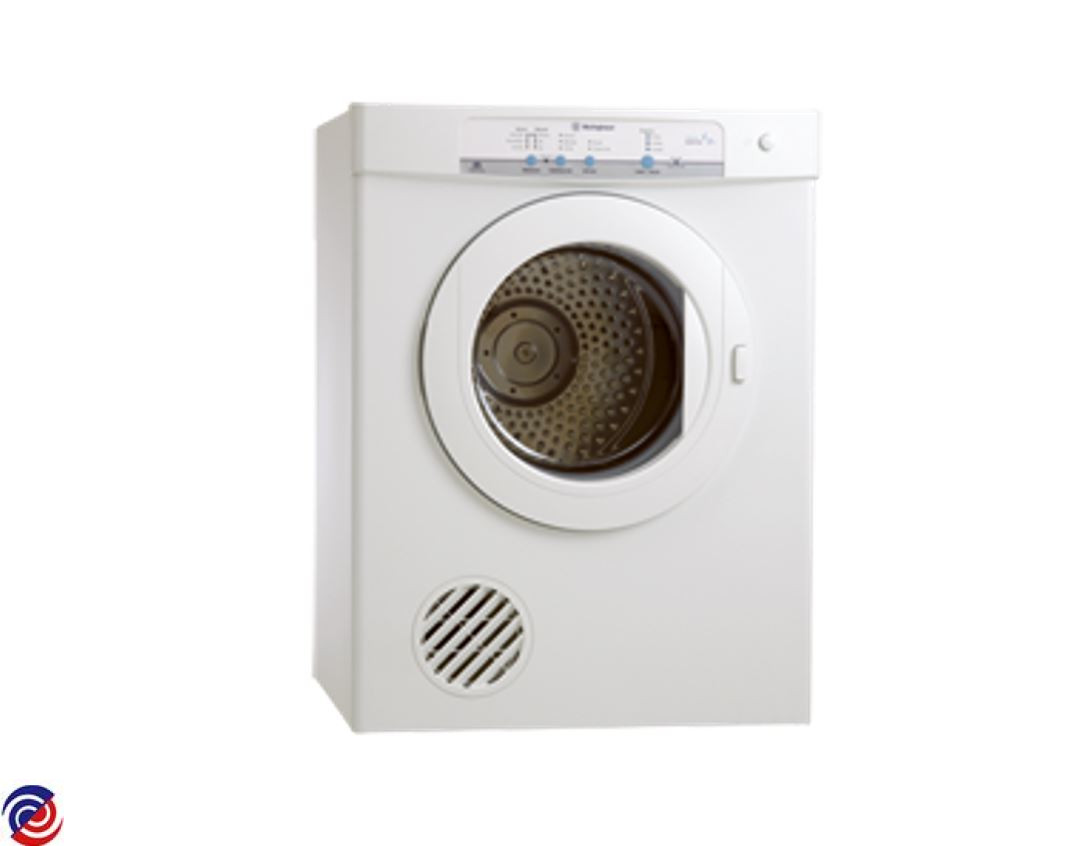

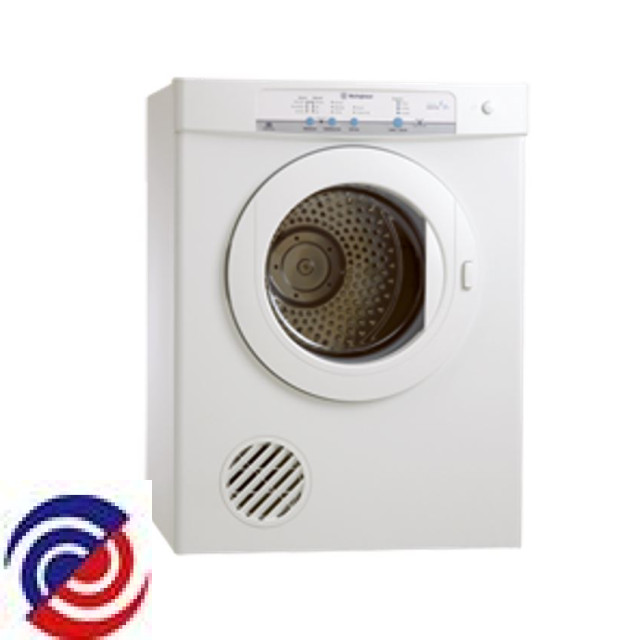

WESTINGHOUSE — Clothes Dryer

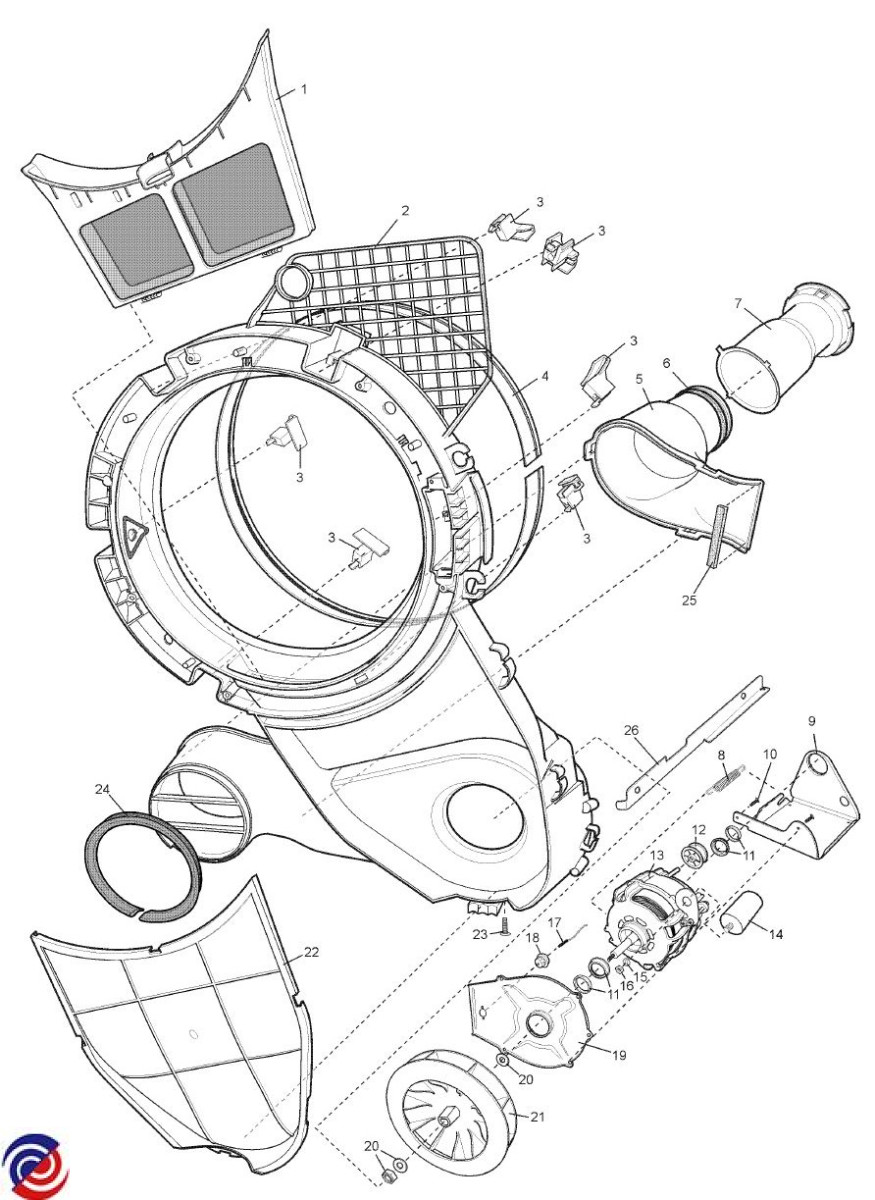

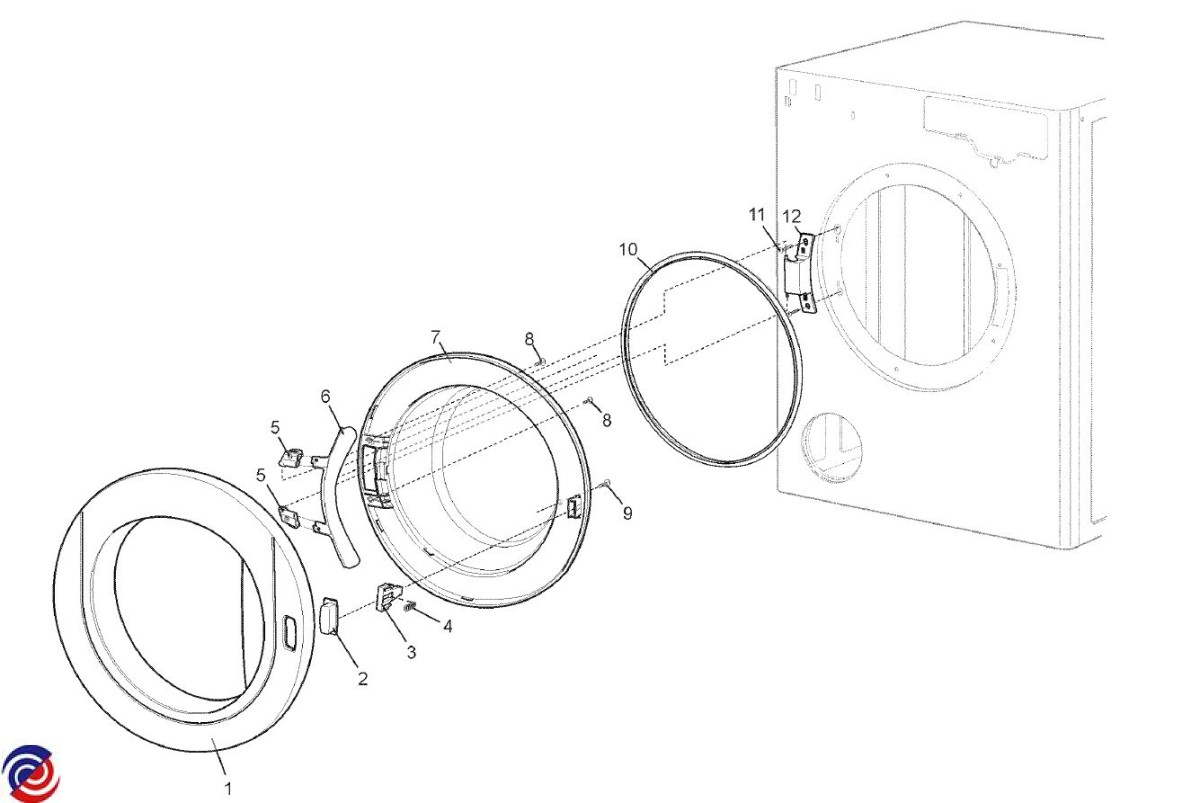

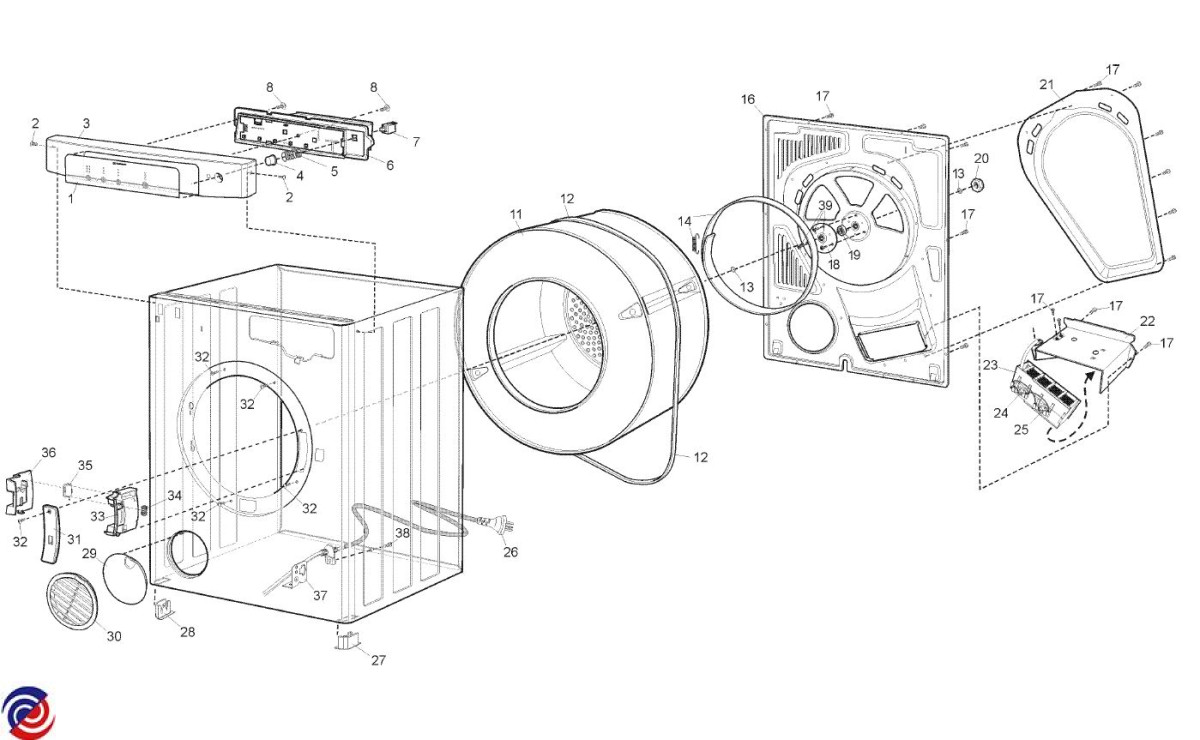

Parts for LD605EB*00

W0011300 ELECTROLUX SIMPSON DRYER FAN BLADE BLOWER
W0011332 ELECTROLUX SIMPSON WESTINGHOUSE DRYER COVER DOOR SWITCH ASSY 0028300024
W0011333 COVER EXHAUST
$5.40
W0012228 SPRING DOOR LATCH
W0012502 FILTER ASSY
W0012767 MOTOR KIT
W0013000 ELECTROLUX SIMPSON DRYER SPACER FOR WALL MOUNT
W0013272 ELEMENT & THERMO ASSY
W0013457 GRILLE EXHAUST COVER WHITE
W0013609 BEARING KIT INC FRONT SEAL
W0022222 COVER BEARING ELEM CARRIER
W0042416 HINGE DOOR
$25.00
W0049534 PULLEY IDLER
W0050693 CORD SERVICE
W0060075 STRIKER DOOR LATCH
W0061437 CAPAC 8UF 400V 2PIN SPIGOT
W0062657 BUTTON DOOR
$10.00
W0096097 BEARING ELEMENT
No image available
W0011288 RING KIT MOTOR MOUNT
No image available
W0011901 COVER CORNER RH
No image available
W0011998 NUT & WASHER KIT
No image available
W0012229 SPRING DOOR LATCH
No image available
W0012455 HOUSING & COVER ASSY
No image available
W0012662 HARNESS WIRING
No image available
W0012740 SEAL KIT DRUM
No image available
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
No image available
W0035919 DOOR WINDOW
No image available
W0038226 COVER DUCT HOUSING
No image available
W0038230 COVER ASSY BACK PANEL
No image available
W0038232 COVER DOOR EXTERNAL
$13.05
No image available
W0038926 BRACKET DOOR SWITCH
No image available
W0038939 BRACKET DOOR HINGE
No image available
W0038942 BRACKET KIT WALL
No image available
W0041581 PANEL REAR
No image available
W0042415 BEARING HINGE
$7.00
No image available
W0042790 COVER CORNER LH
No image available
W0044103 NUT M8 SPRING LOCK
No image available
W0045848 SPRING BELT TENSION
No image available
W0045851 SPRING ON/OFF BUTTON
No image available
W0047526 SCREW ST 10 X 1/2 HEX W/HD
No image available
W0047555 SCREW NO 8 X 1/2 CSK PD
No image available
W0047556 SCREW NO 8 X 12MM
No image available
W0047561 SCREW M4 PLASTITE X 14MM PAN
No image available
W0047567 SCREW M4 PLASTITE X 14MM HEX
No image available
W0047568 SCREW M4 PLASTITE X 20MM PAN
No image available
W0047569 SCREW M4 TAPTITE X 18MM PAN
No image available
W0047897 DRUM ASSY SS 6KG
No image available
W0049588 BELT DRUM DRIVE
No image available
W0050080 GASKET DOOR
No image available
W0050088 SEAL BLOWER HOUSING
No image available
W0050089 SEAL HOUSING DUCT COVER
No image available
W0057365 SWITCH ON/OFF
No image available
W0059216 PANEL CONTROL
$116.00
No image available
W0059222 INSERT TRIM PANEL
No image available
W0059224 INSERT TRIM PANEL (REVERSING)
No image available
W0059846 DUCT EXTENSION
No image available
W0060077 STRIKER DOOR SWITCH
No image available
W0062655 BUTTON ON/OFF
No image available
W0063166 INSTRUCTION SHEET WALL BKT
No image available
W0063472 CONTROL BOARD & HOUSING ASSY
No image available
W0064403 SCREW ST 6 X 3/8 PAN ZC
$2.80
No image available
W0094746 SPACER PAD ELEM CARRIER
No image available
W0094855 SCREW NO 8 X 13MM FLANGE HD
No image available
W0099490 SWITCH MICRO DOOR CATCH
