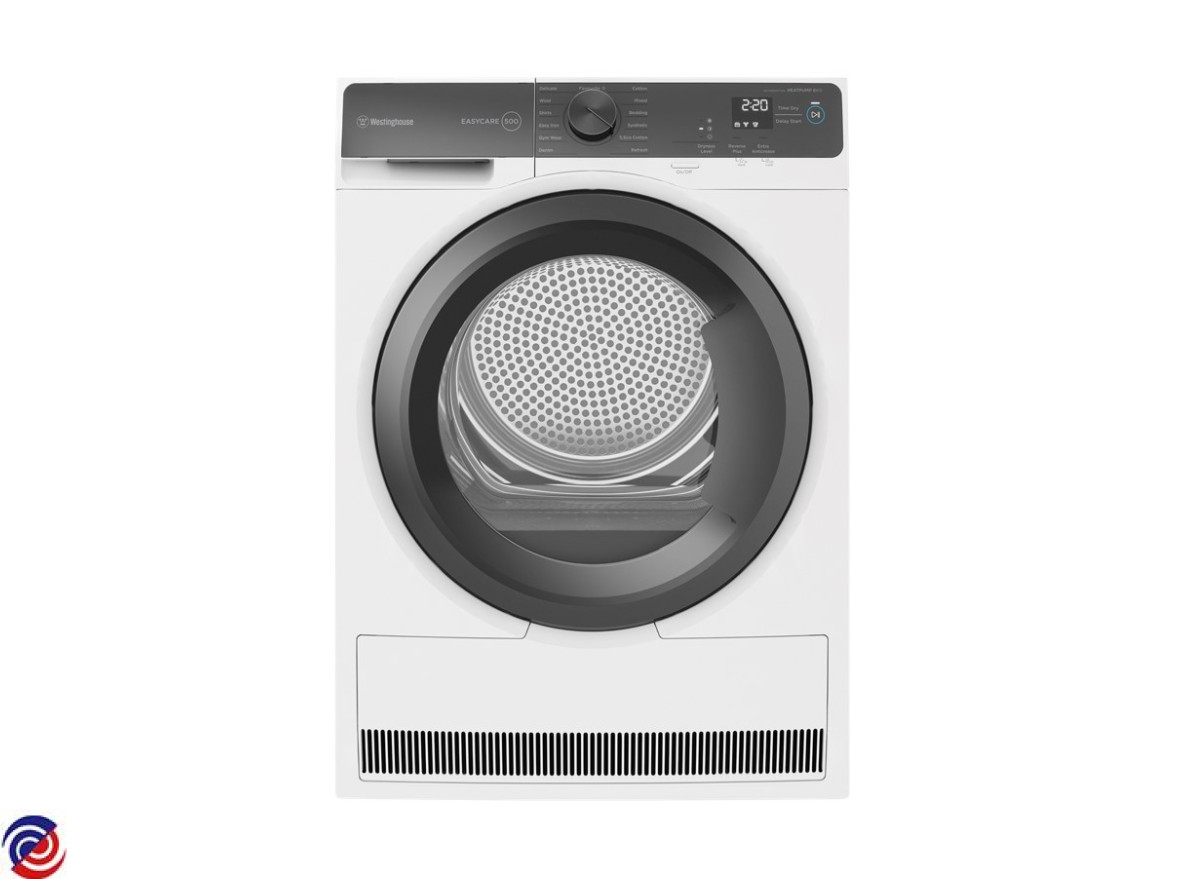

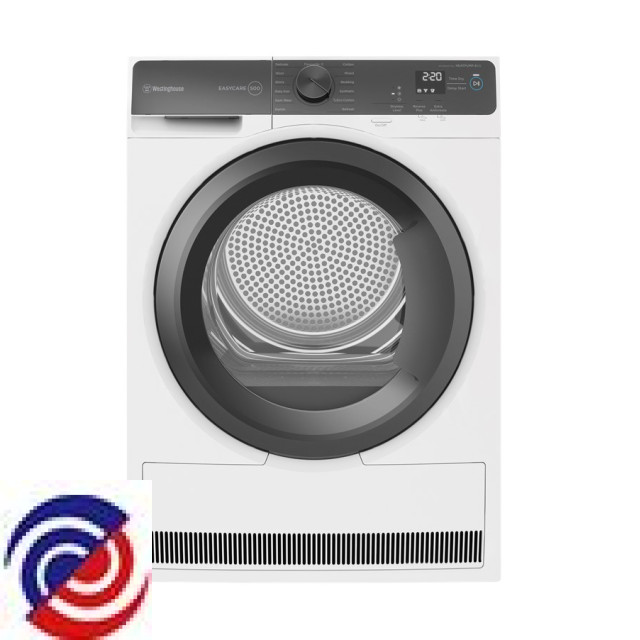

WDH804N7WA — 916002191 00
WESTINGHOUSE — Clothes Dryer
Parts for WDH804N7WA
W0017020 PIN DOOR HINGE
$10.00
W0017380 HUMIDITY SENSOR
$37.00
W0017397 HOSE, PUMP,TANK, L=770
$17.45
W0076617 DOOR SWITCH
$37.00
W0273973 AEG ELECTROLUX DRYER DRIVE BELT 1971MM
$33.00
W0368402 PULLEY IDLER
W0372232 PUMP, CONDENSATION, 240V,50HZ,
$58.00
W0016644 CAPACITOR, MOTOR 10ÁF
$51.00
W0017399 SEALING,BASEMENT,AIR DUCT
$21.00
W0017520 TENSION SPRING, MOTOR
$13.00
W0027102 GASKET FILTER
$37.00
W0074344 SCREW. MOTOR
$13.20
W0076604 OVERFLOW HOSE, L=640
$30.00
W0076619 POWER CABLE, AUS, 2600MM
$57.00
W0274479 FAN WHEEL D170MM
$55.00
W0274696 GASKET FRONT, LARGE OPENING
$46.00
W0274789 GASKET DRUM BACK
$97.00
W0282709 GASKET COVER BACK PANEL
$14.00
W0296326 HARNESS,DOOR SAFETY INTERLOCK
$34.00
W0361191 BUTTON,WHITE,RECT,DIAMOND
$4.00
W0361195 COVER,USER INTERFACE BOARD
$19.05
W0366628 CAPACITOR,20.F
$20.00
W0366629 SEALING STRIP,BACK PANEL
$4.00
W0366655 CONNECTOR,TANK
$6.00
W0366658 HARNESS,TEMP.PROBE,TANK,PCB
$50.20
W0366697 HARNESS,MOTOR,DRAIN PUMP,PCB
$36.25
W0366698 HARNESS,FAN,TEMP.PROBE,PCB
$22.20
W0366699 HARNESS,UI,MB,J10
$9.00
W0366736 HARNESS,HUMIDITY SENSOR,PCB
$63.85
W0366737 HARNESS,COMPRESSOR,PCB,950MM
$31.95
W0366774 BUSH,TANK,OVAL,56X42MM
$4.00
W0366952 HARNESS,COMPRESSOR,PROPANE
$13.20
W0367033 NOT CONFIG,EDR14,HP,PROPANE,C
$146.70
W0367044 KNOB,PROGRAMME,GREY,WH
$17.00
W0367562 SCREWS,DOOR,KIT,13+2
$54.15
W0367617 INSULATION,STRIP
$7.85
W0367748 NUT,M6
$4.00
W0367768 MOTOR,240V,50HZ,182W,F,P
$389.00
W0368902 FAN COOLING COMPRESSOR
$69.00
W0369057 SEAL TEMPERATURE SENSOR
$25.00
W0370138 TANK, UPPER
$26.00
W0370329 MICROSWITCH, FLOAT, DRAIN PUMP
W0370526 DOOR LOCK, 9KG,BK
$20.00
W0370659 GASKET, FRONT, LARGE OPENING,
$30.00
W0371633 FELT, RECTANGULAR, .12.39X33.4
W0371648 DOOR FRAME, GREY, 229,?485.5MM
W0371649 TAPPET, DOOR, PLASTIC, ONE
$5.50
W0371650 DOOR HINGE, ONE
$24.95
W0371651 HINGE, PLINTH, LEFT, WHITE
$2.20
W0371652 HINGE, PLINTH, RIGHT, WHITE
$2.20
W0371653 SUPPORT, PLINTH
$18.00
W0371654 COVER, FAN, PLINTH, ONE
W0371664 CABLE DUCT, POWER CABLE, OPTIF
W0371682 DOOR, BASEMENT, ASSEMBLY
$32.00
W0371711 DRUM LIFTER, GREY, 298.5MM,P2
W0371729 WINDOW, TRANSPARENT, INNER, .4
$74.00
W0371745 COVER, BACK PANEL, AIR DUCT
W0371830 DRUM, COMPLETE, 48MM,OPTIFLOW,
W0371831 SIDE PANEL, RIGHT, WHITE, HP,4
$79.00
W0371832 SIDE PANEL, LEFT, WHITE, 477X8
W0371843 AIR DUCT, FRONT, NO LED
W0371844 FRONT PANEL, WHITE, HP
$112.00
W0371845 BACK PANEL, PLASTIC, OPTIFLOW
W0371869 WORK TOP, ASSEMBLY, WHITE, 597
$133.00
W0372230 FITTINGS DRAINAGE, CONDENSATIO
$29.00
W0372231 BUSH, ROLLER, SUPPORT, 29MM
W0372233 SUPPORT, WATER TANK
$29.00
W0372234 FIXING BRACKET, MAIN MOTOR, FR
W0372235 SUPPORT, HUMIDITY SENSOR
W0372236 COVER PLATE, DOOR LOCK
W0372237 BUSH, HINGE, 15,75 MM
W0372238 FIXING BRACKET, MAIN MOTOR, RE
W0372248 FLUFF FILTER, ASSEMBLY, GREY,
$62.00
W0372251 ADJUSTABLE FOOT, GREY, 36X17,1
W0372253 CATCH, PORTHOLE, GLASS DOOR
$5.50
