WDV457H3WB — 916002139 01

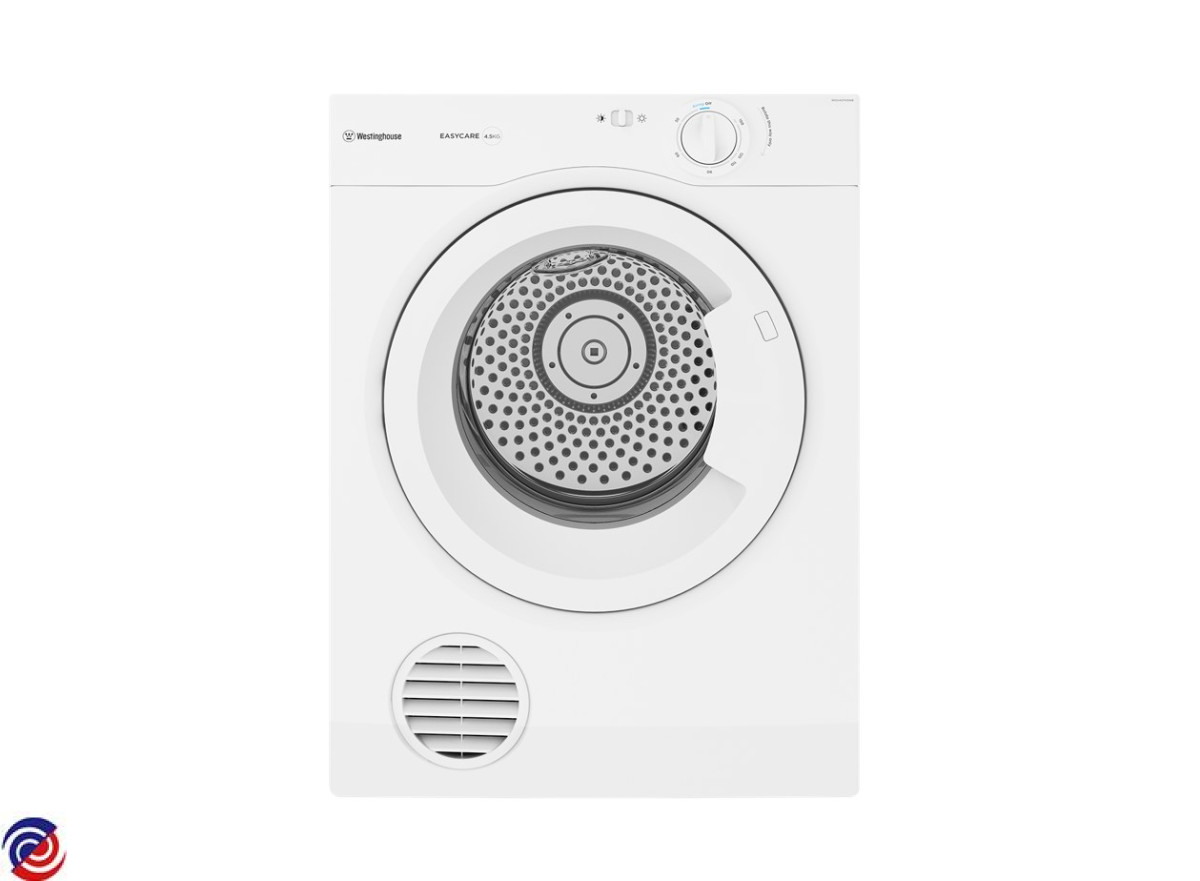

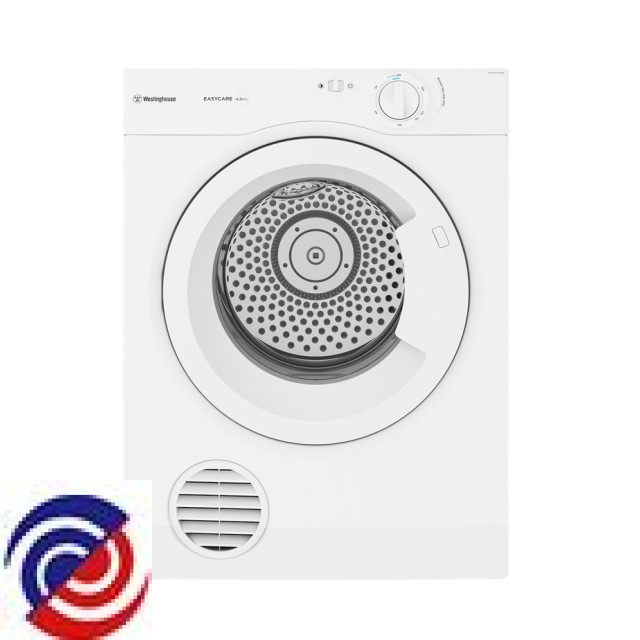

WESTINGHOUSE — Clothes Dryer

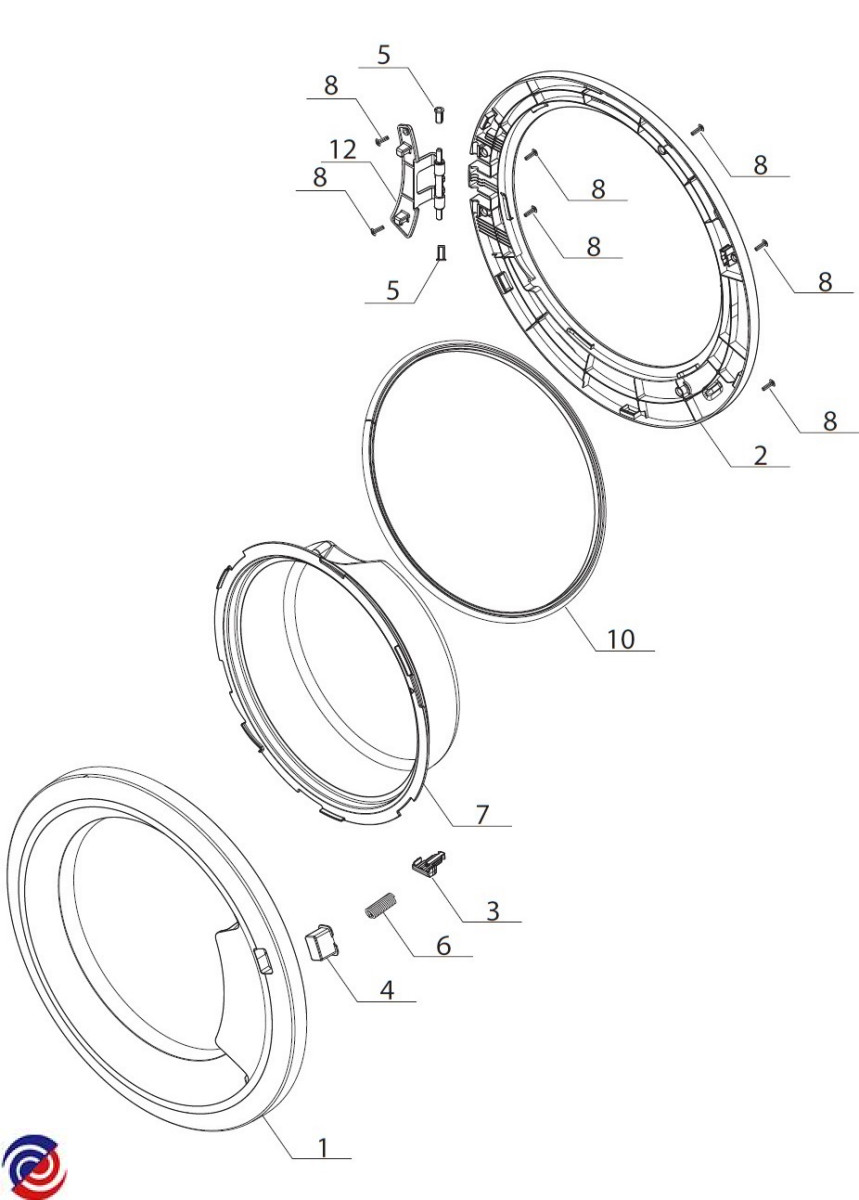

Parts for WDV457H3WB
W0368402 PULLEY IDLER
W0368403 COVER BEARING ELEM CARRIER
W0368413 SWITCH MICRO DOOR CATCH
W0368414 SPRING DOOR LATCH
$11.00
W0368524 SIMPSON/WESTINGHOUSE DRYER MESH LINT FILTER
W0368970 SIMPSON ELECTROLUX WESTINGHOUSE DRYER GRILLE EXHAUST COVER
$26.00
W0371385 STRIKER DOOR LATCH
W0371488 TIMER
$79.00
W0367993 BUSHING HINGE
$5.50
W0368371 PANEL REAR
W0368419 CAPACITOR 8UF
W0368422 SPRING BELT TENSION
$7.00
W0368475 DOOR WINDOW SAN
$121.00
W0368497 COVER EXHAUST
W0368673 HINGE-DIE CAST
$12.00
W0368693 C/ PANEL TIMER SUB ASSY
$91.00
W0368872 BRACKET MOTOR SUPPORT REAR
$13.00
W0368943 CORD SERVICE
$23.00
W0369085 SCREW NO.8X3/8 HEX WASHER HD
$4.00
W0369086 SCREW NO8X12.7 HEX TYPE TST
W0369087 SCREW M4X1.75X14 PLASTITE HEX
$4.00
W0369088 SEAL COVER HOUSING DUCT SMALL
$4.00
W0369089 BEARING FACE-HIGH LOAD
$8.00
W0369090 BEARING BASE-HIGH LOAD
$5.50
W0369091 SEAL DOOR EXTRUDED
$11.00
W0370286 MOTOR, INDUCTION, AL -DY-50HZ
$226.00
W0370318 HEATER, ASSEMBLY, 2100W
$121.00
W0370342 SWITCH HEAT SELECTOR 2 POSN
W0370524 DOOR COVER SAFFRON WITH BUTTO
$41.00
W0371485 FRAME DOOR
$23.00
W0371611 BEARING FRONT PADS
$4.00
W0371702 HARNESS-ASSY TIMER
$86.00
W0372305 NUT M8 22441-518
$4.00
W0372306 WASHER FAN REAR
$4.00
W0372310 NUT M6
$4.00
W0372311 WASHER SPRING M8
$4.00
W0372312 WASHER SPRING M6
$4.00
W0372352 SCREW M4X1.75X14 PCB
$5.50
W0372383 BRACKET BASE STIFFENER
$4.00
W0372397 BRACKET HARNESS RETAINER
$4.00
W0372421 WASHER PLAIN71311-002 24
$5.50
W0372483 COVER HOUSING BLOWER
$6.00
W0372530 COVER HOUSING DUCT & SEAL
$8.00
W0372624 PLUG CORNER LEFT
$11.00
W0372625 PLUG CORNER RIGHT
$11.00
W0372636 BRACKET DOOR SWITCH
$11.00
W0372920 COVER PANEL BACK
$28.00
W0373210 COVER ASSY BACK PANEL
$57.00
