DSP635S — 943000835 64

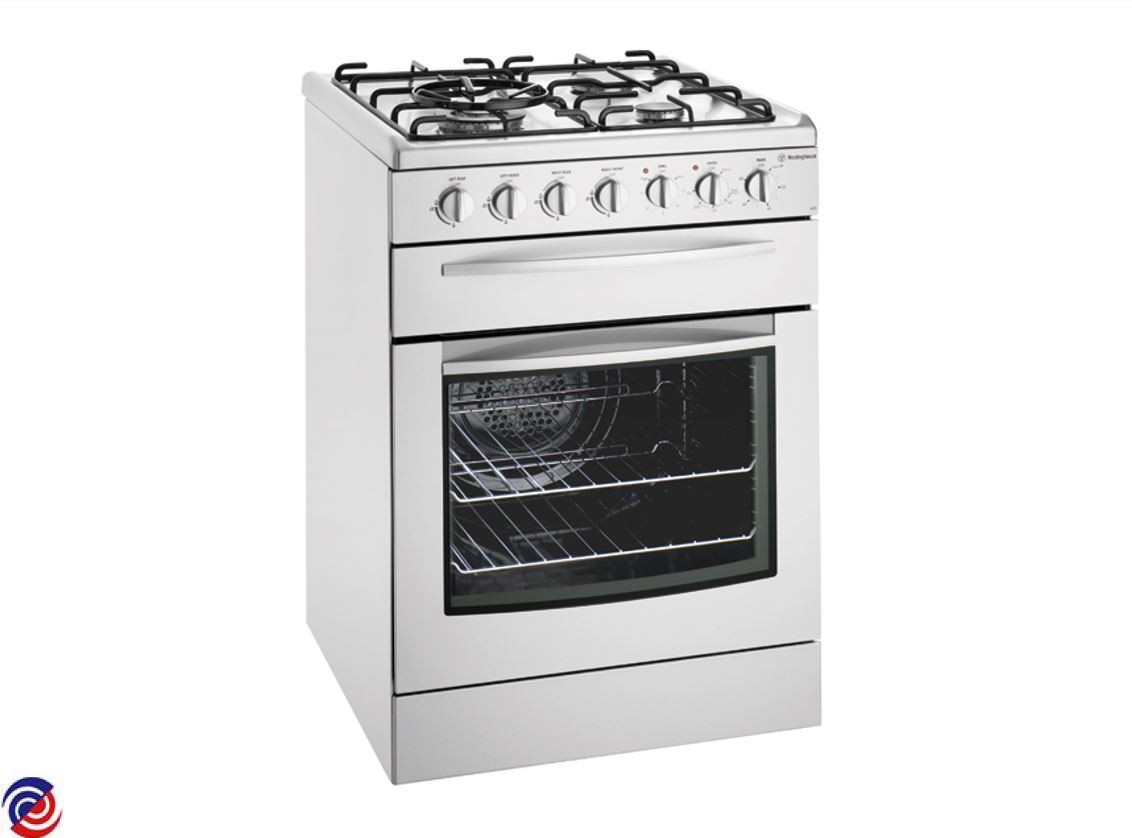

WESTINGHOUSE — Cooker Dual Fuel

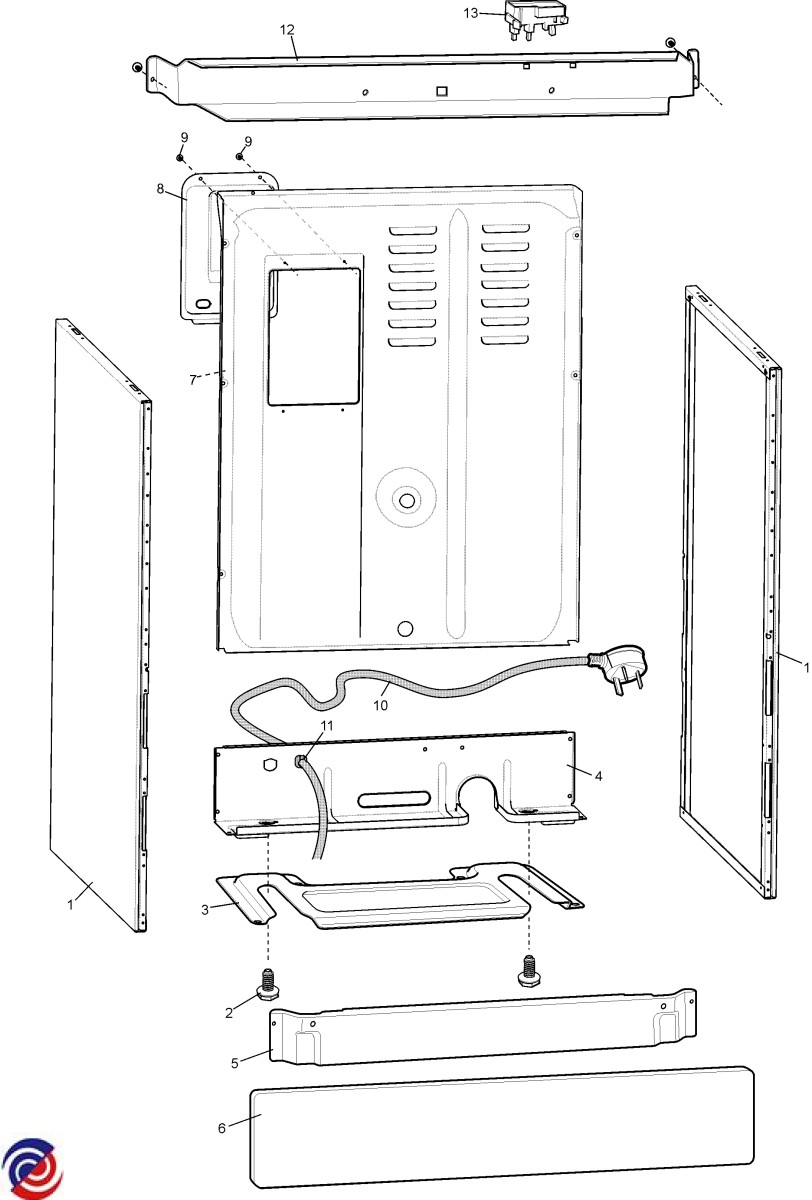

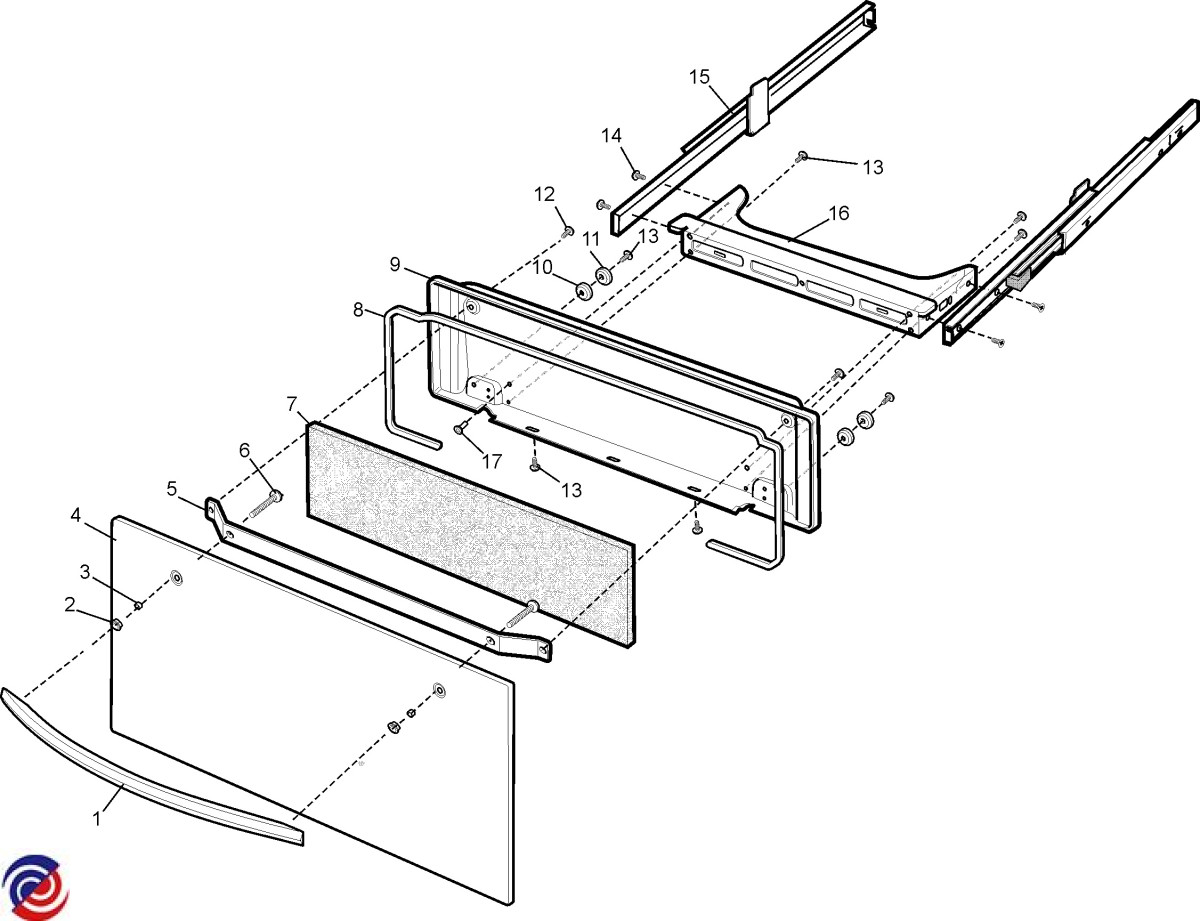

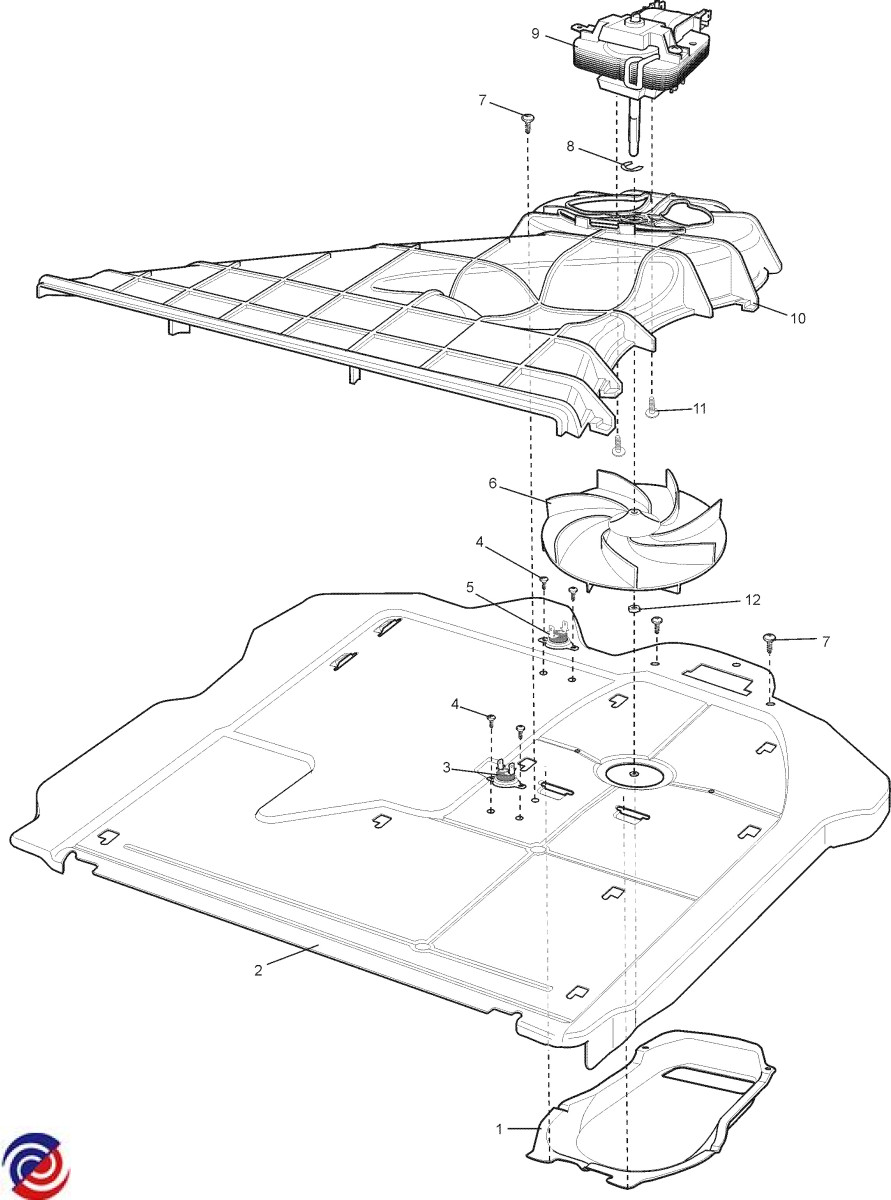

Parts for DSP635S
.JPG)
W0011297 BLADE FAN
W0011319 COVER GRILL DISH
W0011404 TRAY SCONE
$19.90
W0011829 HINGE DOOR OVEN
W0011995 NUT M6 LH FAN MOTOR
W0012254 ELEMENT C/HEAT 1800W SS321
W0012262 ELEMENT FAN RING 2200W
W0012724 SEAL VALVE SOURDILLON
.JPG)
W0013590 SWITCH THERMAL CUT OUT 145 DEG
W0013699 TIMER 90 MIN CUT OFF WESTLAKE
W0013750 LENS INDICATOR LIGHT
$11.20
W0014032 SCREW #8 X 45 PAN QUADREX
W0022617 BURNER CROWN RAPID CYLINDER
W0022619 BURNER SEMI-RAPID CYLIND
$40.00
W0022624 BURNER CROWN AUX CYLINDER
.JPG)
W0039457 DOOR OVEN INNER
W0045365 WASHER SEALING
$4.50
.JPG)
W0046406 CLIP MOUNTING ELEMENT
W0046657 TRIVET CAST IRON
$88.90
W0046876 SUPPORT HINGE DOOR LH
W0046877 SUPPORT HINGE DOOR RH
$18.30
W0050006 GASKET CAVITY OVEN
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0053488 SHELF OVEN 469 X 375MM
$70.00
W0053491 RACK SIDE OVEN LH OR RH
.JPG)
W0057166 CHEF SIMPSON WESTINGHOUSE COOKTOP CONTROL SWITCH MP101
.JPG)
W0057771 THERMOSTAT OVEN
W0063727 VALVE GAS UC20 SDON M12 MED BL
W0063728 VALVE GAS UC20 SDON M12 LGE RE
W0063729 VALVE GAS UC20 SDN M12 WOK BLK
W0100889 CLIP SPRING KNOB
$9.15
W0166032 LAMP 25W SES E14 300C CLEAR
$10.00
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011126 BASE BURNER AUX IGN NG
$29.05
W0011289 SLIDE GRILL ASSY DOUBLE ACTION
W0011346 BRACKET DOOR RUNNER GRILL
$79.90
W0011419 DOOR GRILL INNER
$160.00
W0011436 KICKPLATE
$121.00
W0011666 COVER FAN & ELEMENT
$95.75
W0011911 HANDLE DOOR
$38.50
W0011993 NUT METRIC M10 X 0.75MM
$4.50
W0012037 FRAME FRONT ENAM 600FL BIOS
$252.60
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012616 COUPLING UNION BRASS
$24.20
W0012772 CORD SERVICE 20A
$44.00
W0012970 SPACER HANDLE
W0012971 SPACER HANDLE (SS DOORS)
$6.00
W0013231 PIPE INLET 600SI BIOS MK2
$22.00
W0013260 SHIELD WIRING
$11.95
W0013458 BRACE OVEN REAR BIOS
$27.50
W0013561 SWITCH HARNESS 4P SOURD 600SI
$76.90
W0013572 SWITCH AUXILIARY BIOS
W0013732 BUMPER STOP MAGNET
$4.50
W0013733 STOP RUNNER
$8.15
W0013937 MAGNET GRILL DOOR
$8.80
W0014018 SCREW #6 X 9.5MM PAN PHIL ZC
$4.50
W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50
W0014023 SCREW #8 X 5/8 CSK #2PH AB BK
$4.50
W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014037 SCREW 3/16X14MM PAN PH TRILOB
W0014042 SCREW #8 X 1/2 #2PH TC BLK
$4.50
W0014129 SCREW M4 X 16MM HEX ZC
$4.50
W0022626 BURNER CAP MATT RAPID CYLINDER
W0022627 BURNER CAP MATTE SEMI-R CYLIND
$22.35
W0022628 BURNER CAP MATTE AUX CYLINDER
$22.35
W0035458 BASE BURNER SEMI RAPID IGN NG
$13.20
W0035460 BASE BURNER RAPID IGN NG
$27.50
W0035469 CAP BURNER BRASS WOK INNER
W0035470 CAP BURNER WOK OUTER BRASS
W0035471 BASE BURNER WOK IGN NG
W0036213 SUPPORT ELEMENT GRILL
W0036942 KNOB W/H SLOTIN S/S GAS H/P
W0036944 KNOB W/H SLOTIN S/S GAS OVEN
W0037475 PLATE MOUNTING SWITCH
W0037478 PLATE CVR TERM GAS B/I BIOS
W0037482 PLATE ANTI TILT UPRIGHTS
W0038806 BRACKET GAS RAIL 600FL BIOS
W0038811 BRACKET KICKPANEL MOUNT 600SI
$21.00
W0039212 DISH GRILL ENAM BIOS
$81.60
W0039558 DOOR OVEN GLASS OUTER SS
W0039640 PANEL UPPER
W0039690 PNL GRILL TOP SGUB ALUM BIOS
W0039790 PANEL SIDE SS
$121.00
W0039902 PANEL CABINET REAR
W0040590 PNL CNT & CLIPS DSP635S
$155.00
W0043581 TUBE BURNER 600SI RF BIOS
W0043582 TUBE BURNER 600SI RR BIOS
W0043583 TUBE BURNER 600SI LF BIOS
W0043584 TUBE BURNER 600SI RL BIOS
W0043826 LIGHT INDICATOR BIOS 240V 200
W0044829 FLUE DUCT OVEN SGUB BIOS
W0046413 CLIP SPARK PLUG E/LUX
W0046619 TRIVET WOK
W0047143 INSULATOR HANDLE GLASS SIMPSON
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0049225 SEAL DOOR INNER GLASS
W0052584 CANOPY FAN ASSY SGUB BIOS
W0052940 SPACER HANDLE SGUB GLASS
W0052948 SPACER CONTROL PANEL BIOS
$6.00
W0053262 REG GAS NG INTEG T/PT & SEAT
$27.50
W0053723 PIPE MANIFOLD 600SI MK2
W0054645 INSULATION OVEN CABINET
W0054646 INSULATION OVEN BACK BIOS
W0054656 INSULATION GRILL DOOR
$7.20
W0054665 INSULATION GRILL SGUB BIOS
W0054961 OVEN ENAM ELEC FAN BIOS
W0056174 GRILL BOX ENAM SHALLOW BIOS
W0056273 BRACE OVEN REAR 600UP
W0056276 BRACE OVEN REAR UPPER 600SI
W0056769 FOOT TRIVET
$4.50
W0056772 LEG LEVELLING 600UR MK2
W0057758 THERMAL CUTOUT 100 DEG N.O.
W0058488 TRIM SURROUND C/PANEL 600SI
W0059637 GROMMET CORD GRIP HEYCO 1320
W0059839 DUCT OVEN SGUB ASSY BIOS-ELECT
W0062055 HOB SS
$629.10
W0062480 DOOR GRILL OUTER
$99.90
W0063726 VALVE GAS UC20 SDON M12 SML GR
W0063836 IGN BOX 4P 240V ISPRA (BLUE)
W0064532 SCREW #8 X 9/16 B/HD S/PT BKOX
$4.00
W0064587 SCREW 3/16X12 PAN PH TRILOB
W0065058 CLIP SPEED #8 8526 17 320
W0065129 RIVET - 4.8MM X 9.65MM
W0109046 SCREW TORQ #4 X 12 #6 PAN HEAD
W0109895 SPARK PLUG 850MM ELUX WOK
W0109917 PLUG SPARK 600 MM ENAMELLED
W0109920 PLUG SPARK 400MM ENAMELLED
W0110085 TRIPLE CROWN WOK BURNER CYL
W0114680 HOLDER LAMP ASSY BIOS
W0150818 SCREW M4 X 16 PAN X/R MTS Z/P
