WFE914SB — 940001852 08
WESTINGHOUSE — Cooker Dual Fuel
Parts for WFE914SB
.JPG)
W0011297 BLADE FAN
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
W0013565 SWITCH MULTI 8
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
.JPG)
W0013966 WESTINGHOUSE OVEN CLOCK PCB 3 BUTTON TOUCH BF11
$126.00
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0021415 CAP BURNER OUTER MATT WOK
W0022617 BURNER CROWN RAPID CYLINDER
W0022619 BURNER SEMI-RAPID CYLIND
$40.00
W0022624 BURNER CROWN AUX CYLINDER
W0022741 SPARK PLUG IGNITOR 400 MM
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0027350 BURNER CAP AUX MATT BLACK ENAM
$17.00
W0027351 BURNER CAP RAPID MATT BLACK EN
W0027390 IGN BOX 6P - 220.240V JAVA
W0030169 ELEMENT GRILL SPLIT ELUX VUL
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0102392 SPARK PLUG WOK 500MM
W0102417 THERMOCOUPLE T ELUX BURNER 750
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011126 BASE BURNER AUX IGN NG
$29.05
W0011142 COVER HINGE STORAGE DRAWER
$15.95
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011283 PLATE ANTI-TILT RH ASS VULCAN
W0011284 PLATE ANTI-TILT LH ASS VULCAN
W0011298 BLADE FAN
$34.35
W0011403 DISH GRILL ENAMELLED VULCAN
$75.70
W0011477 PNL DECK GLUE 35W MOTOR VULCAN
$87.90
W0011543 PANEL STORAGE TOP
$27.50
W0011544 PANEL STORAGE LOWER
$116.05
W0011694 PANEL LOWER BRACE F/STAND VULC
$49.50
W0011695 PANEL FAN COVER
$112.55
W0011697 SPLASHBACK WHOUSE VULCAN 900
$129.15
W0011852 HINGE STORAGE DOOR VULCAN
$76.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012046 FRAME FRONT PAINT VULCAN FSTAN
$132.00
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012319 RETAINER PYRO CATALYSER
$7.70
W0012392 INJECTOR H/P 0.55MM
W0012393 INJECTOR H/P 0.70MM
W0012395 NIPPLE INJ 0.90
$8.80
W0012403 INJECTOR 1.75 ELUX WOK NG
$8.80
W0012413 COUNTER SUPPORT LH VULCAN F/S
W0012414 COUNTER SUPPORT RH VULCAN F/S
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012732 SEAL CONTROL PANEL
$11.15
W0012806 STOP ANTI TILT
$3.30
W0013025 REGULATOR GAS NG INTEG TEST PT
W0013063 INSTALL ANTI -TILT CHAIN
W0013214 RACK PACK
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013465 BRACE PLINTH VULCAN
$14.30
W0013730 BUMPER STOP BLK
$6.55
W0013738 BUMPER STORAGE DOOR VULCAN
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021316 SCREW M4X16 PAN PHIL ZC HZ
W0021413 CAP BURNER INNER MATT WOK
W0021433 FOOT TRIVET
$7.05
W0021524 IGNITION BOX EARTH LEAD
$6.60
W0021560 BRACKET GAS RAIL WHOUSE VULCAN
$23.95
W0021567 TUBE BURNER MID 5B WH VUL FSG
$33.00
W0021568 TUBE BURNER RF WH VULCAN
$33.00
W0021569 TUBE BURNER RR WH VULCAN
$33.00
W0021570 VALVE BSI FSG AUX
W0021571 VALVE BSI FSG SEMI RAPID
W0021572 VALVE BSI FSG RAPID
W0021573 VALVE BSI FSG T/C
W0021577 TUBE BURNER LF 5B WH VUL FSG
$33.00
W0021578 TUBE BURNER LR 5B WH VUL FSG
$29.05
W0021579 HOB WELD ASY 5B WH VULCAN FSG
W0021671 THERMOCOUPLE T ELUX BURNER 275
W0021672 THERMOCOUPLE 500 MM WOK
W0022171 FOOT LEVELING
$16.35
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0022740 PLUG SPARK 250 MM ENAMELLED
W0022743 PLUG SPARK 800 MM ENAMELLED
W0022744 SPARK PLUG IGNITOR 900 MM
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0029338 LENS NEON FRONT MOUNT (AMBER)
$5.95
W0029677 INSULATION OVEN WRAP PYRO
W0029800 MOTOR FAN COOLING VULCAN
$101.70
W0030006 MANIFOLD PIPE 5B WHOUSE COBRA
$39.60
W0030041 KNOB ASSY GAS W/HOUSE SILVER
W0030046 KNOB ASSY ELEC W/HOUSE SILVER
W0030054 HANDLE DOOR WEST ANOD COBRA
W0030055 SPACER HANDLE W/HOUSE COBRA
W0030108 PLINTH VULCAN
$23.05
W0030172 PAN OV DR OUT ASS W/H FS COBRA
W0030179 PNL CNT & CLIPS WFE914SB COBRA
W0030321 DOOR STORAGE COBRA
W0030368 PLATE MTG SWITCH
$17.00
W0030602 FITTING GAS INLET ELBOW
$20.10
W0046659 TRIVET CAST IRON LH/RH
$120.00
W0046661 TRIVET CAST IRON CENTRE
W0046664 TRIVET WOK SUPPORT WH VULCAN
W0046736 INJECTOR 1.00 H/P
$8.80
W0046737 INJECTOR 1.35 H/P
W0046745 INJECTOR RAPID NG 1.60
$8.80
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0053310 STICKER GAS TYPE LPG
$4.50

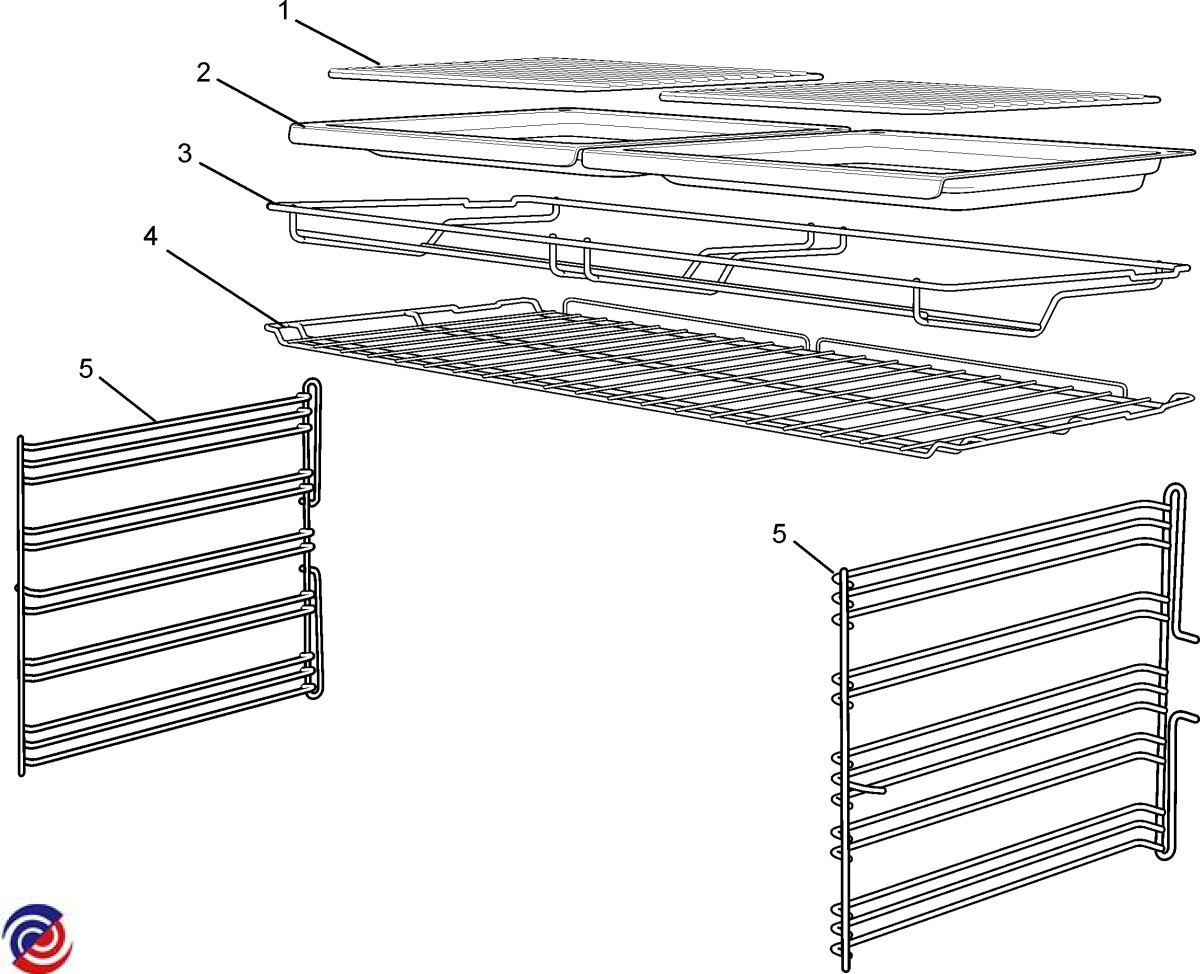

W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053535 RACK INSERT GRILL DISH VULCAN
W0053538 RACK GRILL DISH SUPPORT VULCAN
W0053539 RACK SHELF OVEN VULCAN
$106.00
W0102416 THERMOCOUPLE T ELUX BURNER 500
W0109033 CLIP SPARK PLUG ELUX 125-8-356
W0110088 BURNER ASSY TRIPLE CROWN WOK
W0110093 BASE BURNER RAPID IGN NG
$13.90
W0110096 BURNER BODY ASSY S/RAP IGN NG
W0110103 BURNER ASSY WOK NG
$40.00
W0114559 LAMP OVEN HALOGEN 25W
W0147394 BURNER CAP SEMI RAPID MATT BLK
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0154002 LIGHT INDICATOR RED
W0271433 GLASS OVEN DOOR
W0275679 PANEL RH SIDE F/STAND VULCAN
$185.65
W0275680 PANEL LH SIDE F/STAND VULCAN
W0275766 WRAP PLINTH VULCAN
$319.05
W0276525 VENT DOOR TOP CAP ASSY VULCAN
W0278899 SWITCH HARNESS 5B WH VULCAN
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0284135 SPACER KNOB IGNITION VULCAN
$13.30
W0284292 HINGE STD 11.9 KG 3 LAY VULCAN
$52.55
W0284345 ELEMENT C/H 1800W VULCAN E100
W0284540 PNL OV DR OUT ASS W/H FS COBRA
$170.50
