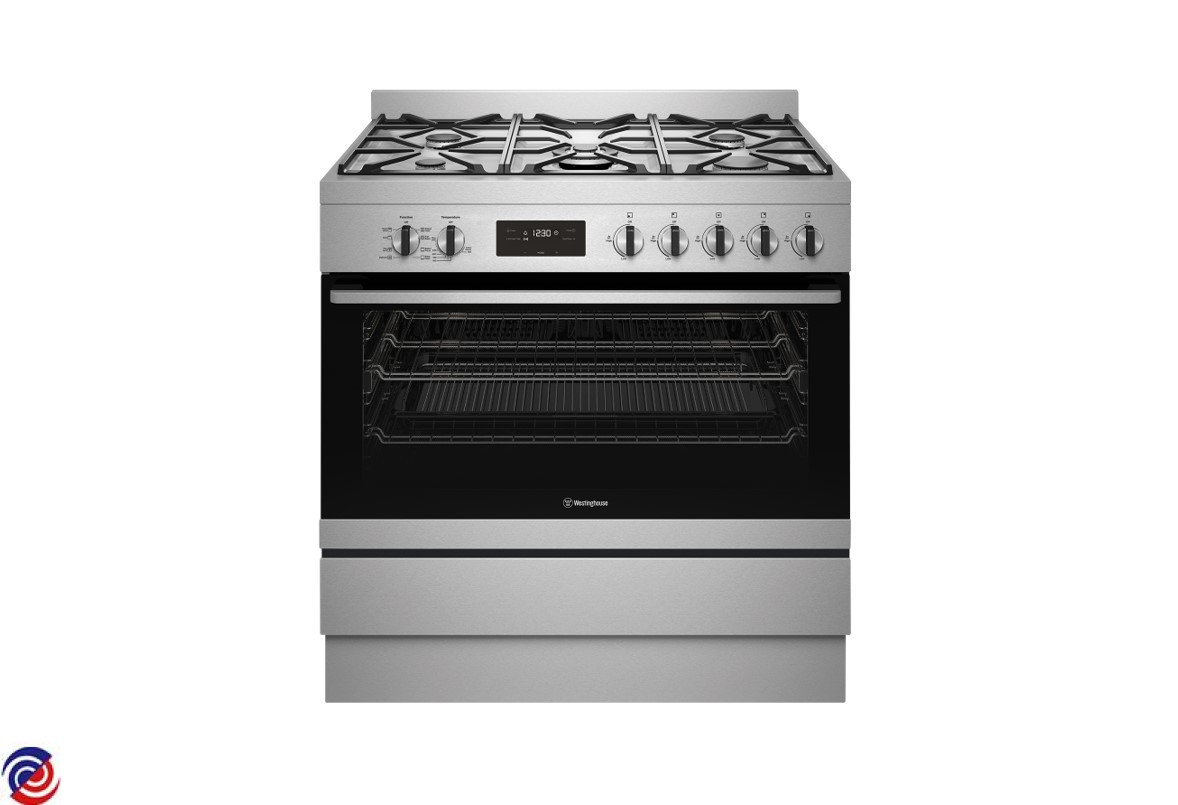

WFE915SD — 940598491 00
WESTINGHOUSE — Cooker Dual Fuel
Parts for WFE915SD
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0030169 ELEMENT GRILL SPLIT ELUX VUL
W0030455 BURNER BODY ASSY WOK NG
$44.00
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
W0102417 THERMOCOUPLE T ELUX BURNER 750
W0110089 BURNER ASSY TRIPLE CROWN WOK
W0271174 IMPELLER OVEN FAN 160 MM
W0275065 BURNER CAP MATT INNER WOK
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011142 COVER HINGE STORAGE DRAWER
$15.95
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011477 PNL DECK GLUE 35W MOTOR VULCAN
$87.90
W0011543 PANEL STORAGE TOP
$27.50
W0011544 PANEL STORAGE LOWER
$116.05
W0011695 PANEL FAN COVER
$112.55
W0011697 SPLASHBACK WHOUSE VULCAN 900
$129.15
W0011852 HINGE STORAGE DOOR VULCAN
$76.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012403 INJECTOR 1.75 ELUX WOK NG
$8.80
W0012806 STOP ANTI TILT
$3.30
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013598 THERMAL CUTOUT 50? N.O.
$17.90
W0013730 BUMPER STOP BLK
$6.55
W0013738 BUMPER STORAGE DOOR VULCAN
W0013967 CLOCK 3 BTN TOUCH 'BF11' WHT
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021560 BRACKET GAS RAIL WHOUSE VULCAN
$23.95
W0021579 HOB WELD ASY 5B WH VULCAN FSG
W0021671 THERMOCOUPLE T ELUX BURNER 275
W0021672 THERMOCOUPLE 500 MM WOK
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0029624 PLUG SPARK WOK 500MM
$8.70
W0029626 PLUG SPARK 250 MM ENAMELLE
$7.45
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029629 PLUG SPARK 900 MM ENAMELLED
W0029800 MOTOR FAN COOLING VULCAN
$101.70
W0029805 SPARK GENERATOR WITH 5 OUTLETS
$62.00
W0029930 GLASS OV DR MID 2 COBRA
W0030006 MANIFOLD PIPE 5B WHOUSE COBRA
$39.60
W0030368 PLATE MTG SWITCH
$17.00
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0046736 INJECTOR 1.00 H/P
$8.80
W0046744 NIPPLE INJECTOR SEMI R NG 1.35
W0046745 INJECTOR RAPID NG 1.60
$8.80
W0046754 NIPPLE INJECTOR AUX LP 0.55
W0046755 NIPPLE INJECTOR SEMI LP 0.70
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0053310 STICKER GAS TYPE LPG
$4.50
W0064563 SCREW ST 8 X 1/2
W0102416 THERMOCOUPLE T ELUX BURNER 500
W0153991 REGULATOR GAS NG INTEG TEST PT
$41.00
W0274935 BURNER CAP RAP MATT BLACK ENAM
$22.35
W0274936 BURNER CAP SR MATT BLACK ENAM
$26.30
W0274937 BURNER CAP AUX MATT BLACK ENAM
$22.35
W0275066 BURNER CAP MATT OUTER WOK
$23.60
W0275765 IMPELLER OVEN FAN VULCAN R/H
$24.85
W0276525 VENT DOOR TOP CAP ASSY VULCAN
W0283213 SCREW M4 X 44 PAN T20
W0283381 INSULATION OVEN WRAP STD COBRA
$42.40
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283412 SPRING NIP
$5.50
W0283468 COVER VULCAN STORAGE CORNER
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283557 TUBE BURNER LF 5B WH VUL FSG
W0283558 TUBE BURNER LR 5B WH VUL FSG
W0283559 TUBE BURNER MID 5B WH VUL FSG
W0283560 TUBE BURNER RF WH VULCAN
W0283561 TUBE BURNER RR WH VULCAN
W0283565 SWITCH HARNESS 5B WH VULCAN
W0283596 FRAME FRONT PAINT VULCAN FSTAN
$125.05
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0283788 FOOT MT BRACKET TAURUS+ 90CM
$14.50
W0283789 COUNTER SUPPORT LHS TAURUS+ 90
$11.65
W0283790 COUNTER SUPPORT RHS TAURUS+ 90
$11.65
W0283876 FEET PLASTIC PACK OF 4
W0283877 HANDLE PEDES TAUR+ 90CM ASPIRE
W0283878 HANDLE TAUR+ 90 ASPIRE BETTER
W0283887 ANTI TILT BRACKET TAURUS+ 90CM
$14.50
W0283897 PLINTH CLIP COMP BAG TAUR+90CM
$28.25
W0283902 PNL CNT COMP WFE915SC TAUR+ 90
$229.25
W0284064 CLIP SIDEGRIDS
$4.50
W0284067 CLIP THERMOSTAT BIOS
$4.50
W0284246 VALVE COPRECCI FSG AUX
$29.45
W0284247 VALVE COPRECCI FSG SEMIRAPID
$29.45
W0284248 VALVE COPRECCI FSG RAPID
$29.45
W0284249 VALVE COPRECCI FSG TC WO
$29.45
W0284292 HINGE STD 11.9 KG 3 LAY VULCAN
$52.55
W0284345 ELEMENT C/H 1800W VULCAN E100
W0284381 GLASS OV DR INNER VULCAN
W0295025 LAMP OVEN HALOGEN 25W
$26.05
W0296606 PLINTH PANEL TAUR+ 90CM ARCT
$57.50
W0362062 FOOT RUBBER
$4.50
W0362088 PNL OV DR OUT ASS W/H BI NPYRO
W0362138 SLIDE SINGLE EXT 1 SET SACA
W0362141 RACK INSERT ASPIRE 90CM
W0362179 RACK PACK ASPIRE 90CM
$139.30
W0362180 DISH GRILL ENAM DEEP ASPIRE 90
$81.60
W0362219 LOWER BRACE FS 90CM SQ
$36.35
W0362225 PNL RH SIDE 90CM F/S ARCT SQ
$71.50
W0362226 PNL LH SIDE 90CM F/S ARCT SQ
$71.50
W0362234 PNL BCK F/S WELD GAS E100 90CM
$51.55
W0362237 MI SIGNAL LAMP 200/600MM SPARE
$17.20
W0363844 SCREW M4X1.25X20 PAN PHIL ZCHZ
W0364656 DOOR STORAGE TAURUS+ STST2
$121.85
W0364677 BAG CONTAINING SCREWS TAURUS+
$4.50
W0364689 KNOB ASSY CHROME ASPIRE 90 FS
W0365428 BURNER CROWN SEMI-RAP CYL MCH
$7.00
