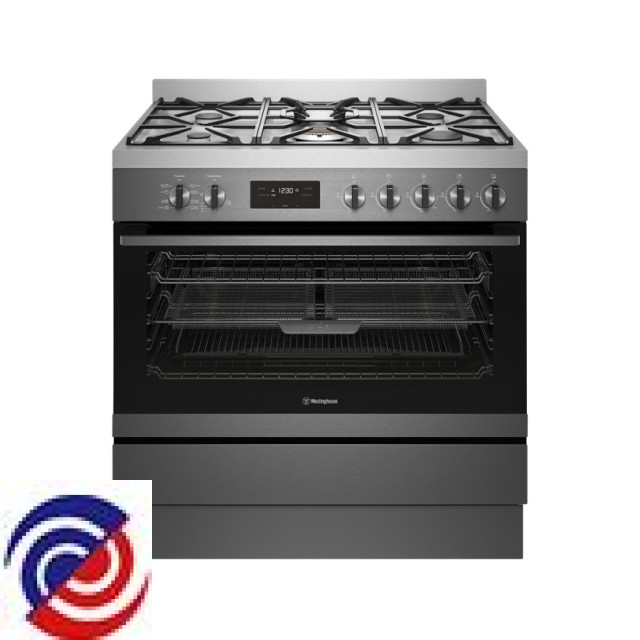

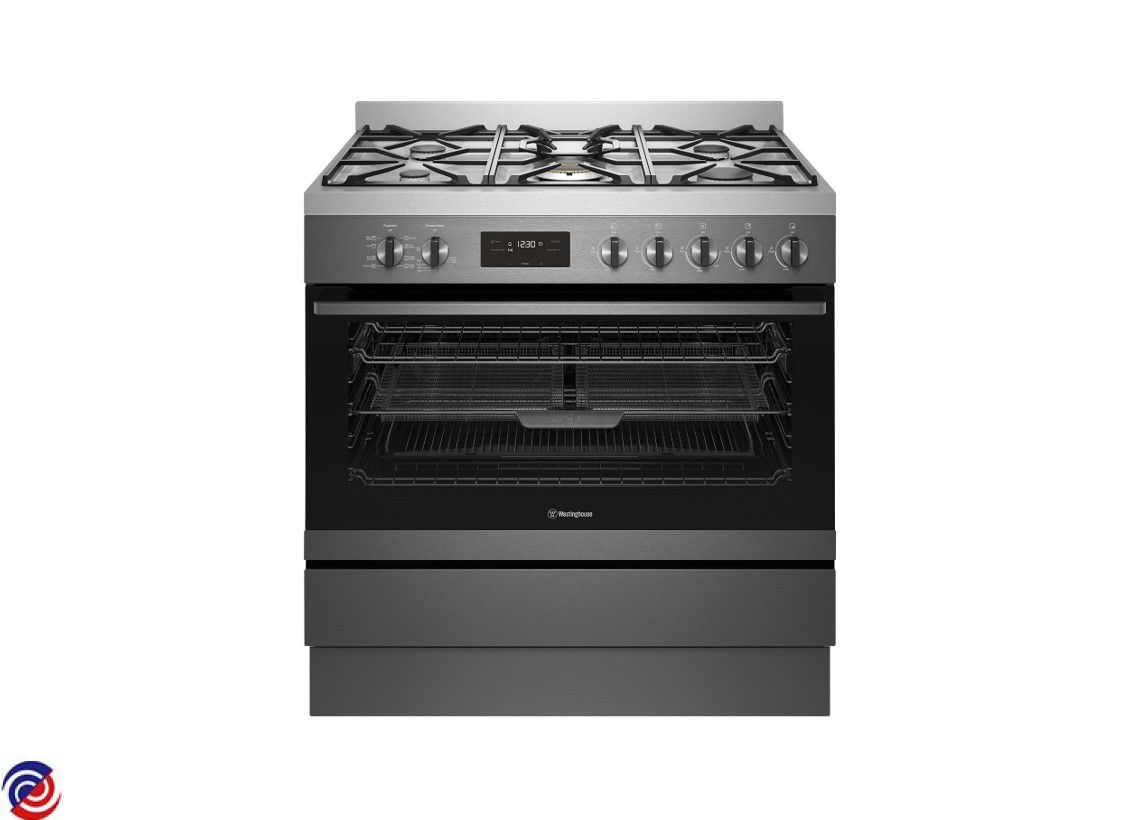

WFE916DSD — 940598493 00
WESTINGHOUSE — Cooker Dual Fuel
Parts for WFE916DSD
.JPG)
W0011297 BLADE FAN
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
W0013565 SWITCH MULTI 8
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013970 RELAY 30A SINGLE POLE 240V
W0014025 SCREW #8-10X35 PAN PH2 P/B BK
$4.50
W0022617 BURNER CROWN RAPID CYLINDER
W0022624 BURNER CROWN AUX CYLINDER
W0023144 POWERBOARD OVC3000 - EOS
$271.70
W0030169 ELEMENT GRILL SPLIT ELUX VUL
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
.JPG)
W0057771 THERMOSTAT OVEN
W0283367 T'COUPLE TT ELUX BURNER 275
W0283368 T'COUPLE TT ELUX BURNER 500
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011142 COVER HINGE STORAGE DRAWER
$15.95
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011298 BLADE FAN
$34.35
W0011477 PNL DECK GLUE 35W MOTOR VULCAN
$87.90
W0011543 PANEL STORAGE TOP
$27.50
W0011544 PANEL STORAGE LOWER
$116.05
W0011695 PANEL FAN COVER
$112.55
W0011697 SPLASHBACK WHOUSE VULCAN 900
$129.15
W0011852 HINGE STORAGE DOOR VULCAN
$76.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012319 RETAINER PYRO CATALYSER
$7.70
W0012667 INSTALL ANTI TILT HOOK
$13.90
W0012806 STOP ANTI TILT
$3.30
W0013063 INSTALL ANTI -TILT CHAIN
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013598 THERMAL CUTOUT 50? N.O.
$17.90
W0013730 BUMPER STOP BLK
$6.55
W0013738 BUMPER STORAGE DOOR VULCAN
W0013967 CLOCK 3 BTN TOUCH 'BF11' WHT
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021316 SCREW M4X16 PAN PHIL ZC HZ
W0021525 SCREW M4 X 15 HEX ZC
$4.50
W0021731 SCREW M4 X 8 WITH PAD
$4.50
W0021732 VALVE SAFETY FS DUAL COPRECI
$210.95
W0022642 SCREW 2.9 X 13 PAN T10 ZP
$4.50
W0029626 PLUG SPARK 250 MM ENAMELLE
$7.45
W0029627 PLUG SPARK 400 MM 260C - ELUX
$7.45
W0029629 PLUG SPARK 900 MM ENAMELLED
W0029677 INSULATION OVEN WRAP PYRO
W0029800 MOTOR FAN COOLING VULCAN
$101.70
W0029805 SPARK GENERATOR WITH 5 OUTLETS
$62.00
W0029930 GLASS OV DR MID 2 COBRA
W0030006 MANIFOLD PIPE 5B WHOUSE COBRA
$39.60
W0030368 PLATE MTG SWITCH
$17.00
W0030443 BURNER BODY ASSY AUX IGN NG
$43.00
W0030447 BURNER BODY ASSY S/RAP IGN NG
W0030451 BURNER BODY ASSY RAPID IGN NG
W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50
W0064563 SCREW ST 8 X 1/2
W0102092 SCREW M4 X 8 PHIL
W0114559 LAMP OVEN HALOGEN 25W
W0274935 BURNER CAP RAP MATT BLACK ENAM
$22.35
W0274936 BURNER CAP SR MATT BLACK ENAM
$26.30
W0274937 BURNER CAP AUX MATT BLACK ENAM
$22.35
W0276525 VENT DOOR TOP CAP ASSY VULCAN
W0282401 BRKT GAS RAIL MOUNT VULCAN X
W0283053 BRACKET GAS RAIL WH TAURUS+
$10.00
W0283064 ADAPTOR VALVE GAS ELUX VULCAN
$19.85
W0283213 SCREW M4 X 44 PAN T20
W0283369 THERMOCOUPLE T ELUX BURNER 750
W0283384 SCREW #8 4.2 X 28 HILO PAN PH
$4.50
W0283412 SPRING NIP
$5.50
W0283468 COVER VULCAN STORAGE CORNER
$4.50
W0283485 RACK SIDE OVEN EASY RH E100
W0283486 RACK SIDE OVEN EASY LH E100
W0283557 TUBE BURNER LF 5B WH VUL FSG
W0283558 TUBE BURNER LR 5B WH VUL FSG
W0283560 TUBE BURNER RF WH VULCAN
W0283561 TUBE BURNER RR WH VULCAN
W0283565 SWITCH HARNESS 5B WH VULCAN
W0283596 FRAME FRONT PAINT VULCAN FSTAN
$125.05
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0283788 FOOT MT BRACKET TAURUS+ 90CM
$14.50
W0283789 COUNTER SUPPORT LHS TAURUS+ 90
$11.65
W0283790 COUNTER SUPPORT RHS TAURUS+ 90
$11.65
W0283876 FEET PLASTIC PACK OF 4
W0283877 HANDLE PEDES TAUR+ 90CM ASPIRE
W0283887 ANTI TILT BRACKET TAURUS+ 90CM
$14.50
W0283897 PLINTH CLIP COMP BAG TAUR+90CM
$28.25
W0283898 TRIVET CENTRE ASPIRE TAU+ 90CM
W0283900 TRIVET LHRH ASPIRE TAU+ 90CM
W0283901 TRIVET WOK ASPIRE TAU+ 90CM
W0284064 CLIP SIDEGRIDS
$4.50
W0284246 VALVE COPRECCI FSG AUX
$29.45
W0284247 VALVE COPRECCI FSG SEMIRAPID
$29.45
W0284248 VALVE COPRECCI FSG RAPID
$29.45
W0284292 HINGE STD 11.9 KG 3 LAY VULCAN
$52.55
W0284345 ELEMENT C/H 1800W VULCAN E100
W0284381 GLASS OV DR INNER VULCAN
W0361426 KIT LP CONVERSION CTOP
$18.80
W0362004 HANDLE TAUR+ 90 ASPIRE DARK
$55.40
W0362054 BIC BURNER BODY 19MJ
$72.40
W0362056 BIC BURNER CROWN 17/19 MJ
W0362058 BIC BURNER CAP INNER
$19.85
W0362062 FOOT RUBBER
$4.50
W0362086 BIC BURNER CAP OUTER
$62.00
W0362092 BIC THERMOCOUPLE
$18.15
W0362093 BIC SPARK PLUG
$6.45
W0362138 SLIDE SINGLE EXT 1 SET SACA
W0362141 RACK INSERT ASPIRE 90CM
W0362179 RACK PACK ASPIRE 90CM
$139.30
W0362180 DISH GRILL ENAM DEEP ASPIRE 90
$81.60
W0362209 TRAY F/WIDTH ENAM ASPIRE 90
$78.20
W0362219 LOWER BRACE FS 90CM SQ
$36.35
W0362231 AIR FRYER ASSY ASPIRE 90CM
$99.80
W0362234 PNL BCK F/S WELD GAS E100 90CM
$51.55
W0362237 MI SIGNAL LAMP 200/600MM SPARE
$17.20
W0362316 KIT CONVERSION NG 19MJ
W0363410 PANEL RH SIDE F/STAND VULCAN
$53.20
W0364626 PLINTH PANEL ASPIRE 90CM MATT
$118.05
W0364657 DOOR STORAGE ASPIRE 90CM DARK
$134.55
W0364659 PNL OV DR OUT ASSY NPYRO DARK
W0364669 HOB WELD ASY 5B WH ASPIRE FSG
W0364679 PANEL LH SIDE F/STAND VULCAN
$53.20
W0364686 TUBE BURNER WOK INNER ASPIRE
W0364687 TUBE BURNER WOK OUTER ASPIRE
W0364690 KNOB ASSY DARK 90 FS
W0364691 KNOB ASSY DARK DUAL 90 FS
W0364693 PNL CNT COMP WFE916 ASPIRE 90
W0365428 BURNER CROWN SEMI-RAP CYL MCH
$7.00
