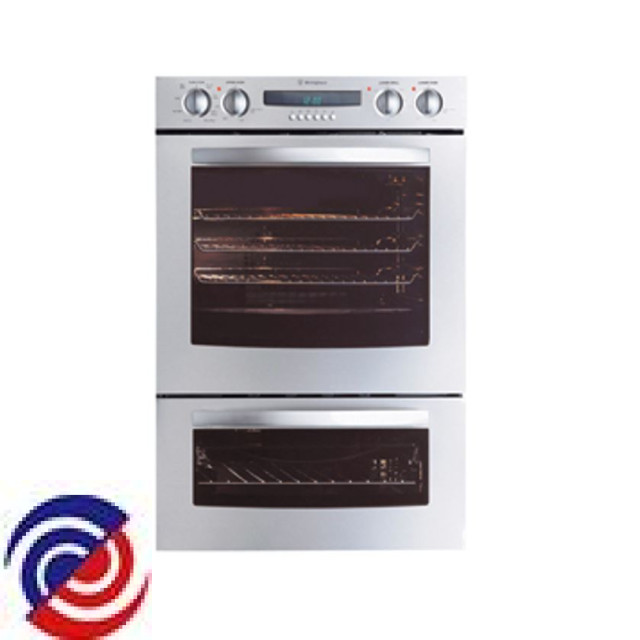

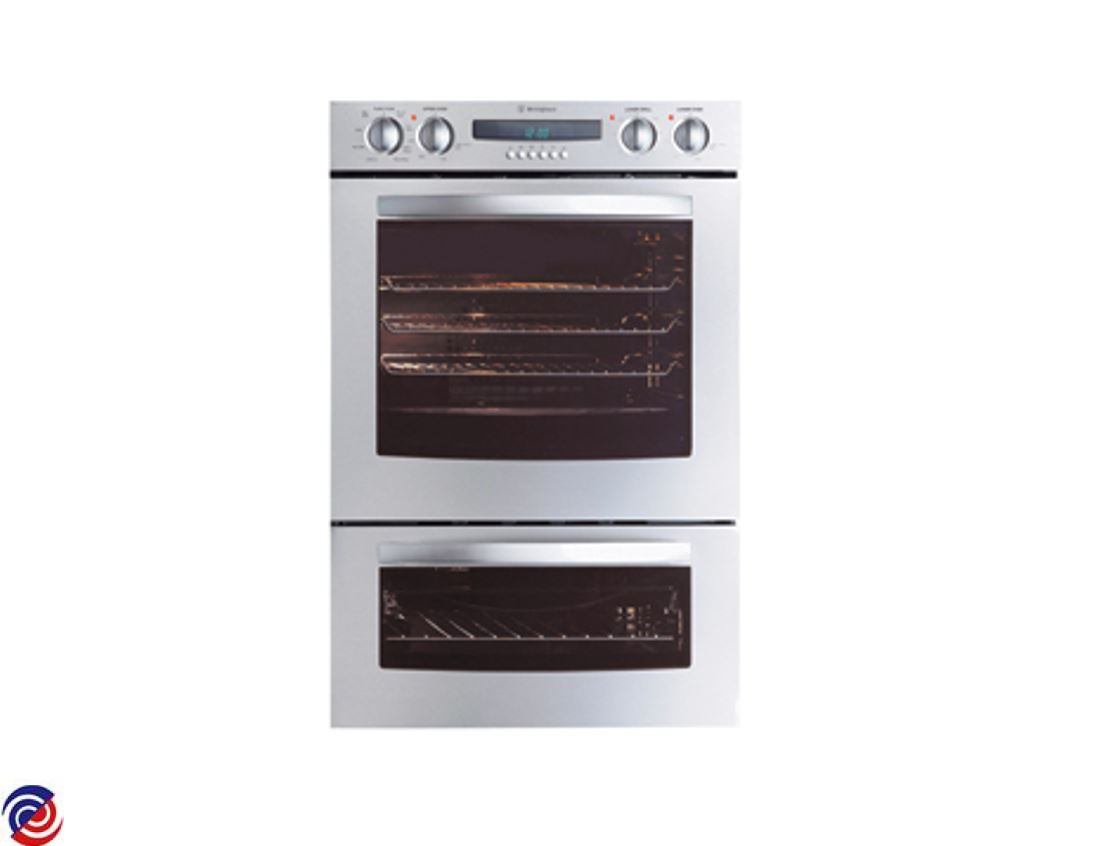

PDL790S
WESTINGHOUSE — Cooker Electric

W0012753 MOTOR FAN COOLING

W0013590 SWITCH THERMAL CUT OUT 145 DEG

W0013746 LENS CONTROLLER DIEHL

W0046238 ELEMENT CLEAN HEAT OVEN 1500W

W0046241 ELEMENT CLEAN HEAT 1800W ELITE

$94.00

W0046243 CHEF SIMPSON WESTINGHOUSE OVEN GRILL ELEMENT 2200W

W0046245 ELEMENT GRILL/BOOST

W0046249 ELEMENT OVEN FAN 2200W

W0046406 CLIP MOUNTING ELEMENT

W0046869 SUPPORT HINGE DOOR

W0049202 GASKET CAVITY OVEN 1675MM

W0050298 HOLDER LAMP ASSY

W0050517 MOTOR FAN OVEN

W0053447 SHELF OVEN

W0053453 SHELF OVEN 459 X 360MM

$77.00

W0057198 SWITCH INFINITE MPA 101

W0062412 LIGHT INDICATOR INC RED LENS

W0062420 LIGHT INDICATOR INC LENS

W0062422 CLOCK 6 BUTTON VALUETIME 6

W0065076 CLIP BULB THERMOSTAT ELEC

$6.70

W0100889 CLIP SPRING KNOB

$9.15

W0166032 LAMP 25W SES E14 300C CLEAR

$10.00

W0011993 NUT METRIC M10 X 0.75MM

$4.50

W0012971 SPACER HANDLE (SS DOORS)

$6.00

W0013730 BUMPER STOP BLK

$6.55

W0014018 SCREW #6 X 9.5MM PAN PHIL ZC

$4.50

W0021285 LABEL DOOR GRILL

$4.50

W0035317 BLOCK TERMINAL CONNECTOR

W0035786 DEFLECTOR CLEAN/HEAT 2ND OVEN

W0035790 DEFLECTOR GRILL BLK VIRT

W0035791 DEFLECTOR OVEN BLK VIRT

W0036201 SUPPORT ELEMENT GRILL

W0036202 SUPPORT ELEMENT GRILL

W0036856 KNOB S/S WEST KY

W0037434 PLATE-BACKING-MOTOR-FAN

W0037749 FAN IMPELLER 152MM

W0038077 COVER CLEAN HEAT

W0038080 COVER PLATE INSULATION

W0038104 COVER G/DISH S/LESS LGE PREM

W0038105 TRAY GRILL

W0039199 DISH GRILL BLK SEP/GRILL

W0039200 DISH GRILL BLK OVEN

$50.00

W0039235 TRAY SHELF F/WIDTH ENAM

W0039434 PANEL INNER OV/DOOR MID KY

W0039436 DOOR GRILL INNER PANEL & GLASS

$262.20

W0039630 PANEL DECK INTER

W0039635 PANEL BASE SHIELD W/ASSY

W0039682 PANEL TOP ELEC SEP GRILL

W0039764 PANEL SIDE SEP GRILL

W0039880 PANEL WIRING COVER SEP GRILL

W0040332 PANEL CONTROL PDL790S

W0041040 PANEL BAFFLE FAN CATALYTIC

W0042557 VENT TUBE ELECTRIC

W0042941 HANDLE DOOR OVEN SS

$78.30

W0044053 NUT M6 LH FAN MOTOR SEL

W0044546 FRAME FRONT ENAMEL BLK D/F

W0047142 RING O HANDLE

W0047469 SCREW M4 X 5 PAN #2 PH SML HD

$4.50

W0048232 WIRE INSULATION BACK FORMED

W0049203 SEAL GRILL 1272MM OC98

W0050303 LAMP ASSY OVEN SIDE

W0052575 CANOPY FAN

W0053454 RACK SIDE OVEN LH 5 POS

W0053462 RACK SIDE OVEN RH 5 POS

$11.70

W0053464 RACK SIDE GRILL LH

W0053465 RACK SIDE GRILL RH

W0054067 SHIELD VENT BAFFLE

W0054615 INSULATION OVEN BACK ELEC

W0054621 INSULATION GRILL TOP

W0054622 INSULATION GRILL 3/4 WRAP

W0054637 INSULATION OVEN WRAP OC98 D/F

W0054934 OVEN ENAM PREM BLACK WEST

W0056164 GRILL/BOX ENAMEL BLACK VIRT

W0057139 SWITCH AUXILLIARY EGO

W0057195 SWITCH M/F 8POS QIK HT MAXI GR

W0057770 THERMOSTAT OVEN KEEP WARM EGO

W0060090 SCREWS (INSTALL)QTY 2

W0060739 BUTTON CLOCK

W0062383 DOOR OVEN GLASS OUTER SS

W0062388 PANEL OUTER GR/DOOR S/S DUO

W0063329 LINER OVEN CATALYTIC

W0063331 LINER OVEN CATALYTIC SIDE LAMP

W0064367 SCREW 3/16 X 1 PAN PHIL NI

W0064446 SCREW #10 X 3/4' PAN PH ZC AB

W0064477 SCREW CSK PH 6AB X 25MM BLK

$4.50

W0064532 SCREW #8 X 9/16 B/HD S/PT BKOX

$4.00

W0064563 SCREW ST 8 X 1/2

W0064587 SCREW 3/16X12 PAN PH TRILOB

W0064617 SCREW NO 8 TC X 1/2 MUSH HD NI

W0064747 NUT HEX 3/16 BSW

$4.50

W0064939 WASHER 3/16 INT S/P ZC

$4.50

W0065207 WASHER CUP TERMINAL 3/16 H198

W0065209 WASHER 7/32 X 3/8 BR HI50W

W0065227 TIE CABLE PUSH MOUNT

W0065316 BUSHING SNAP BLK 22_2MM

W0065320 BUSH MOUNTING FRONT FRAME

W0065427 SCREW M5 X 9MM CSK (BLK ZC)
