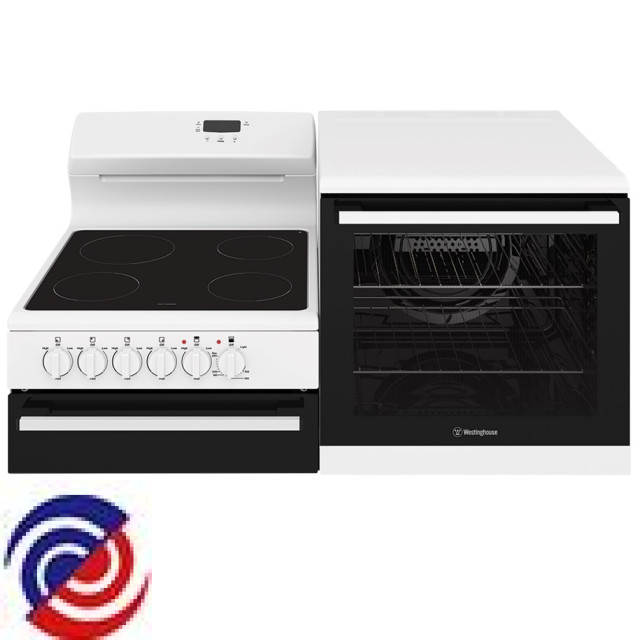

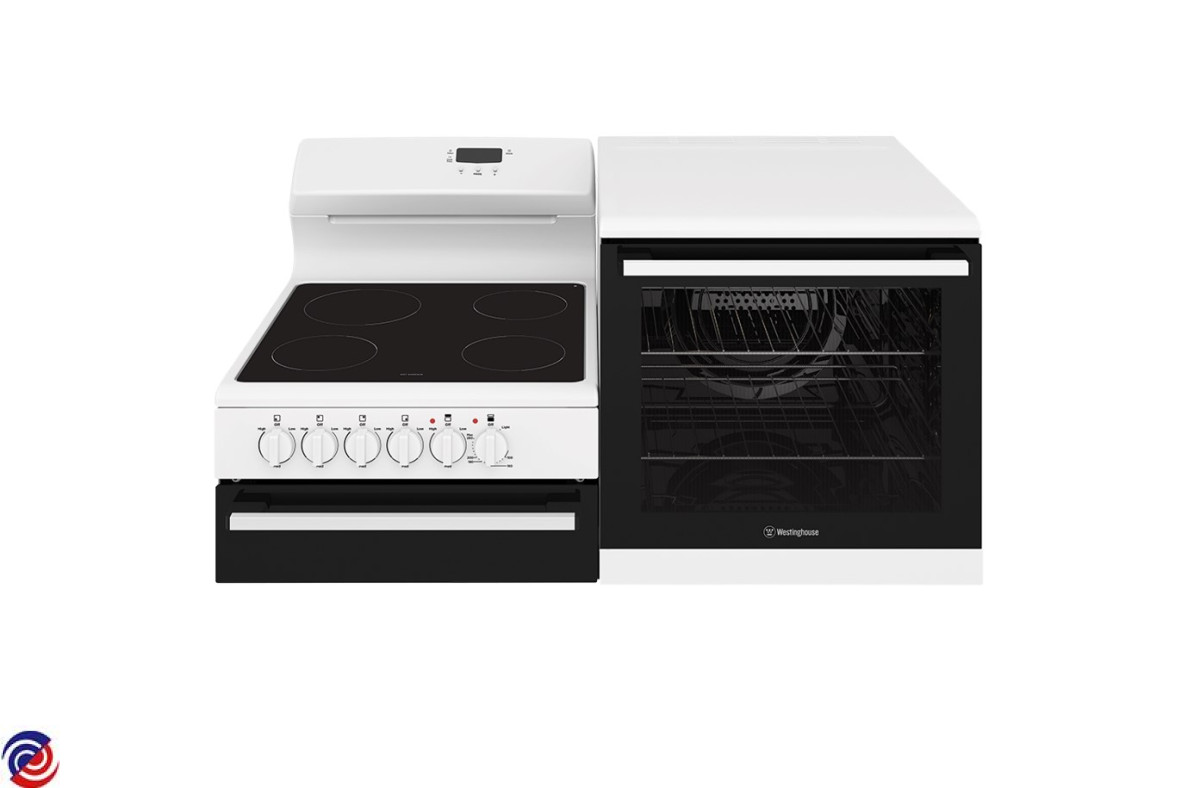

WDE143WC-R — 940598530 00
WESTINGHOUSE — Cooker Electric
Parts for WDE143WC-R
W0365421 ELEMENT FAN RING 2200W
W0365427 SWITCH AUXILIARY T/STAT
$24.60

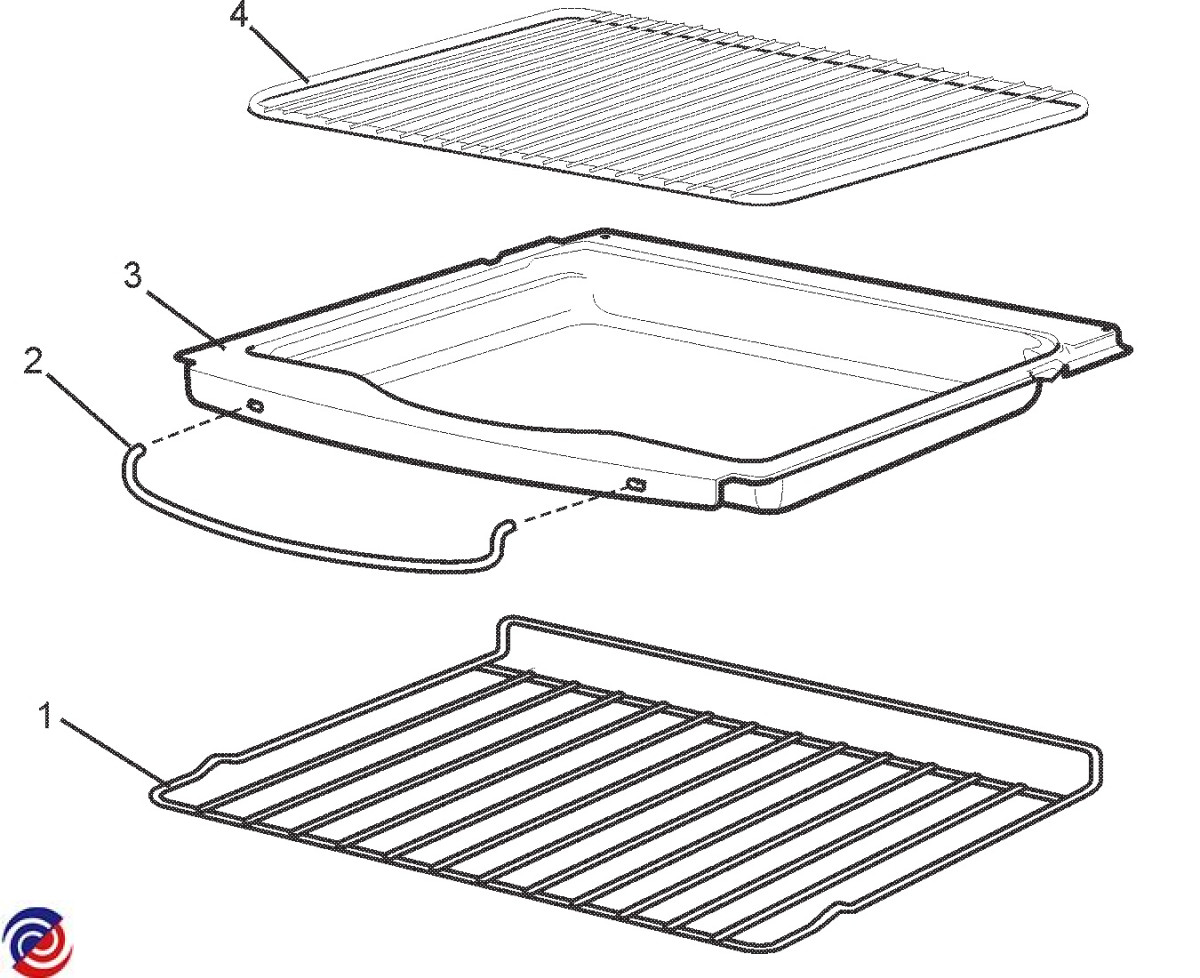

W0365466 DISH GRILL ENAMEL
$105.00
W0365467 RACK GRILL INSERT
$69.05
W0365477 IMPELLER OVEN FAN 160 MM
$29.95
W0365487 CHEF ELECTROLUX WESTINGHOUSE OVEN DOOR SEAL GASKET
W0365491 SWITCH INF HEAT MP 101 EA
$39.00
W0365525 SWITCH THERMAL CUT OUT 190 DEG
W0365529 CLIP MOUNTING ELEMENT
$10.00
W0365567 SHELF OVEN
$78.00
W0365642 CHEF SIMPSON WESTINGHOUSE OVEN ELEMENT1800W
$79.00
_1.JPG)
W0365756 CHEF ELECTROLUX WESTINGHOUSE OVEN THERMOSTAT 50-320C
$59.00
W0365490 HINGE DOOR OVEN
$80.00
W0365521 TERMINAL BLOCK W/EARTH BIOS
W0365584 GLASS OV DR IN REFL FRESCO
$126.00
W0365594 PANEL REFLECTOR GRILL TOP
$20.00
W0365808 LENS INDICATOR LIGHT
$11.20
W0365859 PLT MTG SWTCH MULTI 7 SGO FRES
$14.30
W0365866 INSULATION GRILL BACK ELEVATED
$16.00
W0365880 HINGE GR DOOR 540 FRESCO PH2
$7.00
W0365922 BRACKET ANTI TILT ELEVATED
$5.50
W0365941 TRAY SCONE
$19.20
W0365962 DOOR HANDLE ASPIRE
$23.00
W0365977 PANEL BACK WIRING GRILL ELEV F
$24.00
W0366030 LAMP OVEN HALOGEN 25W 35.5MM
$28.00
W0366059 BRACE OVEN REAR 540 BIOS
$29.05
W0366095 PANEL BACK WIRING OVEN ELEV
$32.55
W0366110 SHIELD WIRING HOB RC GAS FRES
$36.00
W0366200 TIMER,SET,SB3 A 230V/2R
$51.00
W0366221 SEAL HOB SIDE 855MM ELEV
$51.00
W0366236 PNL SIDE GRILL OUT R/H ELV FRE
$52.80
W0366287 HINGE GR DOOR 540 FREE FRESCO
$67.00
W0366307 COVER,CONVECTION FAN
$76.00
W0366372 PNL SIDE OVEN OUT R/H ELEV FRE
$118.00
W0366378 CONTROL PANEL,SCREEN,WDE143W A
$116.00

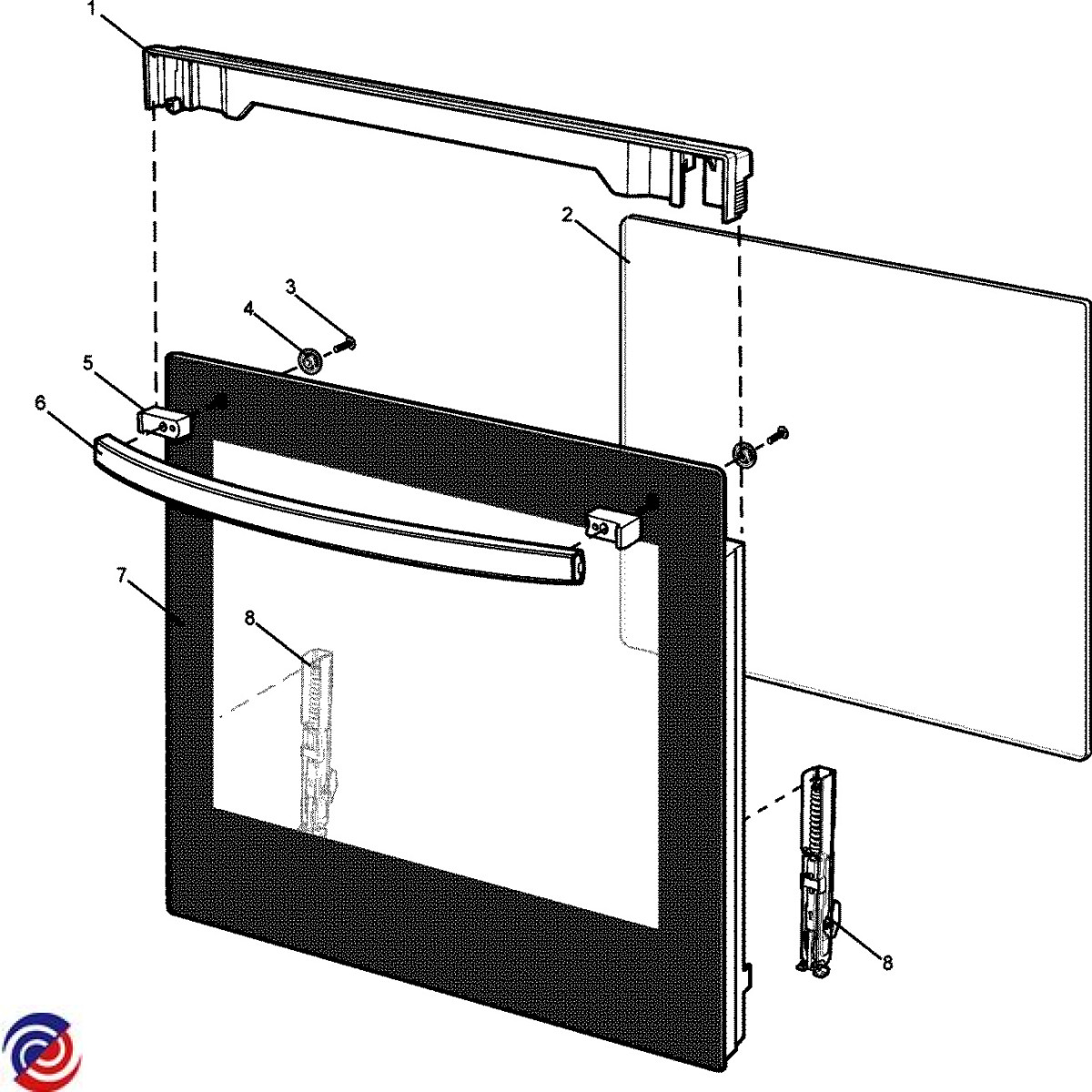

W0366387 DOOR PANEL OVEN DOOR OUTER
$99.50
W0366491 PANEL CROWN ELEV ENAM FRESCO
$200.00
W0366675 FRONT FRAME,GRILL,PAINT
$24.75
W0366676 FRONT FRAME,OVEN,PAINT
$38.80
W0366677 PNL SIDE GRILL IN R/H ELEV FRE
W0366679 PNL SIDE OVEN INN R/H ELEV FRE
W0366680 BASE PANEL,COOKER
$77.00
W0366681 SUPPORT HINGE LH OVEN ELEV FRS
$6.00
W0366682 SUPPORT HINGE RH OVEN ELEV FRS
$5.50
W0366690 STIFFENER,ANGLE BRACKET,OUTER,
$6.45
W0366691 BRACKET HOB SUPPORT 540 BENCHL
$11.00
W0366700 PANEL HEAT SHIELD END CAP RH
W0366701 PANEL HEAT SHIELD END CAP LH
W0367011 PANEL,OUTER,GRILL,ASSEMBLY 540
$33.50

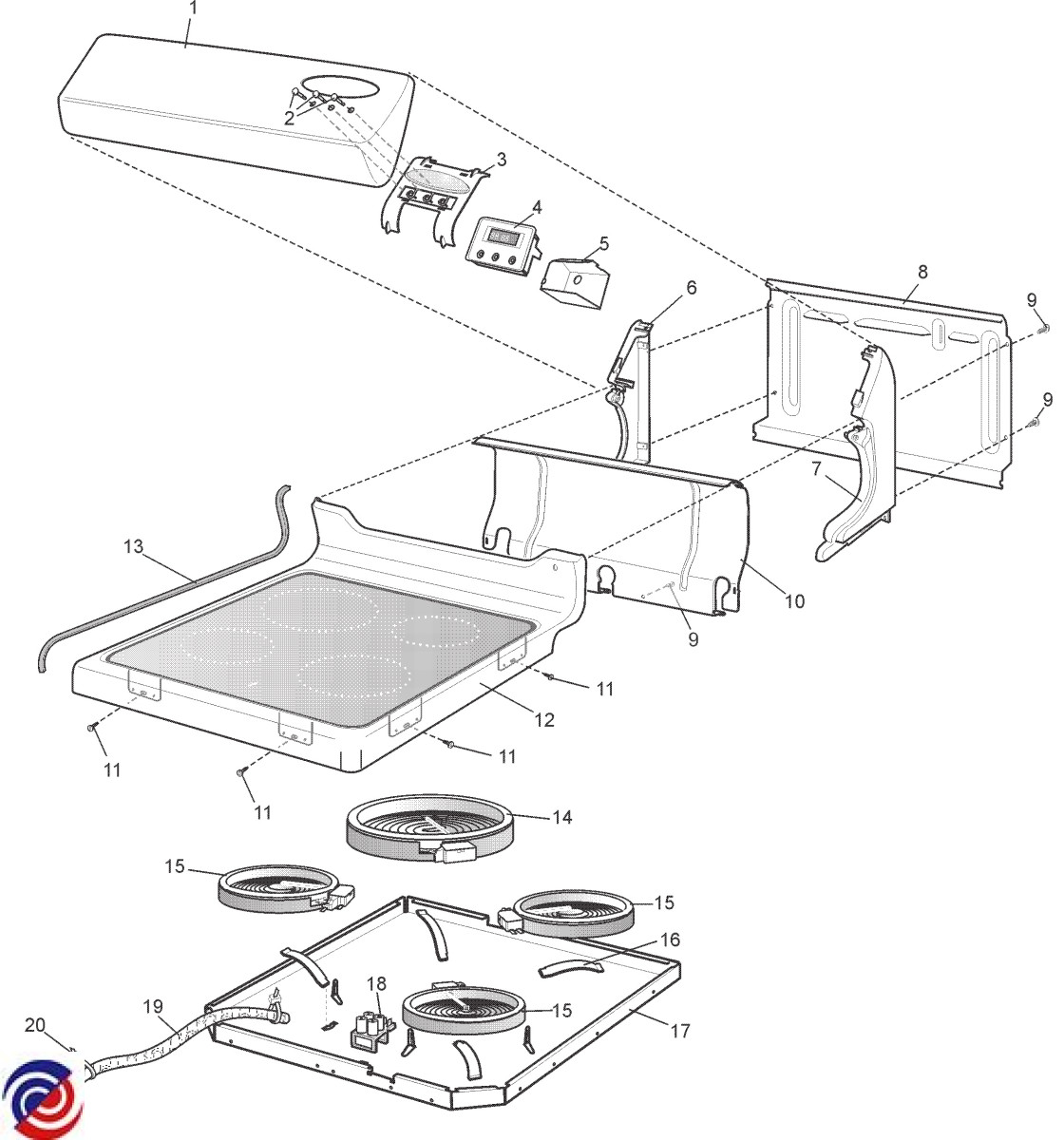

W0367072 HOB,CERAMIC COOKTOP,ASSEMBLY,A
$462.10
W0367123 CONTROL PANEL,SCREEN,S/B ASPIR
$118.00
W0367604 INSULATION OVEN WRAP - KNAUF
$54.00
W0367627 PANEL BASE WELDED GLOHO 540
W0367652 BRACKET SUPPORT TERMINAL BLOCK
W0367773 SHIELD CLOCK ELEVATED FOLD
W0367930 NUT HEX 3/16 BSW
$4.00
W0367931 SCREW M4 X 5 PAN #2 PH SML HD
$4.00
W0367935 SCREW #8 X 5/16 CSK #2PH AB BK
$5.50
W0367962 NUT METRIC M10 X 0.75MM
$4.00
W0367983 SCREW PF K40X 20 T20 ROUND
$5.50
W0367997 SPACER,HANDLE,BLACK,ASPIRE
$5.50
W0368004 TIE CABLE
$4.00
W0368022 CLIP THERMOSTAT BIOS
$5.50
W0368028 SCREW #8 X 8MM HEX/MULTI
$5.50
W0368029 SCREW #8 X 1/2 MUSH #2PH AB BK
$5.50
W0368030 NUT M6 LH FAN MOTOR
$4.50
W0368058 KNOB,WHITE,ASPIRE
$6.00
W0368084 ENDCAP HANDLE EXTRUDED ASPIRE
$6.00
W0368094 BUMPER STOP GREY
$5.80
W0368106 BUTTON CLOCK
$7.00
W0368139 SCREW
$8.00
W0368200 LENS 3 BUTTON CLOCK DIGI F/S
$11.00
W0368203 DUCT OVEN ASSY ELEV ELEC FRESC
$10.00
W0369315 PANEL TOP REAR
$15.40
W0372520 SPRING ELE CER GLOHO 540 EX HZ
$6.60
W0372541 INDICATOR HOTZONE GLOHO 540
$8.00
