WFE946SB — 940001854 08
WESTINGHOUSE — Cooker Electric
Parts for WFE946SB
.JPG)
W0011112 ELEM CERAM 200 DIA 1800W (EGO)
.JPG)
W0011297 BLADE FAN
W0011995 NUT M6 LH FAN MOTOR
W0012266 ELEMENT FAN RING 1200W VULCAN
W0012730 GASKET CAVITY OVEN
W0012755 MOTOR FAN OVEN
.JPG)
W0013596 SWITCH THERMAL CUT OUT 190 DEG
W0013970 RELAY 30A SINGLE POLE 240V
W0023144 POWERBOARD OVC3000 - EOS
$271.70

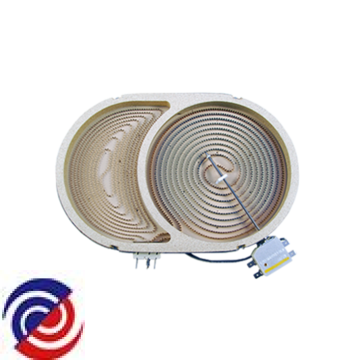

W0023252 ELEMENT CER FISH 1400W+800W
$155.05
W0030169 ELEMENT GRILL SPLIT ELUX VUL
W0032275 LAMP 25W 240V G9 PYRO HALOPIN
.JPG)
W0046406 CLIP MOUNTING ELEMENT
_1.JPG)
W0050403 MOTOR FAN OVEN
W0054725 SCRAPER CERAMIC GLASS
W0112558 ELEMENT 165 MM 1200W
W0011114 TERMINAL BLOCK W/EARTH BIOS
W0011142 COVER HINGE STORAGE DRAWER
$15.95
W0011201 SUPPORT ELEMENT GRILL VULCAN
$25.20
W0011264 PLATE CVR TERM ELEC BIOS
$13.85
W0011298 BLADE FAN
$34.35
W0011345 BRACKET KRONOS PROBE MOUNT BIO
$12.60
W0011403 DISH GRILL ENAMELLED VULCAN
$75.70
W0011477 PNL DECK GLUE 35W MOTOR VULCAN
$87.90
W0011543 PANEL STORAGE TOP
$27.50
W0011544 PANEL STORAGE LOWER
$116.05
W0011694 PANEL LOWER BRACE F/STAND VULC
$49.50
W0011695 PANEL FAN COVER
$112.55
W0011697 SPLASHBACK WHOUSE VULCAN 900
$129.15
W0011852 HINGE STORAGE DOOR VULCAN
$76.55
W0011996 NUT M6 R/H FAN MOTOR
$5.30
W0012046 FRAME FRONT PAINT VULCAN FSTAN
$132.00
W0012315 CLIP THERMOSTAT BIOS
$9.00
W0012319 RETAINER PYRO CATALYSER
$7.70
W0012413 COUNTER SUPPORT LH VULCAN F/S
W0012414 COUNTER SUPPORT RH VULCAN F/S
W0012463 INSULATOR SPILL
W0012639 SENSOR CABLE - 500MM
W0012642 HARNESS K2 INTERFACE VULCAN
W0012732 SEAL CONTROL PANEL
$11.15
W0013063 INSTALL ANTI -TILT CHAIN
W0013214 RACK PACK
W0013260 SHIELD WIRING
$11.95
W0013463 BRACE OVEN REAR VULCAN
$27.50
W0013465 BRACE PLINTH VULCAN
$14.30
W0013730 BUMPER STOP BLK
$6.55
W0013738 BUMPER STORAGE DOOR VULCAN
W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50
W0014031 SCREW #8 X 3/8 MUSH #2PH TC BK
$4.50
W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50
W0021585 PANEL RAISED VULCAN
W0022171 FOOT LEVELING
$16.35
W0023045 SPRING BASE
$11.95
W0027370 SCREW M4 X 25 PAN MTS PHIL BLK
$1.70
W0029497 WIRE HARNESS TOUCH CTRL KRONOS
$18.35
W0029677 INSULATION OVEN WRAP PYRO
W0029800 MOTOR FAN COOLING VULCAN
$101.70
W0030054 HANDLE DOOR WEST ANOD COBRA
W0030055 SPACER HANDLE W/HOUSE COBRA
W0030074 PNL CNT & CLIPS WFE946SB COBRA
$199.90
W0030108 PLINTH VULCAN
$23.05
W0030321 DOOR STORAGE COBRA
W0053529 RACK SIDE SUPPORT OVEN EVOLVE
W0053535 RACK INSERT GRILL DISH VULCAN
W0053538 RACK GRILL DISH SUPPORT VULCAN
W0053539 RACK SHELF OVEN VULCAN
$106.00
W0105318 SCREW
$7.35
W0114415 CLAMP CABLE
W0114457 HARNESS INTERFACE
W0114499 HOUSING UI VULCAN W/T SPRING
W0114559 LAMP OVEN HALOGEN 25W
W0114692 RADIANT HEATER 2300/1600/800W
W0114700 SENSOR TEMPERATURE PT500
W0134456 BOARD EVEREST 230V 10 RELAY
W0154089 ASSY GLASS&BRACKET CERA COBRA
W0271433 GLASS OVEN DOOR
W0275343 USER INTERFACE PELICAN PRO
$345.00
W0275679 PANEL RH SIDE F/STAND VULCAN
$185.65
W0275680 PANEL LH SIDE F/STAND VULCAN
W0275766 WRAP PLINTH VULCAN
$319.05
W0276525 VENT DOOR TOP CAP ASSY VULCAN
W0282172 KRONOS PROG COBRA HOTAIR G/BST
W0283609 CLEAN HEAT COVER E100 90CM
W0283672 INSULATION OVEN BACK E100 90CM
$16.65
W0284292 HINGE STD 11.9 KG 3 LAY VULCAN
$52.55
W0284345 ELEMENT C/H 1800W VULCAN E100
W0284540 PNL OV DR OUT ASS W/H FS COBRA
$170.50
