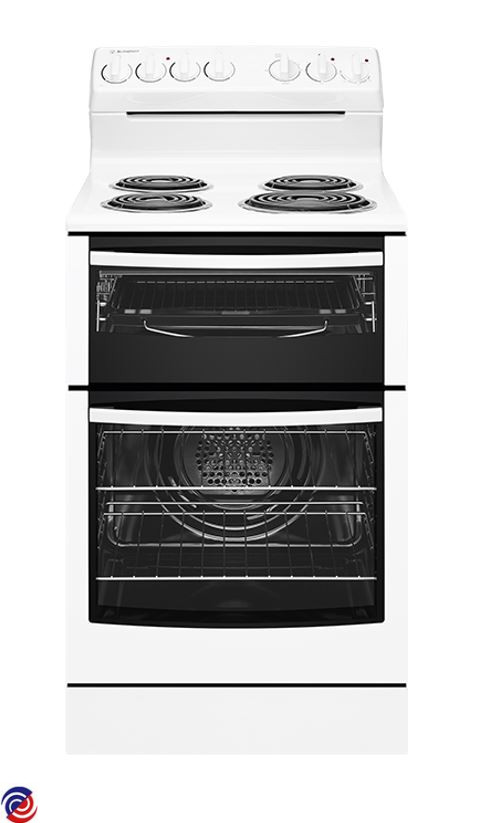

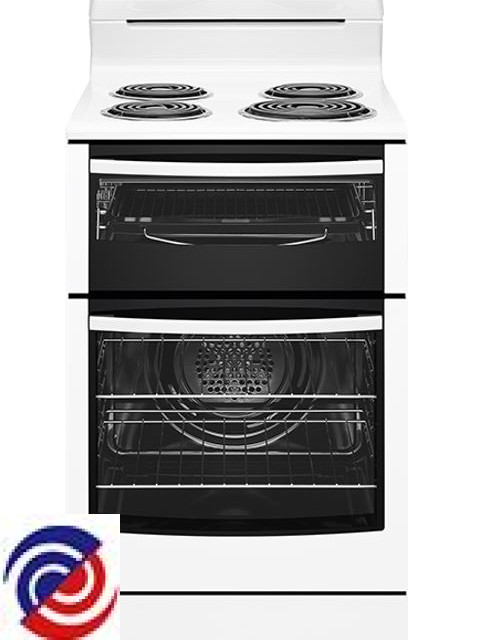

WLE525WB — 940001897 00
WESTINGHOUSE — Cooker Electric
Parts for WLE525WB

W0011232 KNOB WEST 540 WHT RC ELEC FRES
W0011400 DISH GRILL ENAM SEP GRILL
$68.20
W0011909 HANDLE GRILL DISH
$9.90

W0011995 NUT M6 LH FAN MOTOR
W0012254 ELEMENT C/HEAT 1800W SS321

W0012262 ELEMENT FAN RING 2200W
W0012570 END CAP HANDLE BLK WEST NGD
$14.05
.jpg)
W0012990 SPACER HANDLE BLK FRESCO
$10.25
W0013596 SWITCH THERMAL CUT OUT 190 DEG

W0013627 TRIM DOOR UPPER VENTED
W0014040 SCREW 3/16X28 PAN PH TRILOB ZY

W0022807 HINGE DOOR OVEN

W0030434 SEAL OVEN MODULAR PROFILE

W0032275 LAMP 25W 240V G9 PYRO HALOPIN

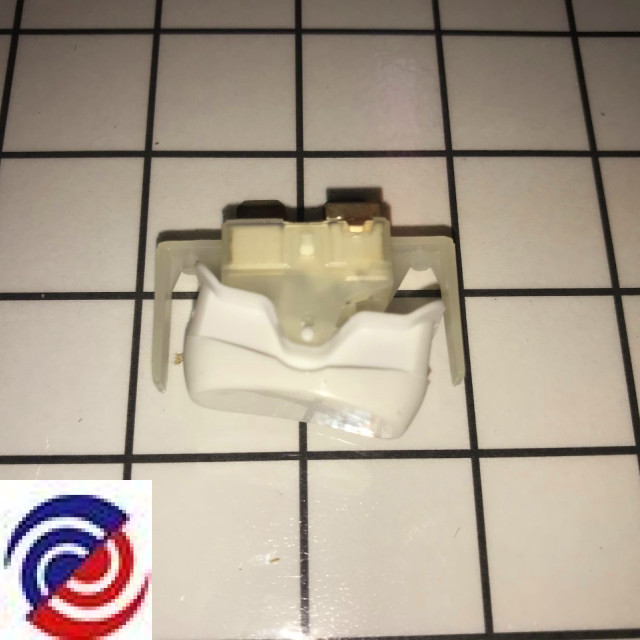

W0033439 SWITCH ROCKER
$4.50
W0046406 CLIP MOUNTING ELEMENT
W0050403 MOTOR FAN OVEN

W0053461 RACK GRILL INSERT
W0053487 SHELF OVEN 473 X 378MM
W0057210 SWITCH AUXILIARY T/STAT
W0057771 THERMOSTAT OVEN

W0058501 TRIM H/PLATE SUPPORT SMALL NA
W0058502 TRIM H/PLATE SUPPORT LARGE NA
W0060755 TIMER 60 MINUTE WESTLAKE
W0062420 LIGHT INDICATOR INC LENS

W0271174 IMPELLER OVEN FAN 160 MM

W0274109 SWITCH INF/HEAT EGO SINGLE

W0275063 LAMP OVEN ROUND PYRO BIOS

W0275716 ELEMENT 160MM BACKER

W0011114 TERMINAL BLOCK W/EARTH BIOS

W0011313 COVER WIRING RADIANT
$43.20

W0011407 TRAY SPILL

W0011513 PANEL SIDE WHITE FRESCO
$89.30

W0011612 PANEL FRONT PLAIN ENAM WLE522
$136.95

W0011666 COVER FAN & ELEMENT
$95.75

W0011845 HINGE GR DOOR 540 FRESCO PH2
$7.70

W0011929 HNDL DOOR WEST 7820 WHITE
$60.95

W0012315 CLIP THERMOSTAT BIOS
$9.00

W0012417 SUPPORT COUNTER FRESCO
$7.05

W0012521 SCREW M4 X 4 PAN #1PH SMALL HD
$4.50

W0012853 GLASS OV DR IN REFL FRESCO

W0013260 SHIELD WIRING
$11.95

W0013266 SHIELD WIRING HOB INTERIM FRES
$31.90

W0013614 TRIM SWITCH BEZEL NZ

W0013731 BUMPER STOP GREY
$5.05

W0013772 HOB S/BACK ENAM RAD FRESCO
$253.50

W0014019 SCREW #6X3.5X28 HILO PAN PH
$4.50

W0014026 SCREW #8 X 5/16 CSK #2PH AB BK
$4.50

W0014029 SCREW #8 X 1/2 MUSH PH#2 AB BK

W0014030 SCREW #8 X 8MM HEX/MULTI
$4.50

W0014034 SCREW #8 X 1/2 MUSH #2PH AB BK
$4.50

W0022171 FOOT LEVELING
$16.35

W0029350 540 LOWER REAR BRACE
$12.60

W0029662 ANTI TILT PLATE
$15.65

W0030092 PNL OUT GR ASSY 540 WEST LGE P

W0030093 PNL OUT OV DR ASS 540 WEST PRE

W0030606 INSULATION OVEN BACK - KNAUF
$15.55

W0030633 BRACE OVEN REAR 540 BIOS

W0038835 BRACKET SUPPORT HOB 540RC

W0039885 PANEL TOP REAR

W0039903 PANEL CABINET REAR (NO HOLE)
$28.00

W0043118 PANEL REFLECTOR GRILL TOP

W0044830 FLUE DUCT OVEN ELEC 540 BIOS

W0045532 BOLT STABILISING

W0047180 SUPPORT GRILL ELEMENT

W0047469 SCREW M4 X 5 PAN #2 PH SML HD
$4.50

W0048101 ENDCAP REAR CONTROL PANEL RHS

W0048102 ENDCAP REAR CONTROL PANEL LHS

W0053471 RACK SIDE GRILL LH/RH
$59.10

W0054672 INSULATION OVEN WRAP - KNAUF
$63.85

W0059836 DUCT GRILL BOX 540 R/C BIOS

W0064367 SCREW 3/16 X 1 PAN PHIL NI

W0064486 SCREW 3/16X28 PAN PH TRILOB BK

W0064527 SCREW NO 8 X 12 MM PD
$4.50

W0064747 NUT HEX 3/16 BSW
$4.50

W0064939 WASHER 3/16 INT S/P ZC
$4.50

W0275717 ELEMENT 200MM BACKER

W0275742 PANEL KICK 540 SML WHT PREPAIN
$25.05

W0275747 F/FRONT ENAM 540RC SEP GRILL
$57.75

W0283798 PNL CNT S/B SCR WLE525WB
$136.60

W0283799 PNL CNT S/B SCR WLE535WB
$136.60
